INTERTEK TESTING SERVICE Report No.: HK10031356-1 FCC ID: G2R-0788A Equipment Photographs Model : 80-078841 (External)

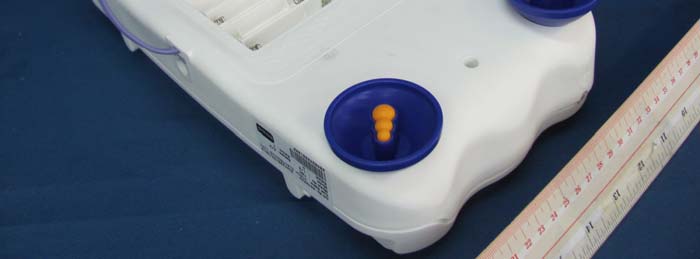

Bottom cabinet

INTERTEK TESTING SERVICE Report No.: HK10031356-1 FCC ID: G2R-0788A Equipment Photographs Model : 80-078841 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031356-1 FCC ID: G2R-0788A Equipment Photographs Model : 80-078841 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031356-1 FCC ID: G2R-0788A Equipment Photographs Model : 80-078841 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031356-1 FCC ID: G2R-0788A Equipment Photographs Model : 80-078841 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031356-1 FCC ID: G2R-0788A Equipment Photographs Model : 80-078841 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031356-1 FCC ID: G2R-0788A Equipment Photographs Model : 80-078841 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031356-1 FCC ID: G2R-0788A Equipment Photographs Model : 80-078841 (Internal)

INTERTEK TESTING SERVICES Report No.: HK10031356-1 Sample No.: 1//1 (Console) Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) OATS = 93.4dBuV/m Field strength (Peak) = 93.4 – 39.25 dBuV/m = 54.2 dBuV/m (Limit: 74 dBuV/m) Field strength (Average) = 54.2 - AF dBuV/m = 54.2 – 27 dBuV/m = 27.2 dBuV/m (Limit: 54 dBuV/m) OATS = 93.2dBuV/m Field strength (Peak) = 93.2 – 43.3 dBuV/m = 49.9 dBuV/m (Limit: 74 dBuV/m) Field strength (Average) = 49.9 - AF dBuV/m = 49.9 – 27 dBuV/m = 22.9 dBuV/m (Limit: 54 dBuV/m) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail)

INTERTEK TESTING SERVICES Model No.: 80-078841 Worst Case: TX mode - PC’s AC Mains 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP HK10031355-1 (C13551A1T) Date: 7.APR.2010 17:59:30 INTERTEK TESTING SERVICES Model No.: 80-078841 Worst Case: TX mode - PC’s AC Mains EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average172.5 kHz 33.89 L1 gnd -20.94 2 CISPR Average744 kHz 31.00 N gnd -14.99 1 Quasi Peak 748.5 kHz 40.08 N gnd -15.91 1 Quasi Peak 973.5 kHz 47.07 N gnd -8.92 2 CISPR Average1.0095 MHz 38.89 N gnd -7.10 2 CISPR Average1.104 MHz 36.99 N gnd -9.00 1 Quasi Peak 1.1175 MHz 43.06 N gnd -12.93 1 Quasi Peak 1.6035 MHz 38.67 N gnd -17.32 2 CISPR Average1.6305 MHz 32.17 N gnd -13.83 1 Quasi Peak 4.029 MHz 34.35 N gnd -21.64 2 CISPR Average4.047 MHz 29.31 N gnd -16.68 2 CISPR Average4.3575 MHz 28.78 N gnd -17.21 1 Quasi Peak 4.7805 MHz 35.01 N gnd -20.99 HK10031355-1 (C13551A1T) Date: 7.APR.2010 17:59:23 INTERTEK TESTING SERVICES Model No.: 80-078841 Worst Case: RX Mode - PC’s AC Mains 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP HK10031355-1 (C13551A2) Date: 7.APR.2010 18:04:46 INTERTEK TESTING SERVICES Model No.: 80-078841 Worst Case: RX Mode - PC’s AC Mains EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average730.5 kHz 31.83 N gnd -14.16 1 Quasi Peak 739.5 kHz 40.89 N gnd -15.10 1 Quasi Peak 960 kHz 48.97 N gnd -7.02 2 CISPR Average960 kHz 38.33 N gnd -7.66 1 Quasi Peak 1.0995 MHz 46.81 N gnd -9.18 2 CISPR Average1.104 MHz 39.73 N gnd -6.26 2 CISPR Average1.5585 MHz 29.75 N gnd -16.24 1 Quasi Peak 1.608 MHz 39.06 N gnd -16.93 1 Quasi Peak 4.083 MHz 34.31 N gnd -21.68 2 CISPR Average4.101 MHz 29.37 N gnd -16.62 1 Quasi Peak 4.776 MHz 35.18 N gnd -20.81 2 CISPR Average4.821 MHz 29.57 N gnd -16.42 HK10031355-1 (C13551A2) Date: 7.APR.2010 18:04:36 INTERTEK TESTING SERVICES Model No.: 80-078841 Worst Case: Normal Operation mode - PC’s AC Mains 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP HK10031355-1 (C13551A3) Date: 7.APR.2010 18:10:05 INTERTEK TESTING SERVICES Model No.: 80-078841 Worst Case: Normal Operation mode - PC’s AC Mains EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 757.5 kHz 39.26 N gnd -16.73 2 CISPR Average766.5 kHz 29.37 N gnd -16.63 2 CISPR Average969 kHz 39.18 N gnd -6.81 1 Quasi Peak 1.0275 MHz 49.09 N gnd -6.90 2 CISPR Average1.095 MHz 38.66 N gnd -7.33 1 Quasi Peak 1.1175 MHz 46.87 N gnd -9.12 1 Quasi Peak 1.5405 MHz 41.75 N gnd -14.24 2 CISPR Average1.563 MHz 32.75 N gnd -13.25 1 Quasi Peak 4.0695 MHz 34.56 N gnd -21.43 2 CISPR Average4.0965 MHz 29.61 N gnd -16.39 1 Quasi Peak 4.434 MHz 41.22 N gnd -14.77 2 CISPR Average4.443 MHz 33.08 N gnd -12.92 HK10031355-1 (C13551A3) Date: 7.APR.2010 18:09:56

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10031356-1 VTech Electronics Ltd. Application For Certification (Original Grant) (FCC ID: G2R-0788A) Transceiver Prepared and Checked by: Approved by: Signed On File Benny Lau/sl Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: May 06, 2010 INTERTEK TESTING SERVICES Report No.: HK10031356-1 FCC ID: G2R-0788A i GENERAL INFORMATION VTech Electronics Ltd. FCC ID: G2R-0788A BRAND NAME: VTech, MODEL: 80-0788XX Grantee: VTech Electronics Ltd. Grantee Address: 23/F., Tai Ping Industrial Center, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Contact Person: Mr. Colbert Tang Tel: 852-2680 1201 Fax: 852-2680 1228 e-mail: [email protected] Manufacturer: VTech Electronics Ltd. Manufacturer Address: N/A Brand Name: VTech FCC ID: G2R-0788A FCC Model: 80-0788XX, where the letters “XX” represent 00 to 99 Type of EUT: Transceiver Description of EUT: TV Game Console Serial Number: N/A Date of Sample Submitted: March 29, 2010 Date of Test: April 09, 2010 Report No.: HK10031356-1 Report Date: May 06, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10031356-1 FCC ID: G2R-0788A ii SUMMARY OF TEST RESULT VTech Electronics Ltd. FCC ID: G2R-0788A BRAND NAME: VTech, MODEL: 80-0788XX TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 Pass Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 Pass Digital Device Conducted Emissions 15.107 / ICES-003 Pass Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10031356-1 FCC ID: G2R-0788A iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants............................................................................... 1 1.3 Test Methodology.............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ............................................................................. 2 2.1 Justification ....................................................................................................... 2 2.2 EUT Exercising Software................................................................................... 2 2.3 Special Accessories .......................................................................................... 2 2.4 Equipment Modification ..................................................................................... 2 2.5 Measurement Uncertainty.................................................................................. 2 2.6 Support Equipment List and Description ............................................................ 3 3.0 Emission Results .........................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK10031356-1 Sample No.: 1/1 (Console) Searching Joystick mode Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) Duty Cycle = 0.632 x 7 ms 100 = 4.424 ms 100 =0.04424 Average Factor = 20log(0.04424) = -27 Timming Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement INTERTEK TESTING SERVICES Report No.: HK10031356-1 Sample No.: 1/1 (Console) Searching Joystick mode Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) Timming Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement

INTERTEK TESTING SERVICE Report No: HK10031356-1 FCC ID: G2R-0788A i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : 80-078841 Figure 1 INTERTEK TESTING SERVICE Report No: HK10031356-1 FCC ID: G2R-0788A ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : 80-078841 Figure 2 INTERTEK TESTING SERVICE Report No: HK10031356-1 FCC ID: G2R-0788A iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : 80-078841 Figure 3

INTERTEK TESTING SERVICE Report No: HK10031356-1 FCC ID: G2R-0788A Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 80-078841 Figure 1 INTERTEK TESTING SERVICE Report No: HK10031356-1 FCC ID: G2R-0788A Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 80-078841 Figure 2
