G2R-5473KIDISTAR DJ MIXER

Parent’s Guide 91-004004-000 USCA F.P.O 2 INTRODUCTION Thank you for purchasing the VTech ® Kidi DJ Mixer. VTech ® Kidi DJ Mixer features easy music creation in different styles. 1 1 4 1011 7 2 5 8 3 6 12 9 2 9 3 10 4 11 12 5 6 8 7 Build-in voice button Bluetooth Connect Button Party Light pattern selector Selection Buttons (Left, Right, OK) Line-in button Power Button Volume Control Pause Button Bluetooth button Turntable Tempo Buttons Party Light On / Off selector F.P.O 3 INCLUDED IN THIS PACKAGE • One Kidi DJ Studio • One parent’s guide WARNING All packing materials such as tape, plastic sheets, packaging locks, removable tags, cable ties, cords and packaging screws are not part of this toy, and should be discarded for your child’s safety. NOTE Please keep this parent’s guide as it contains important information. ATTENTION Pour la sécurité de votre enfant, débarrassez-vous de tous les produits d’emballage tels que rubans adhésifs, feuilles de plastique, attaches, étiquettes, cordons et vis d’emballage. Ils ne font pas partie du jouet. NOTE Il est conseillé de conserver ce guide des parents car il comporte des informations importantes. WARNING The tie are not part of this toy. The tie should be removed and discarded for your child’s safety. Unlock the packaging locks: Rotate the packaging locks 90 degrees counter-clockwise. Pull out the packaging locks. 4 GETTING STARTED This product is in Try-me mode in the packaging. Press and hold the Customize sound effect button 5 for a few seconds to proceed with normal play. If the unit powers down during the play, please install a new set of batteries. Battery Removal and Installation 1. Make sure the unit is turned Off. 2. Find the battery cover located on the back of the unit, use a screwdriver to loosen the screw and then open the battery cover. 3. Remove old batteries by pulling up on one end of each battery. 4. Install 4 new AA (AM-3/LR6) batteries following the diagram inside the battery box. (For best performance, alkaline batteries or fully charged Ni-MH rechargeable batteries are recommended). 5. Replace the battery cover and tighten the screw to secure. WARNING: Adult assembly required for battery installation. Keep batteries out of reach of children. ATTENTION : Les piles ou accumulateurs doivent être installés par un adulte. Tenir les piles ou accumulateurs hors de portée des enfants. 5 BATTERY NOTICE • Insert batteries with the correct polarity (+ and -). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Do not short-circuit the supply terminals. • Remove batteries during long periods of non-use. • Remove exhausted batteries from the toy. • Dispose of batteries safely. Do not dispose of batteries in fire. RECHARGEABLE BATTERIES: • Remove rechargeable batteries from the toy before charging. • Rechargeable batteries are only to be charged under adult supervision. • Do not charge non-rechargeable batteries. 6 MISE EN GARDE Les piles fournies avec le produit permettent de tester le jouet en magasin mais ne sont pas des piles longue durée. • Mettre en place les piles ou les accumulateurs en respectant les polarités + et –. • Ne pas mélanger des piles ou des accumulateurs neufs avec des usagés. • Ne pas mélanger différents types de piles : alcalines, zinc-carbone et rechargeables. • Seules des piles du type recommandé doivent être utilisées. • Ne pas mettre les bornes d’une pile ou d’un accumulateur en court-circuit (en reliant directement le + et le –). • Retirer les piles ou les accumulateurs en cas de non-utilisation prolongée. • Enlever les piles ou les accumulateurs usagés du jouet. • Ne les jeter ni au feu ni dans la nature. PILES RECHARGEABLES : • Enlever, lorsque c’est possible, les accumulateurs du jouet pour les recharger. • Les accumulateurs ne doivent être chargés que sous la surveil- lance d’un adulte. • Ne pas tenter de recharger des piles non rechargeables. 7 PRODUCT FEATURES 1. POWER BUTTON Press the Power Button to power on the unit. Press the button again to power off the unit. 2. LINE-IN JACK Connect external player 3. EXTERNAL SPEAKER JACK Connect external speaker or headphone 4. AC ADAPTER Connect AC adapter power 5. AUTOMATIC SHUT-OFF To preserve battery life, the KidiGo™ Fast Break Hoop will automatically turn off after 10 minutes without input. The unit can be turned on again by pressing the Power Button. 8 GAMES DJ Party Launch pad buttons Use the Launch pad buttons to choose different instruments sounds to play. Each column allows one button to be playing. The selected option is lit up. Preset sound effect buttons Press the Preset sound effect buttons to add build-in sound effects. Style button Press Style button to change the music for the Launch pad buttons and Build-in sound effect buttons Customize SFX buttons Hold to record your own short sound effect. It lights up to indicate recording in progress. Release the button when finished recording. Press and release immediately to play the recorded sound effect. Turntable Turn the Turntable to add scratch disc sound on your music. Scratch button Press Scratch button to choose the sound effect for the Turntable Build-in button Press Build-in button to add human voice track onto the music. Press again to mute it. Line-in button Press Line-in button to play the line-in device sound. 9 Bluetooth connect button and Bluetooth button Press Bluetooth connect button to connect a Bluetooth device. After the device is connected, press Bluetooth music button to play the Bluetooth external source sound Crossfader Use the crossfader to adjust the volume balance between Build-in / Line-in / Bluetooth sound and the Launch pad. Tempo control Use the Tempo control buttons to adjust. the tempo of the Launch pad music. Pause button Press Pause button anytime to stop all sound. Press again to resume the sound. Disco light control Use the Disco li…

Text truncated - open the document above for the full version.

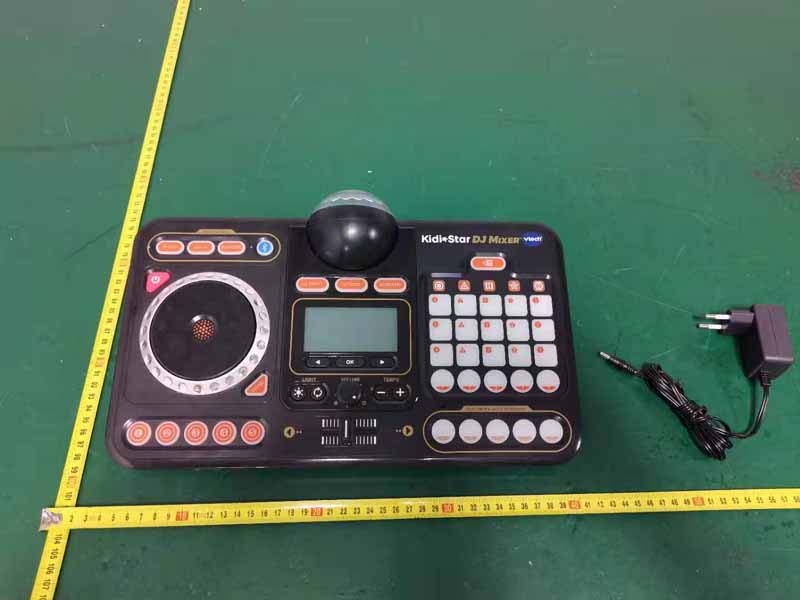

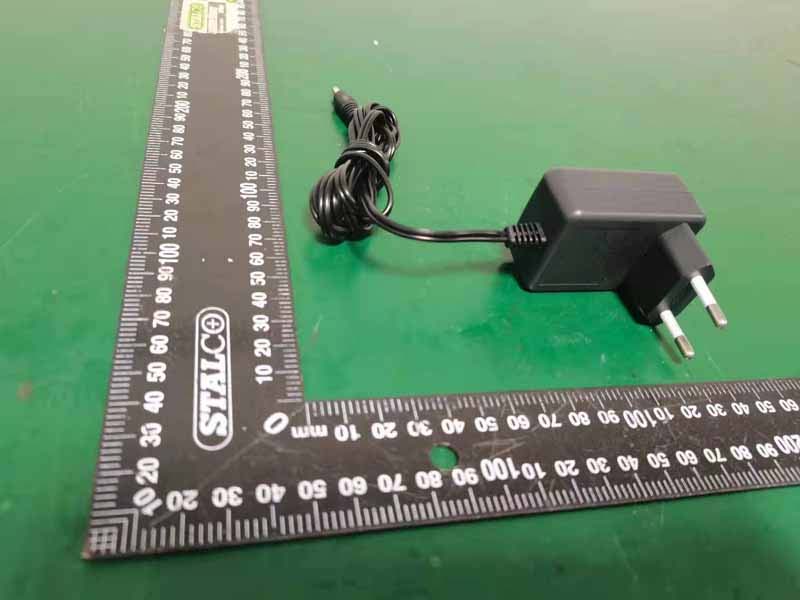

External Photos M/N: 5473 External Photos M/N: 5473 External Photos M/N: 5473 External Photos M/N: 5473

80-5473 30-051651-000 FCC ID : G2R-5473 IC : 1135D-5473

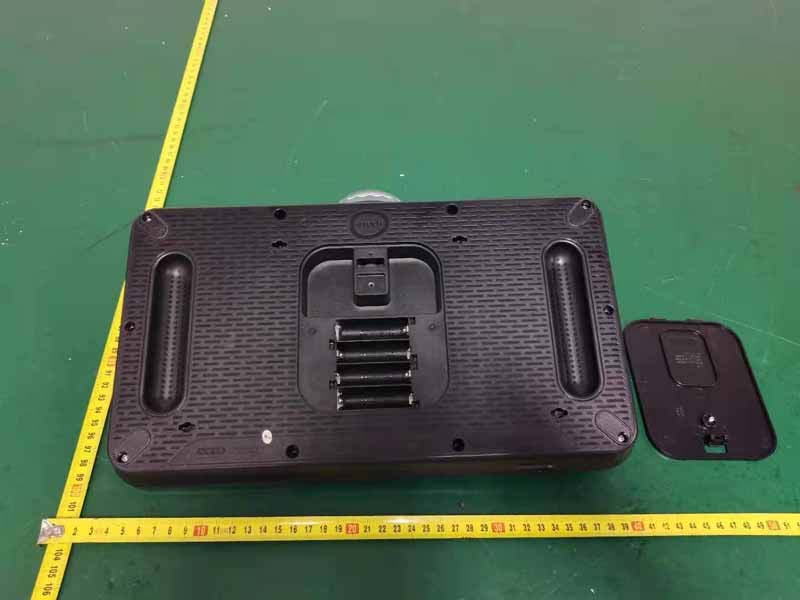

Internal Photos M/N: 5473 Internal Photos M/N: 5473 Internal Photos M/N: 5473 Internal Photos M/N: 5473

FCC ID: G2R-5473 EST Technology Co., Ltd Report No. ESTE-R2105058 Page 1 of 3 FCC RF EXPOSURE REPORT VTECH ELECTRONICS LTD KIDISTAR DJ MIXER Model Number: 5473 Additional Model: 80-547300;80-547301;80-547302;80-547303;80-547304; 80-547305;80-547306; 80-547307; 80-547308; 80-547309; 80-547310; 80-547311; 80-547312; 80-547313; 80-547314; 80-547315; 80-547316; 80-547317; 80-547318; 80-547319; 80-547320; 80-547321; 80-547322; 80-547323; 80-547324; 80-547325; 80-547326; 80-547327; 80-547328; 80-547329; 80-547330; 80-547331; 80-547332; 80-547333; 80-547334; 80-547335; 80-547336; 80-547337; 80-547338; 80-547339; 80-547340; 80-547341; 80-547342; 80-547343; 80-547344; 80-547345; 80-547346; 80-547347; 80-547348;80-547349;80-5473XX (XX=00~99) FCC ID: G2R-5473 Prepared for: VTECH ELECTRONICS LTD 23F Tai Ping Industrial Center, Block 1, 57 Ting Kok Road, Tai Po,Hong Kong Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2105058 Date of Test: Jan. 30~May. 07, 2021 Date of Report: May. 09, 2021 FCC ID: G2R-5473 EST Technology Co., Ltd Report No. ESTE-R2105058 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KD B447498 D01 General RF Exposure Guidance v06 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: G2R-5473 EST Technology Co., Ltd Report No. ESTE-R2105058 Page 3 of 3 3. Evaluation Results Mode Frequency (MHz) Peak output Power (dBm) Peak output Power (mW) Target power (dBm) Results GFSK 2402 -0.820 0.828 0±1 0.390 2441 -1.526 0.704 -1±1 0.312 2480 -2.201 0.602 -2±1 0.250 π/4- DQPSK 2402 1.090 1.285 0±2 0.491 2441 0.425 1.103 0±1 0.393 2480 -0.212 0.952 0±1 0.397 Note: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. End of Test Report
