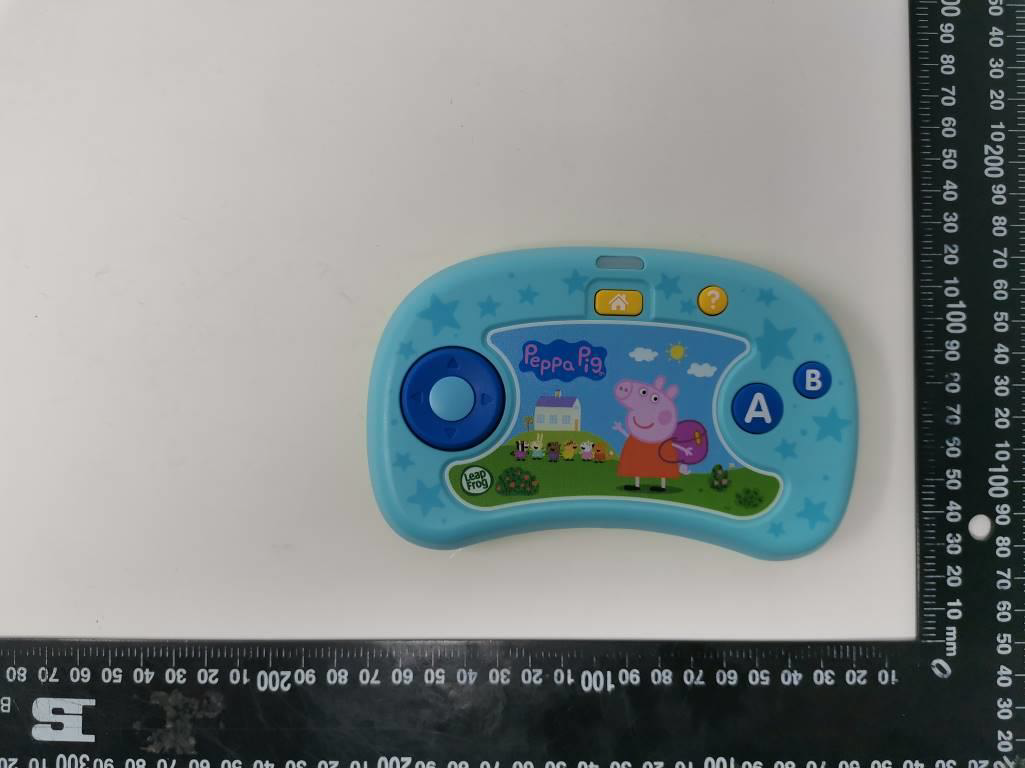

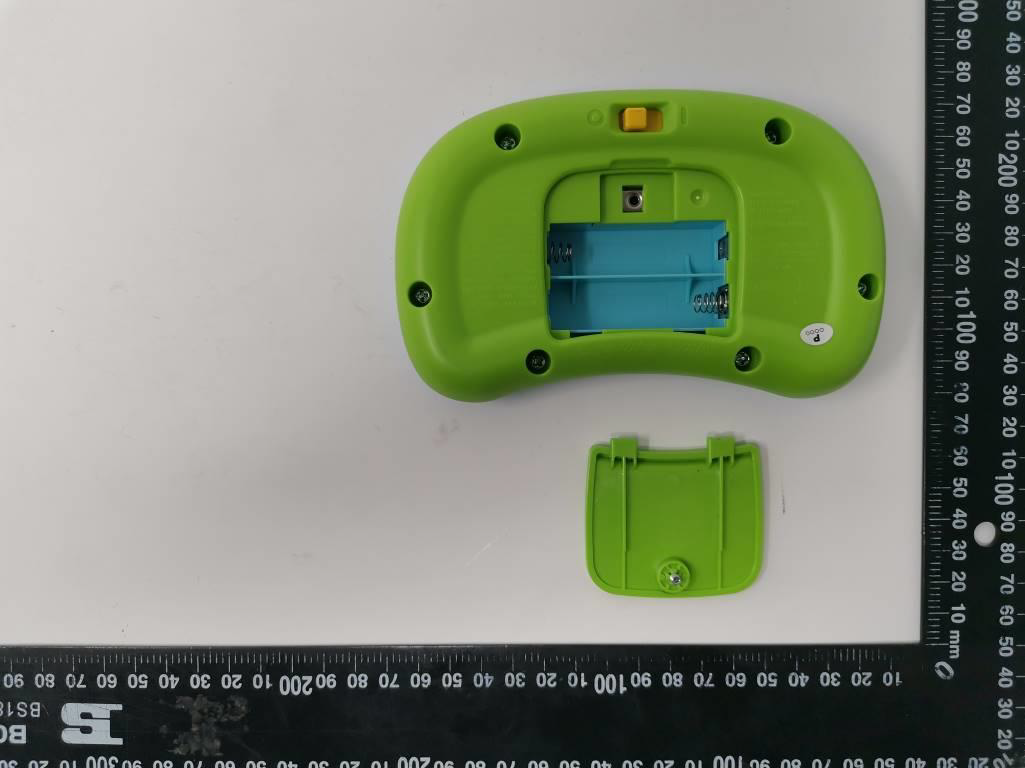

G2R-6088Wireless controller

Instruction Manual This guide contains important information. Please keep it for future reference. IM-608800-000 US 2 INTRODUCTION Thank you for purchasing the Peppa Pig Peppa’s Big Day learning video game! Join Peppa Pig as she gets ready for school, engages in fun-filled activities at her playgroup, goes on field trips with her classmates and more! INCLUDED IN THE PACKAGE • 1 wireless controller • 1 HDMI game stick • 1 micro USB power cable • Quick Start Guide WARNING All packing materials such as tape, plastic sheets, packaging locks, removable tags, cable ties and packaging screws are not part of this toy and should be discarded for your child’s safety. NOTE Please save this Instruction Manual as it contains important information. D-Pad B Button A Button Home Button Help Button HDMI Game Stick Wireless Controller Power Switch Micro USB Power Cable 3 ATTENTION Pour la sécurité de votre enfant, débarrassez-vous de tous les produits d’emballage tels que rubans adhésifs, feuilles de plastique, attaches, étiquettes et vis d’emballage. Ils ne font pas partie du jouet. NOTE Il est conseillé de sauvegarder ce manuel d’utilisation car il comporte des informations importantes. GETTING STARTED Initial Setup 1. Plug the USB B Connector end of the Micro USB Power Cable into the USB B port on the HDMI Game Stick. 2. Plug the HDMI Game Stick into an HDMI port on your television. 3. Plug the USB A Connector end of the Micro USB Power Cable into a USB port on your television. 4. Make sure your television is set to display the same HDMI port that the HDMI Game Stick is plugged into. 5. Find the battery cover located on the back of the Wireless Controller, use a screwdriver to loosen the screw and then open the battery cover.* 6. Remove old batteries by pulling up on one end of each battery. 7. Install 2 new AA (AM-3/LR6) batteries following the diagram inside the battery box. (For best performance, alkaline batteries or fully charged Ni-MH rechargeable batteries are recommended.) 8. Replace the battery cover and tighten the screw to secure. 9. Turn the power switch on the device to On. * To ensure proper connectivity, install batteries in the device after the HDMI Game Stick has been plugged into the television. 4 NOTE The HDMI Game Stick is only compatible with television sets and is not compatible with computers or computer monitors. WARNING: Adult assembly required for battery installation. Keep batteries out of reach of children. ATTENTION : Les piles ou accumulateurs doivent être installés par un adulte. Tenir les piles ou accumulateurs hors de portée des enfants. IMPORTANT: BATTERY INFORMATION • Insert batteries with the correct polarity (+ and -). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Do not short-circuit the supply terminals. • To save battery, turn off the controller when finished using it. • Remove batteries during long periods of non-use. • Remove exhausted batteries from the toy. • Dispose of batteries safely. Do not dispose of batteries in fire. • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas. • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. RECHARGEABLE BATTERIES • Remove rechargeable batteries (if removable) from the toy before charging. • Rechargeable batteries are only to be charged under adult supervision. • Do not charge non-rechargeable batteries. NOTE If the Wireless Controller powers down or if the light fades out during play, please install a new set of batteries. 5 PRODUCT FEATURES 1. D-Pad • Press the D-Pad on the Wireless Controller to select an item on the Menu screen. • See Games section below for D-Pad usage in individual games. 2. Home Button • Press the Home Button on the Wireless Controller to quit a level, quit the game, or return to the previous Menu screen. 3. Help Button • Press the Help Button on the Wireless Controller to hear hints and tips on how to play the game or navigate the Menu screen. 4. A Button • Press the A Button on the Wireless Controller to select the highlighted objects on the Menu screen. • See Games section below for A Button usage in individual games. 5. B Button • Press the B Button on the Wireless Controller to return to the previous Menu screen. • See Games section below for B Button usage in individual games. 6. Menu Screens • The following Menu screens appear in the game. Profile Selection Screen • Create or delete a saved profile on the Save Selection screen. • If a saved file has been accidentally deleted, highlight a New save slot and press the following buttons on the Wireless Controller: Home + Home + Help + Help + B + B + Help + Home + B. This will also unlock all the missions in the game. Game Mode Screen • Play games sequentially by selecting Play, or individual games in Quick Play mode. 6 Week Menu Screen • Access the different games from the Week menu screen. • The player will need to get one star in each game in a day before the next day is unlocked. Day Menu Screen • Select a game within a specific day. • Stars earned during gameplay will display below each game’s icon. Quick Play Menu • Access individual games in the Quick Play menu. 7 7. Games Game 1: Fix the Path • Press the D-Pad to select a piece of the path to fix • Press the A Button to turn the piece • Press the B Button to send Peppa down the path Game 2: Archery • Press the D-Pad up and down to aim at a target • Press the A Button to send an arrow towards the target Game 3: Tidying Up Searching • Press the D-Pad to move the magnifying glass • Press the A Button to select an item that’s highlighted by the magnifyi…

Text truncated - open the document above for the full version.

Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: 07-02-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID:G2R-6088 VTech Electronics Limited (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Antony Wong Title: Senior Manger Address: 23F Tai Ping Industrial Center, Block 1, 57 Ting Kok Road,Tai Po,Hong Kong Tel.: + 26801233 Email: [email protected]

[VTECH] [2.4GHz Antenna] Model: 6088 controller Antenna description: This antenna is optimized and used in the controller model. This antenna is integrated in main PCB. Ordering information: Model Description 6088 controller 2.4GHz Antenna Specification: Operation Frequency Range 2405-2475 MHz Maximum Gain 0 dBi Type Monopole Operation bandwidth 70MHz Nominal Impedance ~50 ohms Connectors - Dimensions 18mm x 7mm Manufacturer Vtech Electronic Ltd Manufacturer address 23/F, Tai Ping Industrial Centre, Blk1, 57 Ting Kok Road, Tai Po, Hong Kong Model number ANT-6088-P-FH-1 [VTECH] [2.4GHz Antenna] Antenna pattern (2436MHz) (the frequency with maximum gain) XY plane (gain theta)

6088 Model:6088 FCC ID: G2R-6088 IC: 1135D-6088 C A N I C E S - 0 0 3 ( B ) / N M B - 0 0 3 ( B ) TM & © 2023 LeapFrog Enterprises, Inc. leapfrog.com MADE IN CHINA FABRIQUÉ EN CHINE 6088 Engraving info © ABD/eOne/Hasbro THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23QR2D 001 Auftrags-Nr.: Order no.: 168404445 Seite 1 von 20 Page 1 of 20 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-12-22 Auftraggeber: Client: VTech Electronics Limited 23F Tai Ping Industrial Center, Block 1, 57 Ting Kok Road,Tai Po,Hong Kong Prüfgegenstand: Test item: Wireless controller Bezeichnung / Typ-Nr.: Identification / Type no.: 6088, 80-608800, 80-608803, 80-608804, 80-608822, 80-6088xx (xx=00 to 99, definition of country and language version) Auftrags-Inhalt: Order content: FCC and IC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 2.1093 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 February 2021 RSS-102 Issue 5 February 2021 Wareneingangsdatum: Date of sample receipt: 2022-12-28 Please refer to photo documents Prüfmuster-Nr.: Test sample no.: A003395764 Prüfzeitraum: Testing period: 2022-12-29 – 2023-01-31 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Alex Lan genehmigt von: authorized by: X Signed by: Lin Lin Datum: Date: 2023-03-10 Ausstellungsdatum: Issue date: 2023-03-10 Stellung / Position Assistant Project Manager Stellung / Position Reviewer Sonstiges / Other: FCC ID: G2R-6088 IC: 1135D-6088 HVIN: 6088 PMN: Peppa Pig Peppa’s Big Day Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V05 duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · W eb: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN23QR2D 001 Seite 13 von 20 Page 13 of 20 5.1.2Maximum Conducted Output Power RESULT:Pass Table 4: Test Result of Maximum Conducted Output Power Conducted Peak Output PowerLimit Channel Channel Frequency (MHz) (dBm)(W)(W) Low Channel2408-4.00.000401 Middle Channel2438-4.30.000371 High Channel2472-4.30.000371 Test Specification Test standard: FCC Part 15.247(b)(3) RSS-247 Clause 5.4(d) Basic standard:ANSI C63.10: 2013 Limits: < 1 Watt (Maximum Conducted Peak Power) e.i.r.p. <4W Kind of test site:Shielded Room Test Setup Date of testing:2023-01-05 Input voltage:DC 3V Operation mode:A Test channel:Low / Middle / High Ambient temperature: 24.8 °C Relative humidity :55 % Atmospheric pressure :101 kPa For details refer to following test result. Note: The cable loss is taken into account in results and the e.i.r.p. is -4.0 dBm less than 4W (36 dBm). Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN23QR2D 001 Seite 19 von 20 Page 19 of 20 6Safety Human Exposure 6.1Radio Frequency Exposure Compliance 6.1.1Electromagnetic Fields RESULT:Pass Test Specification Test standard:FCC KDB Publication 447498 v06 CFR47 FCC Part 2: Section 2.1093 CFR47 FCC Part 1: Section 1.1310 RSS-102 Issue 5 February 2021 FCC requirement: The measured maximum conducted output power of the EUT is -4.0 dBm ≈ 0.4mW, which is far below the SAR exclusion threshold level 10mW (SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure. Guidance v06. IC requirements: The measured maximum specified e.i.r.p of the EUT is -4.0 dBm ≈ 0.4mW, which is far below the SAR exclusion threshold level 4mW, hence the EUT is excluded from SAR evaluation according to RSS-102 Issue 5 section 2.5.1.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23QR2D 001 Auftrags-Nr.: Order no.: 168404445 Seite 1 von 20 Page 1 of 20 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-12-22 Auftraggeber: Client: VTech Electronics Limited 23F Tai Ping Industrial Center, Block 1, 57 Ting Kok Road,Tai Po,Hong Kong Prüfgegenstand: Test item: Wireless controller Bezeichnung / Typ-Nr.: Identification / Type no.: 6088, 80-6088xx (xx=00 to 99, definition of country and language version) Auftrags-Inhalt: Order content: FCC and IC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 2.1093 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 February 2021 RSS-102 Issue 5 February 2021 Wareneingangsdatum: Date of sample receipt: 2022-12-28 Please refer to photo documents Prüfmuster-Nr.: Test sample no.: A003395764 Prüfzeitraum: Testing period: 2022-12-29 – 2023-01-31 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Alex Lan genehmigt von: authorized by: X Signed by: Lin Lin Datum: Date: 2023-03-10 Ausstellungsdatum: Issue date: 2023-03-10 Stellung / Position Assistant Project Manager Stellung / Position Reviewer Sonstiges / Other: FCC ID: G2R-6088 IC: 1135D-6088 HVIN: 6088 PMN: Peppa Pig Peppa’s Big Day Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V05 duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · W eb: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN23QR2D 001 Seite 2 von 20 Page 2 of 20 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 99%DB BANDWIDTH RESULT: Pass 5.1.5 6DB BANDWIDTH RESULT: Pass 5.1.6 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.7 RADIATED SPURIOUS EMISSION RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN23QR2D 001 Seite 3 von 20 Page 3 of 20 Contents 1 GENERAL REMARKS ......................................................................................................................4 1.1 COMPLEMENTARY MATERIALS ........................................................................................................4 2 TEST SITES ...................................................................................................................................4 2.1 TEST FACILITIES ............................................................................................................................4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS .............................................................................5 2.3 TRACEABILITY ...............................................................................................................................6 2.4 CALIBRATION ................................................................................................................................6 2.5 MEASUREMENT UNCERTAINTY ........................................................................................................6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................................6 2.7 STATUS OF FACILITY USED FOR TESTING .........................................................................................6 3 GENERAL PRODUCT INFORMATION ..................................................................................................7 3.1 PRODUCT FUNCTION AND INTENDED USE .........................................................................................7 3.2 RATINGS AND SYSTEM DETAILS ......................................................................................................7 3.3 INDEPENDENT OPERATION MODES ..................................................................................................8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................8 3.5 SUBMITTED DOCUMENTS ................................................................................................................8 4 TEST SET-UP AND OPERATION MODES ............................................................................................9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ......................................................................................9 4.2 TEST OPERATION AND TEST SOFTWARE ....................................................................................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix A CN23QR2D 001 Page 1 of 2 Appendix A: Photographs of the Test Set-Up APPENDIX A: PHOTOGRAPHS OF THE TEST SET-UP.......................................................................................................1 PHOTOGRAPH 1: SET-UP FOR RADIATED SPURIOUS EMISSION, BELOW 1GHZ....................................................................................2 PHOTOGRAPH 2: SET-UP FOR RADIATED SPURIOUS EMISSION, ABOVE 1GHZ....................................................................................2 Prüfbericht - Produkte Test Report - Products Appendix A CN23QR2D 001 Page 2 of 2 Photograph 1: Set-up for Radiated Spurious Emission, Below 1GHz Photograph 2: Set-up for Radiated Spurious Emission, Above 1GHz
