G2R-6132Wireless Controller

Instruction Manual This guide contains important information. Please keep it for future reference. 91-003970-005 US 2 INTRODUCTION Thank you for purchasing the LeapLand Adventures™ learning video game! Hunt for the four missing keys to unlock Clever Castle and learn about letters, shapes, numbers and colors along the way. INCLUDED IN THE PACKAGE • 1 wireless controller • 1 HDMI game stick • 1 micro USB power cable • Quick Start Guide WARNING All packing materials such as tape, plastic sheets, packaging locks, removable tags, cable ties and packaging screws are not part of this toy and should be discarded for your child’s safety. NOTE Please save this Instruction Manual as it contains important information. ATTENTION Pour la sécurité de votre enfant, débarrassez-vous de tous les produits d’emballage tels que rubans adhésifs, feuilles de plastique, attaches, étiquettes et vis d’emballage. Ils ne font pas partie du jouet. NOTE Il est conseillé de conserver ce guide des parents car il comporte des informations importantes. D-Pad B Button A Button Home ButtonHelp Button HDMI Game Stick Micro USB Power Cable 3 Unlock the Packaging Locks Rotate the packaging locks 90 degrees counterclockwise. Pull out the packaging locks and discard. GETTING STARTED INITIAL SETUP 1. Plug the USB B Connector end of the Micro USB Power Cable into the USB B port on the HDMI Game Stick. 2. Plug the HDMI Game Stick into an HDMI port on your television. 3. Plug the USB A Connector end of the Micro USB Power Cable into a USB port on your television or other qualified DC 5V adapter with output no less than 500mA. BATTERY REMOVAL AND INSTALLATION 1. Find the battery cover located on the back of the Wireless Controller, use a coin or screwdriver to loosen the screw and then open the battery cover. 2. Remove old batteries by pulling up on one end of each battery. 3. Install 2 new AA (AM-3/LR6) batteries following the diagram inside the battery box. 4. Replace the battery cover and tighten the screw to secure. 4 WARNING: Adult assembly required for battery installation. Keep batteries out of reach of children. ATTENTION : Les piles ou accumulateurs doivent être installés par un adulte. Tenir les piles ou accumulateurs hors de portée des enfants. IMPORTANT: BATTERY INFORMATION • Insert batteries with the correct polarity (+ and -). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Do not short-circuit the supply terminals. • Remove batteries during long periods of non-use. • Remove exhausted batteries from the toy. • Dispose of batteries safely. Do not dispose of batteries in fire. • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. RECHARGEABLE BATTERIES • Remove rechargeable batteries from the toy before charging. • Rechargeable batteries are only to be charged under adult supervision. • Do not charge non-rechargeable batteries. NOTE If the Wireless Controller powers down or if the light fades out during play, please install a new set of batteries. 5 PRODUCT FEATURES 1. D-Pad Press the D-Pad on the Wireless Controller to select an item on the Menu screen. While playing the game, press the D-Pad left and right to move the character around the screen. Press down on the D-Pad to make the character crouch and press left or right on the D-Pad to make the character walk while crouching. 2. Home Button Press the Home Button on the Wireless Controller to quit a level, quit the game, or return to the previous Menu screen. 3. Help Button Press the Help Button on the Wireless Controller to hear hints and tips on how to play the game or navigate the Menu screen. 4. A Button • Press the A Button on the Wireless Controller to select the highlighted objects on the Menu screen. • Press the A Button to make the character jump. • Press the A Button a second time while the character is in the air to make the character double-jump. • Press the A Button repeatedly to get the character out of a bubble trap. • When two treasure chests appear on the screen, press the A Button to select the treasure chest on the left. 5. B Button • Press the B Button on the Wireless Controller to return to the previous Menu screen, or to change the playable character while on the Map Menu screen. • If a B Button icon appears above a Curricular Character’s head, press the B Button to interact with that character. • When two treasure chests appear on the screen, press the B Button to select the treasure chest on the right. 6. Menu Screens The following Menu screens appear in the game. 6 Save Selection Screen • Create or delete a saved profile on the Save Selection screen. • To recover a saved file that has been accidentally deleted, highlight a New save slot and press the following buttons on the Wireless Controller: Home + Home + Help + Help + B + B + Help + Home + B. This will recover the deleted file. • To unlock all the castle rewards in the game, highlight an existing saved profile and press the following buttons on the Wireless Controller: Home + Home + Help + Help + B + B + Help + Home + B. Map Menu Screen • Access the different areas of the game from the Map Menu screen. • The player will need to find at least one key before the castle area can be accessed. • To change the playable character, press the B Button. • To exit the game, press the Home Button. • View castle rewards on the Map Menu screen after every Gem Festival. Learning Center • Access the learning curriculum content from the Learning Center. Level Select Screen • Use the arrow buttons on the D-Pad to high…

Text truncated - open the document above for the full version.

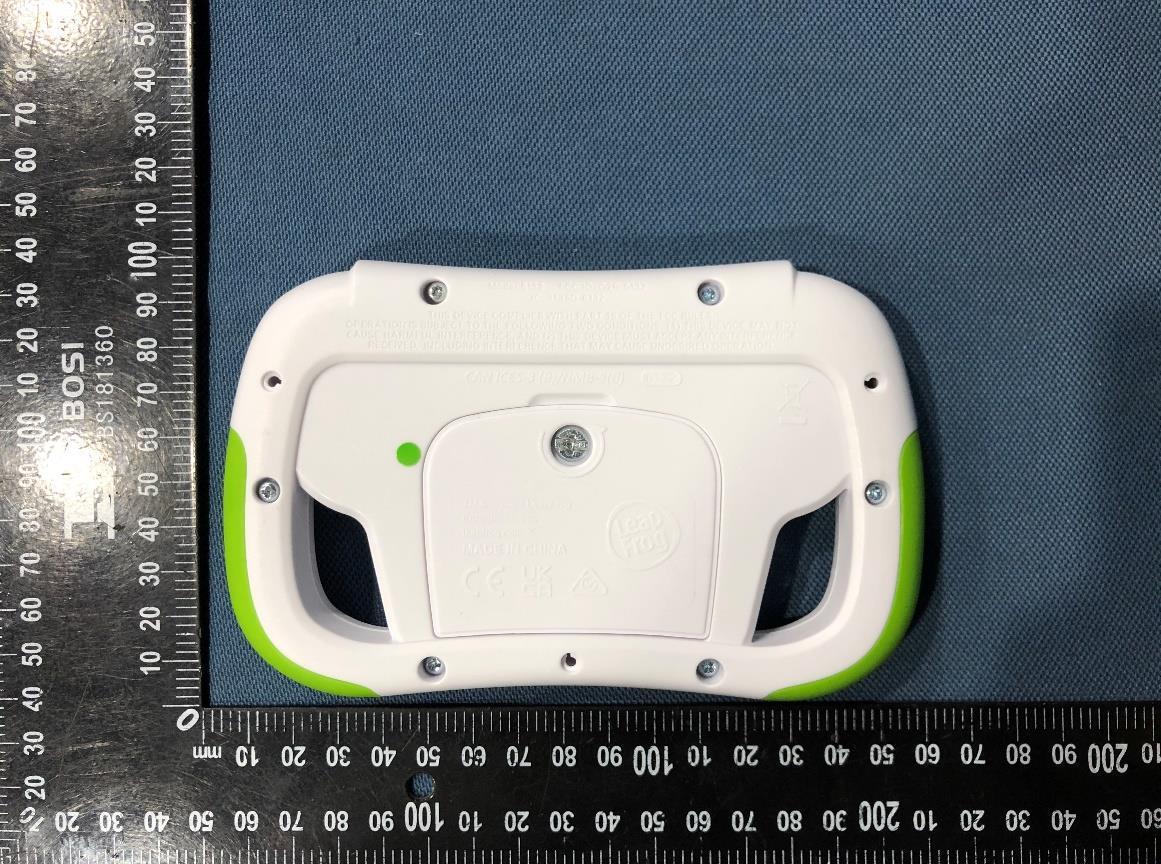

Test Report No.: CN21DD82 001 Appendix 3 Page 1 of 4 Appendix 3 EUT External Photos Test Report No.: CN21DD82 001 Appendix 3 Page 2 of 4 External View External View Test Report No.: CN21DD82 001 Appendix 3 Page 3 of 4 External View External View Test Report No.: CN21DD82 001 Appendix 3 Page 4 of 4 External View External View

Battery DoorBack of Battery Door 50 mm X 25 mm 6132 Engraving info Weee logo(h>8.5mm)CE marking(h>5.5mm)UKCA logo(h>5mm) 29.7 mm (W) X 5 mm(H) 2 mm (W) X 2 mm(H) RCM logo(h>3mm) “MADE IN CHINA”and“FABRIQUÉ EN CHINE”(h>2mm)

Test Report No.: CN21DD82 001 Appendix 4 Page 1 of 4 Appendix 4 EUT Internal Photos Test Report No.: CN21DD82 001 Appendix 4 Page 2 of 4 Internal View Internal View Test Report No.: CN21DD82 001 Appendix 4 Page 3 of 4 Internal View Internal View Test Report No.: CN21DD82 001 Appendix 4 Page 4 of 4 Internal View

Test Report No.: CN21DD82 001 Appendix 5 Page 1 of 2 Appendix 5 RF Exposure Information Test Report No.: CN21DD82 001 Appendix 5 Page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 2408 -1.58 0.695 2438 -1.48 0.711 2472 -1.32 0.738 FCC According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,24 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.695/5)*√2.408 = 0.216 <3.0 (0.711/5)*√2.438 = 0.222 <3.0 (0.738/5)*√2.472 = 0.232 <3.0 Conclusion: No SAR is required. ISED Model: 6132 According to table 1 in RSS-102 Issue 5, below exemption limit is applied: - Frequency: 2450MHz - At separation distance of ≤ 5mm - Exemption limits: 4mW Conclusion: The maximum peak output power of the transmitter is less than the SAR evaluation exemption threshold and hence it complies with the RSS-102 RF exposure requirement without SAR evaluation..

Produkte Products 3-4, 11/F., Fou Wah Industrial Building, 10-16 Pun Shan Street, Tsuen Wan, N.T., Hong Kong Tel.: +852 2192 1000 Fax: +852 2192 1001 Email [email protected] Web: www.tuv.com -Nr.: Test Report No.: CN21DD82 001 Auftrags-Nr.: Order No.: 158226611 Seite 1 von 18 Page 1 of 18 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 18.02.2021 Auftraggeber: Client: VTech Electronics Limited 23F Tai Ping Industrial Center, Block 1, 57 Ting Kok Road,Tai Po,Hong Kong : Test item: LeapLand Adventures, Bezeichnung / Typ-Nr.: Identification / Type No.: 6132 80-6132xx, (xx=00~99, see model differences for details) Auftrags-Inhalt: Order content: FCC and ISED Certification Test specification: FCC Part 15 Subpart C, ANSI C63.10-2013 RSS-247 Issue 2, RSS-Gen Issue 5 Wareneingangsdatum: Date of receipt: 04.03.2021 -Nr.: Test sample No.: A003006149-001 : Testing period: 04.03.2021 - 15.03.2021 Place of testing: Hong Kong : Testing laboratory: Kong Ltd. Test result*: Pass / tested by: 25.05.2021 Felicia Chan / Assistant Engineer kontrolliert von / reviewed by: 25.05.2021 Sharon Li / Senior Manager Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: FCC ID: G2R-6132 IC: 1135D-6132 HVIN: 6132 : Condition of the test item at delivery: Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. (n) F(ail) = entspricht nicht o.g. (n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested . This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. FCC_15.247_DTS_v2.0 Test Report No.: CN21DD82 001 Date: 21.05.2021 Page 2 of 18 Table of Content Page 1 2 Product information ............................................................................................................4 Manufacturers declarations ....................................................................................................... 4 Product function and intended use ............................................................................................ 4 Submitted documents ............................................................................................................... 4 Independent Operation Modes ................................................................................................... 5 Related Submittal(s) Grants....................................................................................................... 5 Remark .................................................................................................................................... 5 Test Set-up and Operation Mode ......................................................................................6 Principle of Configuration Selection........................................................................................... 6 Test Operation and Test Software .............................................................................................. 6 Special Accessories and Auxiliary Equipment ............................................................................ 6 Countermeasures to achieve EMC Compliance ........................................................................... 6 Test Methodology ................................................................................................................7 Radiated Emission .................................................................................................................... 7 Field Strength Calculation ......................................................................................................... 7 Test Setup Diagram.............................................................................................................8 Test Facility ........................................................................................................................10 Test Laboratory Information .................................................................................................... 10 List of Test and Measurement Instruments ..................................................................11 Measurement Uncertainty ................................................................................................12 Results FCC Part 15 Subpart C / RSS-247 Issue 2 ....................................................13 FCC 15.203 Antenna Requirement 1 ..................................................................Pass ............ 13 FCC 15.204 Antenna Requirement 2 ..................................................................Pass ............ 13 RSS-Gen 6.3 External Control ...........................................................................Pass ............ 13 RSS-Gen 8.3 Antenna Requirement ...................................................................Pass ............ 13 FCC 15.207/ RSS-Gen 8.8 Conducted Emission on AC Mains ............................... N/A ............ 14 FCC 15.247 (a)(2) / RSS-247 5.2 6dB Bandwidth Measurement .............................Pass ............ 14 RSS-Gen 6.6 Occupied Bandwidth.....................................................................Pass ............ 14 FCC 15.247(b)(3) / RSS-247 5.4 Maximum Peak Conducted Output Power ............Pass ............ 15 FCC_15.247_DTS_v2.0 Test Report No.: CN21DD82 001 Date: 21.05.2021 Page 3 of 18 FCC 15.247(e) / RSS-247 5.2 Power Spectral Density...........................................Pass ............ 15 FCC 15.247(d) / RSS-247 5.5 Spurious Conducted Emissions ..............................P…

Text truncated - open the document above for the full version.

Test Report No.: CN21DD82 001 Appendix 1 Page 1 of 9 Appendix 1 Test Results Test Report No.: CN21DD82 001 Appendix 1 Page 2 of 9 6 dB Bandwidth Measurement TX frequency: 2408MHz TX frequency: 2438MHz Test Report No.: CN21DD82 001 Appendix 1 Page 3 of 9 TX frequency: 2472MHz Test Report No.: CN21DD82 001 Appendix 1 Page 4 of 9 Occupied Bandwidth Measurement TX frequency: 2408Hz TX frequency: 2438MHz Test Report No.: CN21DD82 001 Appendix 1 Page 5 of 9 TX frequency: 2472z Test Report No.: CN21DD82 001 Appendix 1 Page 6 of 9 Power Spectral Density TX frequency: 2408MHz TX frequency: 2438MHz TX frequency: 2472MHz Test Report No.: CN21DD82 001 Appendix 1 Page 7 of 9 Spurious Conducted Emissions TX frequency: 2408MHz Test Report No.: CN21DD82 001 Appendix 1 Page 8 of 9 TX frequency: 2438MHz Test Report No.: CN21DD82 001 Appendix 1 Page 9 of 9 TX frequency: 2472MHz
