INTERTEK TESTING SERVICE Report No.: HK10031355-1 FCC ID: G2R-9148A Equipment Photographs Model : 80-091480 (External)

INTERTEK TESTING SERVICE Report No.: HK10031355-1 FCC ID: G2R-9148A Equipment Photographs Model : 80-91480 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031355-1 FCC ID: G2R-9148A Equipment Photographs Model : 80-91480 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031355-1 FCC ID: G2R-9148A Equipment Photographs Model : 80-91480 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031355-1 FCC ID: G2R-9148A Equipment Photographs Model : 80-91480 (Internal) INTERTEK TESTING SERVICE Report No.: HK10031355-1 FCC ID: G2R-9148A Equipment Photographs Model : 80-91480 (Internal)

INTERTEK TESTING SERVICES Report No.: HK10031355-1 Sample No.: 1/1 (Joystick) Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) OATS = 86.8dBuV/m Field strength (Peak) = 86.8 – 39.8 dBuV/m = 47 dBuV/m (Limit: 74 dBuV/m) Field strength (Average) = 47- AF dBuV/m = 47 – 33.2 dBuV/m = 13.8 dBuV/m (Limit: 54 dBuV/m) OATS = 85.9dBuV/m Field strength (Peak) = 85.9 – 44.7 dBuV/m = 41.2 dBuV/m (Limit: 74 dBuV/m) Field strength (Average) = 41.2 - AF dBuV/m = 41.2 – 33.2 dBuV/m = 8 dBuV/m (Limit: 54 dBuV/m) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10031355-1 VTech Electronics Ltd. Application For Certification (Original Grant) (FCC ID: G2R-9148A) Transceiver Prepared and Checked by: Approved by: Signed On File Benny Lau/sl Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: May 06, 2010 INTERTEK TESTING SERVICES Report No.: HK10031355-1 FCC ID: G2R-9148A i GENERAL INFORMATION VTech Electronics Ltd. FCC ID: G2R-9148A BRAND NAME: VTech, MODEL: 80-0914XX Grantee: VTech Electronics Ltd. Grantee Address: 23/F., Tai Ping Industrial Center, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Contact Person: Mr. Colbert Tang Tel: 852-2680 1201 Fax: 852-2680 1228 e-mail: [email protected] Manufacturer: VTech Electronics Ltd. Manufacturer Address: N/A Brand Name: VTech FCC ID: G2R-9148A FCC Model: 80-0914XX, where the letters “XX” represent 80 to 99 Type of EUT: Transceiver Description of EUT: Game Controller Serial Number: N/A Date of Sample Submitted: March 29, 2010 Date of Test: April 09, 2010 Report No.: HK10031355-1 Report Date: May 06, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10031355-1 FCC ID: G2R-9148A ii SUMMARY OF TEST RESULT VTech Electronics Ltd. FCC ID: G2R-9148A BRAND NAME: VTech, MODEL: 80-0914XX TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 (for 2.4GHz Digital) N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 (for Remote Control) N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 (for 433MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 (for 88-108MHz) N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 (for 902-928MHz or 2.4GHz) Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 (for 49MHz) N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10031355-1 FCC ID: G2R-9148A iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants............................................................................... 1 1.3 Test Methodology.............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ............................................................................. 2 2.1 Justification ....................................................................................................... 2 2.2 EUT Exercising Software................................................................................... 2 2.3 Special Accessories .......................................................................................... 2 2.4 Equipment Modification ..................................................................................... 2 2.5 Measurement Uncertainty.................................................................................. 2 2.6 Support Equipment List and Description ............................................................ 2 3.0 Emission Results ............................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK10031355-1 Sample No.: 1/1 (Joystick) Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) Duty cycle = 0.728 x 3 ms 100 = 0.02184 Average Factor = 20log(0.02184) = -33.2dB Timming Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement INTERTEK TESTING SERVICES Report No.: HK10031355-1 Sample No.: 1/1 (Joystick) Code: FCC15C_c / Effective Date: 04 Aug 2009 ( of ) Timming Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement

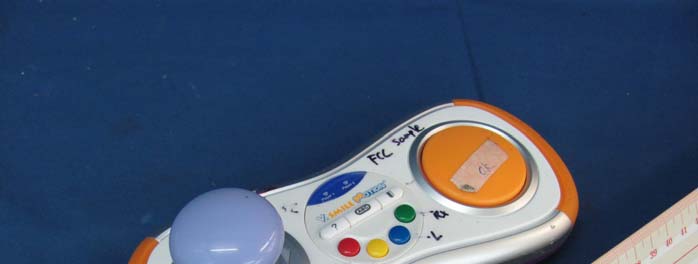

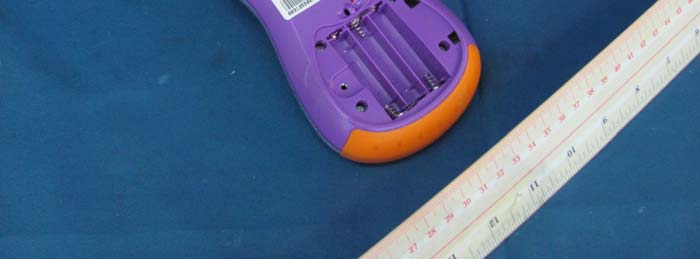

INTERTEK TESTING SERVICE Report No: HK10031355-1 FCC ID: G2R-9148A Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 80-091480 Figure 1 INTERTEK TESTING SERVICE Report No: HK10031355-1 FCC ID: G2R-9148A Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 80-091480 Figure 2
