G6D370H-R01Remote Control Toy Transmitter

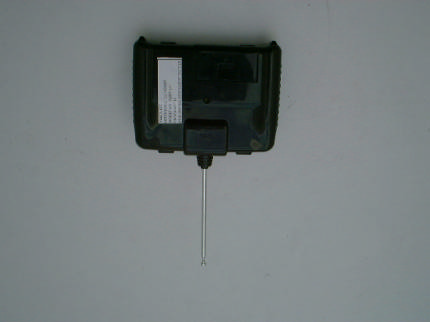

FCC ID: G6D370H-R01 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID:G6D370H-R01 New Bright Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: G6D370H-R01 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: G6D370H-R01 Circuit Description The 27.145MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of L3, L4 and C7 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 39 cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3Volt (“AA” size battery x 2) primary storage cell.

Date: 2001-01-08 TEST REPORT Page 1 of 8 No.: HM103883 Law Man KitSteven TsangPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE: NEB001) NEW BRIGHT INDUSTRIAL CO., LTD. 9/F., New Bright Building, 11 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong. DATE OF SAMPLES RECEIVED:2000-12-28 SUBMITTED SAMPLE(S): 1 sample per model DATE OF TESTING: 2001-01-02 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:RADIO CONTROL TOY VEHICLE TRANSMITTER Manufacturer:NEW BRIGHT INDUSTRIAL CO., LTD. Model Number:TX-370H-R01-27MHz Brand Name:NEW BRIGHT Rating: 3Vd.c.(“AA” size battery × 2) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.227 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2001-01-08 TEST REPORT Page 2 of 8 No.: HM103883 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency..........Satisfactory (2) Measurement of the out-of band emissions including harmonics...........Satisfactory (3) Measurement of Emission Within Band Edges.......................................Satisfactory (4) Measurement of Line-Conducted Voltage onto AC Power Line............Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 2001-01-08 TEST REPORT Page 3 of 8 No.: HM103883 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2001-01-02 Emission of RF energy on the carrier frequency -- 27.145 MHz (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 27.158.3V+18.576.86918.3100000.0 ================================================================== Emission of RF energy on the carrier frequency -- 27.145 MHz (AVERAGE VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 27.158.3V+18.576.86918.310000.0 ================================================================== ... to be continued Date: 2001-01-08 TEST REPORT Page 4 of 8 No.: HM103883 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2001-01-02 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m ###54.3<1.0+12.9<13.9<5.0100.0 81.4<1.0+8.9<9.9<3.1100.0 108.6<1.0+12.2<13.2<4.6150.0 135.7<1.0+10.8<11.8<3.9150.0 162.9<1.0+9.5<10.5<3.3150.0 190.0<1.0+11.1<12.1<4.0150.0 217.2<1.0+12.2<13.2<4.6200.0 244.3<1.0+13.5<14.5<5.3200.0 271.5<1.0+16.0<17.0<7.1200.0 298.6<1.0+16.5<17.5<7.5200.0 325.7<1.0+16.6<17.6<7.6200.0 352.9<1.0+16.7<17.7<7.7200.0 380.0<1.0+17.4<18.4<8.3200.0 407.2<1.0+18.2<19.2<9.1200.0 434.3<1.0+19.5<20.5<10.6200.0 461.5<1.0+20.1<21.1<11.4200.0 488.6<1.0+20.3<21.3<11.6200.0 515.8<1.0+20.9<21.9<12.4200.0 542.9<1.0+22.1<23.1<14.3200.0 570.0<1.0+22.8<23.8<15.5200.0 597.2<1.0+23.3<24.3<16.4200.0 624.3<1.0+23.4<24.4<16.6200.0 ... to be continued Date: 2001-01-08 TEST REPORT Page 5 of 8 No.: HM103883 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2001-01-02 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(μV)H-VdBdB(μV/m)μV/mμV/m ###651.5<1.0+23.6<24.6<17.0200.0 678.6<1.0+24.9<25.9<19.7200.0 705.8<1.0+25.1<26.1<20.2200.0 732.9<1.0+25.4<26.4<20.9200.0 760.1<1.0+26.4<27.4<23.4200.0 787.2<1.0+26.8<27.8<24.5200.0 814.4<1.0+26.7<27.7<24.3200.0 841.5<1.0+26.1<27.1<22.6200.0 868.6<1.0+26.8<27.8<24.5200.0 895.8<1.0+27.1<28.1<25.4200.0 922.9<1.0+27.5<28.5<26.6200.0 950.1<1.0+28.1<29.1<28.5200.0 977.2<1.0+28.2<29.2<28.8500.0 ================================================================== ====================SUMMARY=================== All data is within limits ============================================= Broad-band Antennas were used both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================= Date: 2001-01-08 TEST REPORT Page 6 of 8 No.: HM103883 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges. TEST REFERENCE: FCC Rules Part 15 section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE : 2001-01-02 RESULTS AND NOTES L: FCC Lower Band Edge ..........................................................................-> 26.960MHz H: FCC Higher Band Edge .........................................................................-> 27.280MHz C: Unmodulated carrier at frequency .........................................................-> 27.145MHz D: No. of dB from unmodulated carrier .....................................................-> 53.10dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth: 24.0KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ================SUMMARY================ All data is within limits =================…

Text truncated - open the document above for the full version.

FCC ID: G6D370H-R01 FCC ID: G6D370H-R01

FCC ID: G6D370H-R01 TEST SET UP PHOTOGRAPH OF THE PRODUCT
