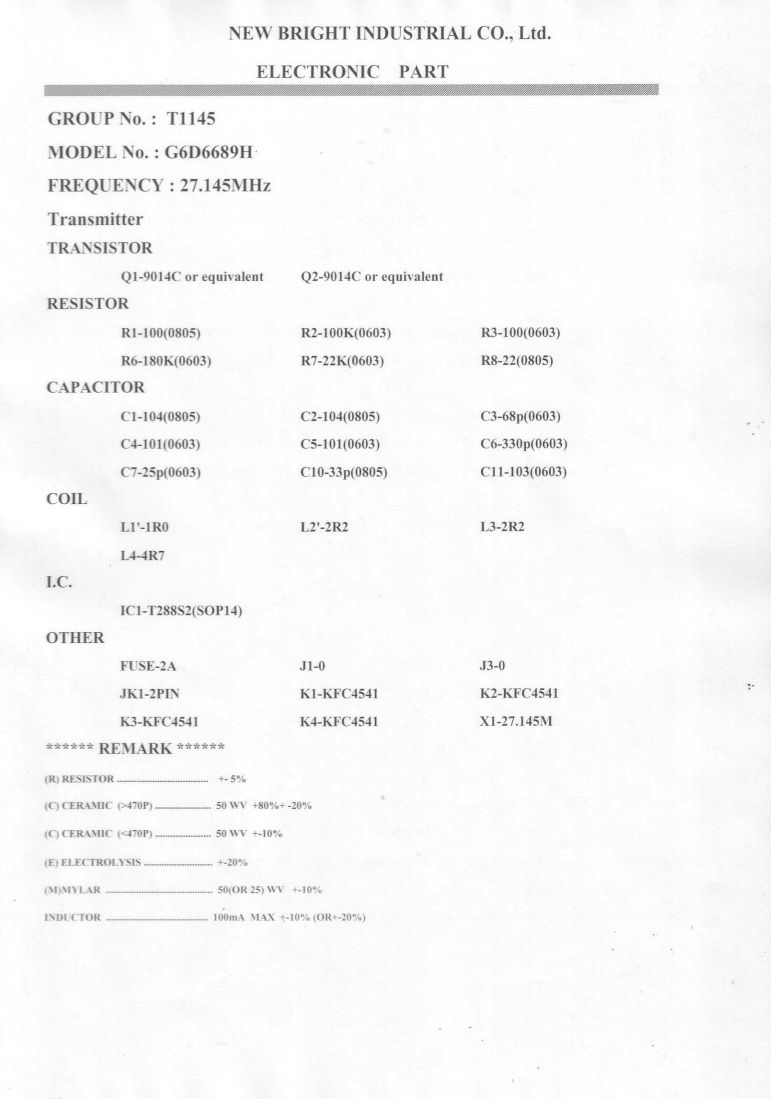

FCC ID: G6D6689H Circuit Description The 27.145MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of L2, L3, L4 and C6, C7 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 36cm long wire antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 6 Volt (“AA” size battery x 4) primary battery Operation Descriptions The transmitter is a remote control toy operating at 27.145MHz band. The transmitter is powered by a 6V battery (“AA” size battery x 4) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 27.145MHz carrier frequency. Remarks: The transmitter is a two joystick transmitter. The EUT continues to transmit while joystick is being pressed. It is joystick transmitter, Modulation by Crystal; and type is pulse modulation.

Test Report

STC Test Report Date : 2011-07-12 Page 1 of 19 No. : HM166877 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (NEB001): New Bright Industrial Co., Ltd. 9/F., New Bright Building, 11 Sheung Yuet Road, Kowloon Bay, Kowloon, HK Manufacturer: New Bright Industrial Co., Ltd. 9/F., New Bright Building, 11 Sheung Yuet Road, Kowloon Bay, Kowloon, HK Description of Sample(s): Product: Radio Control Toy Transmitter Brand Name: New Bright Model Number: G6D6689H FCC ID: G6D6689H Date Sample(s) Received: 2011-06-30 Date Tested: 2011-07-06 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 and ANSI C63.4:2009 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2011-07-12 Page 2 of 19 No. : HM166877 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 1.0 General Details 1.1 Test Laboratory Page 4 of 19 1.2 Equipment Under Test [EUT] Page 4 of 19 Description of Sample(s) 1.3 Description of EUT operation Page 4 of 19 1.4 Date of Order Page 4 of 19 1.5 Submitted Sample(s) Page 4 of 19 1.6 Test Duration Page 4 of 19 1.7 Country of Origin Page 4 of 19 2.0 Technical Details 2.1 Investigations Requested Page 5 of 19 2.2 Test Standards and Results Summary Page 5 of 19 3.0 Test Results 3.1 Emission Page 6-10 of 19 3.2 Bandwidth Measurement Page 11-12 of 19 STC Test Report Date : 2011-07-12 Page 3 of 19 No. : HM166877 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 19 Appendix B Duty Cycle Correction During 100 msec Page 14-17 of 19 Appendix C Photographs of EUT Page 18-19 of 19 STC Test Report Date : 2011-07-12 Page 4 of 19 No. : HM166877 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Submitted sample(s) said to be Product: Radio Control Toy Transmitter Manufacturer: New Bright Industrial Co., Ltd. 9/F., New Bright Building, 11 Sheung Yuet Road, Kowloon Bay, Kowloon, HK Brand Name: New Bright Model Number: G6D6689H Input Voltage: 6Vd.c. (“AA” size battery x 4) 1.3 Description of EUT Operation The Equipment Under Test (EUT) is New Bright Industrial Co., Ltd., Radio Control Toy Transmitter. The EUT is a transmitter of radio control toy. The transmitter was operating with 2 joystick, the EUT continues to transmit while button is being on, It is pulse transmitter, Modulation by Crystal, and type is pulse modulation. 1.4 Date of Order 2011-06-30 1.5 Submitted Sample(s): 1 sample 1.6 Test Duration 2011-07-06 1.7 Country of Origin China STC Test Report Date : 2011-07-12 Page 5 of 19 No. : HM166877 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2010 and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2009 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A Note: N/A - Not Applicable STC Test Report Date : 2011-07-12 Page 6 of 19 No. : HM166877 T h e H o n g K o …

Text truncated - open the document above for the full version.

Test Setup Photos

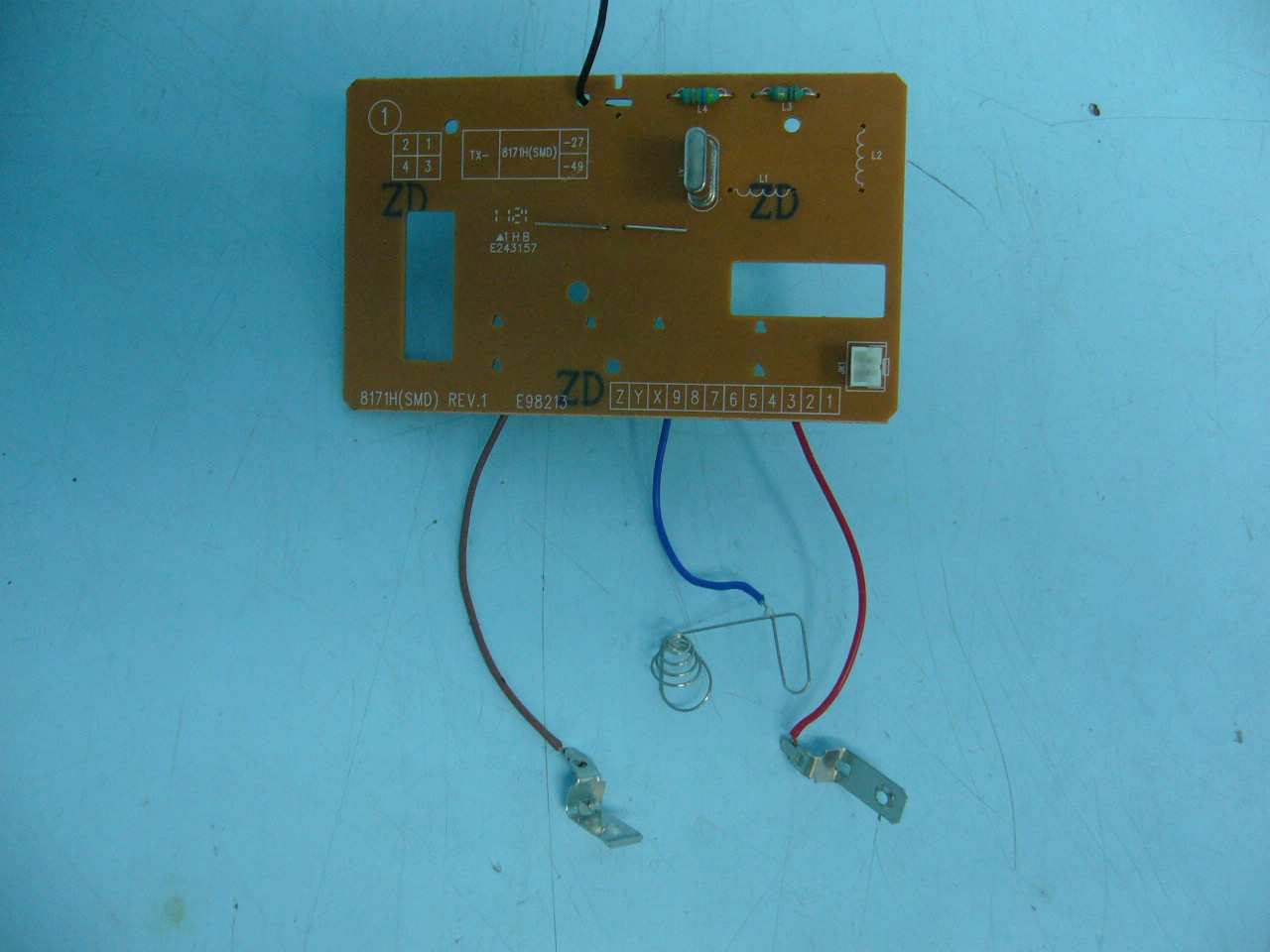

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
