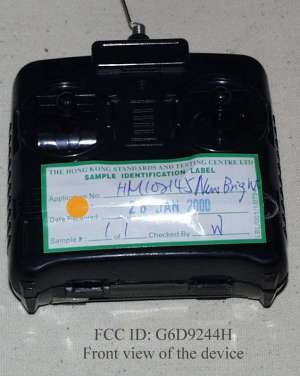

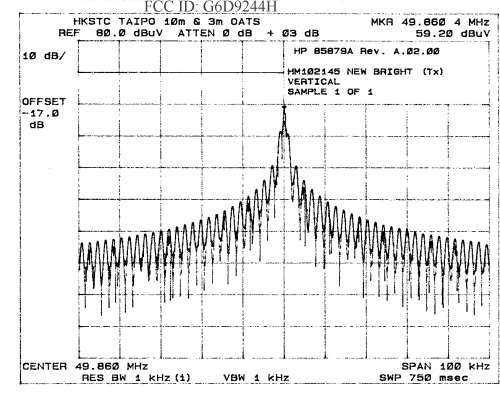

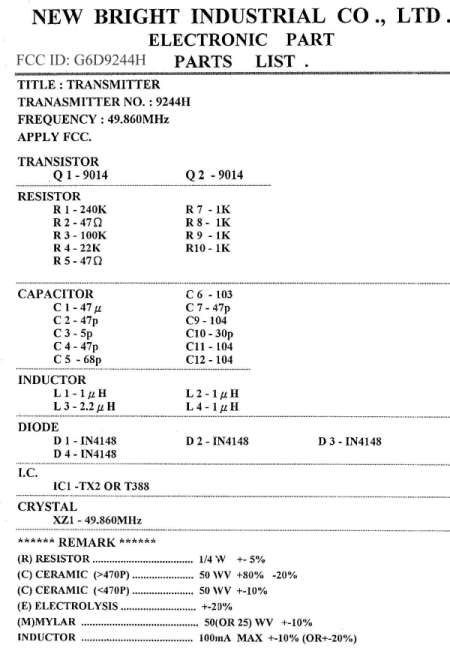

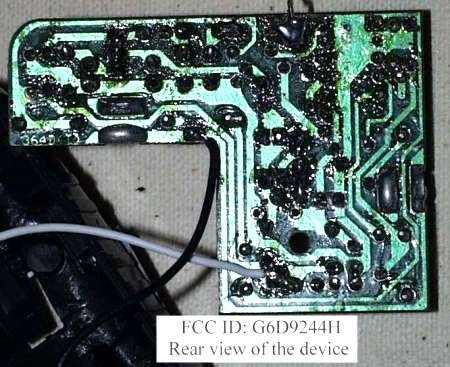

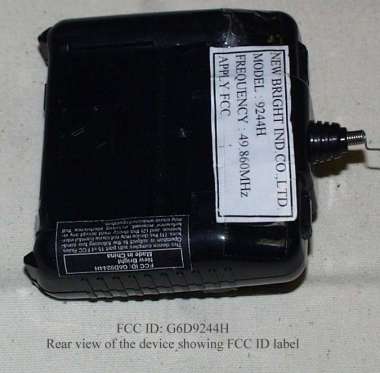

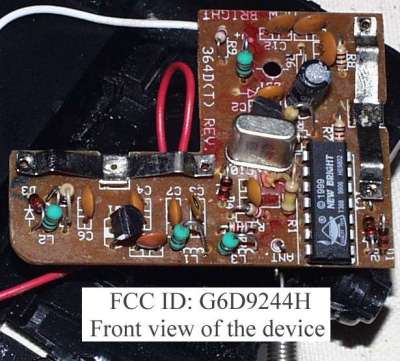

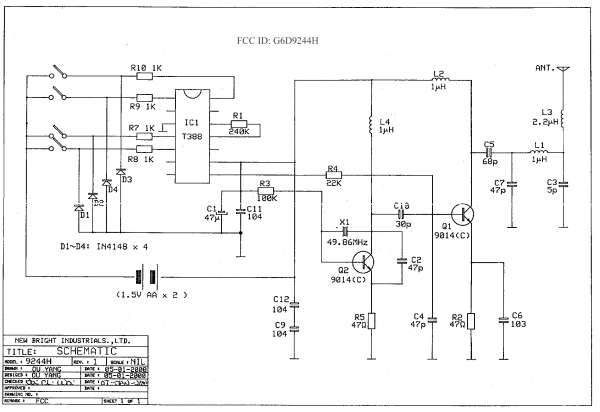

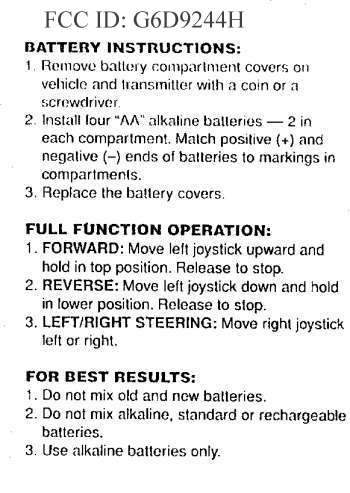

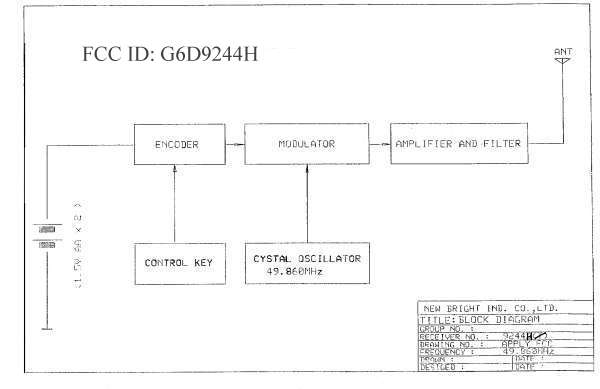

Date: 2000-02-15 TEST REPORT Page 1 of 6 No.: HM102145 Law Man KitKitty ChoyPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE : NEB001) NEW BRIGHT INDUSTRIAL CO., LTD. New Bright Building, 11 Sheung Yuet Road, Kowloon Bay, Hong Kong. DATE OF SAMPLES RECEIVED: 2000-01-28 DATE OF TESTING: 2000-02-08 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:RADIO CONTROL TOY VEHICLE TRANSMITTERS Manufacturer:NEW BRIGHT INDUSTRIAL CO., LTD. Model Number:TX-9244H Brand Name:NEW BRIGHT Rating:3.0Vd.c. (“AA” size battery × 2) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK : Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.235 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2000-02-15 TEST REPORT Page 2 of 6 No.: HM102145 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency................Satisfactory (2) Measurement of the out-of band emissions including harmonics.................Satisfactory (3) Measurement of Emission Within Band Edges.............................................Satisfactory (4) Measurement of Line-Conducted Voltage onto AC Power Line..................Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 2000-02-15 TEST REPORT Page 3 of 6 No.: HM102145 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Section 15.235(49.82-49.90 MHz) TEST CONDITION:Normal TEST DATE:2000-02-08 Emission of RF energy on the carrier frequency -- 49.860 MHz (PEAK VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m)FCC Limit MHz dB( μ V) H-VdB dB( μ V/m) μ V/m μ V/m 49.960.8V+15.075.86165.9100000 Emission of RF energy on the carrier frequency -- 49.860 MHz (AVERAGE VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m)FCC Limit MHz dB( μ V) H-VdB dB( μ V/m) μ V/m μ V/m 49.947.5V+15.062.51333.510000 ... to be continued Date: 2000-02-15 TEST REPORT Page 4 of 6 No.: HM102145 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Section 15.235(49.82-49.90 MHz) TEST CONDITION:Normal TEST DATE:2000-02-08 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) Emission Frequency Meter Reading PolarizationAntenna factor Field Strength (at 3m)FCC Limit MHz dB( μ V) H-VdB dB( μ V) μ V/m μ V/m 99.720.6H+12.232.843.7150 149.5<1.0+9.8<10.8<3.5150 199.3<1.0+11.5<12.5<4.2150 249.2<1.0+15.9<16.9<6.9200 299.0<1.0+17.0<18.0<7.9200 348.8<1.0+17.2<18.2<8.1200 398.6<1.0+18.8<19.8<9.8200 448.5<1.0+19.7<20.7<10.8200 498.3<1.0+20.6<21.6<12.0200 543.1<1.0+22.2<23.2<14.5200 598.1<1.0+23.4<24.4<16.6200 647.8<1.0+23.5<24.5<16.8200 697.4<1.0+25.0<26.0<20.0200 747.8<1.0+26.2<27.2<22.9200 797.7<1.0+27.2<28.2<25.7200 847.5<1.0+27.2<28.2<25.7200 897.4<1.0+27.2<28.2<25.7200 947.2<1.0+27.8<28.8<27.5200 997.1<1.0+28.5<29.5<29.9500 =================SUMMARY================ All data is within limits ======================================= Broad-band Antennas were used and both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical Date: 2000-02-15 TEST REPORT Page 5 of 6 No.: HM102145 ======================================= *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges . TEST REFERENCE: FCC Rules Part 15 Section 15.235(49.82-49.90 MHz) TEST CONDITION: Normal TEST DATE : 2000-02-08 Please see exhibit of bandwidth RESULTS AND NOTES L: FCC Lower Band Edge..............................................................................-> 49.820MHz H: FCC Higher Band Edge.............................................................................-> 49.900MHz C: Unmodulated carrier at frequency..............................................................-> 49.860MHz D: No. of dB from unmodulated carrier..........................................................-> 59.20dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth : 1.0KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ==========================SUMMARY======================== All data is within limits =========================================================== Date: 2000-02-15 TEST REPORT Page 6 of 6 No.: HM102145 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules. (2) Distance between the EUT and measuring antenna: 3 meters. (3) Measuring instrumentations: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz). 6 dB bandwidth set at 120KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable. included in the Antenna Factor for measurement data. The antenna are capable of measuring both horizontal and vertical polarizations. (5) Frequency range scanned: The frequency range from 25 MHz to 1000 MHz had been searched. Readings of the highest emissions relating to the limit were reported as above. (6) Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. (7) Measuring Procedure: In accordance with the relevant clauses of the FCC Rules Part 15 section 15.235. (8) Measuring Uncertainty: The calculated uncertainty …

Text truncated - open the document above for the full version.

Test Report

Date: 2000-02-15 TEST REPORT Page A1 of A1 No.: HM102145 APPENDIX A TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL. EM007SPECTRUM ANALYZERHEWLETT PACKARDHP85660B3144A2119211/06/99 EM008SPECTRUM ANALYZER DISPLAYHEWLETT PACKARDHP85662A3144A2051411/06/99 EM009QUASI PEAK ADAPTORHEWLETT PACKARDHP85650A3303A0170211/06/99 EM010RF PRESELECTORHEWLETT PACKARDHP85685A3221A0141011/06/99 EM011ATTENNUATOR/SWITCHHEWLETT PACKARDHP11713A2508A1059511/06/99 EM012PRE-AMPLIFIERHEWLETT PACKARDHP8449B3008A0026211/06/99 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE HEWLET T P ACKARD HEWLET T P ACKARD HEWLET T P ACKARD HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM017ANTENNAARA INC.LPB-2513/A1069TBD EM072SIGNAL GENERATORHEWLETT PACKARD8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A25/02/99 EM145EMI TEST RECEIVERR & SESCS 30830245/02110/05/99 Re marks:- CMCorrective Maintenance N/ANot Applicable or Not Available TBDTo Be Determined
