G6DG21H1-1Remote Controller for Toy

Functions operated by the controller: 1. Forward/Reverse Drive – push/pull left side lever forward/backward. 2. Left/Right Steering – use right side lever. 3. Launch Darts (missiles) – Press center button and hold to launch, release to stop. The Controller: Insert 2 “AA” batteries in the battery compartment on the back of the transmitter. Be sure the (+) and (–) are properly matched. The Vehicle: 1. Locate the battery compartment on the vehicle chassis. 2. Insert 3 “AA” batteries. Be sure the (+) and (–) are properly matched. 3. Replace the Battery Compartment Cover. 4. Turn the ON/OFF switch to the “ON” position. 5. The vehicle is now ready to use. Loading and firing darts: 1. Align foam dart with peg and push into place. 2. Repeat until all darts have been loaded. 3. Manually raise or lower barrel to desired angle. 4. To fire, press “LAUNCH” button on transmitter. Hold the “LAUNCH” button until the darts (missiles) are fired. Warning! Do not aim at eyes or face. To avoid physical injury, do not use missiles other than those supplied by the manufacturer. Ref#2435 Steering Trim: If the vehicle veers to the left or right, adjust steering trim on underside of vehicle until the desire alignment is reached. Battery Requirements: Transmitter – 2 “AA” batteries (not included) Vehicle – 3 “AA” batteries (not included) (Use alkaline batteries only.) Notes: 1. Operate the vehicle within 80-100 feet (25-30 meters) range. 2. Switch off the toy when not in use. 3. Remove all batteries when not in use for long periods. 4. If the vehicle is not functioning properly, replace the batteries. 5. Adult supervision recommended. 6. Please remove all packaging attachments before giving this toy to your child. 7. Do not insert antenna wire into electrical outlets. The reception performance may be affected under a strong interference disturbance environment. This product would not perform normally under a strong electrostatic environment. We wish you many happy hours of pleasure with your New Bright toy.

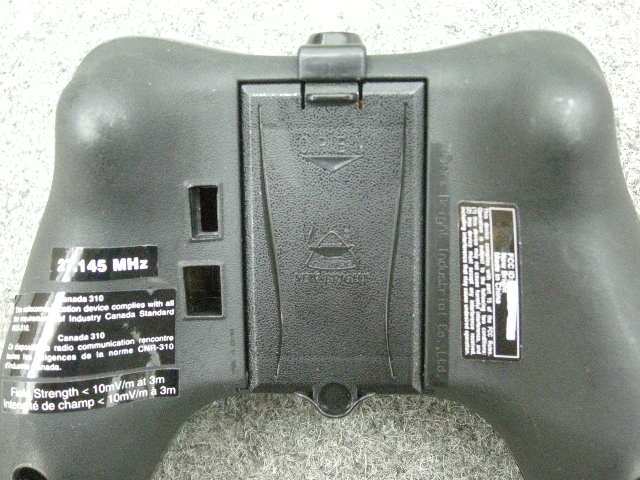

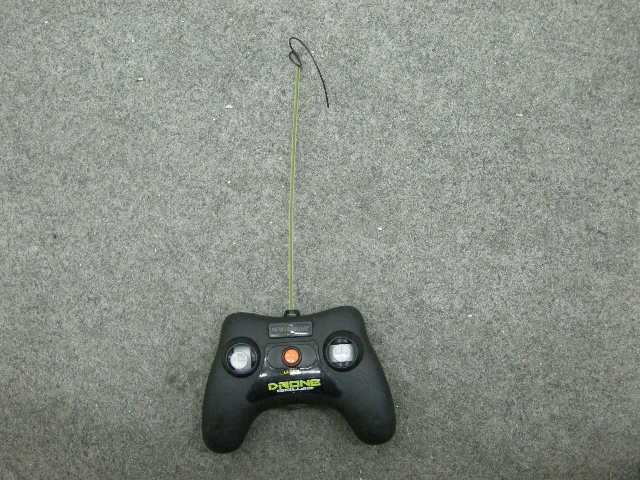

External Photo Front View of the product Rear View of the product Battery compartment Battery Cover

Label format Label location

Internal Photo Front View of the product (Internal) Rear View of the product (Internal) Inner Circuit Top View Inner Circuit Bottom View Antenna

BUREAU VERITAS TESTREPORTNo.: (5213)169-1670 To: NEWBRIGHTINDUSTRIALCO., LTD TESTREPORT r=------------,----------------------, To: FolderNo.: tcleenewbriht.com Attn:Lee Tak Chi Address:9/F, NEWBRIGHTBUILDING, 11 SHEUNGYUETROAD,KOWLOON BAY, KOWLOON,HONGKONG Fax:852 27953665 NBT-13JU172MTHS-B-A NEWBRIGHTINDUSTRIALCO., LTD E-mail: FactoryName: 9/F, NEWBRIGHTBUILDING,11 SHEUNGYUETROAD,KOWLOONBAY, KOWLOON, HONGKONG Location: Attn: Address: Fax: E-mail: Product: RadioControlToy Transmitter ModelNo.: G6DG21H1-1 The resultsgivenin this reportare relatedto the testedspecimenof the describedelectricalapparatus. SampleNo:HK130614/033 Test Date(s):June 21, 2013 Test Requested:FCC Part 15 - 2011 Test Method: ANSIC63.4- 2009 FCC ID:G6DG21H1-1 AuthorizedSignature: CONCLUSION:The submittedsamplewas foundto COMPLYwith requirementof FCC Part 15 SubpartC. BUREAUVERITASHONGKONGLIMITED- KowloonBay Office 1/FPacificTradeCentre, 2 Kai HingRoad,KowloonBay, Kowloon,HONGKONG Tel: +85223310888 Fax: +85223310889 www.cps.bureauveritas.com ThisreportISintendedfor yourexclusiveuseAnycopyingor replicationof tlusreportto or for an~otherpersonor enuty.or use of ournameor trademark.ISpemuttedonlywuhourpnorwnttenperrrassicnOurreportISlmutedto thetestsamplesIdentified heremTheresultsset forthInthisreportare notnecessarilymdlcatlveor representativeof thestansucalqualityor charactensucsof thelot fromwhicha testsamplewastakenor anysimilaror rdenncalproductunlessspecificallyandexpresslynotedOurreport includesall of thetestsrequestedbyyouandtheresultsthereofYoushallhavethirtydaysfromreceiptof thisreportto request additionaltestingof thesamplesor to notifyus of anyerrorsor omissionsrelaung10 ourreport.provided,however.suchnotice shallbe in \\ rilingandshaJlspecificallyaddresstheissueyouWishto raise.A failure10 raisesuchIssuewitluntheprescribedtune shallconstituteyourunqualifiedacceptanceof thecompletenessof tlusreport.thetestsconductedandthecorrectnessof thereport contents Page1 of 16 TEST REPORT No.: (5213)169-1670 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 2 of 16 Test Result Summary EMISSION TEST Test requirement: FCC Part 15 - 2011 Test Condition Test Method Test Result Pass Failed Radiated Emission Test, 9kHz to 1GHz ANSI C63.4 Report Revision & Sample Re-submit History: -- TEST REPORT No.: (5213)169-1670 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 3 of 16 Test Laboratory & Test Instruments List Radiated and Conducted emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. An Open Area Test Site and Full Anechoic Chamber (FCC Listed Site, Registration No. 642151) are set up for investigation and located at: BUREAU VERITAS HONG KONG LIMITED, EMC CENTRE No. 2106-2107, 21/F., Westin Centre, 26 Hung To Road, Kwun Tong, Kowloon, Hong Kong Test Instrument List Radiated Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCI 100379 28-JAN-2014 LOOP ANTENNA ETS-LINDGREN 6502 00102266 14-AUG-2013 BILOG ANTENNA SCHAFFNER CBL6112D 25229 12-SEP-2013 OPEN AREA TEST SITE BVCPS N/A N/A 09-JUL-2013 ANECHOIC CHAMBER ALBATROSS M-CDC 80374004499B 05-FEB-2014 COAXIAL CABLE SUHNER RG214 N/A 24-SEP-2013 Remarks: - N/A: Not Applicable or Not Available The measurement instrumentation uncertainty would be taking into consideration on each of the test result TEST REPORT No.: (5213)169-1670 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 233…

Text truncated - open the document above for the full version.

Test Set Up Photo
