GAO-FLYERMobile phone

1 Contents Safety .................................................................................................. 3 Environment ...................................................................................... 4 1 Getting Started ............................................................................... 5 1.1 Getting to know your touch phone .................................. 5 1.2 Installing the SIM card, battery, and storage card ........... 5 1.3 Charging the Battery ........................................................ 6 1.4 Starting up the device....................................................... 7 1.5 Status Icons ...................................................................... 8 2 Using phone features ................................................................... 10 2.1 Turning the phone function on and off .......................... 10 2.2 Making a call ................................................................. 10 2.3 Answering and Ending a call ......................................... 10 2.4 In-call options ................................................................ 11 2.5 Using call history ........................................................... 12 3 Setting on your device .................................................................. 12 4 ActiveSync ..................................................................................... 15 5 Contacts ........................................................................................ 18 6 Exchanging Messages .................................................................. 20 7 Internet ......................................................................................... 26 7.1 Ways of Connecting to the Internet ............................... 26 7.2 Browser .......................................................................... 26 8 Experiencing Multimedia ............................................................ 28 8.1 Camera & Picture ........................................................... 28 8.2 Music.............................................................................. 30 8.3 FM Radio ....................................................................... 33 8.4 Search ............................................................................. 33 8.5 Sound record .................................................................. 33 9 Other applications ........................................................................ 33 2 9.1 Alarm Clock ................................................................... 33 9.2 Calculator ....................................................................... 35 3 Safety Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment. Do not use your phone in damp areas (bathroom, swimming pool...). Protect it from liquids and other moisture. Do not expose your phone to extreme temperatures lower than - 10°C and higher than + 55°C. The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone automatically protects the batteries in extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). Electrical safety: Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dangerous; it would also invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate. Aircraft safety: When traveling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs. Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network. Its use is illegal and you could be prosecuted or banned from using cellular networks in the future if you do not abide by these regulations. Explosive materials: Please comply with warning signs at petrol station asking you to switch your phone off. You will need to comply with radio equipment usage restrictions in places such as chemical plants, fuel depots and at any location where blasting operations are under way. Electronic equipment: To avoid the risk of demagnetization, do not let electronic devices close to your phone for a long time. Electronic medical equipment: Your phone is a radio transmitter which may interfere with electronic medical equipment or implants, 4 such as hearing aids, pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 15 cm be maintained between the phone and an implant. Your doctor or the manufacturers of such equipment will be able to give you any advice you may need in this area. Hospitals: Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff. Road safety: Do not use your phone when driving. In order to give your full attention to driving, stop and park safely before making a call. You must comply with any current legislation. Distance of operation: This phone model has been tested and meets radiofrequency exposure guidelines when used as follows: • Against the ear: Place or receive a phone call and hold the phone as you would a wire line telephone. • Body worn: When transmitting, place the phone in a carry accessory that contains no metal and positions the phone a minimum of 2.5 cm form your body. Use of other accessories may not ensure compliance with radiofrequency exposure guidelines. If you do not use a body worn accessory and are not holding the phone at the ear, position the phone a minimum of 2.5 cm from your body, • Data operation: When using a data feature, position the phone a minimum of 2.5 cm from your body for the whole duration of th…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 COLLAGE INVESTMENTS LLC ______________________________________________________ 10/06/2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____COLLAGE INVESTMENTS LLC _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Mobile phone Model name: L1 FLYER FCC ID: GAO-FLYER We affirm that between SIEMIC and ____ COLLAGE INVESTMENTS LLC ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature： Client’s name / title： Daniel Gonzalez/Manager Contact information / address ：COLLAGE INVESTMENTS LLC/ 11437 NW 34 STREET

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 COLLAGE INVESTMENTS LLC ______________________________________________________ 10/06/2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: GAO-FLYER We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Bom - Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Daniel Gonzalez/Manager Contact information / address: COLLAGE INVESTMENTS LLC/ 11437 NW 34 STREET

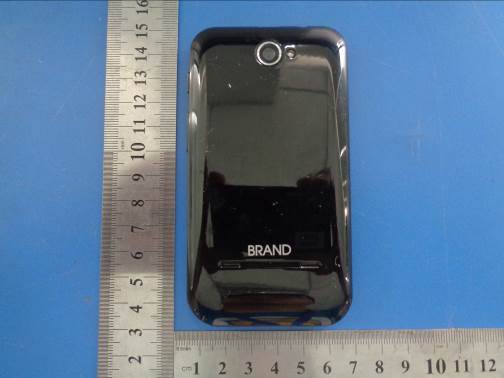

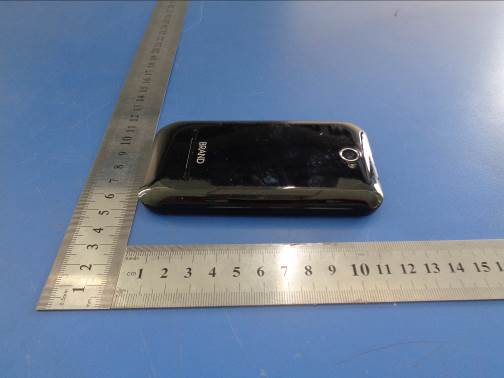

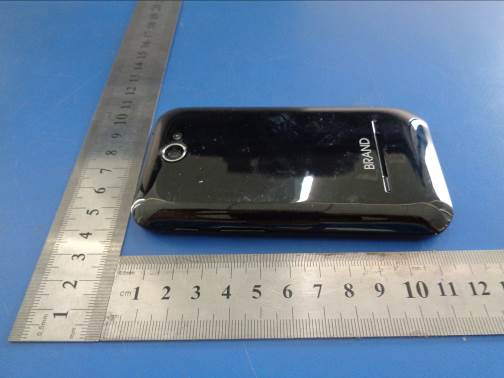

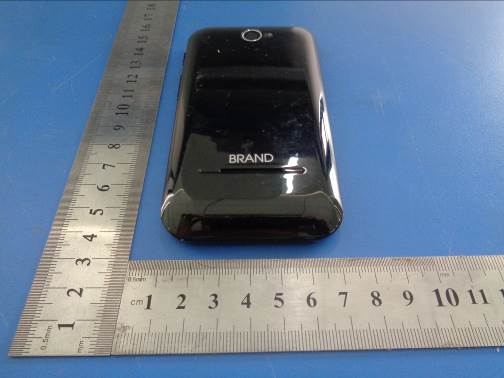

Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 19 of 35 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph : EUT External Photo All Packages – Front View Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 20 of 35 www.siemic.com.cn EUT - Front View EUT - Rear View Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 21 of 35 www.siemic.com.cn EUT – Top View EUT – Bottom View Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 22 of 35 www.siemic.com.cn EUT – Left View EUT – Right View

Label Location: Lable Location

Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 23 of 35 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo EUT – Uncover Front View 1 EUT – Uncover Front View 2 GSM/WCDMA Antenna BT/WIFI Antenna Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 24 of 35 www.siemic.com.cn EUT – Battery Front View EUT – Battery Rear View Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 25 of 35 www.siemic.com.cn LCD - Front View LCD - Rear View Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 26 of 35 www.siemic.com.cn EUT – PCB Front View EUT – PCB Rear View Title: EMC Test Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050021-FCC-E Issue Date: June 09, 2014 Page: 27 of 35 www.siemic.com.cn EUT – PCB Shielding Off Front View

COLLAGE INVESTMENTS LLC Mobile phone Main Model: L1 FLYER Serial Model: N/A July 09, 2014 Report No.: 14050021-FCC-H2 (This report supersedes none) Modifications made to the product : None This Test Report is Issued Under the Authority of: Kevin Tian Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Exposure Evaluation Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: §15.247 (i), §2.1093 Report No.: 14050021-FCC-H2 Issue Date: July 09, 2014 Page: 2 of 9 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Exposure Evaluation Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: §15.247 (i), §2.1093 Report No.: 14050021-FCC-H2 Issue Date: July 09, 2014 Page: 3 of 9 www.siemic.com This page has been left blank intentionally. Title: RF Exposure Evaluation Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: §15.247 (i), §2.1093 Report No.: 14050021-FCC-H2 Issue Date: July 09, 2014 Page: 4 of 9 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 Title: RF Exposure Evaluation Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: §15.247 (i), §2.1093 Report No.: 14050021-FCC-H2 Issue Date: July 09, 2014 Page: 5 of 9 www.siemic.com 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the COLLAGE INVESTMENTS LLC, Mobile phone and model: L1 FLYER against the current Stipulated Standards. The Mobile phone has demonstrated compliance with the §15.247 (i), §2.1093. EUT Information EUT Description Mobile phone Main Model L1 FLYER Serial Model N/A Antenna Gain Bluetooth & WIFI: -0.7dBi Input Power Adapter: Model: BSN-DB05B Input: AC 100-240V 50/60Hz 150mA Output: DC 5V 500mA RECHARGEABLE BATTERY BH-P4B: 3.7V 1300mAh 4.81Wh Classification Per Stipulated Test Standard §15.247 (i), §2.1093 Title: RF Exposure Evaluation Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: §15.247 (i), §2.1093 Report No.: 14050021-FCC-H2 Issue Date: July 09, 2014 Page: 6 of 9 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of Mobile phone with stipulated standard Applicant / Client COLLAGE INVESTMENTS LLC 11437 NW 34 STREET, DORAL, FLORIDA 33178 U.S.A. Manufacturer NINGBO BIRD CO., LTD No.999 Dacheng East Road,Fenghua City,Zhejiang Laboratory performing the tests SIEMIC (Nanjing-China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel: +86(25)86730128/86730129 Fax: +86(25)86730127 Email: [email protected] Test report reference number 14050021-FCC-H2 Date EUT received May 19, 2014 Standard applied §15.247 (i), §2.1093 Dates of test (from – to) May 26 to July 09, 2014 No of Units : #1 Equipment Category : Spread Spectrum System/Device Trade Name : LIKUID RF Operating Frequency (ies) 802.11b/g/n: 2412-2462 MHz Bluetooth: 2402-2480 MHz Number of Channels Bluetooth: 79CH 802.11b/g/n: 11CH Modulation 802.11b/g/n: DSSS/OFDM Bluetooth: GFSK GPRS Multi-slot class 8/10/12 Port Earphone Port, USB Port FCC ID GAO-FLYER Title: RF Exposure Evaluation Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: §15.247 (i), §2.1093 Report No.: 14050021-FCC-H2 Issue Date: July 09, 2014 Page: 7 of 9 www.siemic.com 3 MODIFICATION NONE Title: RF Exposure Evaluation Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: §15.247 (i), §2.1093 Report No.: 14050021-FCC-H2 Issue Date: July 09, 2014 Page: 8 of 9 www.siemic.com 4 TEST SUMMARY The product was tested in accordance with the following specifications. All testing has been performed according to below product classification: Test Results Summary FCC Rules Description of Test Result §15.247 (i), §2.1093 RF Exposure Compliance Title: RF Exposure Evaluation Report for Mobile phone Main Model: L1 FLYER Serial Model: N/A To: §15.247 (i), §2.1093 Report No.: 14050021-FCC-H2 Issue Date: July 09, 2014 Page: 9 of 9 www.siemic.com 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS 5.1 §15.247 (i) and §2.1093/ – RF Exposure Standard Requirement: According to §15.247 (i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed …

Text truncated - open the document above for the full version.

COLLAGE INVESTMENTS LLC Mobile phone Main Model: L1 FLYER Serial Model: N/A July 09, 2014 Report No.: 14050021-FCC-R2 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Kevin Tian Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Mobile phone Main Model: L1 FLYER Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 14050021-FCC-R2 Issue Date: July 09, 2014 Page: 2 of 53 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for Mobile phone Main Model: L1 FLYER Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 14050021-FCC-R2 Issue Date: July 09, 2014 Page: 3 of 53 www.siemic.com This page has been left blank intentionally. Title: RF Test Report for Mobile phone Main Model: L1 FLYER Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 14050021-FCC-R2 Issue Date: July 09, 2014 Page: 4 of 53 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT ................................................................................................................................ 36 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 37 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 48 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 52 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 53 Title: RF Test Report for Mobile phone Main Model: L1 FLYER Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 14050021-FCC-R2 Issue Date: July 09, 2014 Page: 5 of 53 www.siemic.com 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the COLLAGE INVESTMENTS LLC, Mobile phone and model: L1 FLYER against the current Stipulated Standards. The Mobile phone has demonstrated compliance with the FCC 15.247: 2013, ANSI C63.4: 2009. EUT Information EUT Description Mobile phone Main Model L1 FLYER Serial Model N/A Antenna Gain GSM850: -1.87 dBi PCS1900: -0.75 dBi UMTS-FDD Band V: -0.62 dBi UMTS-FDD Band II: -0.62 dBi Bluetooth/ WIFI: -0.7 dBi Input Power Adapter: Model: BSN-DB05B Input: AC 100-240V 50/60Hz 150mA Output: DC 5V 500mA RECHARGEABLE BATTERY BH-P4B: 3.7V 1300mAh 4.81Wh Classification Per Stipulated Test Standard FCC 15.247: 2013, ANSI C63.4: 2009 Title: RF Test Report for Mobile phone Main Model: L1 FLYER Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 14050021-FCC-R2 Issue Date: July 09, 2014 Page: 6 of 53 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of Mobile phone with stipulated standard Applicant / Client COLLAGE INVESTMENTS LLC 11437 NW 34 STREET, DORAL, FLORIDA 33178 U.S.A. Manufacturer NINGBO BIRD CO., LTD No.999 Dacheng East Road,Fenghua City,Zhejiang Laboratory performing the tests SIEMIC (Nanjing-China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email: [email protected] Test report reference number 14050021-FCC-R2 Date EUT received May 19, 2014 Standard applied FCC 15.247: 2013, ANSI C63.4: 2009 Dates of test (from – to) May 26 to July 09, 2014 No of Units #1 Equipment Category DSS Trade Name LIKUID RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX : 1930.2 ~ 1989.8 MHz UMTS-FDD BandIITX :1852.4 ~ 1907.6 MHz; RX : 1932.4 ~ 1987.6 MHz 802.11b/g/n: 2412-2462 MHz Bluetooth : 2402-2480 MHz Number of Channels 299CH (PCS1900) and 124CH (GSM850) UMTS-FDD BandII: 277CH Bluetooth: 79CH 802.11b/g/n: 11CH Modulation GSM / GPRS: GMSK UMTS-FDD: QPSK 802.11b/g/n: DSSS/OFDM Bluetooth: GFSK Port Earphone Port, USB Port GPRS Multi-slot class 8/10/12 FCC ID : GAO-FLYER Title: RF Test Report for Mobile phone Main Model: L1 FLYER Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 14050021-FCC-…

Text truncated - open the document above for the full version.

Title: RF Test Report for Mobile phone Main Model: L1 FLYER Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 14050021-FCC-R2 Issue Date: June 09, 2014 Page: 45 of 52 www.siemic.com Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup – Front View Conducted Emissions Test Setup – Side View Title: RF Test Report for Mobile phone Main Model: L1 FLYER Main Model: N/A To: FCC 15.247: 2013, ANSI C63.4: 2009 Report No: 14050021-FCC-R2 Issue Date: June 09, 2014 Page: 46 of 52 www.siemic.com Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
