GAO-L1FMobile Phone

1 Table of Contents 1.Foreword ............................................................. 2 2.Getting to know your touch phone .................. 5 3.Starting up the device ........................................ 6 4.Introduce the basic phone function ................. 8 5.Technical Specifications ................................. 15 6.SAR .................................................. 16 2 1. Foreword Safety In order to ensure the phone is used safely and correctly, please read the precautions below carefully before use. 1.1 General precaution ·Your phone is only suitable for the battery and charger approved by our company or else it may cause the battery to leak, overheat, explode or even catch fire. ·Do not knock, vibrate or throw the phone heavily to avoid malfunction, fire, overheating, explosion or fire. ·If there are abnormal phenomena, like temperature rising, color change or distortion during the usage, charging or storage of the battery, please stop using it and replace it with a new battery. ·It may burn the skin if liquid in the battery leaks onto skin or clothes. If this happens please flush with plenty of clean water immediately and go to a hospital at once. ·Please keep the battery away from fire to avoid fire and explosion if the battery leaks or emits a strange smell. ·Do not place expose the battery to moisture or it may cause overheating, fumes and corrosion. ·Do not use or place the battery under direct sunlight, or in hot places, it may cause leakage and overheating, thus reducing performance and shortening the lifespan. ·Do not charge the battery for over 24 hours continuously. ·Use careful with the earphone maybe possible excessive sound presure from earphones and headphones can cause hearing loss. 1.2 Precaution for the use of charger ·Do not cause short circuit to the charger, or it may cause electric shock, fumes and damage to the charger. ·Do not use the charger if the power wire is broken, or it may cause fire and electric shock. ·Please remove accumulated dust on the power plug. ·Do not put water containers next to the power supply to avoid overheating, fire, electric shock and malfunction in case they come into contact. ·Do not disassemble or tamper with the charger or it may cause personal injury, electric shock, fire and the damage of the charger. ·Do not use the charger in places of high humidity, like 3 bathrooms, or it may cause electric shock, fire and damage of charger. ·Do not touch the charger, power cord or power plug with wet hands or it can cause electric shock. ·Do not put heavy objects on the power cord or change the power cord or it may cause electric shock and fire. ·Please unplug the power socket before cleaning and maintenance. ·Please hold the charger to unplug the socket as pulling the power cord may damage the power wire and cause electric shock and fire. 1.3 Cleaning and maintenance ·As the phone, battery and charger are not waterproof, do not use them in places of high humidity and avoid them being wet by rain. ·Please clean the battery and charger with a soft dry cloth. ·Never use alcohol, thinner or solutions, like benzene, to wipe the phone. ·Dirty sockets can cause poor contact and power down, and even make recharging unavailable. So, please clean them periodically. 1.4 Common Precaution Mobile Phone: ·Please use the phone in an environment with temperature between -20°C- 45°Cand humidity of <75%. ·Please use the phone far away from regular telephones, TV sets, radio sets and office automation equipment, to avoid affecting the normal use of these equipments and mobile phone. Battery: ·Store the battery in cool and ventilated place without direct sunlight. ·The battery has a limited lifespan. The usage of battery will be shortened progressively due to frequent charging. Once the battery is out of use, it means that its lifespan has ended, and you will need to replace it with an approved new battery. ·Do not dispose of old batteries as household waste. Give them to specified disposal places and follow any stipulated instructions for disposal. CAUTION:RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCYIONS. 4 Charger: ·Do not charge under following conditions: -- places with direct sunlight -- places with ambient temperature less than 0°C or over 40°C, wet or dusty places with strong vibrations (it may cause malfunction) -- places near electrical appliances (it may affect the image and sound) like TV set, radio, etc -- Adapter shall be installed near the equipment and shall be easily accessible.The plug considered as disconnect device of adapter 5 2. Getting to know your touch phone 6 3. Starting up the device To remove the back cover ·Make sure your device is turned off. ·Firmly hold the device with the front panel facing down. ·Slide your finger into the groove at the top of the phone and gently pull open the back cover. To install the SIM card ·Remove the battery if it is installed. ·Locate the SIM card slot, and then insert the SIM card with its gold contacts facing down and its cut-off corner facing out of the card slot as shown in the diagram. ·Slide the SIM card completely into the slot (See picture1). Note: The phone can support two SIM cards. The card will support 2G card. To install a memory card To have additional storage for your images, videos, music and files, you can purchase a memory card and install it in your device. Locate the memory card slot on the upper part of the exposed right panel. Insert the memory card into the slot with its gold contacts facing down until it clicks into place (See picture2). P 1 P 2 To install the battery 1. Align the battery’s exposed copper contacts with the battery connectors at the bottom part of the battery compartment. 2. Insert the contacts side of the battery first and then gently push the battery into place. Replace the back cover. 7 Charging the Battery New batteries are shipped partially charged. Before you st…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 COLLAGE INVESTMENTS LLC 2012-11-29 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, COLLAGE INVESTMENTS LLC hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Mobile phone model name: L1-Forst FCC ID: GAO-L1F We affirm that between SIEMIC and COLLAGE INVESTMENTS LLC, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature COLLAGE INVESTMENTS LLC Client’s name / title Daniel.Gonzalez/DIECTOR Contact information / address 11437 NW 34 STREET, DORAL, FLORIDA 33178 U.S.A.

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 3.0 COLLAGE INVESTMENTS LLC 2012-11-29 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: GAO-L1F We hereby request confidential treatment of information accompanying this application as outlined below: - - - - - The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : COLLAGE INVESTMENTS LLC Client’s name / title : Daniel.Gonzalez/DIECTOR Contact information / address: 11437 NW 34 STREET, DORAL, FLORIDA 33178 U.S.A. Operational description Block diagram Schematics Tune up Bom SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 3.0 SCS-F19: Confidentiality Request Letter Page 4 of 4 Rev 3.0 (Client's Company Letterhead / Logo) (Current Date) To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: XXXXXXXXXX To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - e.g. User Manual Insert - etc. - etc. - etc. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : XXXXXXXX Client’s name / title : XXXXXXXX Contact information / address : XXXXXXXX

Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 19 of 35 www.siemic.com Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 20 of 35 www.siemic.com EUT - Front View EUT - Rear View Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 21 of 35 www.siemic.com EUT - Top View EUT - Bottom View Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 22 of 35 www.siemic.com EUT - Left View EUT - Right View

L1-Forst N104/12 N1 IMEI 2: 352821055200003 IMEI 1: 352821050200008 Code:286138400 FCC ID:GAO-L1F Made In China

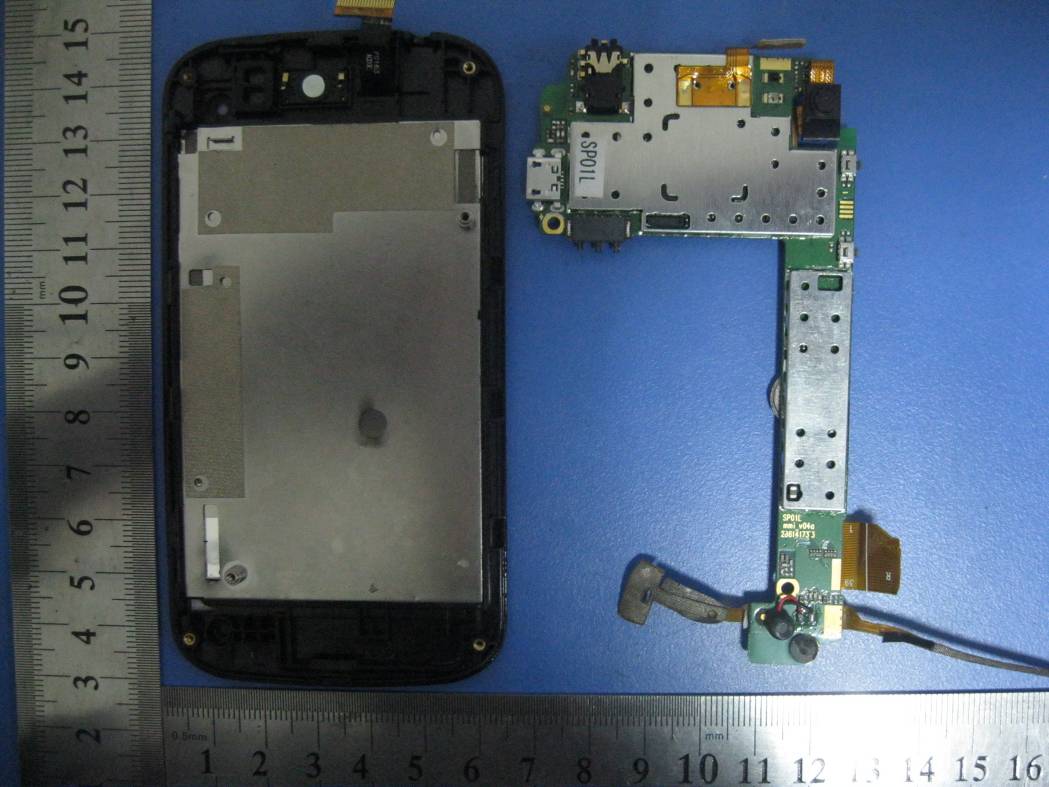

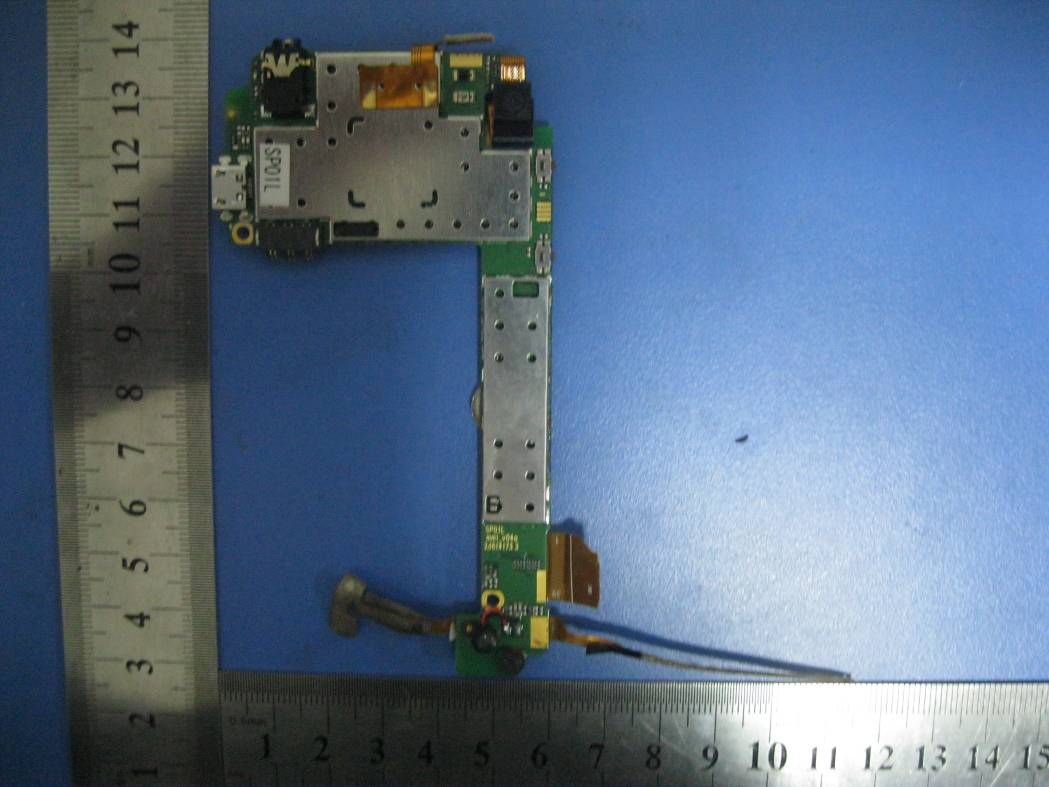

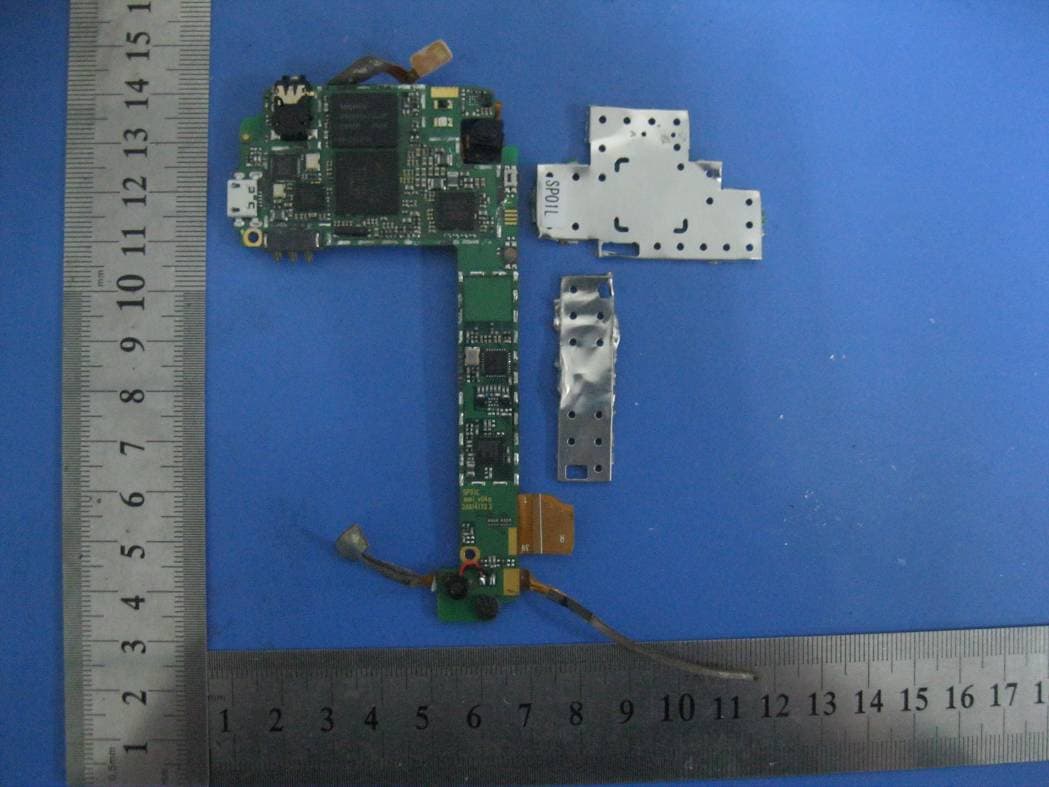

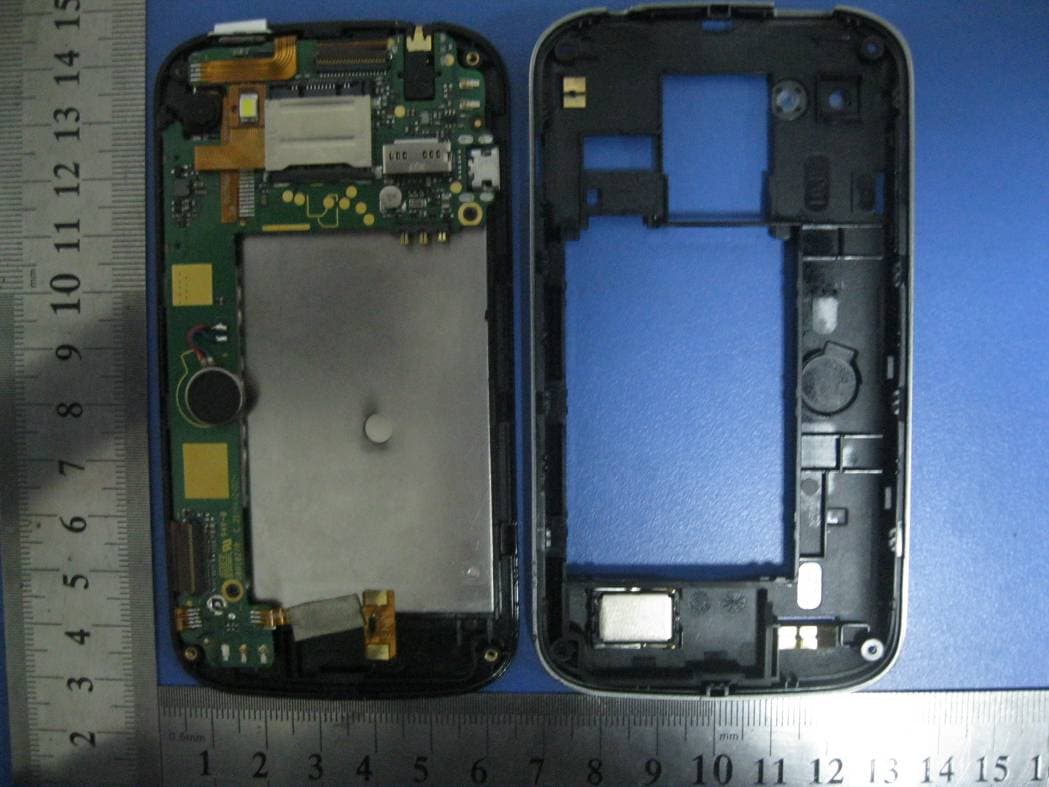

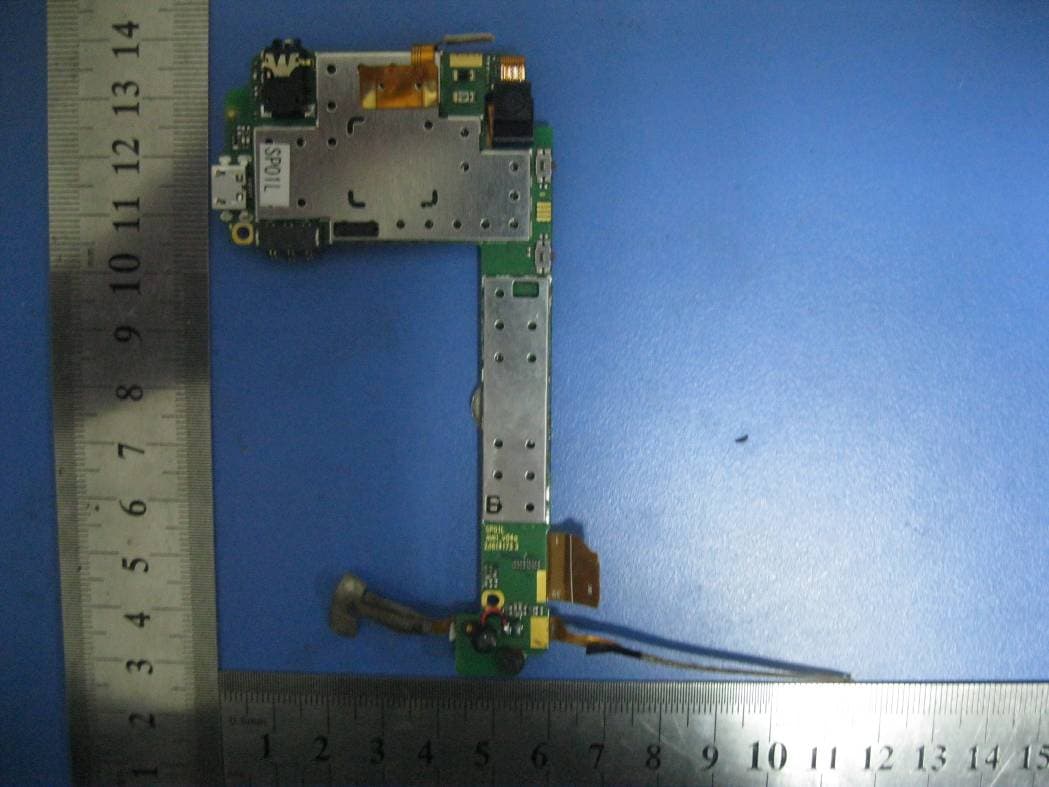

Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 23 of 35 www.siemic.com Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View1 Cover Off - Bottom View Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 24 of 35 www.siemic.com Battery - Top View Battery - Bottom View Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 25 of 35 www.siemic.com LCD - Top View LCD - Bottom View Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 26 of 35 www.siemic.com Uncover - Top View Uncover without LCD - Top View GSM Antenna Bluetooth /WIFI Antenna Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 27 of 35 www.siemic.com Uncover Without Shielding - Top View

COLLAGE INVESTMENTS LLC Mobile phone Model: L1-Forst Serial Model: N/A December 05, 2012 Report No.: 12050085-FCC-E (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Eaton Wang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 2 of 35 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 3 of 35 www.siemic.com This page has been left blank intentionally. Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 4 of 35 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS.......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS................................................................... 9 ANNEX A. TEST INSTRUMENTATION & GENERAL PROCEDURES ............................................................. 14 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 19 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 30 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 34 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 35 Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 5 of 35 www.siemic.com 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the COLLAGE INVESTMENTS LLC, Mobile phone and Model: L1-Forst against the current Stipulated Standards. The Mobile phone has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009. EUT Information EUT Description : Mobile phone Main Model : L1-Forst Serial Model N/A Antenna Gain : GSM850: -1 dBi PCS1900: 2 dBi Bluetooth: 1 dBi WIFI: 1 dBi Input Power : Li-ion Rechargeable Battery Model: SP01 Capacity: 1200mAh Nominal Voltage: 3.7V Charging Voltage Limit: 4.2V Adapter Model: A1502-500550 Input: AC 100-240V 50/60Hz 0.15A Output: DC 5.0V 550mA Classification Per Stipulated Test Standard : Class B Emission Product Per FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009 Title: EMC Test Report for Mobile phone Model: L1-Forst Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2012 , ANSI C63.4:2009 Report No.: 12050085-FCC-E1 Issue Date: December 05, 2012 Page: 6 of 35 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of Mobile phone with stipulated standards Applicant / Client COLLAGE INVESTMENTS LLC 11437 NW 34 STREET, DORAL, FLORIDA 33178 U.S.A. Manufacturer NINGBO BIRD CO., LTD No.999 Dacheng East Road,Fenghua City,Zhejiang Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1, Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12050085-FCC-E Date EUT received November 26, 2012 Standard applied FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009 Dates of test (from – to) November 27, 2012 No of Units #1 Equipment Category JBP Trade Name LIKUID RF Operating Frequency (ies) GSM850 TX…
