GAO-L4-LIKMobile phone

11 2 Table of Contents 1.Foreword ............................................................. 3 2.Getting to know your touch phone .................. 6 3.Starting up the device ....................................... 7 4.Introduce the basic phone function ............... 10 5.Technical Specifications ................................. 16 6.SAR..................................... .............................. 18 3 Foreword Safety In order to ensure the phone is used safely and correctly, please read the precautions below carefully before use. 1.1 General precaution ·Your phone is only suitable for the battery and charger approved by our company or else it may cause the battery to leak, overheat, explode or even catch fire. ·Do not knock, vibrate or throw the phone heavily to avoid malfunction, fire, overheating, explosion or fire. ·If there are abnormal phenomena, like temperature rising, color change or distortion during the usage, charging or storage of the battery, please stop using it and replace it with a new battery. ·It may burn the skin if liquid in the battery leaks onto skin or clothes. If this happens please flush with plenty of clean water immediately and go to a hospital at once. ·Please keep the battery away from fire to avoid fire and explosion if the battery leaks or emits a strange smell. ·Do not place expose the battery to moisture or it may cause overheating, fumes and corrosion. ·Do not use or place the battery under direct sunlight, or in hot places, it may cause leakage and overheating, thus reducing performance and shortening the lifespan. ·Do not charge the battery for over 24 hours continuously. ·Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss. 1.2 Precaution for the use of charger ·Do not cause short circuit to the charger, or it may cause electric shock, fumes and damage to the charger. ·Do not use the charger if the power wire is broken, or it may cause fire and electric shock. ·Please remove accumulated dust on the power plug. ·Do not put water containers next to the power supply to avoid 4 overheating, fire, electric shock and malfunction in case they come into contact. ·Do not disassemble or tamper with the charger or it may cause personal injury, electric shock, fire and the damage of the charger. ·Do not use the charger in places of high humidity, like bathrooms, or it may cause electric shock, fire and damage of charger. ·Do not touch the charger, power cord or power plug with wet hands or it can cause electric shock. ·Do not put heavy objects on the power cord or change the power cord or it may cause electric shock and fire. ·Please unplug the power socket before cleaning and maintenance. ·Please hold the charger to unplug the socket as pulling the power cord may damage the power wire and cause electric shock and fire. 1.3 Cleaning and maintenance ·As the phone, battery and charger are not waterproof, do not use them in places of high humidity and avoid them being wet by rain. ·Please clean the battery and charger with a soft dry cloth. ·Never use alcohol, thinner or solutions, like benzene, to wipe the phone. ·Dirty sockets can cause poor contact and power down, and even make recharging unavailable. So, please clean them periodically. 1.4 Common Precaution Mobile Phone: ·Please use the phone in an environment with temperature between -20°C- 45°Cand humidity of <75%. ·Please use the phone far away from regular telephones, TV sets, radio sets and office automation equipment, to avoid affecting the normal use of these equipment and mobile phone. 5 Battery: ·Store the battery in cool and ventilated place without direct sunlight. ·The battery has a limited lifespan. The usage of battery will be shortened progressively due to frequent charging. Once the battery is out of use, it means that its lifespan has ended, and you will need to replace it with an approved new battery. ·Do not dispose of old batteries as household waste. Give them to specified disposal places and follow any stipulated instructions for disposal. CAUTION:RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCYIONS. Charger: ·Do not charge under following conditions: -- places with direct sunlight -- places with ambient temperature less than 0°C or over 40°C, wet or dusty places with strong vibrations (it may cause malfunction) -- places near electrical appliances (it may affect the image and sound) like TV set, radio, etc. -- Adapter shall be installed near the equipment and shall be easily accessible. The plug considered as disconnect device of adapter. Getting t 1）Telephon e 2）Power on/ 3）LCD displ a 4）Menu/hom 5）Front came 6）Volume bu 7）Camera 8）Flash 6 to know you e receiver off ay me/back key era uttons 6 ur touch phoone 7 Starting up the device To remove the back cover ·Make sure your device is turned off. ·Firmly hold the device with the front panel facing down. ·Slide your finger into the groove at the top of the phone and gently pull open the back cover. To install the SIM card The SIM card contains your phone number, service details, and phonebook/ message memory. Your device is supported both 2G and 3G (WCDMA) SIM cards. 1. Remove the battery if it is installed. 2. Locate the SIM card slot, and then insert the SIM card with its gold contacts facing down and its cut-off corner facing out the card slot. 3. Slide the SIM card completely into the slot. Note: • The phone can be supported the double SIM cards. The card slot 1/2 will be both supported 3G SIM card (WCDMA), but one SIM card can use 3G networks only. If you need to use 3G operation, please insert 3G card in the card slot 1(Default SIM1 card, defined in the menu Settings/ More.../ Mobile networks/3G service), the SIM2 card will be supported 2G network only (If insert 3G card in the card slot 2, you can also use 2G operation only). • Some legacy SIM cards may not function with your device. Y…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 COLLAGE INVESTMENTS LLC. 1/21/2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, COLLAGE INVESTMENTS LLC hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Mobile phone model name: L4 Per4mance FCC ID: GAO -L4-LIK We affirm that between SIEMIC and COLLAGE INVESTMENTS LLC, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title: Daniel.Gonzalez/Manager Contact information / address ：COLLAGE INVESTMENTS LLC./ 11437 NW 34 STREET

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 Collage Investments LLC. 1/21/2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: GAO -L4-LIK We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - BOM - PCB Layout The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title ： Daniel.Gonzalez/ Manager Contact information / address ：Collage Investments LLC. /11437 NW 34 STREET

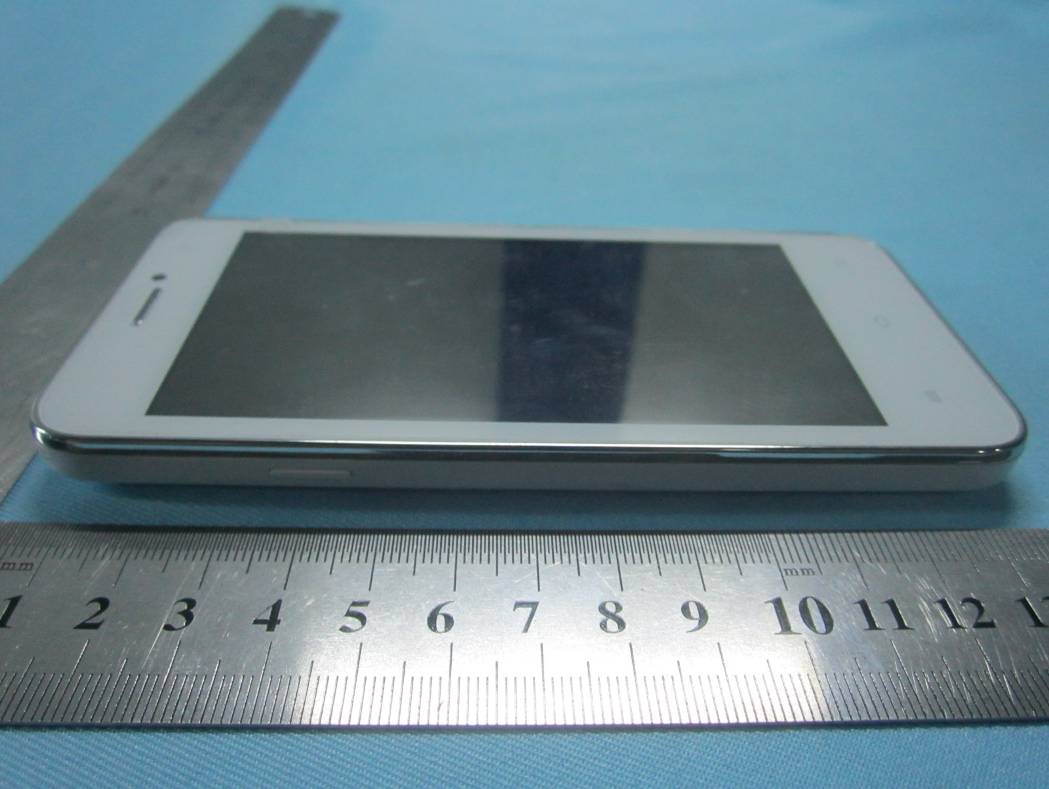

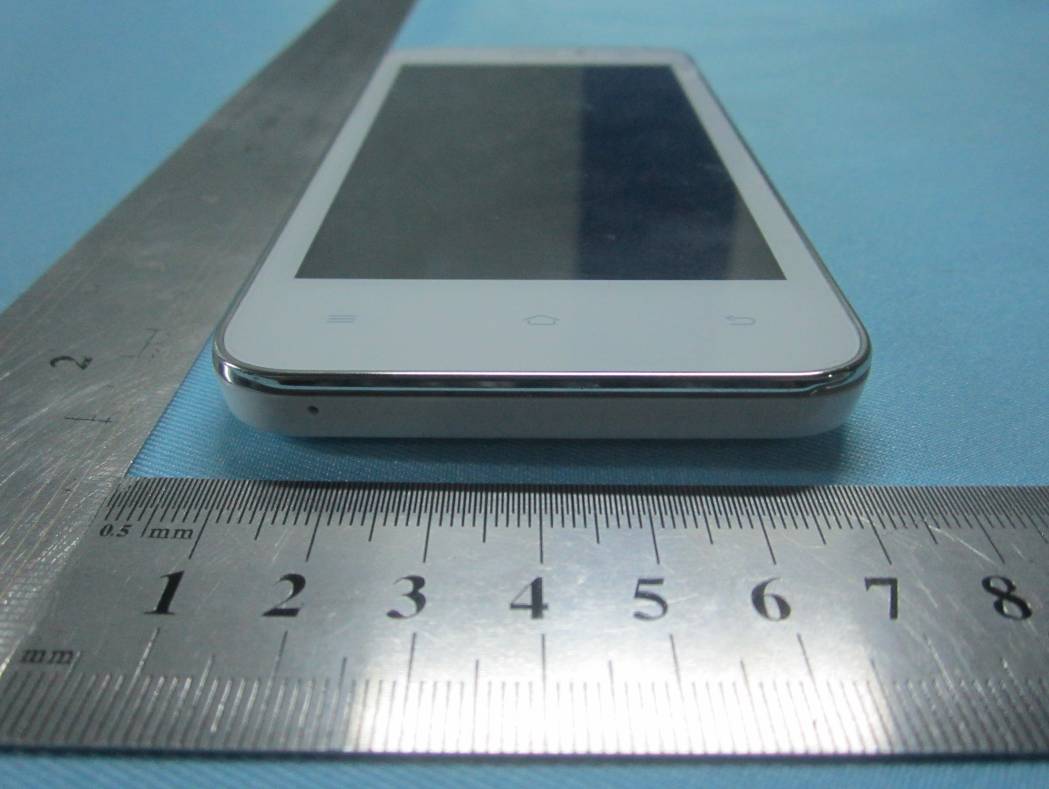

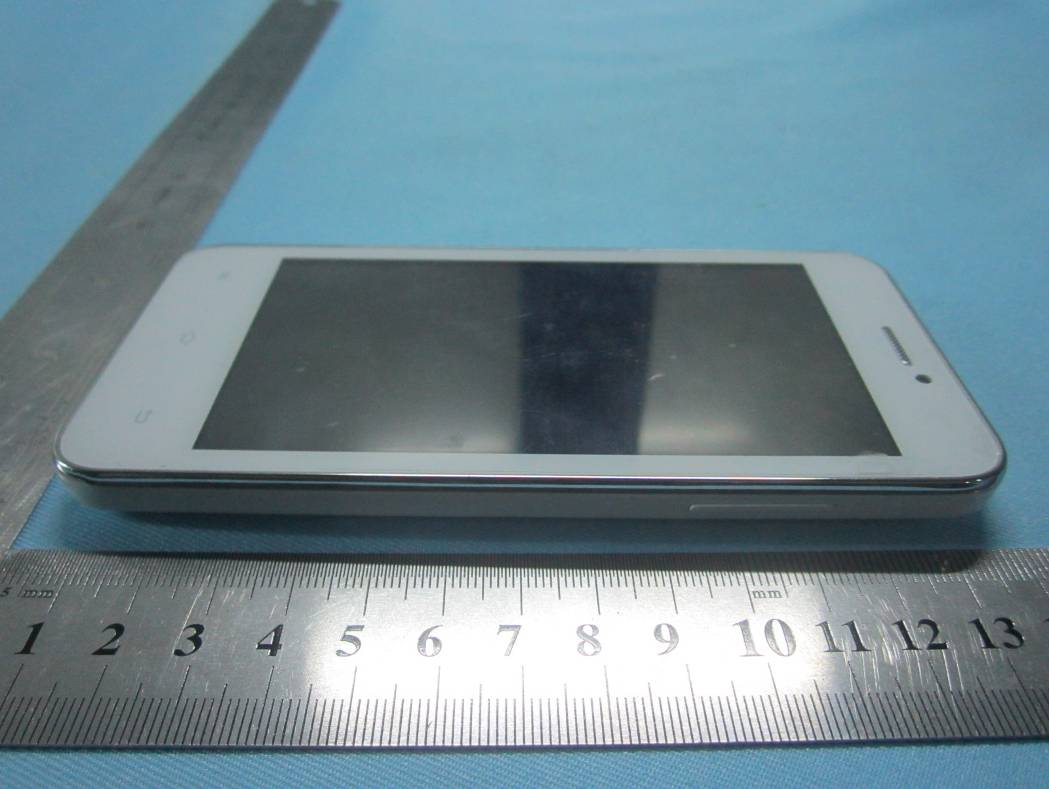

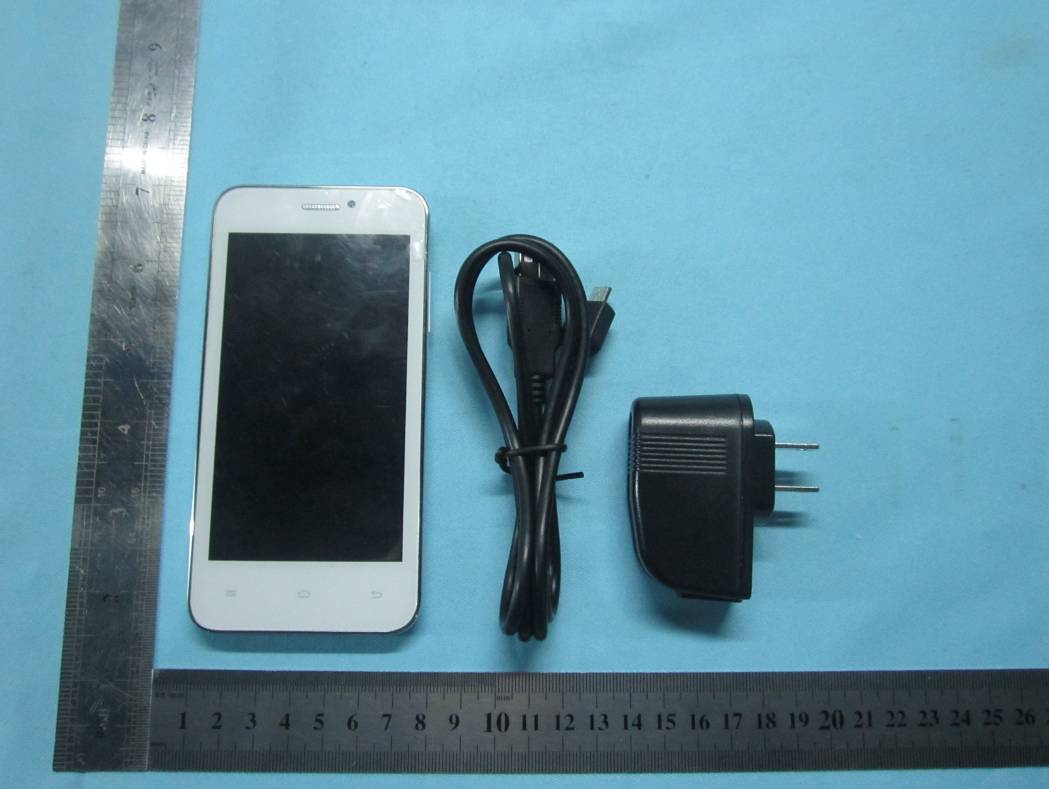

Title: EMC Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13050052-FCC-E1 Issue Date: January 17, 2014 Page: 19 of 34 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Title: EMC Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13050052-FCC-E1 Issue Date: January 17, 2014 Page: 20 of 34 www.siemic.com.cn UT - Front View EUT - Rear View (Note: The “BRAND” on above photo only shows the location of the brand name which will be printed. The brand name of this sample will be “LIKUID”.) Title: EMC Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13050052-FCC-E1 Issue Date: January 17, 2014 Page: 21 of 34 www.siemic.com.cn EUT - Top View EUT - Bottom View Title: EMC Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13050052-FCC-E1 Issue Date: January 17, 2014 Page: 22 of 34 www.siemic.com.cn EUT - Left View EUT - Right View

Title: EMC Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13050052-FCC-E1 Issue Date: January 17, 2014 Page: 23 of 34 www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View 1 Battery label View Title: EMC Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13050052-FCC-E1 Issue Date: January 17, 2014 Page: 24 of 34 www.siemic.com.cn Cover Off - Top View 2 Cover Off - Top View 3 Title: EMC Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13050052-FCC-E1 Issue Date: January 17, 2014 Page: 25 of 34 www.siemic.com.cn Mainborad With Shielding - Front View Mainborad Without Shielding - Front View Title: EMC Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 13050052-FCC-E1 Issue Date: January 17, 2014 Page: 26 of 34 www.siemic.com.cn Mainborad – Rear View Antenna View GSM/ UMTS Antenna Bluetooth/WIFI Antenna

COLLAGE INVESTMENTS LLC Mobile phone Main Model: L4 Per4mance Serial Model: N/A January 17, 2014 Report No.: 13050052-FCC-R3 (This report supersedes none) Modifications made to the product : None This Test Report is Issued Under the Authority of: Back Huang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 13050052-FCC-R3 Issue Date: January 17, 2014 Page: 2 of 72 www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen - China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 13050052-FCC-R3 Issue Date: January 17, 2014 Page: 3 of 72 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 13050052-FCC-R3 Issue Date: January 17, 2014 Page: 4 of 72 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 52 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 57 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 67 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................. 71 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 72 Title: RF Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 13050052-FCC-R3 Issue Date: January 17, 2014 Page: 5 of 72 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the COLLAGE INVESTMENTS LLC, Mobile phone and model: L4 Per4mance against the current Stipulated Standards. The Mobile phone has demonstrated compliance with the FCC Part 15.247: 2013, ANSI C63.4: 2009. EUT Information EUT Description : Mobile phone Main Model : L4 Per4mance Serial Model : N/A Antenna Gain : UMTS-FDD Band V/GSM850: -1 dBi UMTS-FDD Band II/PCS1900: 1 dBi Bluetooth/WIFI: 0 dBi Input Power : Battery: Model: BH-P4J Spec: 3.7V 1500mAh 5.55Wh Limited charger voltage: 4.2V Adapter: Input: 100-240V; 50/60Hz 0.15A Output: 5.0V; 500mA Classification Per Stipulated Test Standard : FCC Part 15.247: 2013, ANSI C63.4: 2009 Title: RF Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 13050052-FCC-R3 Issue Date: January 17, 2014 Page: 6 of 72 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Mobile phone with stipulated standard Applicant / Client COLLAGE INVESTMENTS LLC 11437 NW 34 STREET, DORAL, FLORIDA 33178 U.S.A. Manufacturer NINGBO BIRD CO., LTD No.999 Dacheng East Road, Fenghua City, Zhejiang Laboratory performing the tests SIEMIC Shenzhen (Shenzhen - China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report reference number 13050052-FCC-R3 Date EUT received December 23, 2013 Standard applied FCC Part 15.247: 2013, ANSI C63.4: 2009 Dates of test (from – to) January 08 to January 15, 2014 No of Units : #1 Equipment Category : Spread Spectrum System/Device Trade Name : LIKUID RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX : 1930.2 ~ 1989.8 MHz UMTS-FDD BandVTX : 826.4 ~ 846.6 MHz; RX : 871.4 ~ 891.6 MHz UMTS-FDD BandIITX :1852.4 ~ 1907.6 MHz; RX : 1932.4 ~ 1987.6 MHz 802.11b/g/n: 2412-2462 MHz Bluetooth: 2402-2480 MHz Number of Channels 299CH (PCS1900) and 124CH (GSM850) UMTS-FDD BandV: 102CH UMTS-FDD …

Text truncated - open the document above for the full version.

Title: RF Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 13050052-FCC-R3 Issue Date: January 17, 2014 Page: 65 of 72 www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Title: RF Test Report for Mobile phone Main Model: L4 Per4mance Serial Model: N/A To: FCC Part 15.247: 2013, ANSI C63.4: 2009 Report No.: 13050052-FCC-R3 Issue Date: January 17, 2014 Page: 66 of 72 www.siemic.com.cn Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
