GAO-S6264G Smart Phone

5 Notices for the use of phone CAUTION! Please carefully read these instructions and follow them, in the case of dangerous situations. Driving safety: It is recommended not to use the phone while driving. If you use it however, turn on the Handsfree mode. Turn off your phone while in an aircraft. Interference caused by mobile phones affects aviation safety, and thus is illegal to use it on the plane. Please make sure that your mobile phone is turned off when you are on the plane. In hospital: When using the phone in a hospital must submit to the relevant rules specified by the hospital. Any interference caused by wireless devices may affect the performance of the phone. Approved service: Only approved repair shops can repair mobile phones. If you open the phone and try to fix it yourself, you will void the warranty of the product. Accessories and batteries: Only accessories and batteries approved by the producer can be used. It is recommended that the device is kept at a minimum of 10mm away from any body part. Emergency calls: Make sure the phone is turned on and enabled if you wish to make an emergency call, press the call key and confirm the location, explain what happened and do not close the call. The battery and charging the battery: It is recommended to fully charge before first use of the device. 6 The battery is not removable. Do not puncture or damage the battery in any way. Do not expose / keep / store close to heat sources / in sunlight. Risk of explosion. Do not expose the battery/product to temperatures above 40 C. Do not dispose the battery/product in fire or drop anywhere. Return defective batteries/products in special centers or to the supplier center. For more product details visit www.smoothmobile.us All applications provided by third parties and installed in this device, may be modified and/or stopped at any moment. Smooth Mobile will not be responsible in any way for modifications of the services or content of these applications. Any request or question regarding third party applications may be addressed to the owners of these applications. Warning: We take no responsibility for situations where the device is used other than as provided in the manual. Our company reserves the right to make changes in the content of the manual without making this public. These changes will be posted on the company website www.smoothmobile.us/site/ to the product it amends. Also, we are not responsible for any printing errors. The contents of this manual may be different from that in the product. In this last case will be considered. 7 Due to the enclosure material USED, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited. Do not use the mobile phone in the environment at too high or too low temperature, never expose the mobile phone under strong sunshine or too wet environment. The maximum operating ambient temperature of the equipment is 40°C CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. SAR limits are 1.6 Watts per kilogram (over a volume containing a mass of 1 gram of tissue) in countries that follow the United States FCC limit and 2.0 W/kg (averaged over 10 grams of tissue) in countries that follow the Council of the European Union limit. Tests for SAR are conducted using standard operating positions with the device 8 transmitting at its highest certified power level in all tested frequency bands. To reduce exposure to RF energy, use a hands-free accessory or other similar option to keep this device away from your head and body. Carry this device at least 25 mm away from your body to ensure exposure levels remain at or below the as-tested levels. Choose the belt clips, holsters, or other similar body-worn accessories which do not contain metallic components to support operation in this manner. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified, and use such accessories should be avoided. For your safety, it is recommended that, during charging, you don’t keep the device near your body, and that you place it on an inflammable stand. We recommend that, during nighttime, you put the phone away from you at a minimal distance of 1 meter. Device power on/off and standby After inserting the SIM card, memory card and battery (optional), start the phone by holding down the Power button for 3 seconds. To power off, press and hold the same button and confirm. If you press the Power button you will set phone in standby mode, to return shortly press the same button. 9 Unlocking, idle screen and applications menu To unlock the screen when resuming from standby, slide your finger from the bottom to the top of the screen. The main screen will be displayed. Home screen pages can be customized with shortcuts and widgets. At the top of the screen is placed the notification bar that contains information about the mobile network signal, WLAN, BT, battery level, time and events. To display the applications menu, touch the Menu icon from the bottom of the main screen. Slide the screen UP to scroll main menu. Touch the desired application icon to access it. Use the Back button to return to the main screen. Dialing To call a number, from the main screen open the dialer, dial the number and press the call key. To answer a call, drag the icon to the right, and to reject the call drag the icon to the left. You can call numbers directly from Call log, touch the dial symbol from the right side of the desired number. Messaging To create and send an SMS, proceed as follows: - Open the applications menu; 10 - Open the Messaging application; - From the bottom-r…

Text truncated - open the document above for the full version.

Collage Investments LLC Agent Authorization Company: Collage Investments LLC Address: 6030 NW 99 Ave #414, Doral, Florida 33178, United States Product Name: 4G Smart Phone Trade Mark: Smooth Model Number(s): Smooth 6.26 FCC ID: GAO-S626 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-18 Name: Daniel Gonzalez Title: Manager Company: Collage Investments LLC

Collage Investments LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-01-18 Subject; Request for Confidentiality FCC ID: GAO-S626 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Daniel Gonzalez Title: Manager

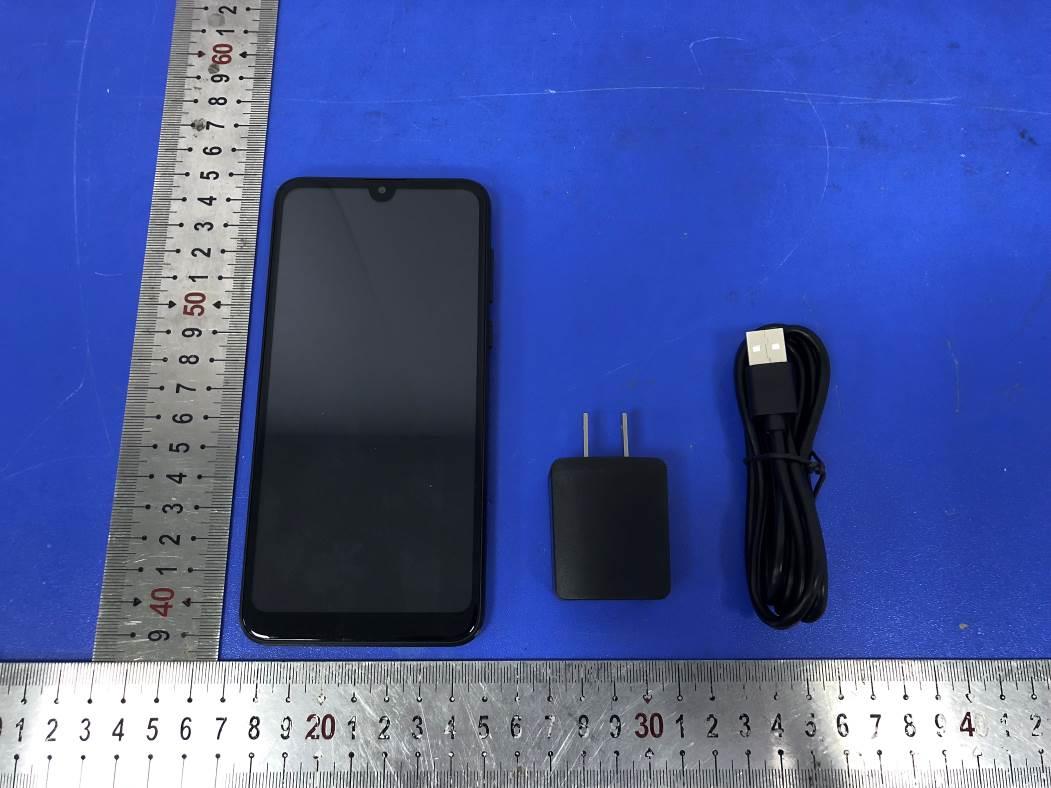

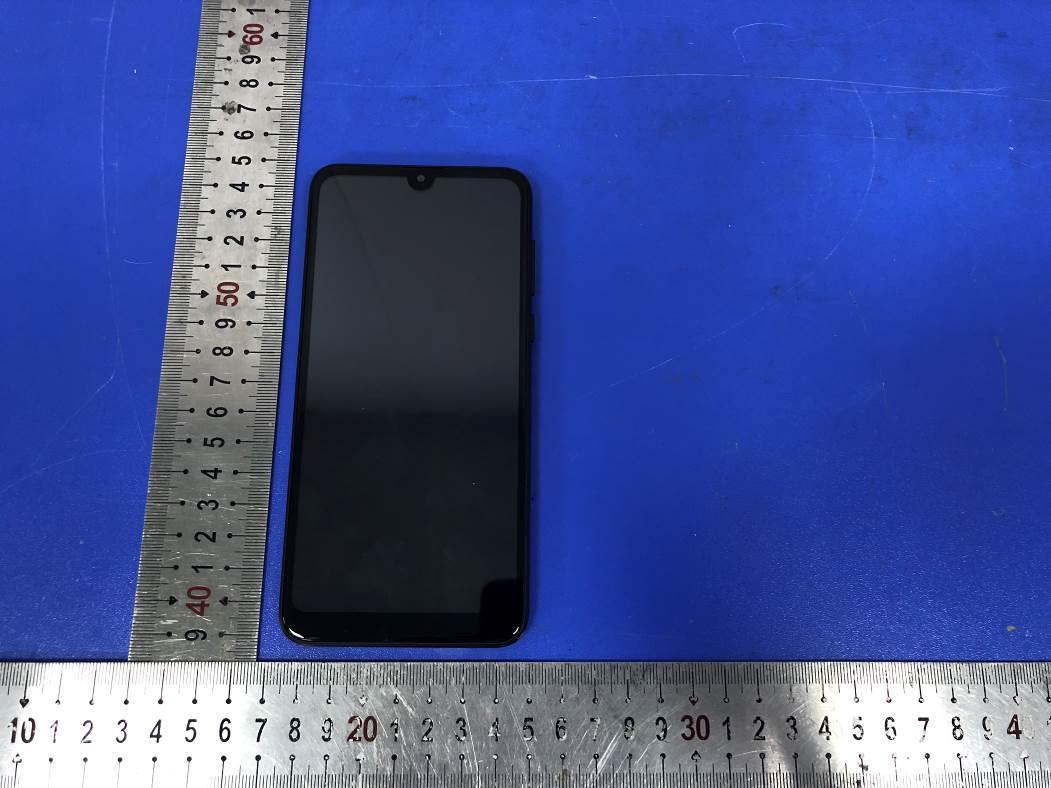

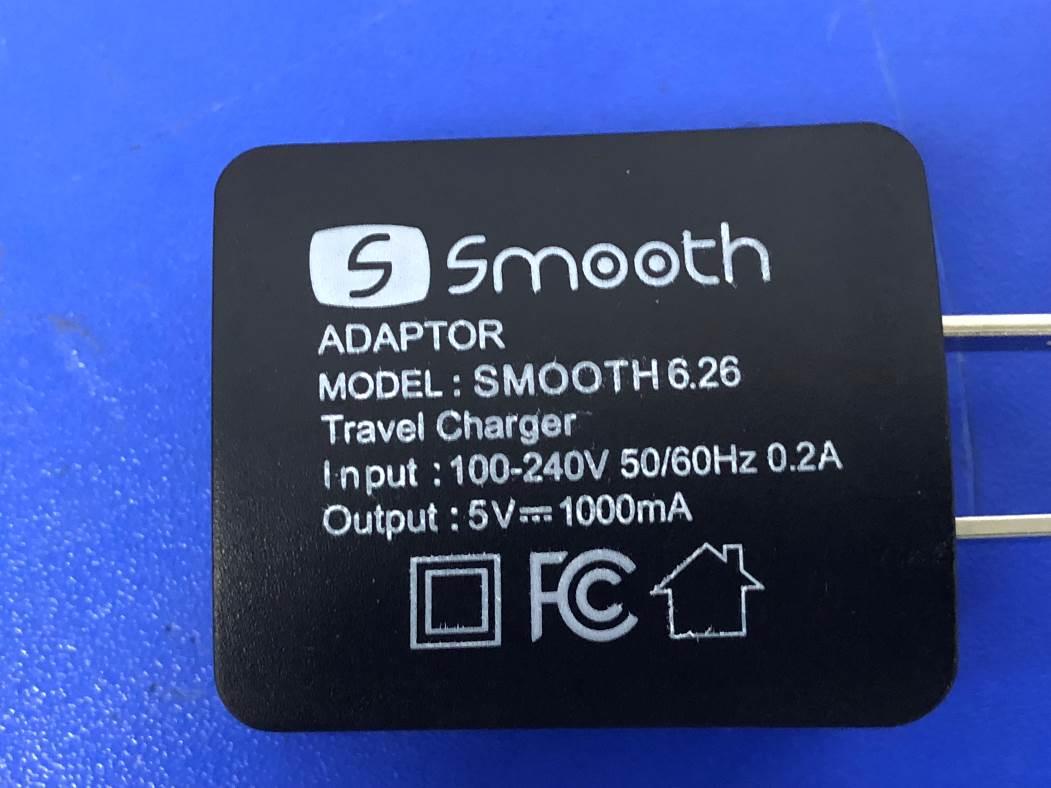

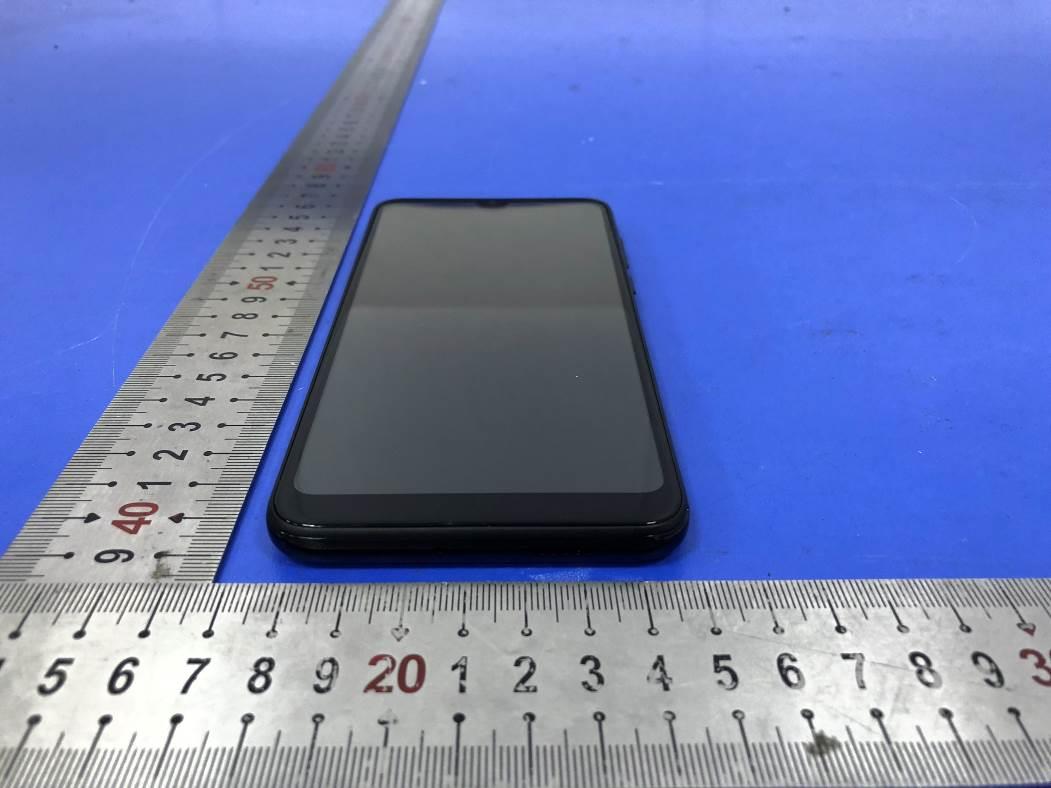

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L 4.0cm*W4.0cm Label Location 4G Smart Phone Model No.: Smooth 6.26 FCC ID: GAO-S626 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 BT/WIFI/GPS ANT LTE Diversity ANT GSM/WCDMA/LTE Main ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 168 SAR TEST REPORT For Collage Investments LLC 4G Smart Phone Test Model: Smooth 6.26 Prepared for : Collage Investments LLC Address : 6030 NW 99 Ave #414, Doral, Florida 33178, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 31, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : October 31, 2020~November 20, 2020 Date of Report : November 26, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 168 SAR TEST REPORT Report Reference No. ............... : LCS200817125AEB Date Of Issue .............................. : November 26, 2020 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ....................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : Collage Investments LLC Address ....................................... : 6030 NW 99 Ave #414, Doral, Florida 33178, United States Test Specification: Standard ...................................... : IEEE Std C95.1, 2005& IEEE Std 1528™-2013&FCC Part 2.1093 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ........................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................. : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .............. : 4G Smart Phone Trade Mark ................................. : Smooth Model/Type Reference ............... : Smooth 6.26 Operation Frequency .................. : GSM 850/PCS1900,WCDMA Band II/V; LTE Band 2/4/5/7/12/17; WLAN2.4G and Bluetooth4.0. Modulation Type ........................ : / Ratings ........................................ : DC 3.85V by Rechargeable Li-ion Battery(3750mAh) Recharged by 5V1000mA Adapter Result ........................................ : Positive Compiled by: Supervised by: Approved by: Ping Li/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 168 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200817125AEB November 26, 2020 Date of issue Type / Model......................... : Smooth 6.26 EUT....................................... : 4G Smart Phone Applicant.............................. : Collage Investments LLC Address.................................. : 6030 NW 99 Ave #414, Doral, Florida 33178, United States Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Collage Investments LLC Address.................................. : 6030 NW 99 Ave #414, Doral, Florida 33178, United States Telephone.............................. : / Fax......................................... : / Factory.................................. : Collage Investments LLC Address.................................. : 6030 NW 99 Ave #414, Doral, Florida 33178, United States Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 168 Revison History Revision Issue Date Revisions Revised By 000 November 26, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 168 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. TEST STANDARDS ...................................................................................................................................................................6 1.2. TEST DESCRIPTION .................................................................................................................................................................6 1.3. GENERAL REMARKS ...................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 101 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 102 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 103 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 104 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 105 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 106 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 107 of 168 5.3 SID835Dipole Calibration Ceriticate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 108 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 109 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 110 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 111 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 112 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 113 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 114 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 115 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 116 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 117 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 118 of 168 5.4 SID1800 Dipole Calibration Certificate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 119 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 120 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 121 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 122 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 123 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 124 of 168 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEB This report shall not be reproduced exce…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 1 of 47 Appendix A RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement) Product Name: 4G Smart Phone Trade Mark: Smooth Test Model: Smooth 6.26 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 1.762 21 PASS MCH -2.796 21 PASS HCH -2.589 21 PASS π/4DQPSK LCH 0.154 21 PASS MCH -3.528 21 PASS HCH -3.538 21 PASS 8DPSK LCH 0.265 21 PASS MCH -4.780 21 PASS HCH -3.311 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9635 Not Specified PASS MCH 1.029 Not Specified PASS HCH 0.9670 Not Specified PASS π/4DQPSK LCH 1.290 Not Specified PASS MCH 1.294 Not Specified PASS HCH 1.307 Not Specified PASS 8DPSK LCH 1.293 Not Specified PASS MCH 1.299 Not Specified PASS HCH 1.298 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.727 0.686 PASS MCH 0.976 0.686 PASS HCH 1.196 0.686 PASS π/4DQPSK LCH 0.908 0.871 PASS MCH 1.144 0.871 PASS HCH 0.980 0.871 PASS 8DPSK LCH 1.192 0.866 PASS MCH 1.080 0.866 PASS HCH 1.150 0.866 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 17 of 47 Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 1.747 -37.553 -18.253 PASS MCH -3.313 -37.942 -23.313 PASS HCH -3.373 -38.216 -23.373 PASS π/4DQPSK LCH -0.772 -38.042 -20.772 PASS MCH -5.838 -38.360 -25.838 PASS HCH -4.434 -36.839 -24.434 PASS 8DPSK LCH -0.693 -38.260 -20.693 PASS MCH -5.705 -38.492 -25.705 PASS HCH -4.316 -38.186 -24.316 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA Page 29 of 47 π/4DQPSK_MCH_Graphs Pref P…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GAO-S626 Report No.: LCS200817125AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 38 FCC TEST REPORT For Collage Investments LLC 4G Smart Phone Test Model: Smooth 6.26 Prepared for : Collage Investments LLC Address : 6030 NW 99 Ave #414, Doral, Florida 33178, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 31, 202…
