GCJEX190WColor LCD Monitor (Model: EX190W)

AUTO - SCANNING WITH DIGITAL CONTROL LCD COLOR MEDICAL MONITOR RadiForce EX190W Operation Manual For future reference, record the serial number of your display monitor in the space below : Serial Number The serial number is located on the back of the monitor back of the monitor EIZO Nanao Corporation 2010 All other trademarks are the property of their reference owners. This document is subject to change without notice. EIZO provides this information as reference only. Reference to other vendor’s products does not imply any recommendation or endorsement. Revision Control WARNING The title «WARNING» is used to inform the users of pos- sible causes that could inflict the injury, death, or property damage to the patients. CAUTION The title «CAUTION» is used to inform the users of pos- sible causes that could inflict the patients although it might not severe enough to cause deaths. NOTE The title «NOTE» is used to inform the users of items that are of importance in terms of installation, operation, or maintenance of the Equipment although the failure does not inflict the bodily harm to the patients. DateDescription REV.A 090810Document number EX190W 1 ENGLISH TABLE OF CONTENTS Product Description and Intended Use ...................................................... Warnings and Cautions ............................................................................. Symbol Explanations ................................................................................. EU Declaration of Conformity for Medical Applications ............................. Safety Precaution ...................................................................................... Cleaning Your Monitor ............................................................................... Power Management Function.................................................................... Preset Modes.............................................................................................. Video Signals............................................................................................. PIP / POP / PBP function .......................................................................... Monitor signals and function items............................................................. DDC ........................................................................................................... Installation ................................................................................................. Connecting the Power Cord ...................................................................... User Function / Messages.......................................................................... OSD Section .............................................................................................. Troubleshooting ......................................................................................... Specification of (EX190W)......................................................................... Classification ............................................................................................. Electromagnetic Compatibility ................................................................... Dimension Drawing (mm) of EX190W ....................................................... Connectors ................................................................................................ Description of Warranty ............................................................................. 3 4 7 8 9 9 10 11 12 13 14 15 15 16 17 18 26 27 28 29 32 33 34 2 User’s Guide Product Description and Intended Use Please check the following items are present when you unpack the box, and save the packing materials in case you will need to ship or transport the monitor in future. • EX190W LCD Monitor and two video cables (1) HD15 VGA cable* (1) DVI-D cable* • AC Power cord** • AC-Adapter • Composite Video BNC Jack Cable and Super Video Cable • User Manual and 4pcs VESA screws *Might be optional item, check with local representative **Might vary pending on region stardard CAUTION Model No : JMW1100KA1800F01 Part No : PS-52141810001A * * EX190W 3 ENGLISH Warnings and Cautions Please read this manual and follow its instructions carefully. The words warning, caution, and note carry special meanings and should be carefully reviewed: Warning The personal safety of the patient or physician may be involved. Disregarding this information could result in injury to the patient or physician. Caution Special service procedures or precautions must be followed to avoid damaging the instrument. Note Special information to make maintenance easier or important information more clear. An exclamation mark within a triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product. A lightning bolt within a triangle is intended to warn of the presence of hazardous voltage. Refer all service to authorized personnel. Warning TO AVOID POTENTIAL SERIOUS INJURY TO THE USER AND THE PATIENT AND/OR DAMAGE TO THIS DEVICE, THE USER MUST : Warranty is void if any of these warnings are disregarded. EIZO Nanao Corporation accepts full responsibility for the effects on safety, reliability, and performance of the equipment only if: • Re-adjustments, modifications, and/or repairs are carried out exclusively by EIZO Nanao Corporation. • The electrical installation of the relevant operating room complies with the applicable IEC and CE requirements. Warning Federal law (United States of America) restricts this device to use by, or on order of a physician. The EIZO Nanao Corporation EX190W monitor has been tested under UL 60601-1 standard and UL listed for Medical application. EIZO Nanao Corporation reserves the right to make improvements in the product(s) described herein. Product(s), therefore, may not agree in detail to the published design or specifications. All specifications are subject to c…

Text truncated - open the document above for the full version.

IN Schmitt Trigger US3 LCD PANEL Key Control (front knob) R/Pr LVDS Trans mitter VGA DVI SOG/ C-VIDEO S-VIDEO G/Y B/Pb HS/CS VS SD/HD SDI OUT R/G/B H/V TMDS Data/Clk US14 C-VIDEO S-VIDEO R/Pr G/Y B/Pb H V Equalizer US15 Equalizer US16 Cable Driver US17 VCO Y/C 10bit R/G/B 48bit LVDS Dual Data/Clk FLASH RS-232 Rx/Tx Rx/Tx Rx/Tx 16bit 256Kx16bit SRAM INVERTER Back Light Control Dimming Control R/G/B 24bit 30 bit PORT A 30 bit PORT B Y/Cb/Cr 30bit Y/C 8bit CLK CLK CLK RS232 UM6 R/G/B 30bit Y/C 8bit CLK CLK CLK 3 FVH1 3 FVH2 4 PCLK 1-4 Deserializer US19 Video Decoder US9 Video Decoder US7 Video Decoder US12 TMDS Receiver US4 A/D Converter US2 CPLD INPUT PORT CONTROL OUTPUT PORT 32 bit SH7085 DDR2 DDR2 DDR2 DDR2 POWER I/O POWER Scaler POWER MCU POWER Photo Sensor Temp Sensor GSPI Scaler 11.0592 MHz 27 MHz 28.63 MHz 20.25 MHz 10 MHz Video S/W US37 Video Buffer US11 20.25 MHz Video S/W US36 Video Buffer US8 Video Buffer US10 US13 US23 Wireless CNS21 TMDS Data/Clk IN Schmitt Trigger Input R/Pr VGA G/Y B/Pb HS/CS VS OUT R/G/B H/V R/Pr G/Y B/Pb H R/G/B 24bit Y/Cb/Cr 30bit CLK CLK Video Decoder ADV7403 (US12) A/D Converter AD9984 (US2) CPLD (US20) 10 MHz Video Buffer SM5308 (US11) Video Switch PI3V512 V R/Pr G/Y B/Pb H/V R/Pr B/Pb H/V Video Decoder (US7) Video Switch PI3V512 Composite SOG Y/C 8bit CLK * Added the op-amp and sync separator Schmitt Trigger Video Buffer SM5304 (US8) SOG /Composite G/Y Schmitt Trigger CVBS Op-Amp (US21) Sync Separator (US23) H_OUT V_OUT H

Date: Oct. 28, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Misoh Kim/Application Examiner of UL-Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Misoh Kime of UL- Korea on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

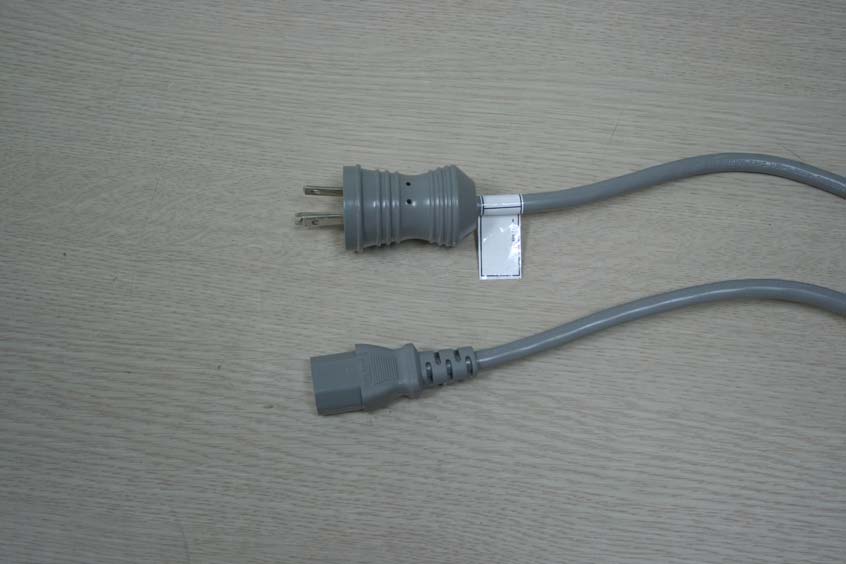

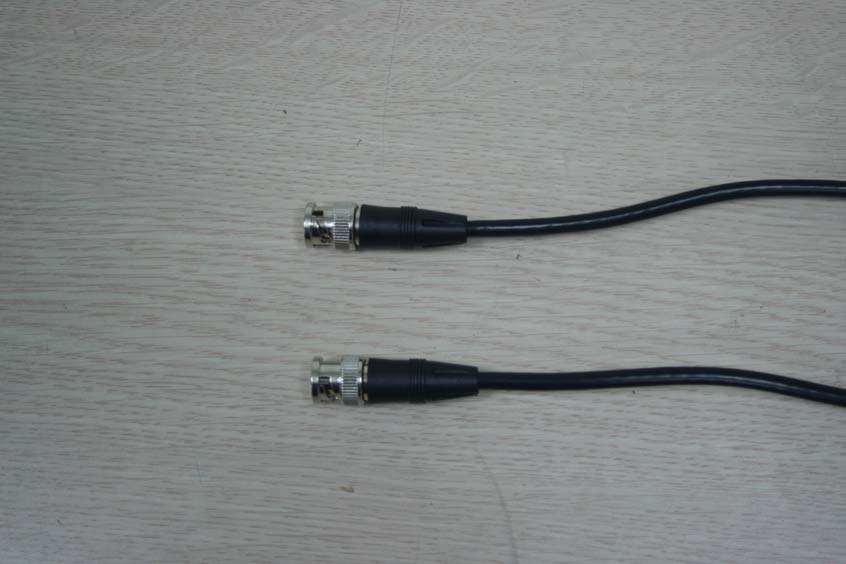

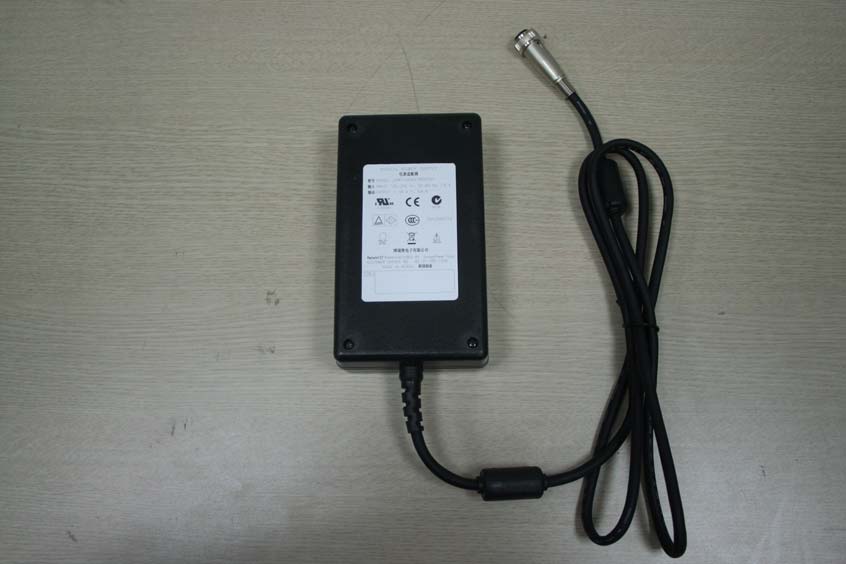

Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 1 of 6 EXTERNAL PHOTOS Front View Rear View Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct.13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 2 of 6 Power Cable DVI Cable Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct.13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 3 of 6 VGA Cable S-VIDEO cable Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct.13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 4 of 6 BNC cable AC/DC Adapter Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct.13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 5 of 6 AC/DC Adapter Label DC Extension Cable_ 5 ft (Model: 1501047002, Manufacturer: BridgePower Corp.) Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct.13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 6 of 6 DC Extension Cable_15 ft (Model: 1501047, Manufacturer: BridgePower Corp.) DC Extension Cable_ 75ft (Model: 1501047001, Manufacturer: BridgePower Corp.)

Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 1 of 2 1. EQUIPMENT MARKING PLATE Label location Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 2 of 2 Label location

Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 1 of 6 INTERNAL PHOTOS Inside 1 Inside 2 Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 2 of 6 Main Board Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 3 of 6 LCD Panel Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 4 of 6 SUB Board Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 5 of 6 T-Con Board Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 6 of 6 Inverter

UL Korea, Ltd A not-for-profit organization dedicated 33 rd FL, Gangnam Finance Center, 737 to public safety and committed to Yeoksam-dong, Gangnam-gu, Seoul quality service for over 100 years 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 Underwriters Laboratories Inc. www.ul.com/emc www.ulk.co.kr Project:10CA46552 File: TC8352 Report: 10CA46552-FCC Date: October 13, 2010 Model:EX190W (Basic), RadiForce EX190W FCC Test Report For Color LCD Monitor FCC Certification Part 15 Subpart B Class B EIZO NANAO CORPORATION 153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan Copyright  2005 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Only those products bearing the UL Mark should be considered as being covered by UL. Project Number: 10CA46552 File Number TC8352 Page 2 of 28 Model Number: EX190W Client Name: EIZO NANAO CORPORATION UL Korea, Ltd. 33 rd FL, Gangnam Finance Center, 737 Yeoksam-dong, Gangnam-gu, Seoul 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 Report Version 1.2 June-06,2007 Only those products bearing the UL Mark should be considered as being covered by UL. Summary of Test Results: The following tests were performed on a sample submitted for evaluation of compliance with 47CFR Part 15.107(a) / 47CFR Part 15.109(g) Test # Test Name Test Requirement/Specification Compliant Not Compliant See Remark 1 AC Power line Conducted Emission Test X - - 2 Radiated Emission Test X - - Conclusion: The tests listed in the Summary of Testing section of this report have been performed as a witness testing and the results recorded by UL Korea Ltd. in accordance with the procedures stated in each test requirement and specification. The test list was determined by the Applicant as being applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. The equipment under test has Met the technical requirements Not met the technical requirements Tested by Sung Hoon Baek, Project Engineer Reviewed by Jea Woon Choi, Senior Project Engineer Conformity Assessment Services – 3014ASEO Conformity Assessment Services – 3014ASEO UL Korea Ltd. UL Korea Ltd. October 13, 2010 October 13, 2010 Project Number: 10CA46552 File Number TC8352 Page 3 of 28 Model Number: EX190W Client Name: EIZO NANAO CORPORATION UL Korea, Ltd. 33 rd FL, Gangnam Finance Center, 737 Yeoksam-dong, Gangnam-gu, Seoul 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 Report Version 1.2 June-06,2007 Only those products bearing the UL Mark should be considered as being covered by UL. Test Report Details Tests Performed By: UL Korea Ltd. 33 rd FL. GFC Bldg. 737 Yeoksam-dong, Kangnam-ku, Seoul, 135-984, Korea Test Site: CHUNGBUK TECHNOPARK 685-3 Yangcheong-ri, Ochang-eub,Cheongwon-kun,Chungbuk-province,Republic of Korea The test facility was deemed to have the environment and capabilities necessary to perform the tests included in the test package. Applicant: EIZO NANAO CORPORATION 153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan Manufacturer: EIZO NANAO CORPORATION 153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan Factory: D&T Inc. 59-9 JANG-DONG, YUSEONG-GU, DAEJEON 305-343 KOREA Applicant Contact: Wataru Takashima Title: Manager Phone: +81-76-277-6794 E-mail: [email protected] Product Type: Color LCD Monitor Trademark: , Model Number: EX190W Multilisting model number: RadiForce EX190W The manufacturer has declared to all the multiple model names into the basic model without any further evaluation by UL. FCC ID GCJEX190W Product standards: FCC Part 15 Subpart B Class B Sample Serial Number: N/A Sample Receive Date: January 29, 2010 Testing Start Date: January 29, 2010 Date Testing Complete: May 06, 2010 Test Report Date: October 13, 2010 Overall Results: Pass UL Korea Ltd. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. UL Korea Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from UL Korea Ltd. issued reports. Project Number: 10CA46552 File Number TC8352 Page 4 of 28 Model Number: EX190W Client Name: EIZO NANAO CORPORATION UL Korea, Ltd. 33 rd FL, Gangnam Finance Center, 737 Yeoksam-dong, Gangnam-gu, Seoul 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 Report Version 1.2 June-06,2007 Only those products bearing the UL Mark should be considered as being covered by UL. REPORT DIRECTORY 1. GENERAL PRODUCT DESCRIPTION ____________________________________________________ 5 1.1 REPORT REVISION HISTORY _______________________________________________________ 5 1.2 EQUIPMENT DESCRIPTION _________________________________________________________ 5 1.3 DETAILS OF TEST EQUIPMENT (EUT) _______________________________________________ 5 1.4 TECHNICAL DATA _________________________________________________________________ 5 1.5 EUT INTERNAL OPERATING FREQUENCY ___________________________________________ 6 1.6 TECHNICAL DESCRIPTIONS AND DOCUMENTS ______________________________________ 6 1.7 EQUIPMENT MARKING PLATE: _____________________________________________________ 6 2. TEST CONDITION _______________________________________________________________________ 7 2.1 EQUIPMENT USED DURING TEST: ___________________________________________________ 7 2.2 POWER INTERFACE: _______________________________________________________________ 7 2.3 INPUT/OUTPUT PORTS: _____________________________________________________________ 8 2.4 TEST MODE OF LCD COLOR DISPLAY MONITOR FOR TEST: __________________________ 8 2.5…

Text truncated - open the document above for the full version.

Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 1 of 6 TEST SETUP PHOTOS Figure 1. Conducted Emission Test Setup Test condition: VGA mode Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 2 of 6 Figure 2. Conducted Emission Test Setup Test Test condition: Component In, Out Mode Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 3 of 6 Figure 3. Photo of Radiated emission test setup for 30MHz to 1GHz Test condition: VGA mode Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 4 of 6 Figure 4. Photo of Radiated emission test setup for 1GHz to 2GHz Test condition: VGA mode Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 5 of 6 Figure 5. Photo of Radiated emission test setup for 30MHz to 1GHz Test condition: Component In/Out Mode Project Number: 10CA46552 File Number TC8352 Test Report No: 10CA46552-FCC Model Number: EX190W Date of Issue: Oct. 13, 2010 UL Korea Ltd. FCC Certificate Test for EIZO NANAO CORPORATION Color LCD Monitor FCC ID: GCJEX190W 6 of 6 Figure 6. Photo of Radiated emission test setup 1GHz to 2GHz Test condition: Component In/Out Mode
