GEOSPLBSpotlight Remote Control Bridge

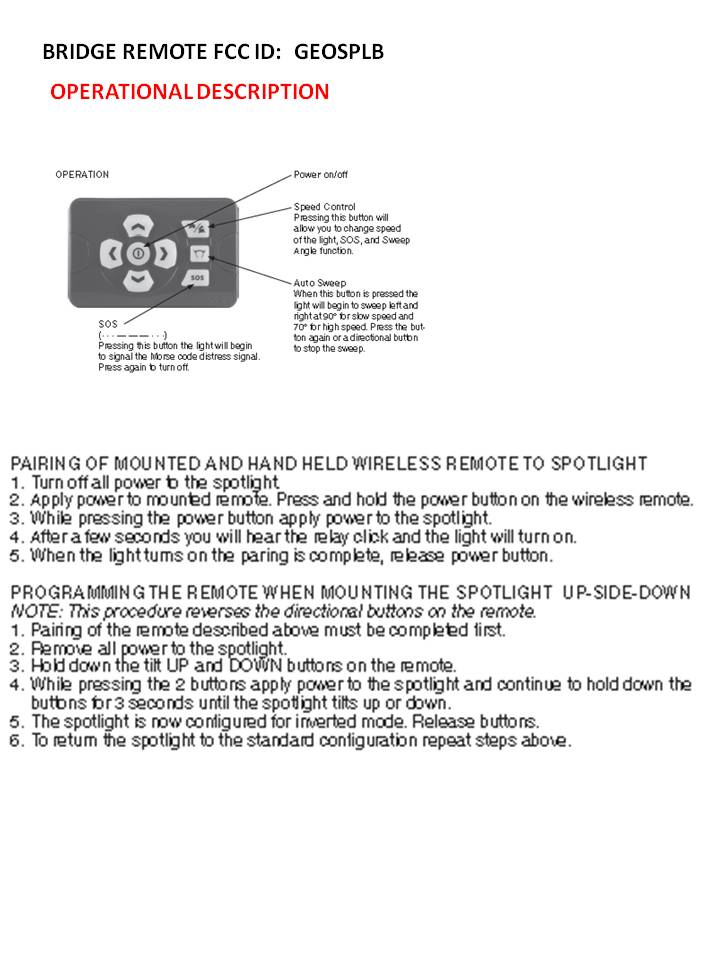

Precision Spotlight Instructions For more information and installation guides, visit our website: www.marinco.com For a FREE catalog of Marinco Recreational Group products, contact your local dealer or visit Marinco.com. marinco.com ZX447 MAR_TL_029_0612 LIMITED WARRANTY For three (3) years from the date of purchase, Marinco will, at its discretion, repair or replace for the original consumer, free of charge, any part or parts found upon examination by Marinco to be defective in material or workmanship or both. All transportation charges under this warranty must be borne by the consumer. Proof of purchase is required. Proof of purchase must be a computerized receipt. Handwritten receipts are not accepted. THERE IS NO OTHER EXPRESSED WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF PURCHASE. THIS IS THE EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES ARE EXCLUDED WHERE PERMITTED BY LAW. FCC THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBjECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 502-2 & 503-2 instructions Instructions marinco.com Installing and Using the Precision Spotlight IMPORTANT! READ THESE INSTRUCTIONS BEFORE INSTALLING AND USING THIS PRODUCT. INTRODUCTION The Marinco Precision spotlight uses a super bright 100 Watt, replaceable H3 Halogen bulb that produces a rich yet intense beam that can illuminate objects up to 1,000ft away. It is IP56 Weatherproof rated for extreme enironments, with a UV weather resistant housing and fully enclosed tilt function driven by quiet motors that can withstand extreme temperatures (5°F to 113°F or -15°C to 45°C). It has been designed and tested to withstand the harsh marine environments including high humidity, salt water spray, shock, and vibration. Innovative construction allows for upside down mounting and reverse motion programming. Precision circuitry allows for remarkable aiming and tracking with two speed choices. The spotlight has a 30 minute shut-down timer. If the spotlight is left unattended for more than 30 minutes, the spotlight will turn off. The shut-down has no effect on the SOS function of the spotlight. The Precision remotes have glow in the dark buttons and include one touch Automatic Sweep and SOS options. The wireless remotes transmit a signal up too 200ft (60m). While the spotlight comes with a wireless bridge remote there are two more optional remotes: a wireless handheld remote w/lanyard (SPLR-1) and a hard wired bridge mount remote (SPLR-3). PACKAGE INCLUDES: • Spotlight with 12 Volt bulb installed • Additional 24 Volt bulb** • Mounting kit (no fasteners included) • Wireless Bridge Remote • Instruction manual **(models SPL-12W, SPL-12B, SPL-12C only) MODELS: SPL-12W, SPL-12B, SPL-12C Precision Spotlight Instructions Required for Installation: • Four (4) No. 10 stainless steel pan head screws for spotlight bracket (Length and type of screws to be determined by mounting surface) • Two (2) No. 6 stainless steel pan head screws (Length and type of screws to be determined by mounting surface) • Two (2) #16 AWG butt wire connectors IF THE APPLICATION IS 24 vOLTS, THE 12 vOLT BULB WILL NEED TO BE REPLACED WITH THE 24 vOLT BULB. TO REPLACE THE BULB REFER TO THE BULB REPLACEMENT SECTION. (PAGES 4-5). Failure to use the appropriate bulb wattage will damage the spotlight. BEFORE OPERATION REMOvE BLUE FILM FROM LENS. FAILURE TO REMOvE FILM WILL DAMAGE THE SPOTLIGHT. Mounting and wiring of the Precision Spotlight 1. Select a flat surface to mount the spotlight. Make sure there are no obstructions around the spotlight that could interfere with the rotation (template included with light). Be sure you will have wiring access to the underside of the chosen location and that drilling holes will not damage existing wiring or structures. Avoid locations where lines, anchors and sails might entangle or damage the light. 2. Refer to the template for mounting and wire hole location. 3. While installing the mounting bracket make sure that the securing screw is opposite the direction that the light will be facing. Mark the mounting holes and center wire hole. Be sure that there is at least a 6"(145mm) radius of clearance from the center hole. See dotted line on figure 1. 4. Drill hole sizes appropriate for the type of screws or bolts being used. Note: the maximum bracket hole sizes are No. 10 screws. 5. Drill the appropriate hole size to accommodate the wires. This will depend on the type of wire being used. 6. The spotlight requires 12 or 24 volt power supplied through appropriate gauge wire. (Note: If the wired bridge remote version is used then 2 additional wires will need to be routed from the remote to the spotlight.) CORRECT WIRE SIzE FOR THE RUN AND CIRCUIT BREAKER PROTECTION NEEDS TO BE SELECTED BASED ON ABYC STANDARDS. FAILURE TO FOLLOW ABYC STANDARDS MIGHT LEAD TO SEvERE INjURY, DEATH OR DAMAGE TO vESSEL. 7. Mount the bracket. But first apply a small amount of non silicone sealant to where the screws or bolts penetrate the mounting surface. (Note: mounting bracket screw heads should not protrude more than .2” (5mm) above mounting bracket.) 8. Connect wires to spotlight using butt connectors. Red wire is positive, Black wire is negative. POLARITY OF THE WIRES NEEDS TO BE CORRECT TO OPERATE THE SPOTLIGHT! FAILURE TO WIRE CORRECTLY WILL DAMAGE THE SPOTLIGHT SYSTEM! 9. Slide spotlight over mounting plate making sure the wires are not pinched and the two holding tabs engage the light in the proper location. Align the external screw hole with the screw threads on the mounting plate. This will require a degree of pressure and effort as the mounting seal must be suitably compressed during this process. Insert securing screw and ensure that it is fully engaged and secure. YOU MUS…

Text truncated - open the document above for the full version.

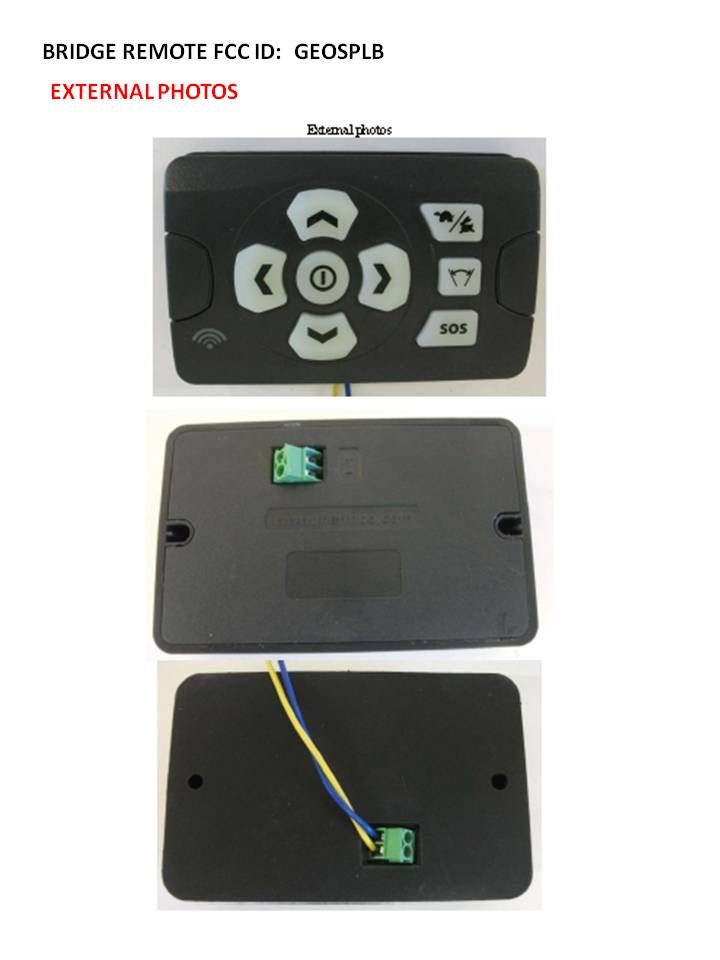

This text is shown in the owners instruction manual. The product is too small to allow the FCC test to be applied directly to the product. Allowed alternative per Per FCC 15.19 (a) (5) The product will be marked as follows: Hand Held Remote Markings: FCC ID: GEOSPL Bridge Remote Markings: FCC ID: GEPSPLB Bridge Remote Hand Held Remote

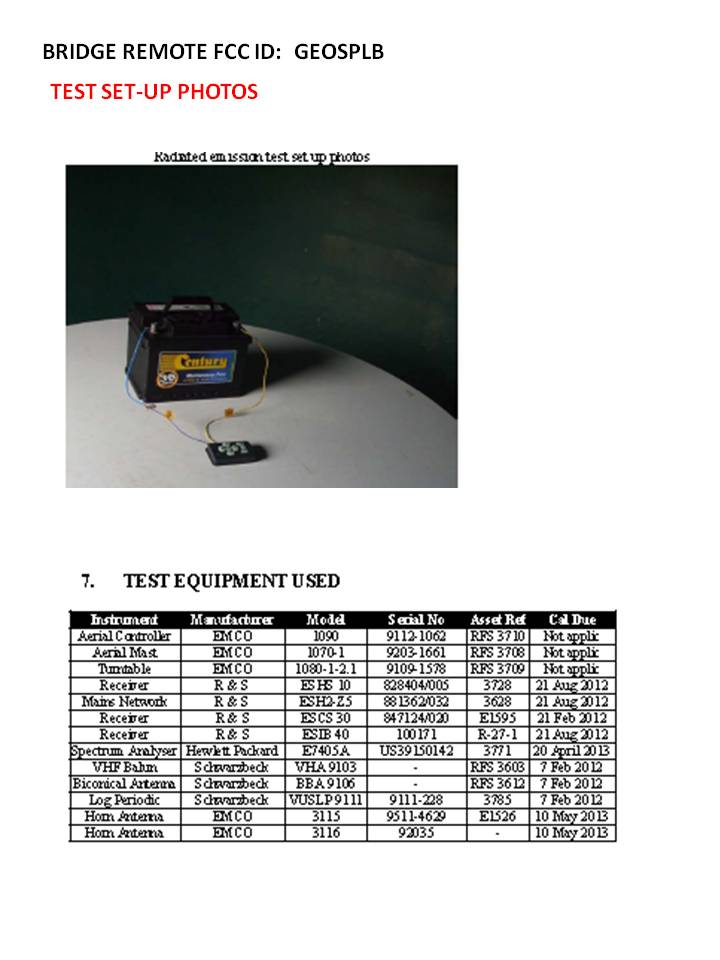

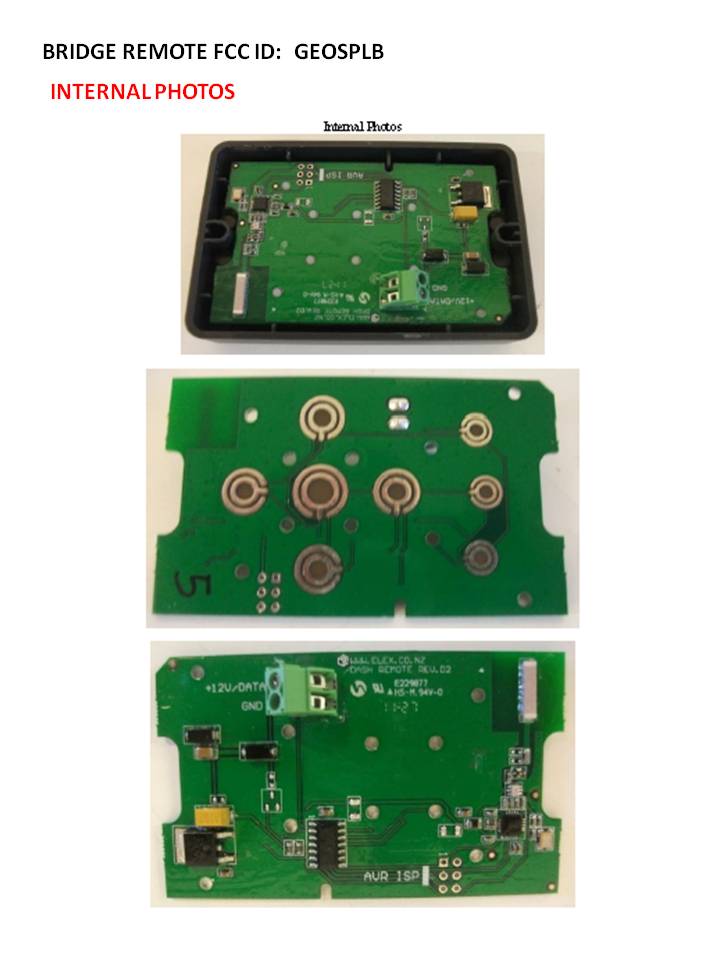

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Marinco SPLR-2 PRECISION Spotlight Bridge Mounted Wireless Remote Control Transmitter tested to the Code of Federal Regulations (CFR) 47 Part 15 – Radio Frequency Devices, Subpart C – Intentional Radiators Section 15.249 – Operation in the band 2400 – 2483.5 MHz for Actuant Electrical Ltd This Test Report is issued with the authority of: ________________________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. CLIENT INFORMATION 3 4. DESCRIPTION OF TEST SAMPLE 4 5. EQUIPMENT PARAMETERS 4 6. ATTESTATION 5 7. TRANSMITTER TEST RESULTS 6 7. TEST EQUIPMENT USED 12 8. ACCREDITATIONS 12 9. PHOTOGRAPHS 13 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The Marinco SPLR-2 PRECISION Spotlight Bridge Mounted Wireless Remote Control Transmitter complies with 47 CFR Part 15 and in particular Sections, 15.205, 15.207, 15.209, 15.215 and 15.249 as detailed below when tested in accordance with ANSI C63.4 – 2003. 2. RESULTS SUMMARY The results of testing, carried out in July / August 2011 and June 2012, are detailed below. Clause Description Result 15.201 Equipment authorisation requirement Applied 15.203 Antenna requirement Complies 15.204 External power amplifiers Not applicable 15.205 Operation in restricted bands Complies 15.207 Conducted emissions Not applicable. External DC powered device. 15.209 Radiated emissions See below 15.215 Additional provisions Complies 15.249 (a) Field strength of fundamental Complies 15.249 (a) Field strength of harmonics Complies 15.249 (b) Fixed, point to point operations Not applicable 15.249 (c) 3 metre measurement distance Noted 15.249 (d) Spurious emission levels except harmonics Complies 15.249 (e) Detectors above 1000 MHz Noted 15.249 (f) Reference to section 15.37(d) Noted 3. CLIENT INFORMATION Company Name Actuant Electrical Ltd Address 55 Paul Matthews Road Rosedale City Auckland 0632 Country New Zealand Contact Mr Jason Anderson ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. 4. DESCRIPTION OF TEST SAMPLE Brand Name Marinco Model SPLR-2 Product PRECISION Spotlight Bridge Mounted Wireless Remote Control Transmitter Manufacturer Actuant Electrical Ltd Country of Origin New Zealand Serial Number Sample not serialised FCC ID Not yet determined 5. EQUIPMENT PARAMETERS The remote tested has the following RF specifications: FCC Band: 2400 MHz – 2483.5 MHz Test Frequency: 2434 MHz Operating Frequencies: 2434 MHz Rated Power: 1.00 mW (+0 dBm) Modulation Type: 39 ms GFSK packet sent every 66 ms Antenna Type: Integral Power Supply: External 12 Vdc battery The device tested is a wireless remote control transmitter that is used to manipulate a remotely sited searchlight. This device would be powered using the ship / boats internal 12 Vdc power supply and would be permanently mounted in a prominent location like the bridge The searchlight would typically be used in marine situations and it contains a 2.4 GHz band receiver. ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. 6. AT T E S TAT I ON This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report does not contain corrections or erasures. This report updates report number 110720.22 to include additional duty cycle measurements which have been used to calculate the Average field strength. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures that are consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. I further certify that the necessary measurements were made by EMC Technologies NZ Ltd, 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand. Andrew Cutler General Manager EMC Technologies NZ Ltd ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. 7. TRANSMITTER TEST RESULTS Section 15.201: Equipment …

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Marinco SPLR-2 PRECISION Spotlight Bridge Mounted Wireless Remote Control Transmitter tested to the Code of Federal Regulations (CFR) 47 Part 15 – Radio Frequency Devices, Subpart C – Intentional Radiators Section 15.249 – Operation in the band 2400 – 2483.5 MHz for Actuant Electrical Ltd This Test Report is issued with the authority of: ________________________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. CLIENT INFORMATION 3 4. DESCRIPTION OF TEST SAMPLE 4 5. EQUIPMENT PARAMETERS 4 6. ATTESTATION 5 7. TRANSMITTER TEST RESULTS 6 7. TEST EQUIPMENT USED 12 8. ACCREDITATIONS 12 9. PHOTOGRAPHS 13 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The Marinco SPLR-2 PRECISION Spotlight Bridge Mounted Wireless Remote Control Transmitter complies with 47 CFR Part 15 and in particular Sections, 15.205, 15.207, 15.209, 15.215 and 15.249 as detailed below when tested in accordance with ANSI C63.4 – 2003. 2. RESULTS SUMMARY The results of testing, carried out in July / August 2011 and June 2012, are detailed below. Clause Description Result 15.201 Equipment authorisation requirement Applied 15.203 Antenna requirement Complies 15.204 External power amplifiers Not applicable 15.205 Operation in restricted bands Complies 15.207 Conducted emissions Not applicable. External DC powered device. 15.209 Radiated emissions See below 15.215 Additional provisions Complies 15.249 (a) Field strength of fundamental Complies 15.249 (a) Field strength of harmonics Complies 15.249 (b) Fixed, point to point operations Not applicable 15.249 (c) 3 metre measurement distance Noted 15.249 (d) Spurious emission levels except harmonics Complies 15.249 (e) Detectors above 1000 MHz Noted 15.249 (f) Reference to section 15.37(d) Noted 3. CLIENT INFORMATION Company Name Actuant Electrical Ltd Address 55 Paul Matthews Road Rosedale City Auckland 0632 Country New Zealand Contact Mr Jason Anderson ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. 4. DESCRIPTION OF TEST SAMPLE Brand Name Marinco Model SPLR-2 Product PRECISION Spotlight Bridge Mounted Wireless Remote Control Transmitter Manufacturer Actuant Electrical Ltd Country of Origin New Zealand Serial Number Sample not serialised FCC ID Not yet determined 5. EQUIPMENT PARAMETERS The remote tested has the following RF specifications: FCC Band: 2400 MHz – 2483.5 MHz Test Frequency: 2434 MHz Operating Frequencies: 2434 MHz Rated Power: 1.00 mW (+0 dBm) Modulation Type: 39 ms GFSK packet sent every 66 ms Antenna Type: Integral Power Supply: External 12 Vdc battery The device tested is a wireless remote control transmitter that is used to manipulate a remotely sited searchlight. This device would be powered using the ship / boats internal 12 Vdc power supply and would be permanently mounted in a prominent location like the bridge The searchlight would typically be used in marine situations and it contains a 2.4 GHz band receiver. ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. 6. AT T E S TAT I ON This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report does not contain corrections or erasures. This report updates report number 110720.22 to include additional duty cycle measurements which have been used to calculate the Average field strength. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures that are consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. I further certify that the necessary measurements were made by EMC Technologies NZ Ltd, 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand. Andrew Cutler General Manager EMC Technologies NZ Ltd ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 16 Test Report No 120619.2 22 nd June 2012 This report may not be reproduced except in full. 7. TRANSMITTER TEST RESULTS Section 15.201: Equipment …
