GIOSC-4001Ultrasonic humidifier

1. manual, plug on the power supply, turn the knob clockwise to start up the unit, mist will go out from top of the unit. Control the knob to acquire desired mist output volume. If the indicator light turns red, indicates water run out. Fill water into water tank and re-place the water tank will restart the unit. 2.Description of the circuitry in the device: Power input PCB as power supply, use transformer and diode to commutate and turn AC power into DC 36V and 12V output. 36V supply to the transducer, 12V supply to the blower fan, the transducer make water into mist, the blower fan blow mist out of the unit to humidify the air. The circuit is constructed with power input PCB, transducer, resistor, Reed Switch, Blower Fan, Indicator LED light and decorative LED light group. 3.Description of the antenna and ground system: This device has no antenna and ground system. Description of the device operation: fill enough water into the water tank as described in user

1. 1.1. 1. Block Diagram

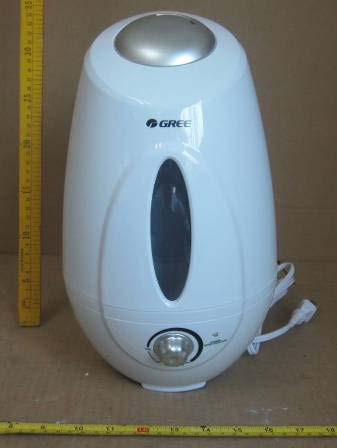

External Photos SC-4001

Humidifier Model:SC-4001 FCC ID：GIOSC-4001 This device complies with part 18 of the FCC Rules. This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme NMB-001 du Canada. 50mm 2 5 m m 25

Internal Photos SC-4001

Operational description 1. Description of the device operation: fill enough water into the water tank as described in user manual, plug on the power supply, turn the knob clockwise to start up the unit, mist will go out from top of the unit. Control the knob to acquire desired mist output volume. If the indicator light turns red, indicates water run out. Fill water into water tank and re-place the water tank will restart the unit. 2.Description of the circuitry in the device: Power input PCB as power supply, use transformer and diode to commutate and turn AC power into DC 36V and 12V output. 36V supply to the transducer, 12V supply to the blower fan, the transducer make water into mist, the blower fan blow mist out of the unit to humidify the air. The circuit is constructed with power input PCB, transducer, resistor, Reed Switch, Blower Fan, Indicator LED light and decorative LED light group. 3.Description of the antenna and ground system: This device has no antenna and ground system.

Photographs of the Test Set-Up Test set-up of all tested samples SC-3003, SC-4001, SCW-3003 are the same. SC-4001 is as representative one. Photograph 1: Set-up for Conducted Emission Photograph 2: Set-up for Radiated Emission 30MHz - 1GHz (3m distance)
