HAPPOK ® Multimedia Recording and Broadcasting Services User Manual 2011-11 2 Statement Any part of this document, including text, images, graphics, etc. all belong to my company. Any person or organization did not get my written consent, can not be reproduced in any form any part of this document. My company and responsible attitude to the user, careful preparation of the manual, but does not guarantee that the contents of this manual is completely correct. Because our products will continue to make improvements, so we reserve the right to modify this manual without notice. Tip: Please tear the protective film of the chassis above, so as not to affect the heat. HAPPOK Multimedia mining multicast server meeting type manual 3 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 4 一、SM\HM\EM Instruction A.System installation 1.1 preparations Before installation of the system, please prepare the following: Server's power cord, network cable and switch with mirror function, be prepared to record the terminal or MCU port mirroring to the recording and broadcasting port. On-demand and live pc recommend using windows xp proferional sp2, the system must be installed on the windows media version player9.0 above 1.2 Equipment Installation The device is designed in accordance with the standard 19-inch chassis. Simply packaging the attachment installed on both sides of the equipment, tighten the screws to the rack. 1.3 Equipment Connection Series servers use 10/100/1000Mbps network cable as its medium of communication. 2 10/100/1000Mbps adaptive Ethernet port on the backplane of the device, LAN1: communication interface LAN2 is: to connect the external network HAPPOK Multimedia mining multicast server meeting type manual 5 Two. Interviewing and Web management of the service system Multimedia mining broadcast service system does not need to install any software and plug-ins that can be applied, the recording of multimedia mining and broadcast services system, stop, its recorded content, etc. is released via a web form. Convenient for users to access and management. 2.1 User Login In order to restrict unauthorized users access to the server system, into the server's web pages, you must provide a valid username and password. In the address bar type http:// server address: 8899/playVideo to server web landing page (by default the LAN1 / IP address 192.168.100.100, LAN2/IP address is 192.168.100.101, ", the default Subnet Mask: "255.255.255.0 default Gateway:" 192.168.100.1 "), shown in Figure 2.1: Picture 2.1 Welcome to mining-play system interface After entering the correct username and password (the factory, the system provides only one administrator account, user name "admin", password "admin"), click on "Login" button, the system proven to log in to multimedia mining broadcast service system management interface, as shown in Figure 2.2: HAPPOK Multimedia mining multicast server meeting type manual 6 Picture 2.2 Multimedia mining sowing the main interface of the service system 2.2 Management 2.2.1 User management Multimedia mining broadcast users of the service system is divided into two types: administrators and ordinary users. Ordinary users can assign the appropriate permissions to watch live and taped programs, download programs; Administrators have all permissions, including creating users, delete users, modify user password, the program recording parameter settings, stop recording the program, file management and so on. Click on the "management" and "User Management", as shown below: picture 2.3 User information browsing 2.2.1.1 new users Click the user a list of the top-left icon pop-up new user page, shown in HAPPOK Multimedia mining multicast server meeting type manual 7 Figure 2.4: Account: login accounts, support for Chinese characters and English letters, numbers and underscore; Password: Login password; User types: divided into ordinary users and administrators Group: already in the drop-down box, select, there is no direct input. Broadcaster: used to assign users permission to watch live. On Demand | Download: for whether there is demand and download permissions to assign users Picture 2.4 Add users 2.2.1.2 file allocation The file allocation is for the user to allocate its available to watch video files. As shown below: on the left shows the file the user is not assigned, the right side shows the files the user has been assigned. Selected in the available files] at the distribution of files by group, and then select the file, click on "Add" button, the file is…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Beijing Hanbo Info.Tec.Co.,Ltd. ________________________________________________ ( 2012-04-17) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Beijing Hanbo Info.Tec.Co.,Ltd._____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description: Multimedia Services Model name: SM, HM, EM) We affirm that between SIEMIC and ____ Beijing Hanbo Info.Tec.Co.,Ltd. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title Dujuan/Certified Engineer Contact information / address Phone: 010-82158675 Rm19E,Hengxing Building, No. 89 Zhongguancun East Road Haidian District Beijing

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Beijing Hanbo Info.Tec.Co.,Ltd. ________________________________________________ ( 2012-04-17) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: GLOHAPPOK We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Dujuan/Certified Engineer Contact information / address Phone: 010-82158675 Rm19E,Hengxing Building, No. 89 Zhongguancun East Road Haidian District Beijing

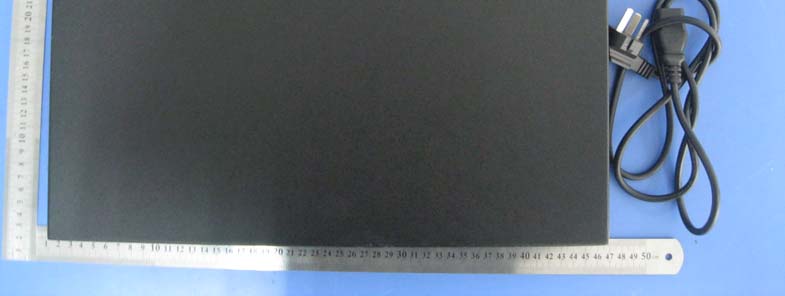

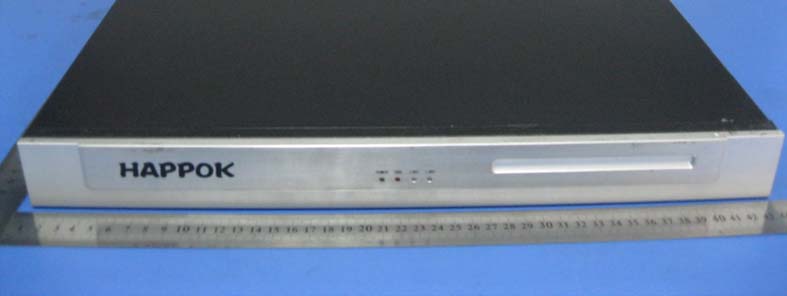

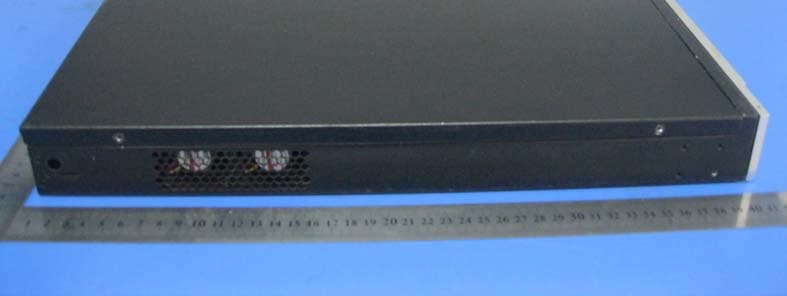

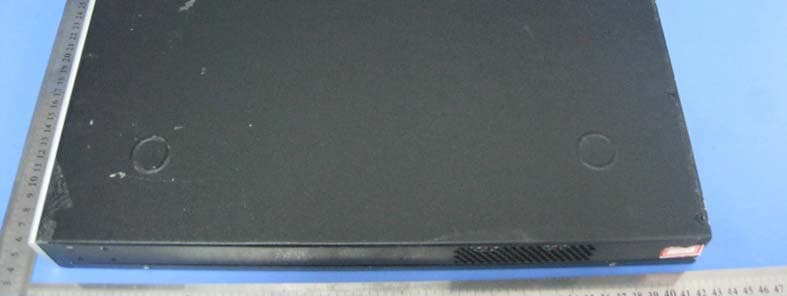

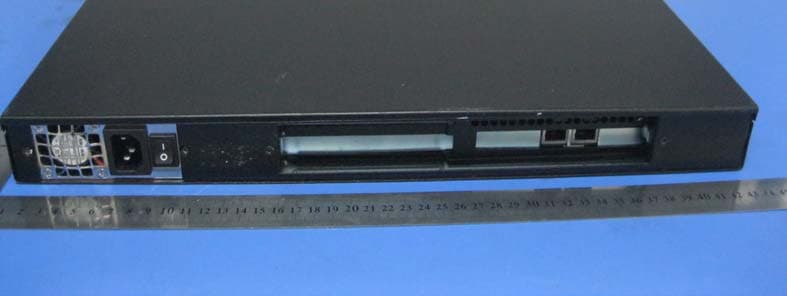

Annex B. EUT External Photo Whole Package - Top View EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:GLOHAPPOK

Labbel Locatioon

Annex B. EUT Internal Photo Mainboard Uncover View - 1 Mainboard Uncover View - 2 PCB 1 Front View PCB 1 Rear View PCB 2 Front View PCB 2 Rear View PCB 3 Front View PCB 3 Rear View PCB 4 Front View PCB 4 Rear View Position 1 grounded after debug Position 2 grounded after debug

Beijing Hanbo Info.Tec.Co.,Ltd. Multimedia Services Main Model: SM Serial Model: HM, EM April 06, 2012 Report No.: 12020243-FCC-E1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Emin Bao Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for Multimedia Services Main Model: SM Serial Model: HM, EM To: FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009 Report No: 12020243-FCC-E1 Issue Date: April 06, 2012 Page: 2 of 25 www.siemic.com Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: EMC Test Report for Multimedia Services Main Model: SM Serial Model: HM, EM To: FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009 Report No: 12020243-FCC-E1 Issue Date: April 06, 2012 Page: 3 of 25 www.siemic.com This page has been left blank intentionally. Title: EMC Test Report for Multimedia Services Main Model: SM Serial Model: HM, EM To: FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009 Report No: 12020243-FCC-E1 Issue Date: April 06, 2012 Page: 4 of 25 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS .........................................................................................................................................6 3 MODIFICATION.....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................15 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................19 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................20 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................24 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................25 Title: EMC Test Report for Multimedia Services Main Model: SM Serial Model: HM, EM To: FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009 Report No: 12020243-FCC-E1 Issue Date: April 06, 2012 Page: 5 of 25 www.siemic.com 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Beijing Hanbo Info.Tec.Co.,Ltd., Multimedia Services and model: SM against the current Stipulated Standards. The Multimedia Services has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009. EUT Information EUT Description : Multimedia Services Main Model : SM Serial Model HM, EM Input Power : 100-240V 47-63Hz 2A Classification Per Stipulated Test Standard : Class B Emission Product Per FCC Part 15 Subpart B Class B: 2012 Title: EMC Test Report for Multimedia Services Main Model: SM Serial Model: HM, EM To: FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009 Report No: 12020243-FCC-E1 Issue Date: April 06, 2012 Page: 6 of 25 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of Multimedia Services with stipulated standard Applicant / Client Beijing Hanbo Info.Tec.Co.,Ltd. Rm19E,Hengxing Building, No. 89 Zhongguancun East Road Haidian District Beijing 100084 P.R.C. Manufacturer Beijing Hanbo Info.Tec.Co.,Ltd. Rm19E,Hengxing Building, No. 89 Zhongguancun East Road Haidian District Beijing 100084 P.R.C. Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12020243-FCC-E1 Date EUT received March 19, 2012 Standard applied FCC Part 15 Subpart B Class B: 2012, ANSI C63.4: 2009 Dates of test March 26, 2012 to March 28, 2012 No of Units #1 Equipment Category ITE Trade Name N/A Highest Operated Frequency (ies) Port/Connectors 2*RJ45 Port Title: EMC Test Report for Multimedia Services Main Mo…
