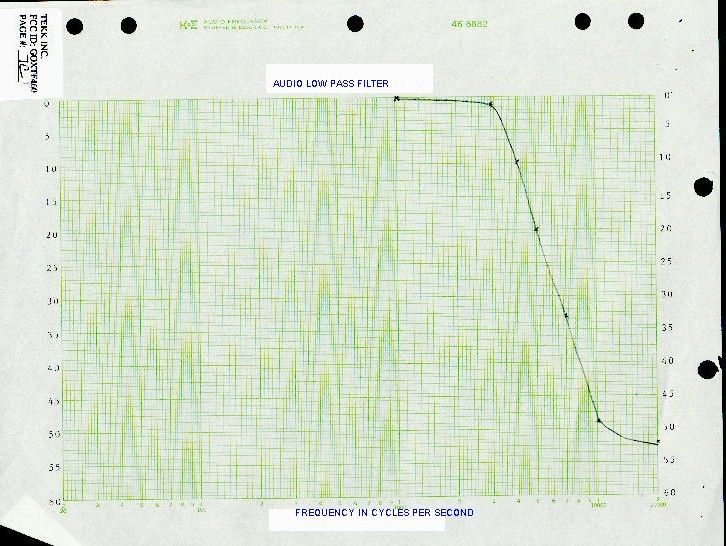

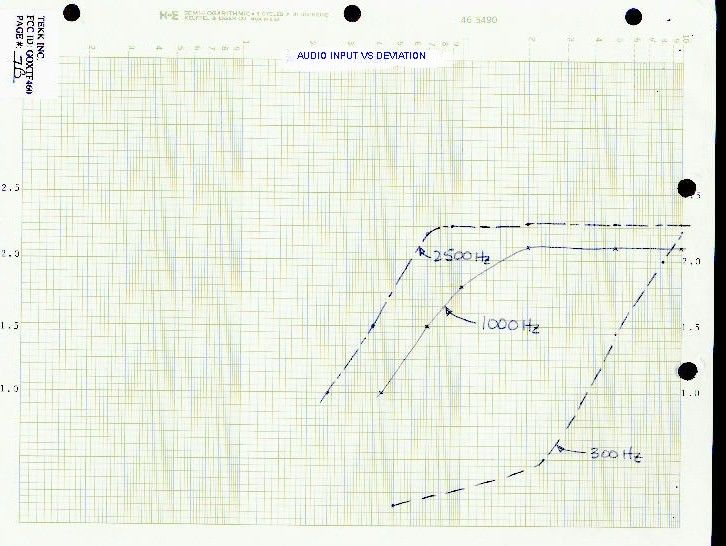

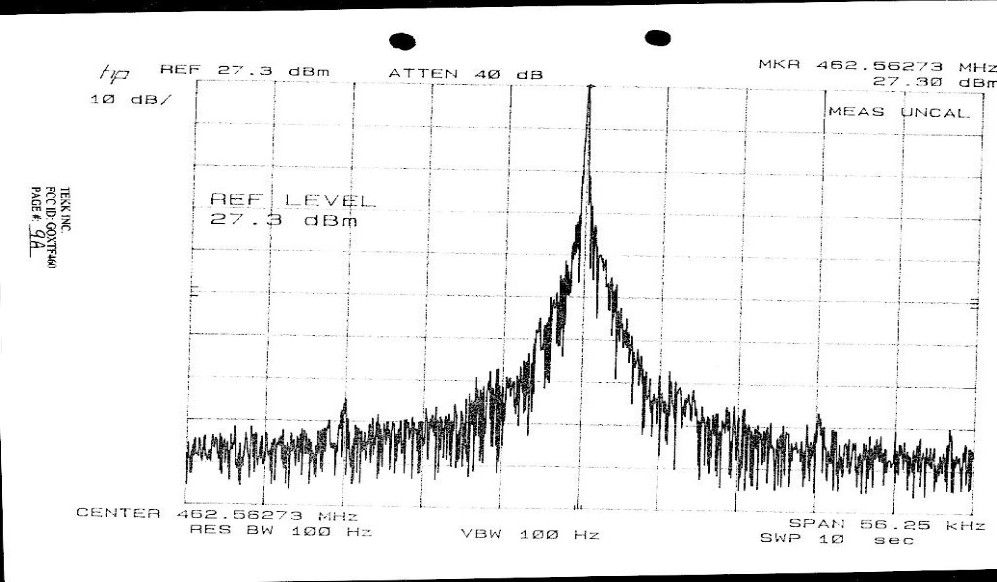

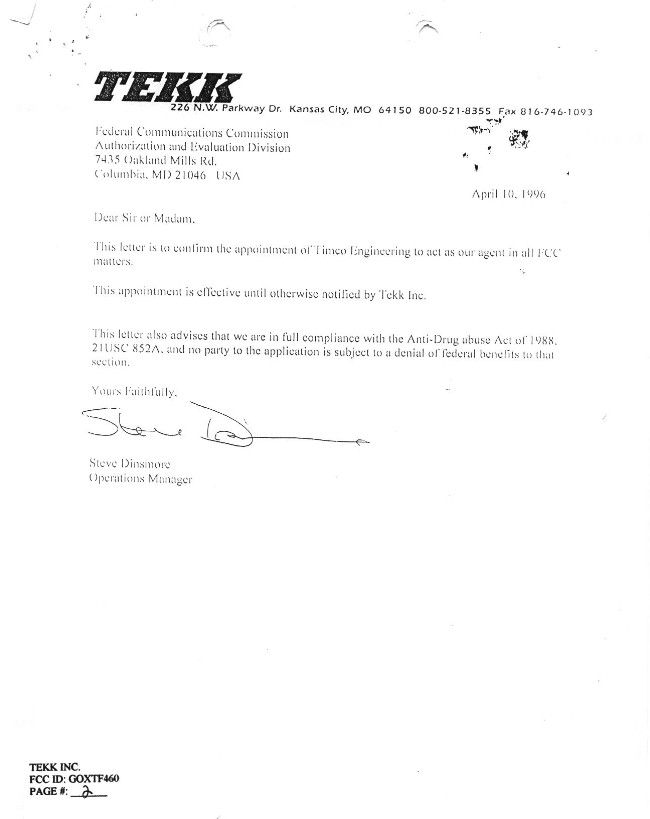

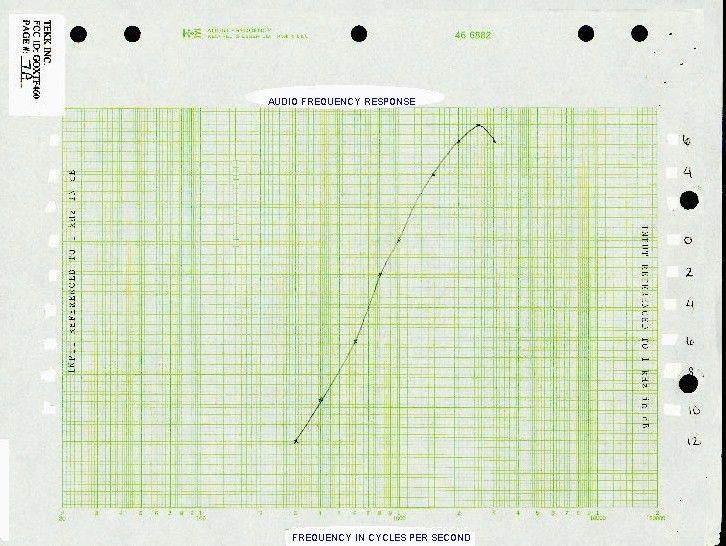

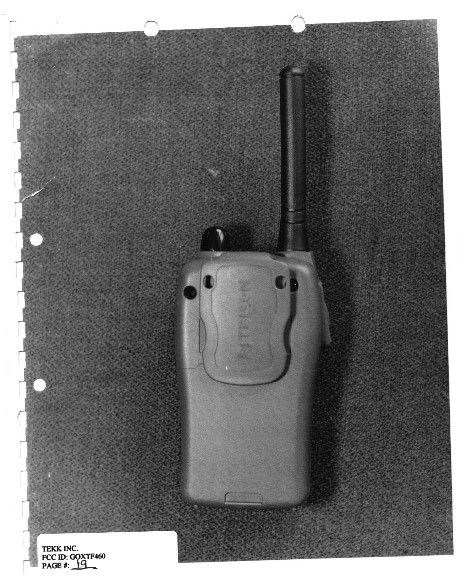

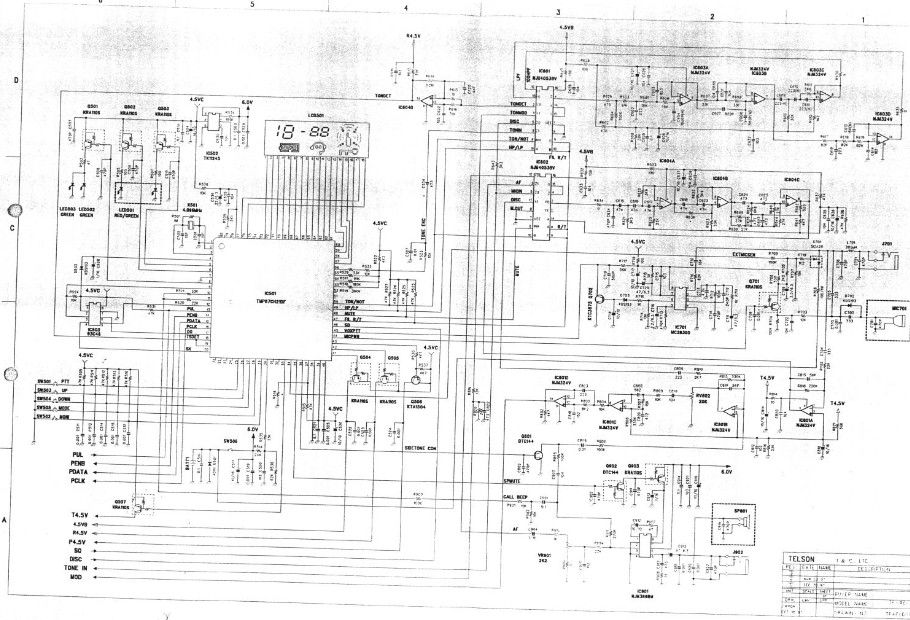

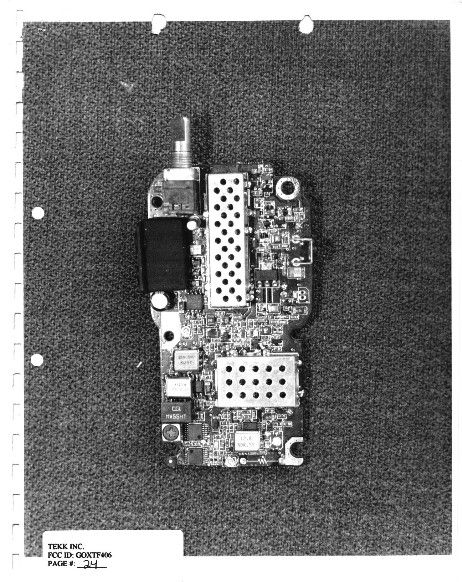

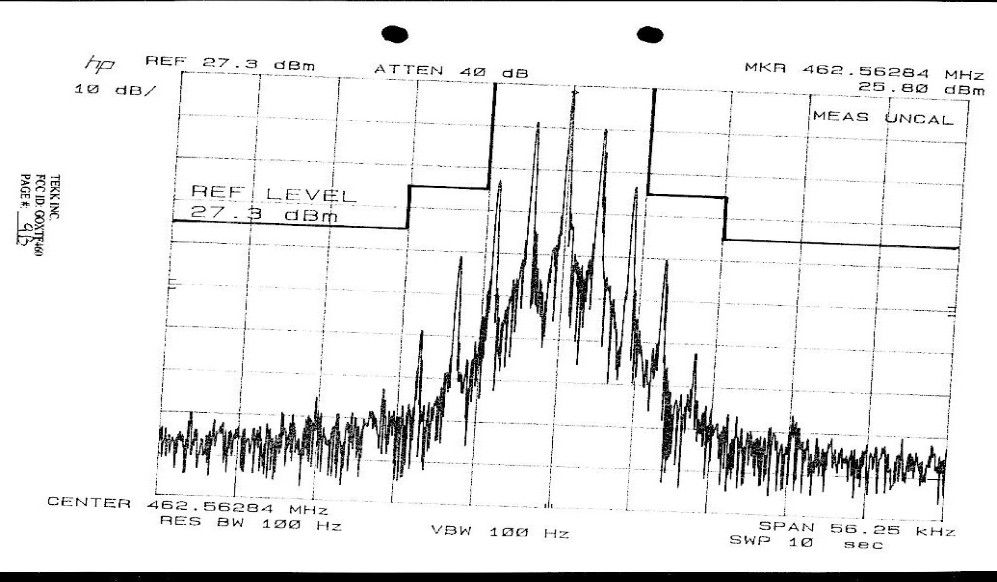

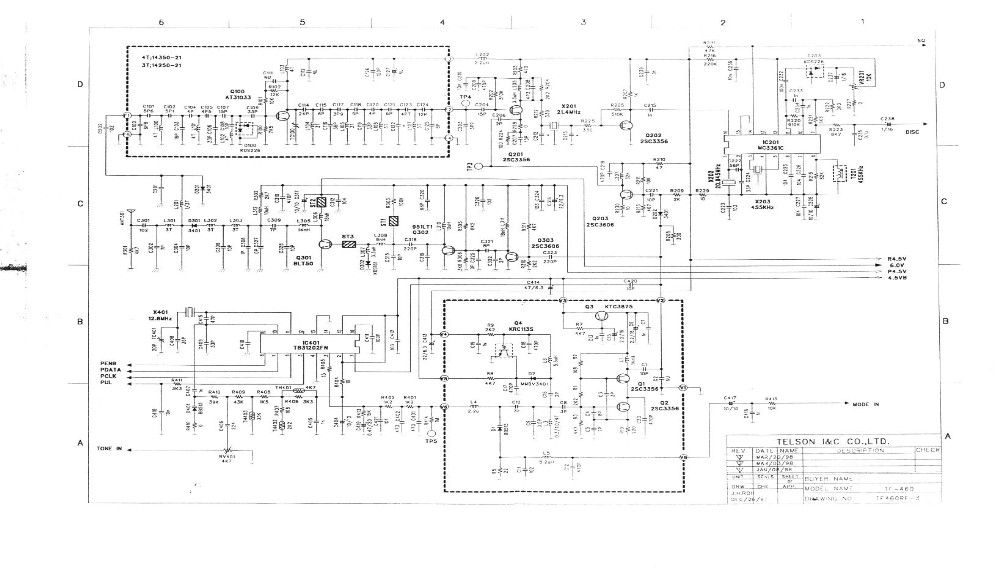

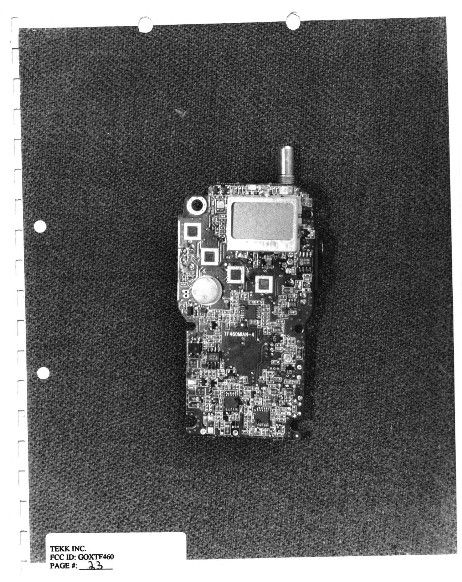

TABLE OF CONTENTS LIST APPLICANT: TEKK INC. FCC ID: GOXTF460 PAGE 1...........731 FORM PAGE 2...........POWER OF ATTORNEY LETTER TEST REPORT: PAGE 3......COVER SHEET - GENERAL INFORMATION PAGE 3A......LIST OF ACTIVE DEVICES PAGE 4......TECHNICAL DESCRIPTION PAGE 5......RF POWER OUTPUT PAGE 6......MODULATION CHARACTERISTICS PAGE 7A-7C...MODULATION CHARACTERISTICS GRAPHS PAGE 8......OCCUPIED BANDWIDTH PAGE 9A-8B..OCCUPIED BANDWIDTH PLOTS PAGE 10......UNWANTED EMISSIONS PAGE 11......UNWANTED EMISSIONS TEST PROCEDURE PAGE 12......FREQUENCY STABILITY VERSUS TEMPERATURE PAGE 13......CERTIFICATION OF TECHNICAL DATA PAGE 14......LIST OF TEST EQUIPMENT PAGE 15...........SCHEMATIC PAGE 16...........BLOCK DIAGRAM PAGE 17...........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION PAGE 18-23........PHOTOGRAPHS LAST ITEM.........USER'S MANUAL INCLUDING THEORY OF OPERATION F:\CUS\T\TEKK\TEK98B8.RPT GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.983 (a,b,c) TEKK INC. will manufacture the FCCID: GOXTF460 FAMILY RADIO SERVICES SINGLE CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. 2.983 (d) TECHNICAL DESCRIPTION 2.983 (d) (1) Type of Emission: 10K4F3E 95.629 Bn=2M+2DK M = 3000 D = 2.4K Bn = 2(3.0)+2(2.2) = 10.4K Authorized Bandwidth 12.5KHz 2.983 (d) (2) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.983 (d) (3) Power Output shall not exceed 0.500Watts effective 95.637 radiated power. There can be no provisions for 95.647 increasing the power. 2.983 (d) (4) Maximum Output Power Rating: 200 milliWatts 95.637 effective radiated power. 95.645 The antenna is an intergral part to the unit, it cannot be removed without rendering the unit inoperative. 2.983 (d) (5) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 5.9 Volts DC Ice = 0.13A. Pin = 0.79 Watts 2.983 (d) (6) Function of each electron tube or semiconductor device or other active circuit device: SEE PAGE 3A APPLICANT: TEKK INC. FCC ID: GOXTF460 REPORT #: F:\CUS\T\TEKK\TEK98B8.RPT PAGE #: 3 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as PAGE 15 of this report. The block diagrams are included as PAGES 16 of this report. 2.983(d) (8) Instruction book. A draft copy of the instruction manual is included as LAST ITEM. 2.983 (d) (9) Tune-up procedure. The tune-up procedure is included INCLUDED IN USER'S MANUAL. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is given in INCLUDED IN USER'S MANUAL. The crystal specifications are included as PAGES NA. 2.983 (d)(11) Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power will be INCLUDED IN USER'S MANUAL. (12) Digital modulation. This unit does not use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submit ted below. APPLICANT: TEKK INC. FCC ID: GOXTF460 REPORT #: F:\CUS\T\TEKK\TEK98B8.RPT PAGE #: 4 2.985(a) RF power output. 95.637 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitte with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 200 milliWatts ERP R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ || |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. APPLICANT: TEKK INC. FCC ID: GOXTF460 REPORT #: F:\CUS\T\TEKK\TEK98B8.RPT PAGE #: 5 2.987(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. 2.987(b) 1 AUDIO INPUT VERSUS MODULATION The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. 95.635(b) POST LIMITER FILTER The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater tha the attenuation at 1KHz. See the proceeding page. APPLICANT: TEKK INC. FCC ID: GOXTF460 REPORT #: F:\CUS\T\TEKK\TEK98B8.RPT PAGE #: 6 2.989(c) EMISSION BANDWIDTH: 95.633(b)(1)(3)(7) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25dB and from 100 to 250% the sidebands must be attenuated by at least 35dB. Beyond 250% the sidebands must be attenuated by at least 43+log10(TP). The transmitter was modulated with 2500 Hz, adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the unmodulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth PLOTS follow. Radiotelephone transmitter with modulation limiter. Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT /-----------\ Coupler /---------\ | | ---- | | |Transmitter|--------------------------|50 ohm | |under test | ---- |Resistive| \-----------/ | |Wattmeter| | | \---------/ || /-----------\ /----------\ |||| |Audio | | Spectrum | |Oscillator | | Analyzer | \-----------/ \----------/ APPLICANT: TEKK INC. FCC ID: GOXTF460 REPORT #: F:\CUS\T\TE…
