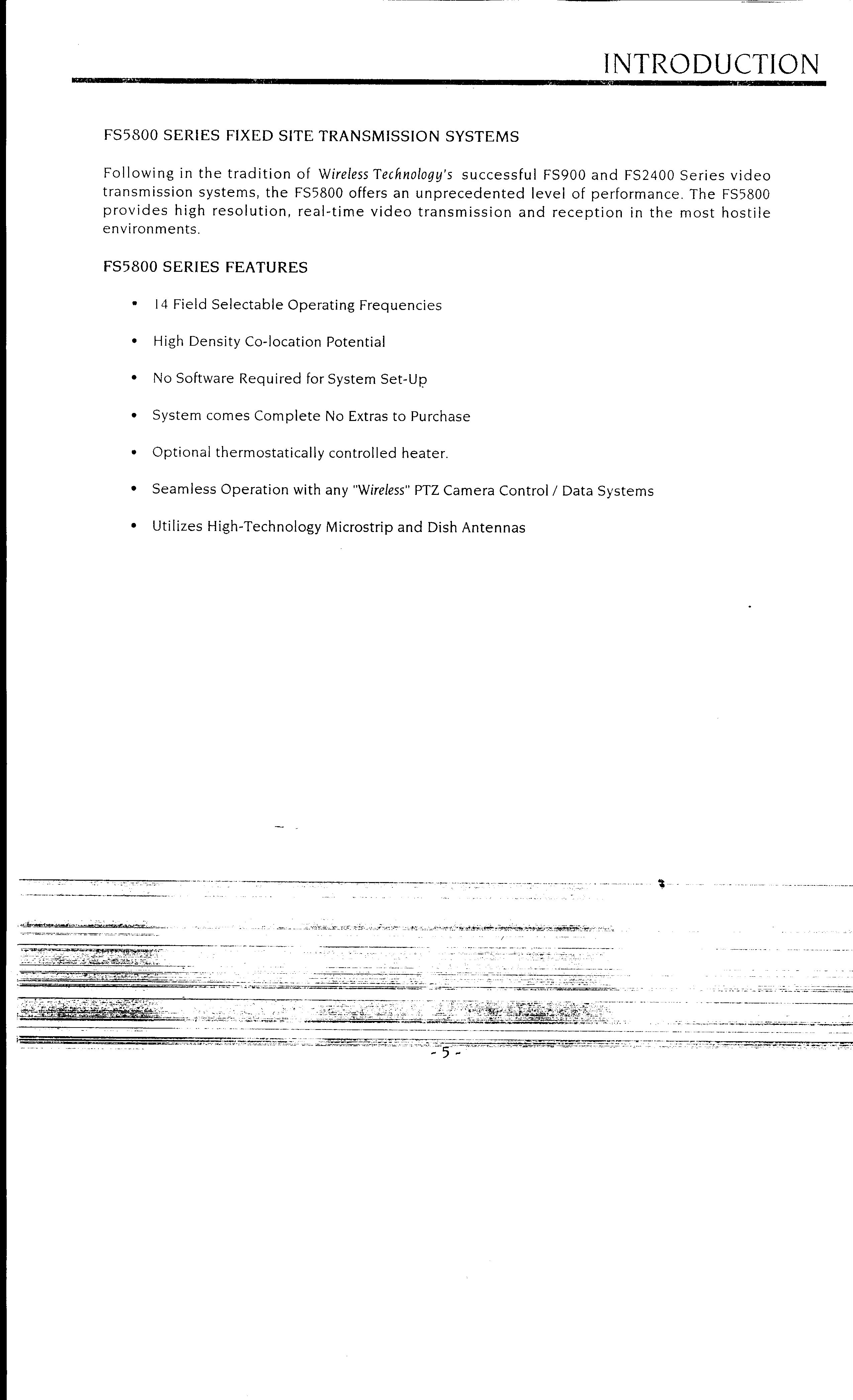

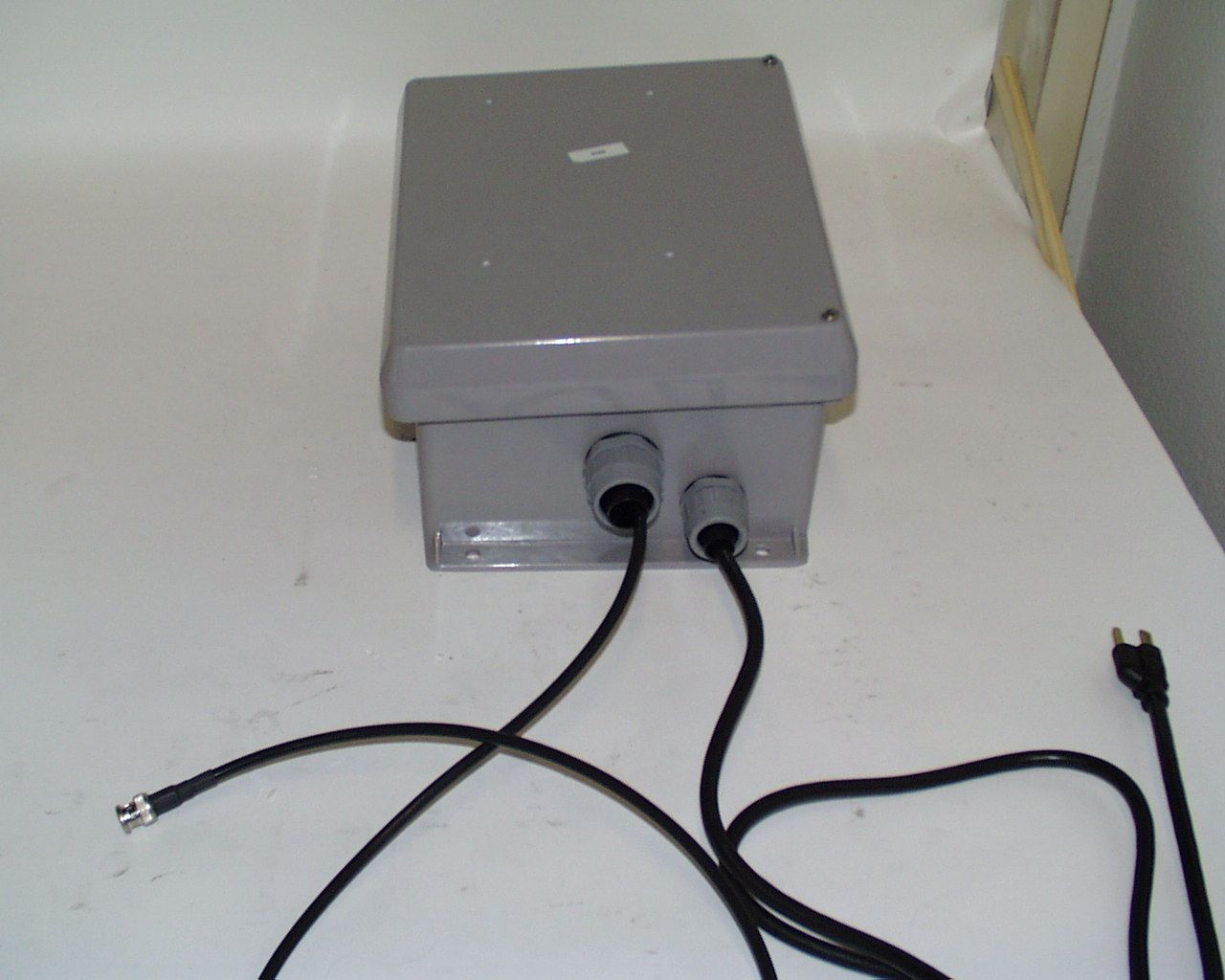

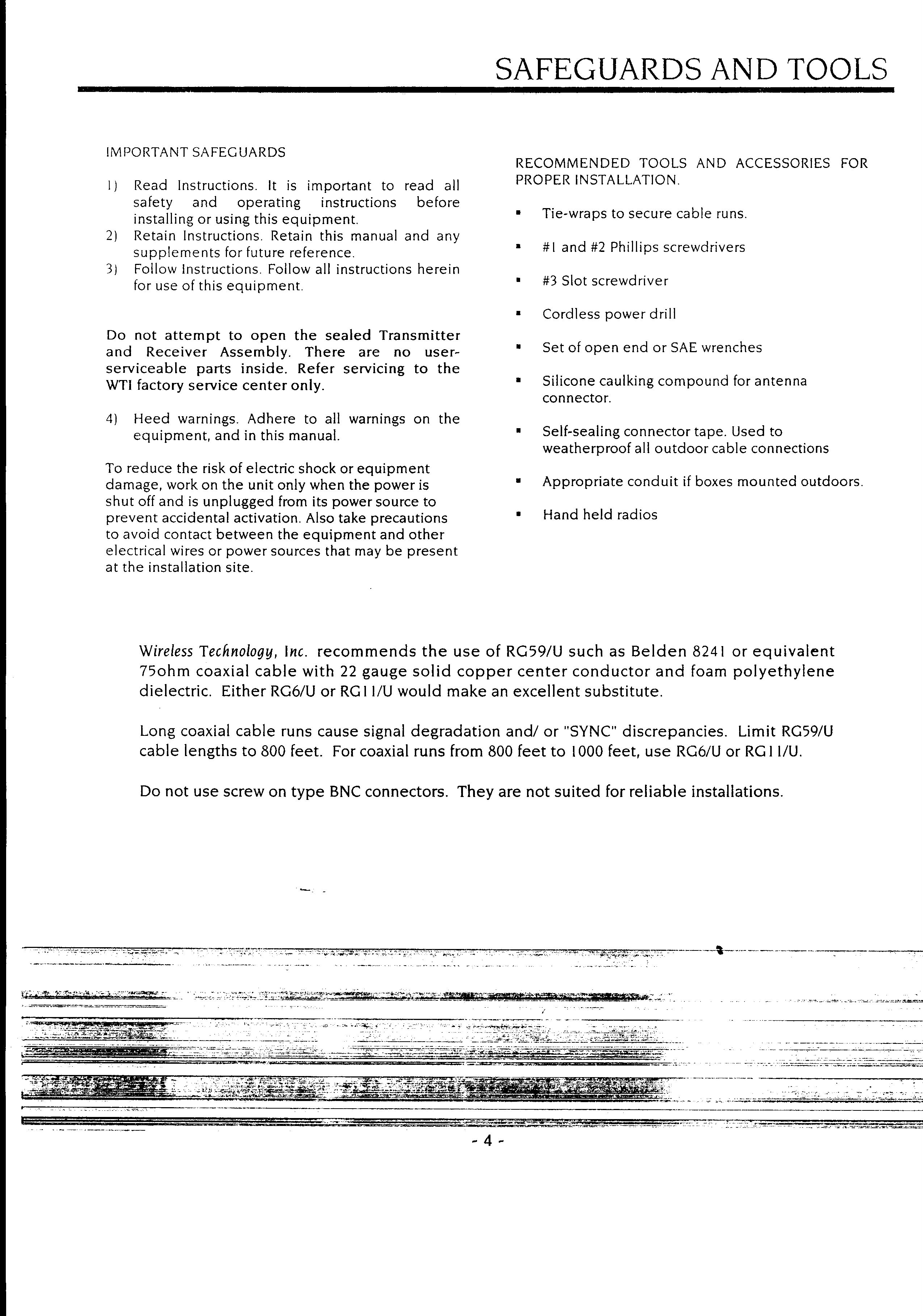

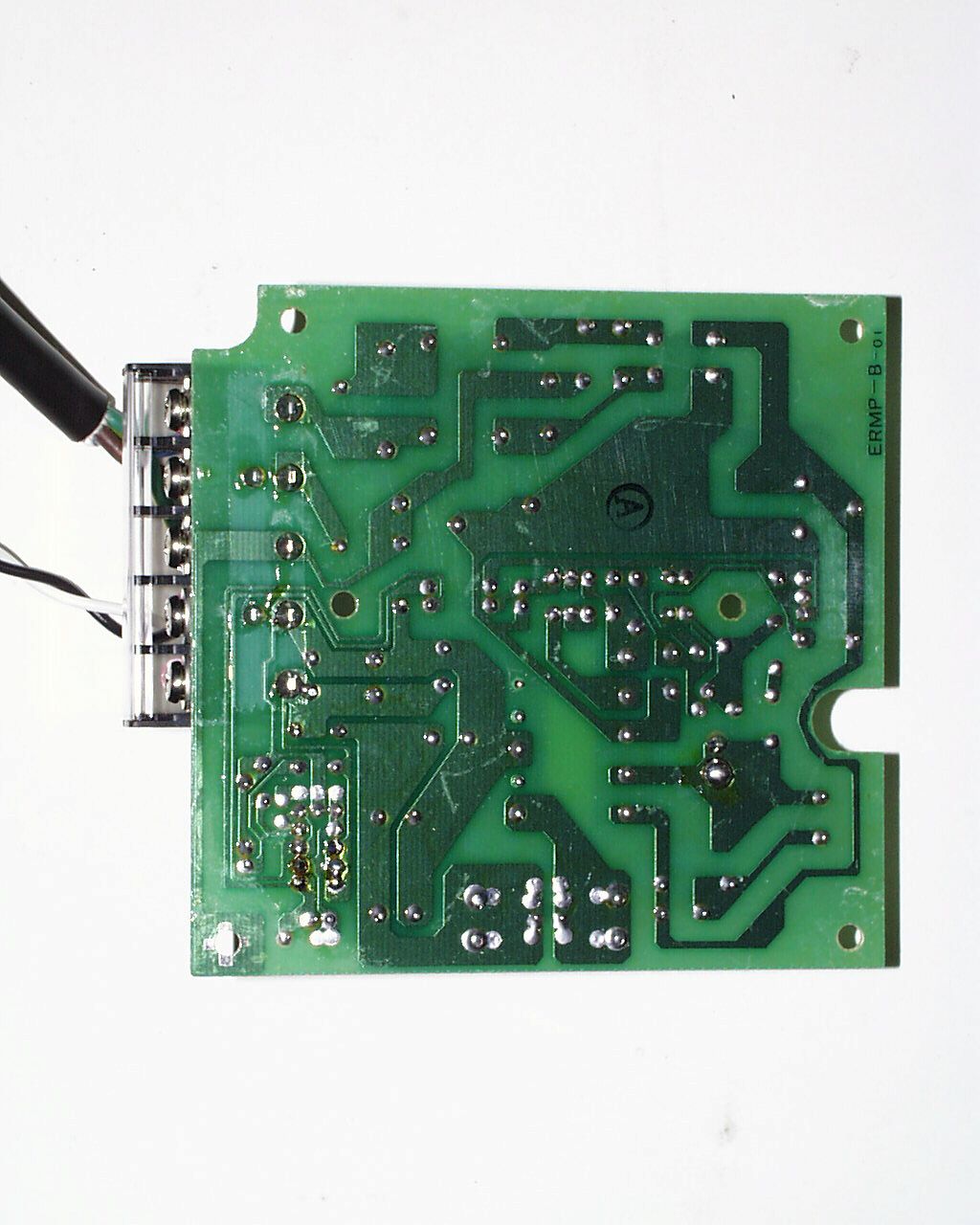

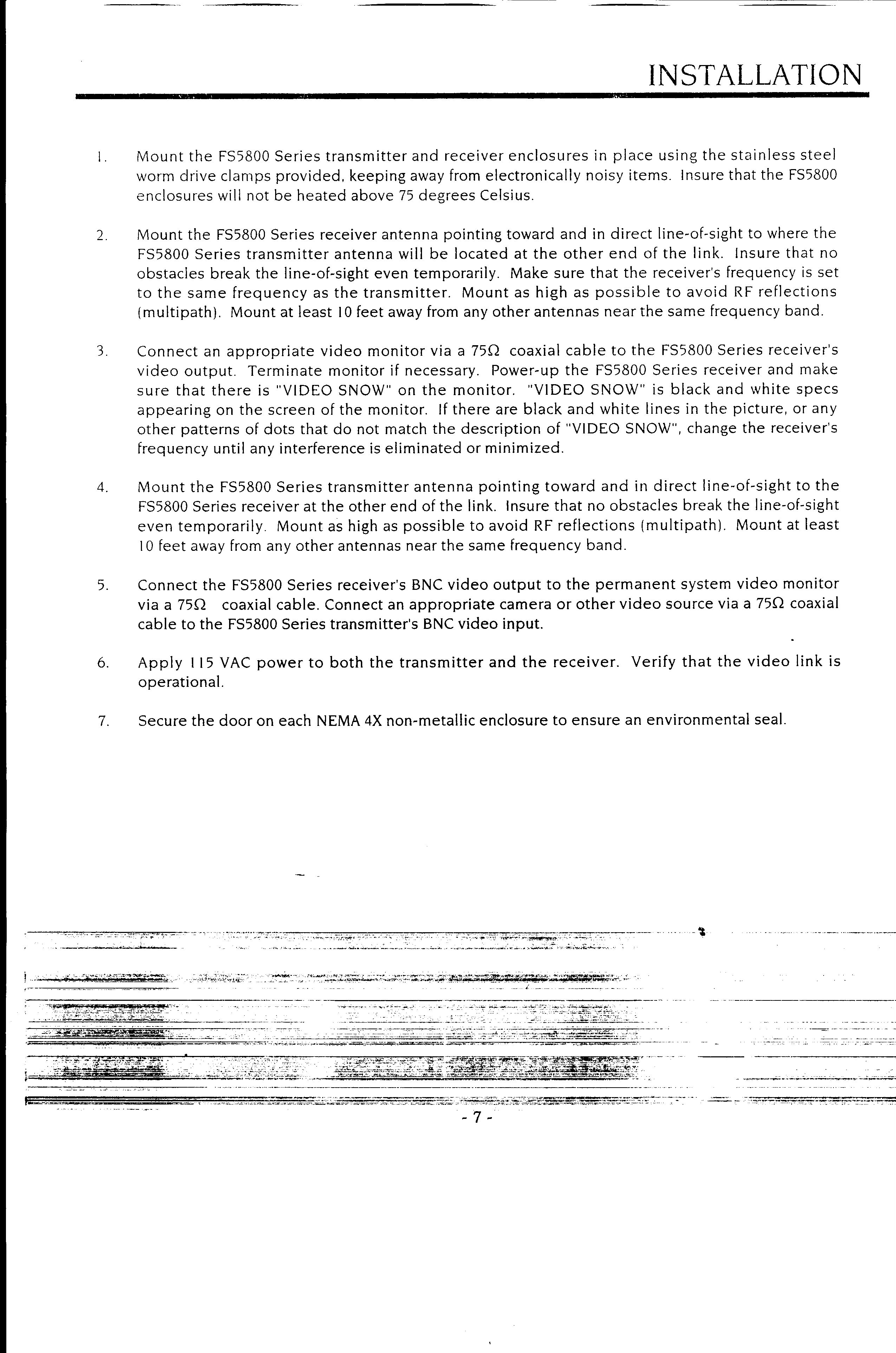

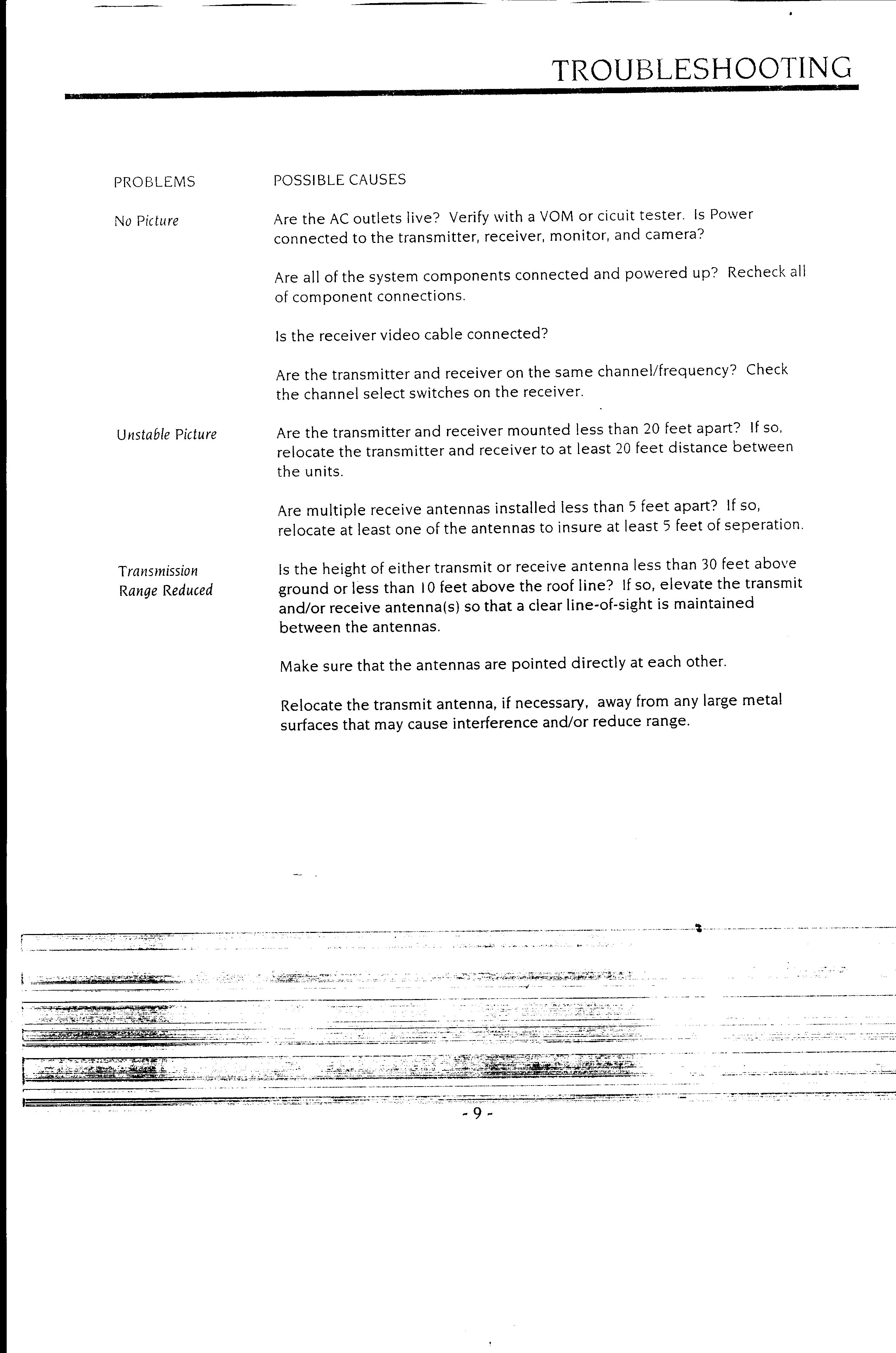

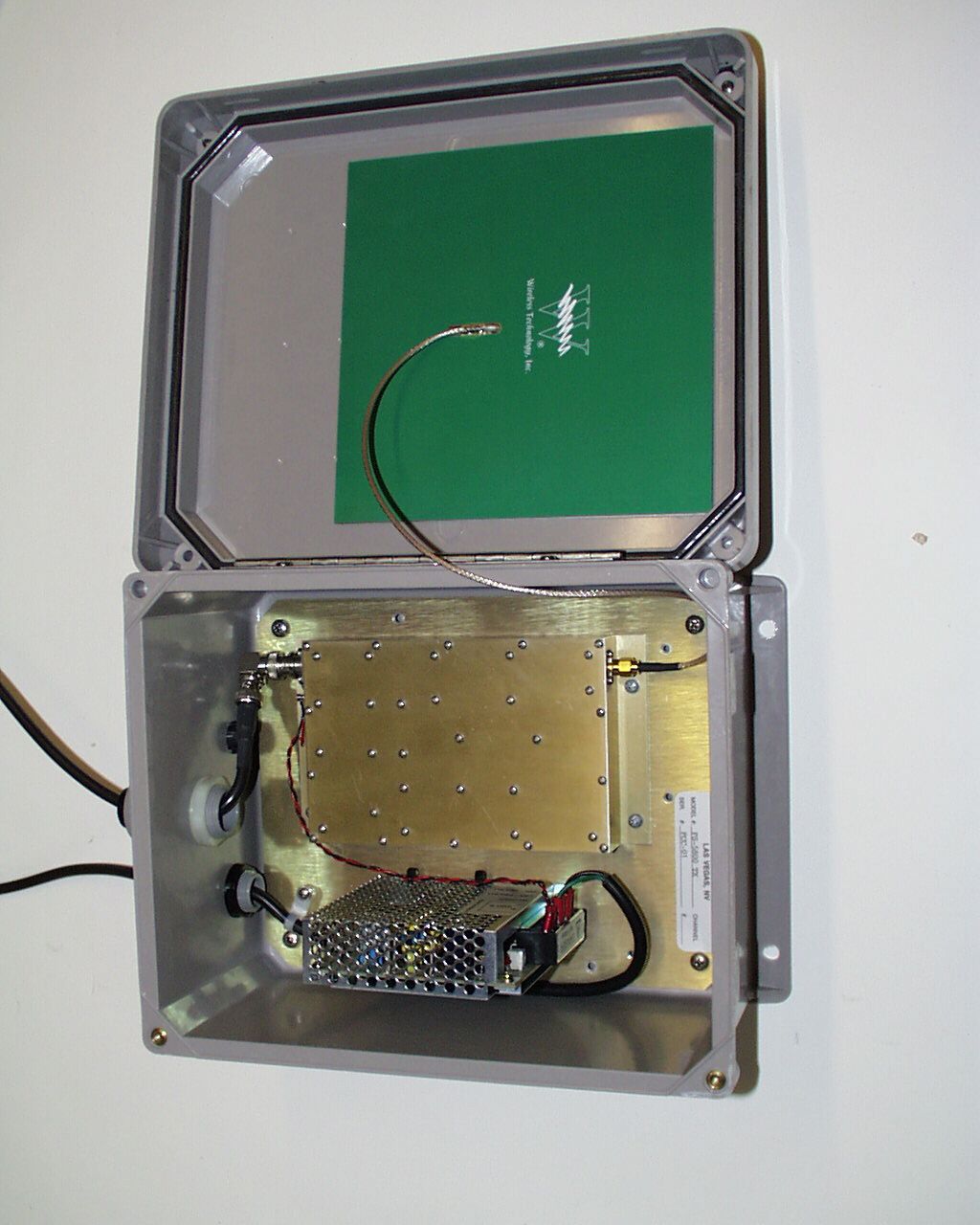

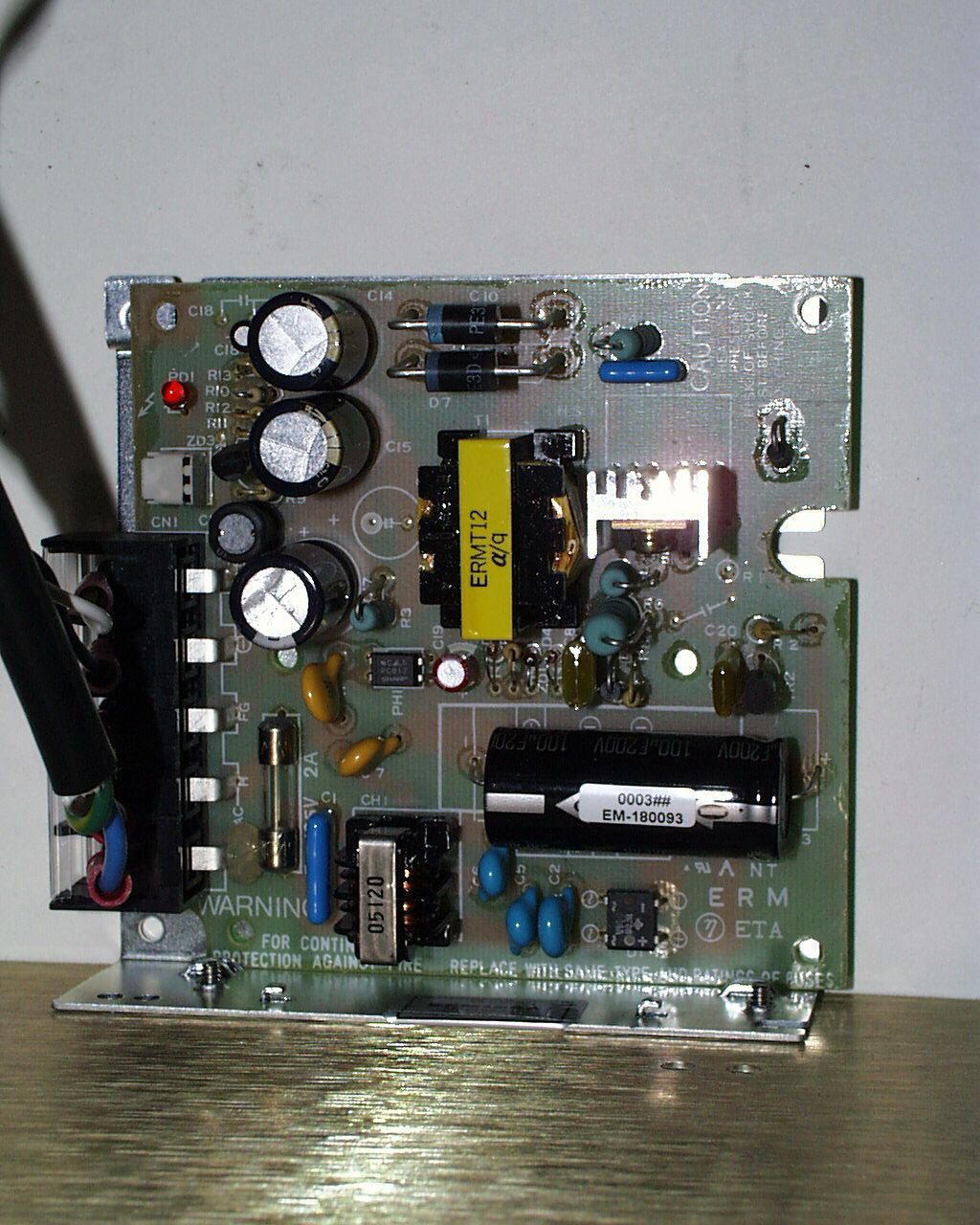

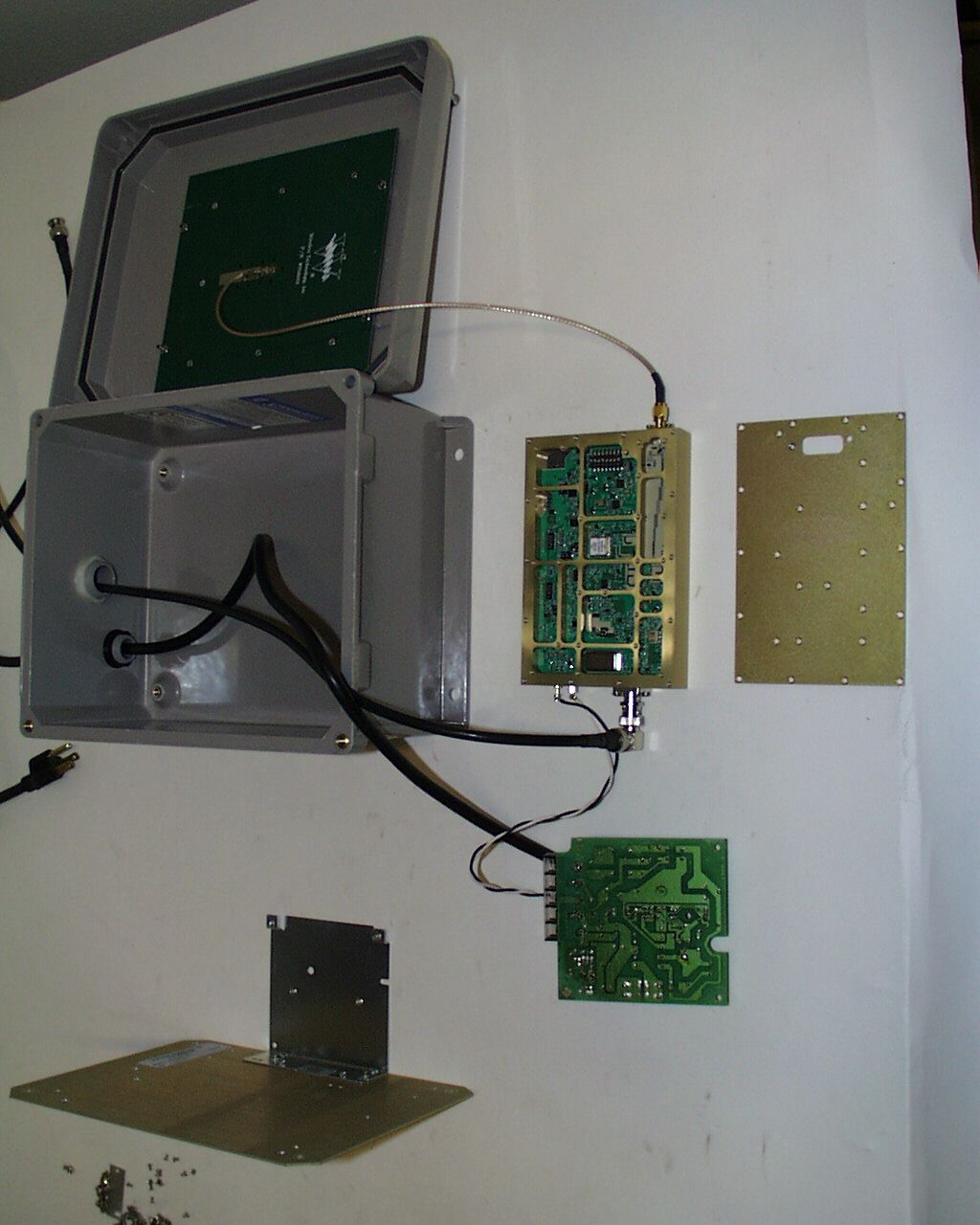

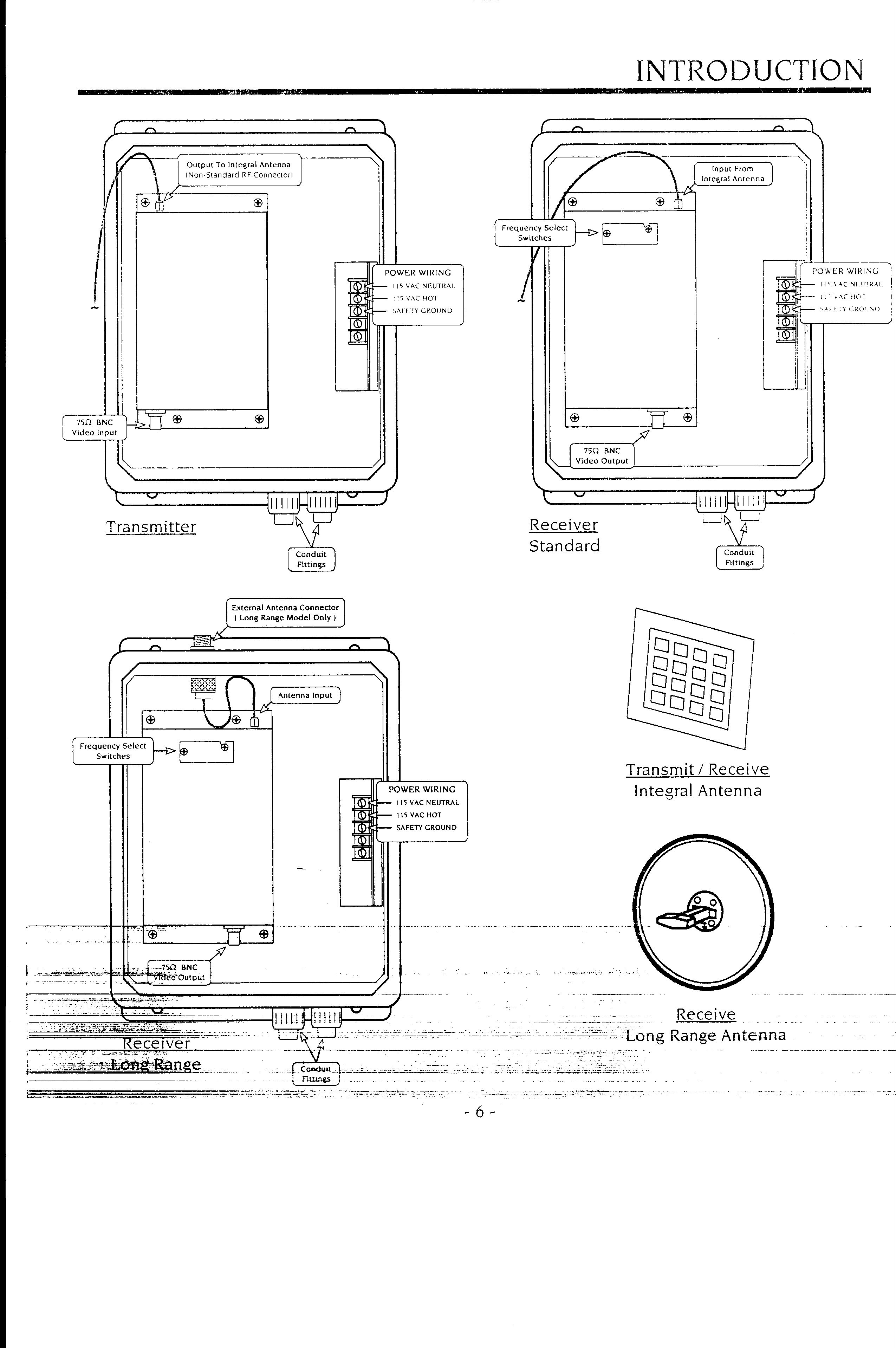

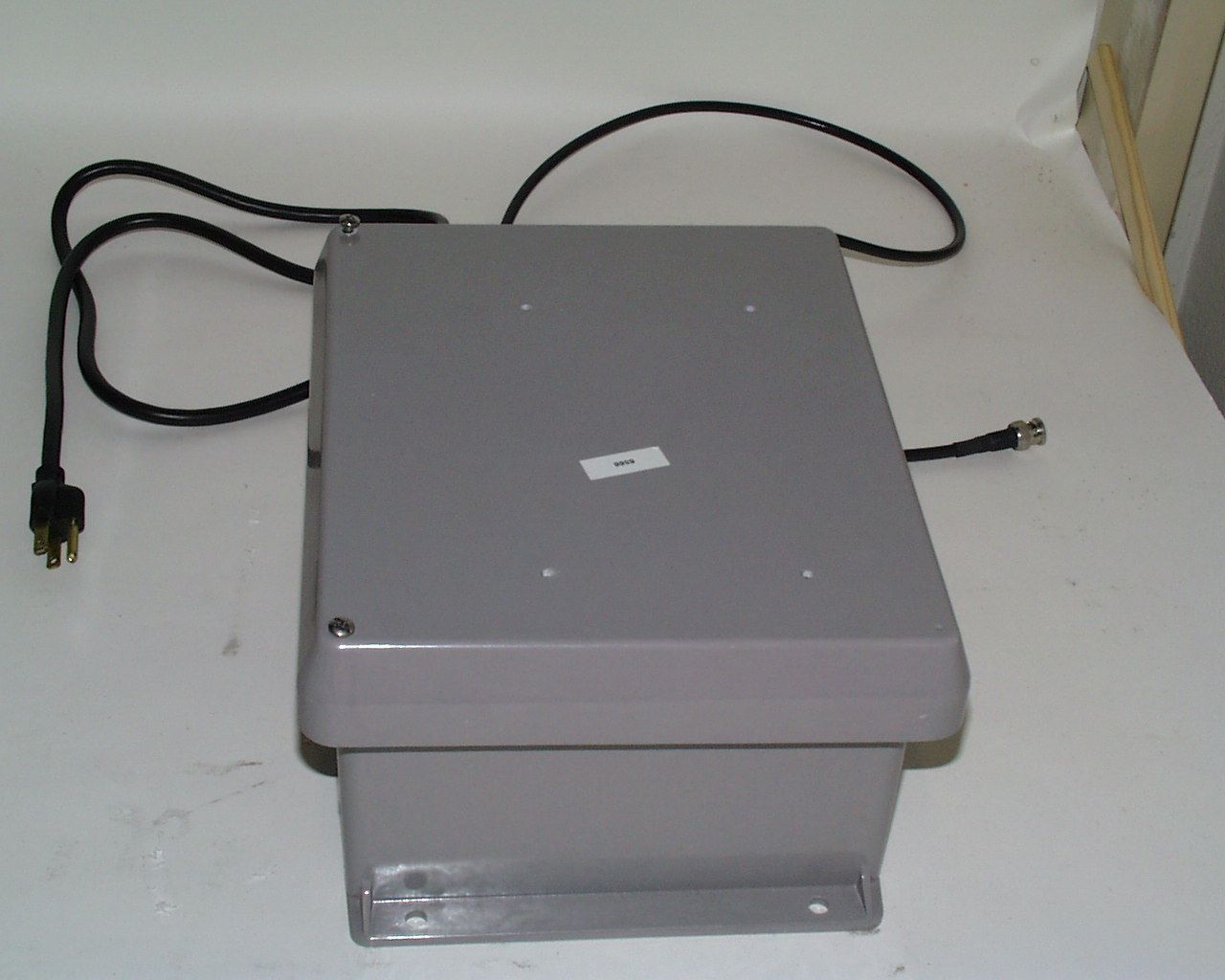

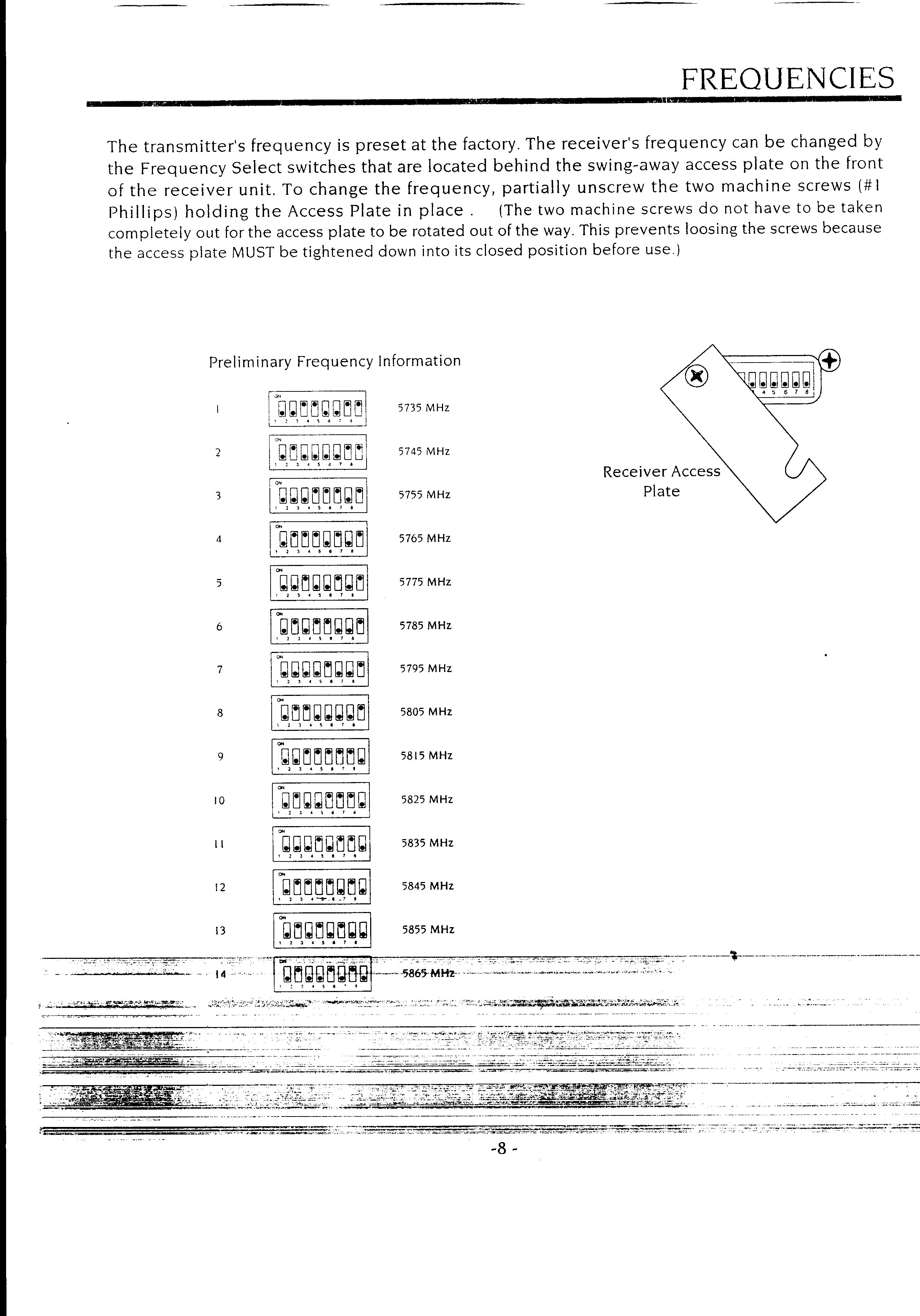

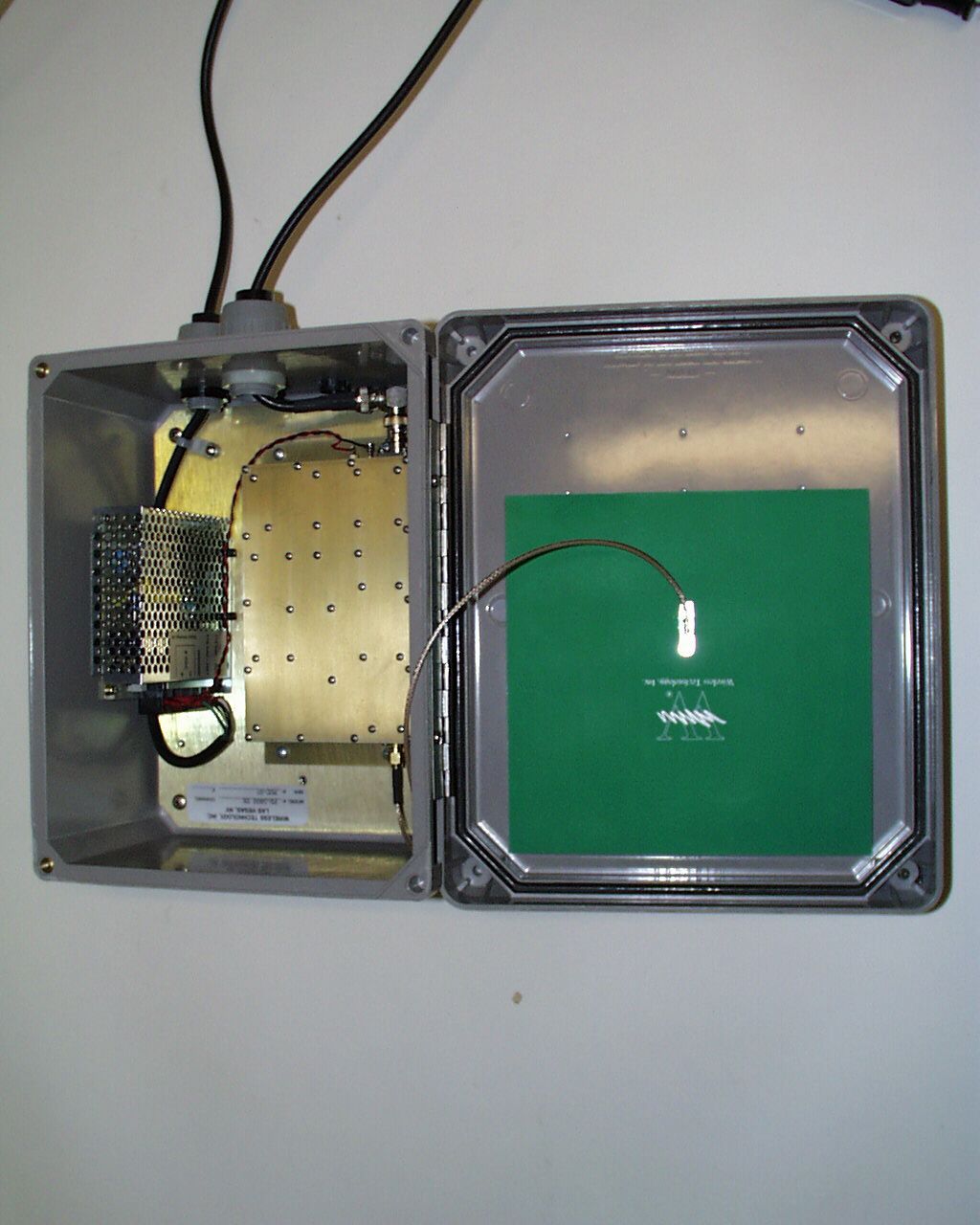

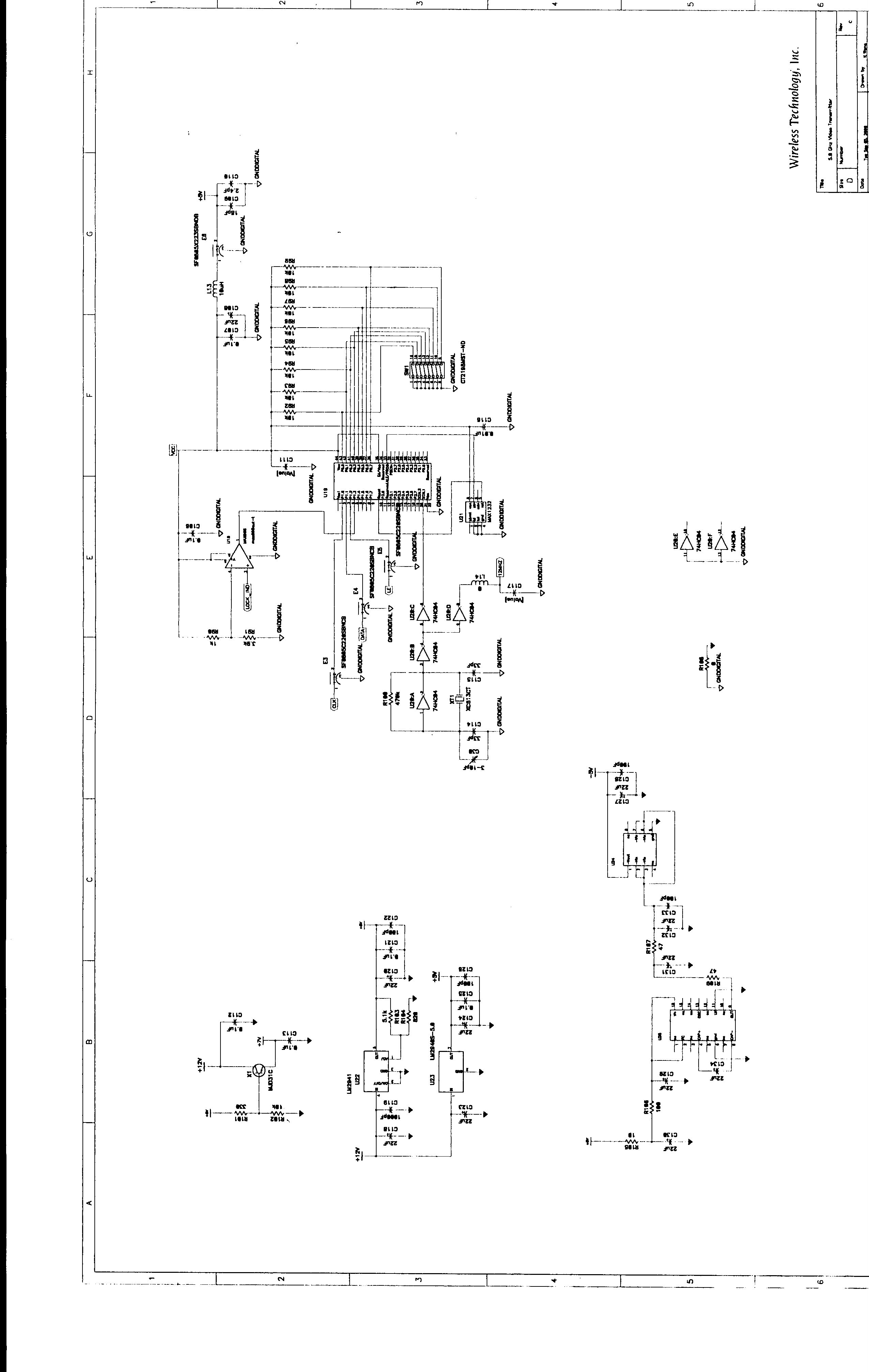

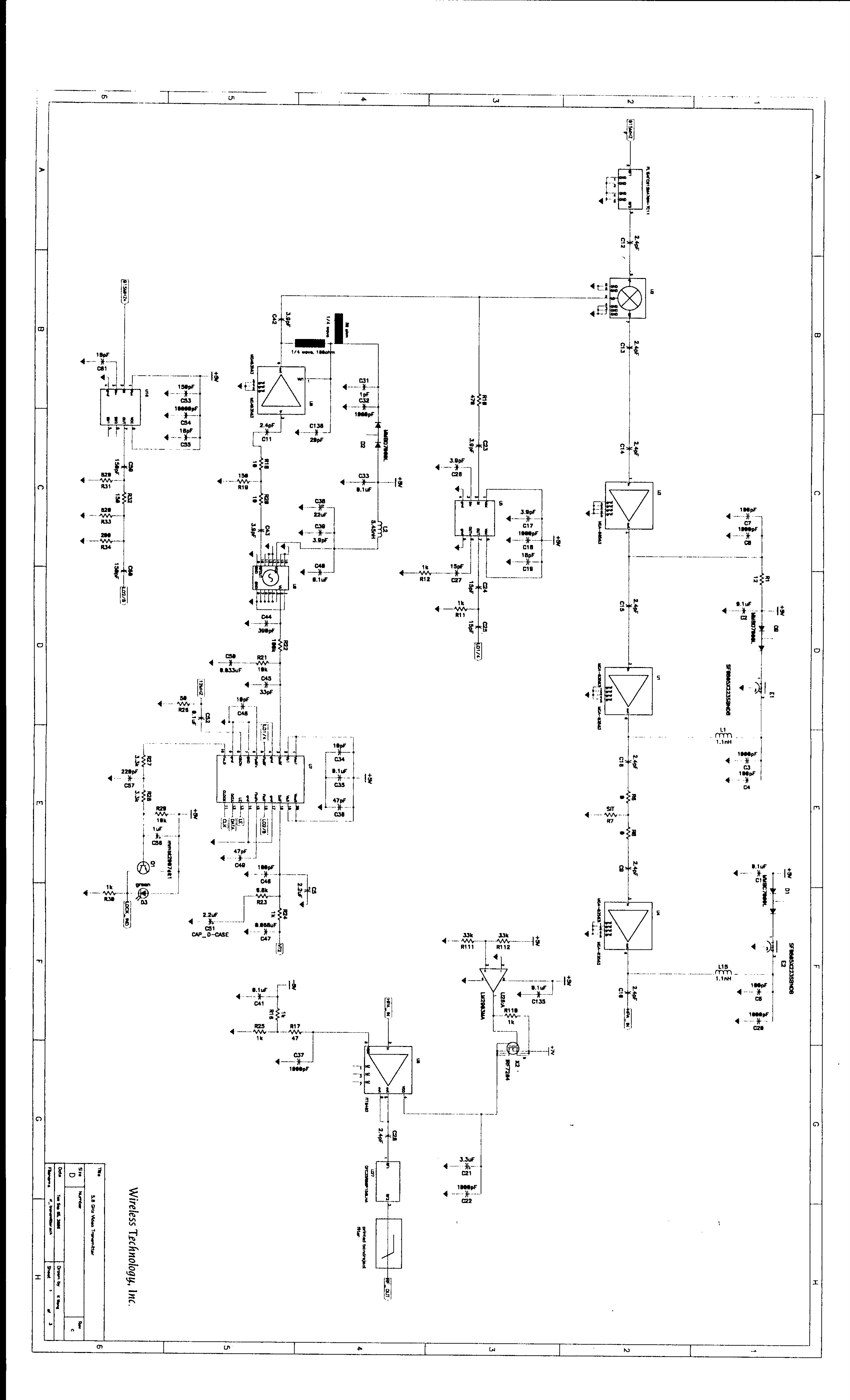

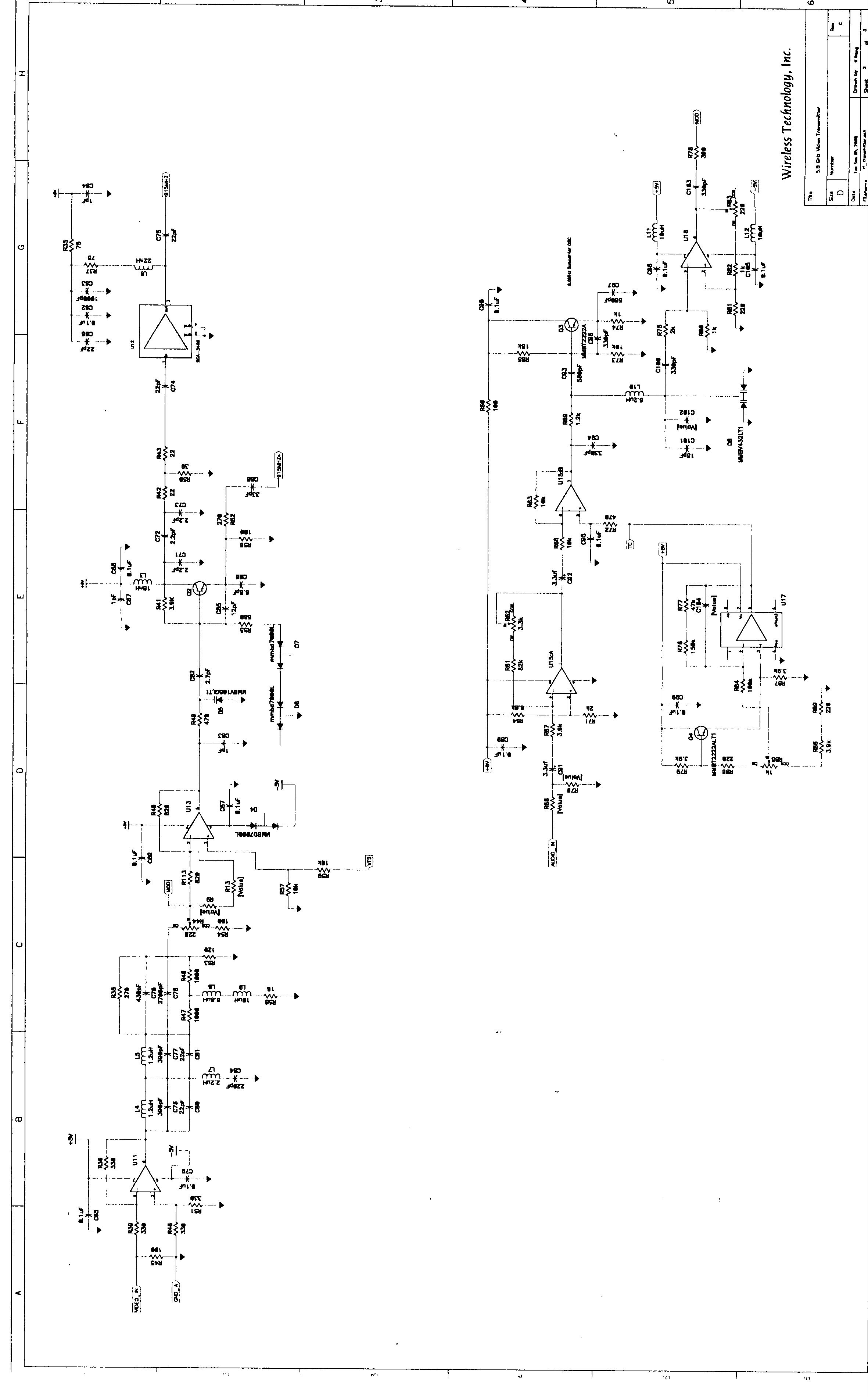

GR5TX5800WBSRVVideo Transmitter

Band Re j. Filter Frequency Selection 6.8 MHz Subcarrier Antenna Video In Audio In

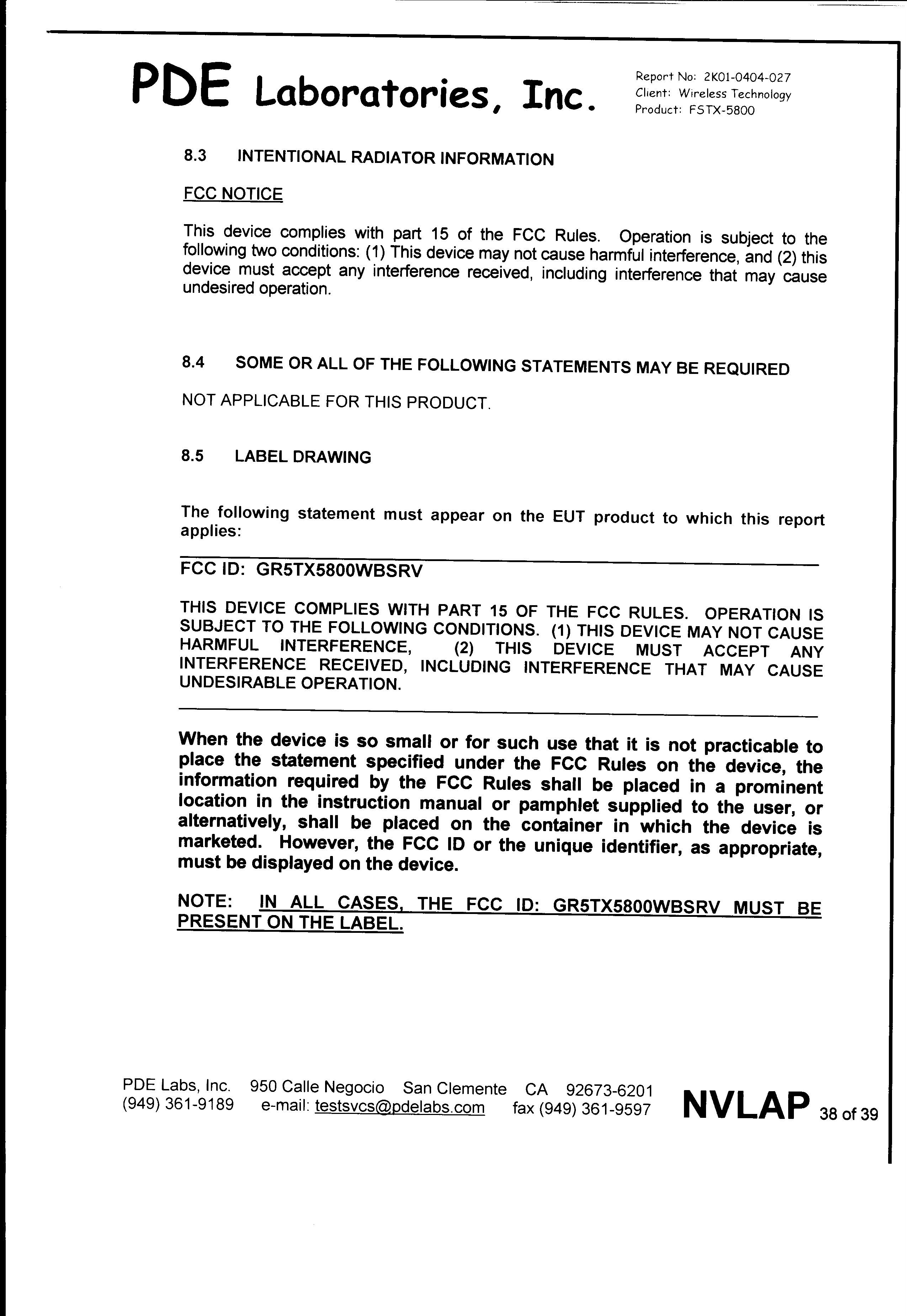

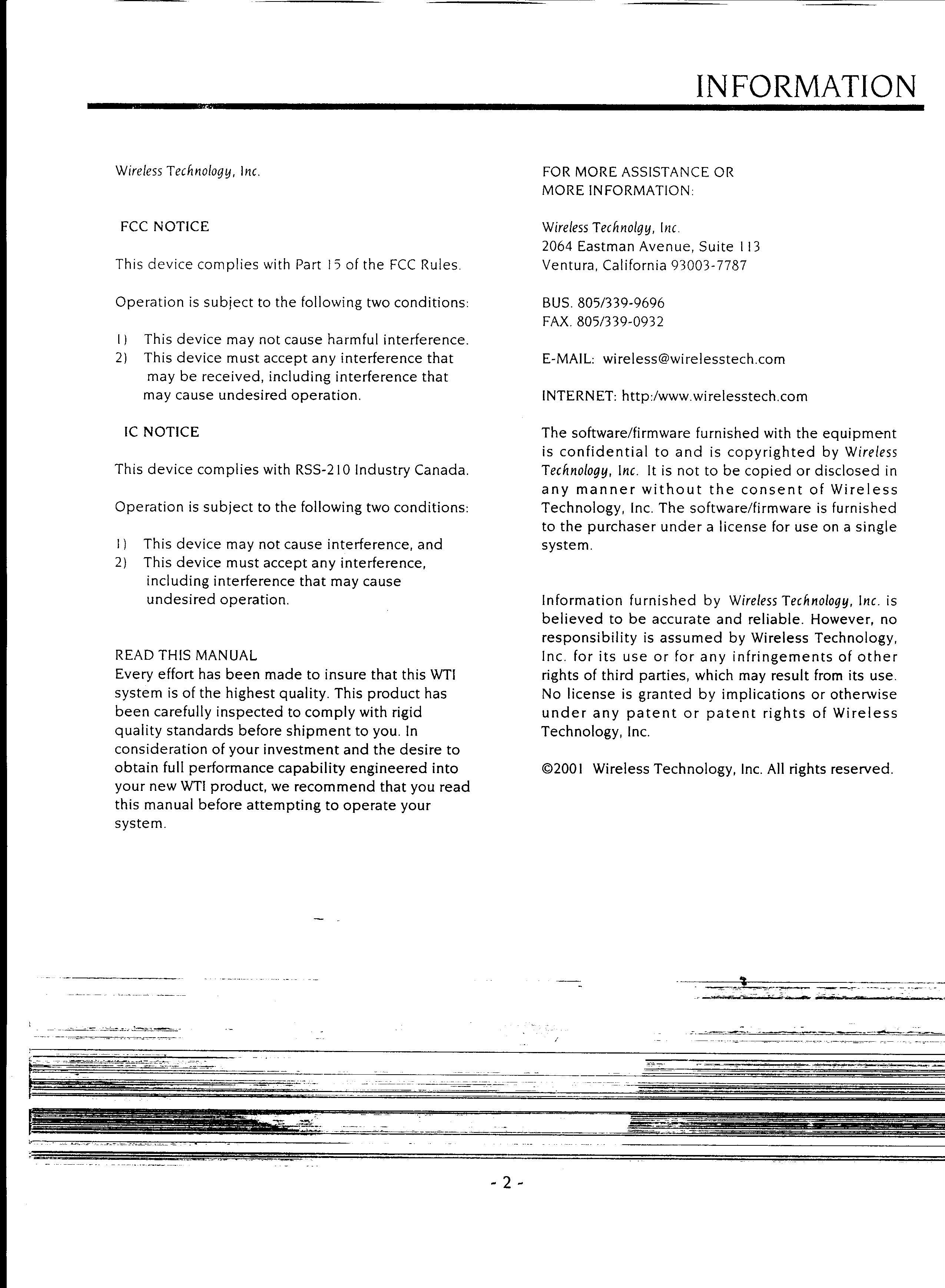

This Device complies with Part 15 of FCC Rules. Operation may be subject to the following two conditions: 1. This Device may not cause harmful interference. 2. This Device must accept any interference that may be received, including interference that may cause undesired operation. FCC ID: GR5WBSRVTX5800 VIDEO TRANSMITTER Model No. FSTX5800 VIDEO INPUT ANTENNA R Wireless Technology, Inc. POWER 9 VDC 2064 Eastman Avenue, Suite 113 · Ventura, California 93003-7787 USA P HONE: 805/339-9696 · FAX: 805/339-0932 · E-MAIL: [email protected] · INTERNET: www.wirelesstech.com The FCC i.d. label will be silkscreened on the lower center of the top cover of the transmitter machined housing enclosure. The location is shown in the diagram below. USA Transmitter Ventura, California Patent # 5,128,755 Made in USA NOTE: Wireless Technology, Inc. 5800 Video Transmission System Illustration

This Device complies with Part 15 of FCC Rules. Operation may be subject to the following two conditions: 1. This Device may not cause harmful interference. 2. This Device must accept any interference that may be received, including interference that may cause undesired operation. FCC ID: GR5TX5800WBSRV VIDEO TRANSMITTER Model No. FSTX5800 VIDEO INPUT ANTENNA R Wireless Technology, Inc. POWER 9 VDC 2064 Eastman Avenue, Suite 113 · Ventura, California 93003-7787 USA P HONE: 805/339-9696 · FAX: 805/339-0932 · E-MAIL: [email protected] · INTERNET: www.wirelesstech.com The FCC i.d. label will be silkscreened on the lower center of the top cover of the transmitter machined housing enclosure. The location is shown in the diagram below. USA Transmitter Ventura, California Patent # 5,128,755 Made in USA NOTE: Wireless Technology, Inc. 5800 Video Transmission System Illustration

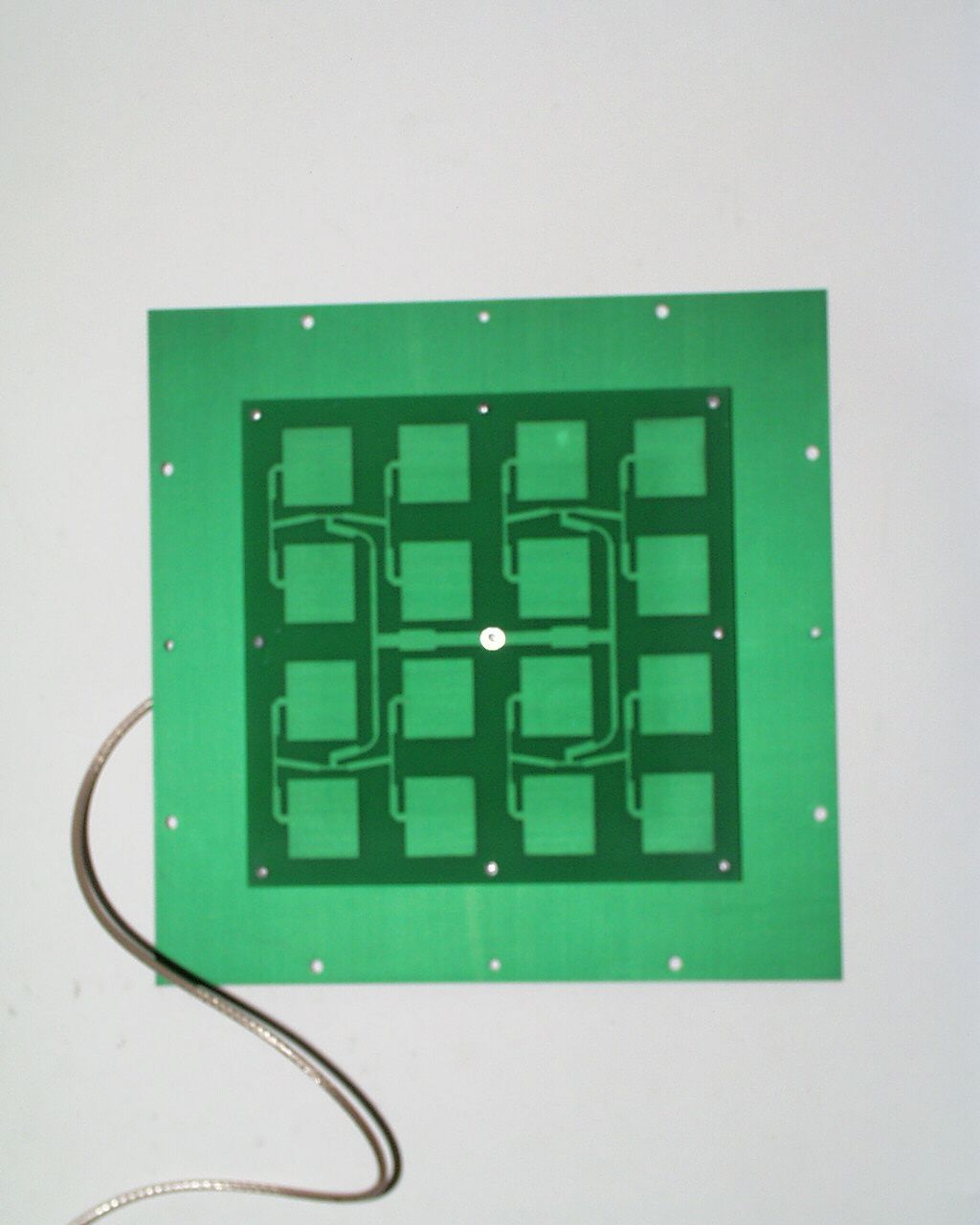

5.8 GHZ LHCP While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on our part and no statement herein shall be construed as recommendation to infringe existing patents. Wireless Technology, Inc. 2064 Eastman Avenue, Suite 113 Ventura, California 93003-7787 P HONE: 805/339-9696 · FAX: 805/339-0932 E-M AIL: [email protected] · INTERNET: www.wirelesstech.com MICROSTRIP ANTENNA Frequency Range ELECTRICAL PROPERTIES 5.725 - 5.825 GHz Impedance 50 Ohms VSWR 1.5 : 1 Polarization LHCP Boresight Gain 20 dBi Horizontal Beamwidth (3 dB)±18° (typ) Vertical Beamwidth (3 dB)±12° (typ) Power Rating 20 W (CW) at 25° C Connector SMA Male Dimensions7" x 7" x ¼" (178mm x 178mm x 6mm) Operating Temperature-30° C to +75° C Weight3 oz. Humidity 100% MECHANICAL PROPERTIES Option A SMA-RP Male Option B Cable Type RG-316 15" (381mm)Cable Length ANT.5800D.2001

5.8 GHZ LHCP While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on our part and no statement herein shall be construed as recommendation to infringe existing patents. Wireless Technology, Inc. 2064 Eastman Avenue, Suite 113 Ventura, California 93003-7787 P HONE: 805/339-9696 · FAX: 805/339-0932 E-M AIL: [email protected] · INTERNET: www.wirelesstech.com MICROSTRIP ANTENNA Frequency Range ELECTRICAL PROPERTIES 5.725 - 5.825 GHz Impedance 50 Ohms VSWR 1.5 : 1 Polarization LHCP Boresight Gain 20 dBi Horizontal Beamwidth (3 dB)±18° (typ) Vertical Beamwidth (3 dB)±12° (typ) Power Rating 20 W (CW) at 25° C Connector SMA Male Dimensions7" x 7" x ¼" (178mm x 178mm x 6mm) Operating Temperature-30° C to +75° C Weight3 oz. Humidity 100% MECHANICAL PROPERTIES Option A SMA-RP Male Option B Cable Type RG-316 15" (381mm)Cable Length ANT.5800D.2001

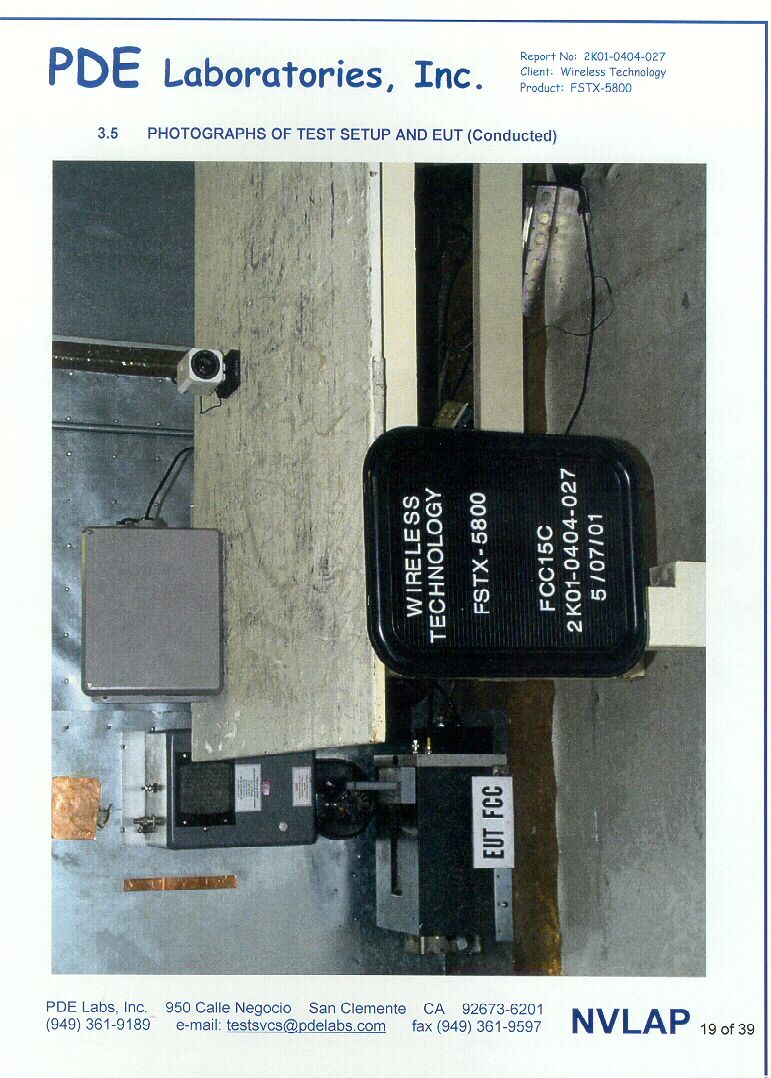

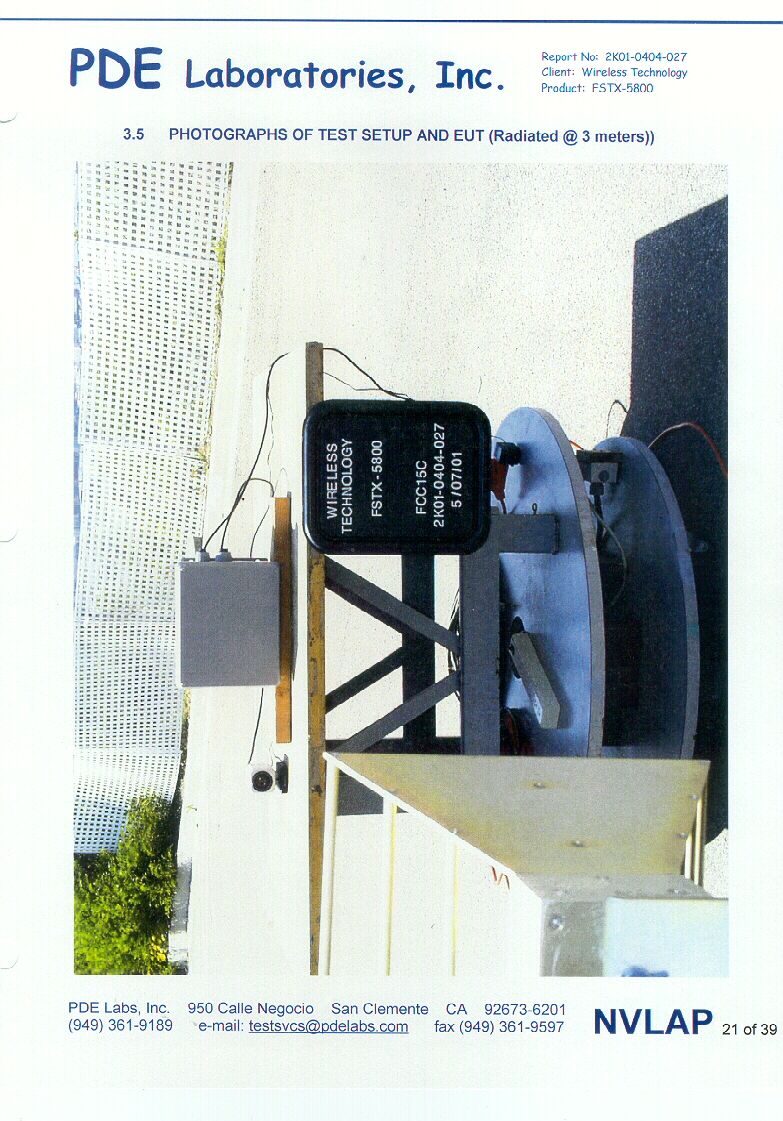

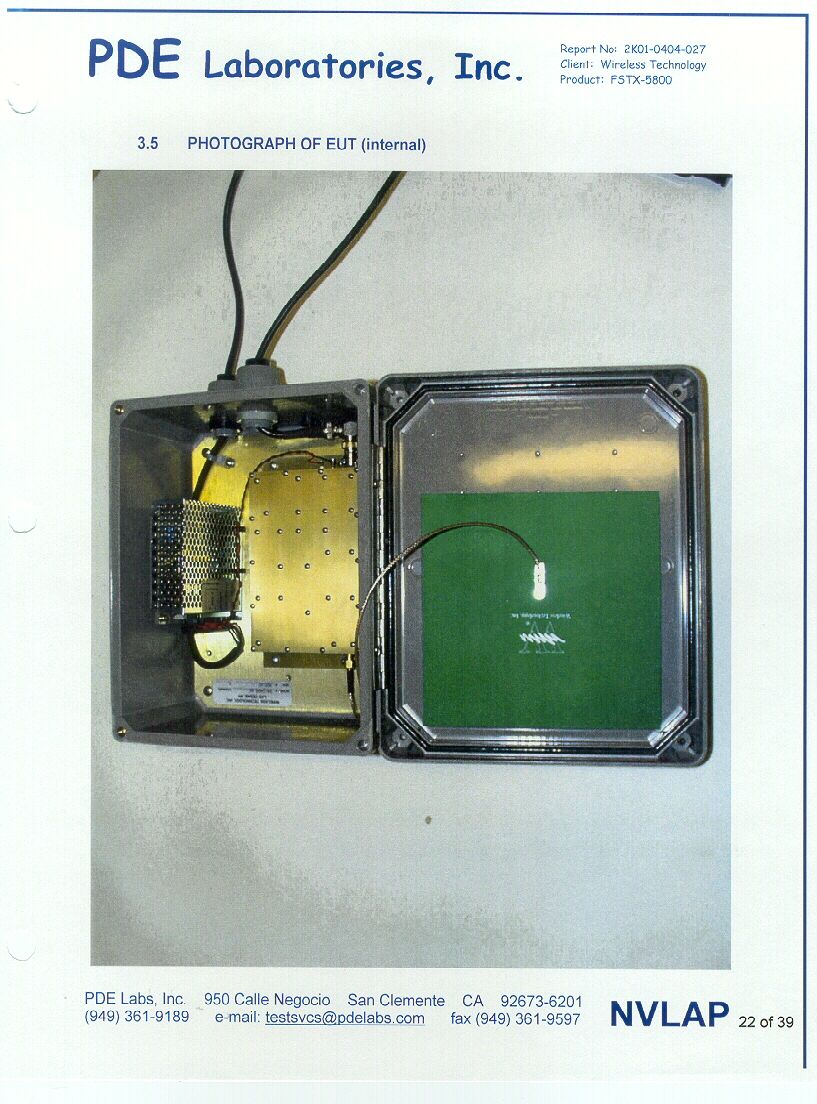

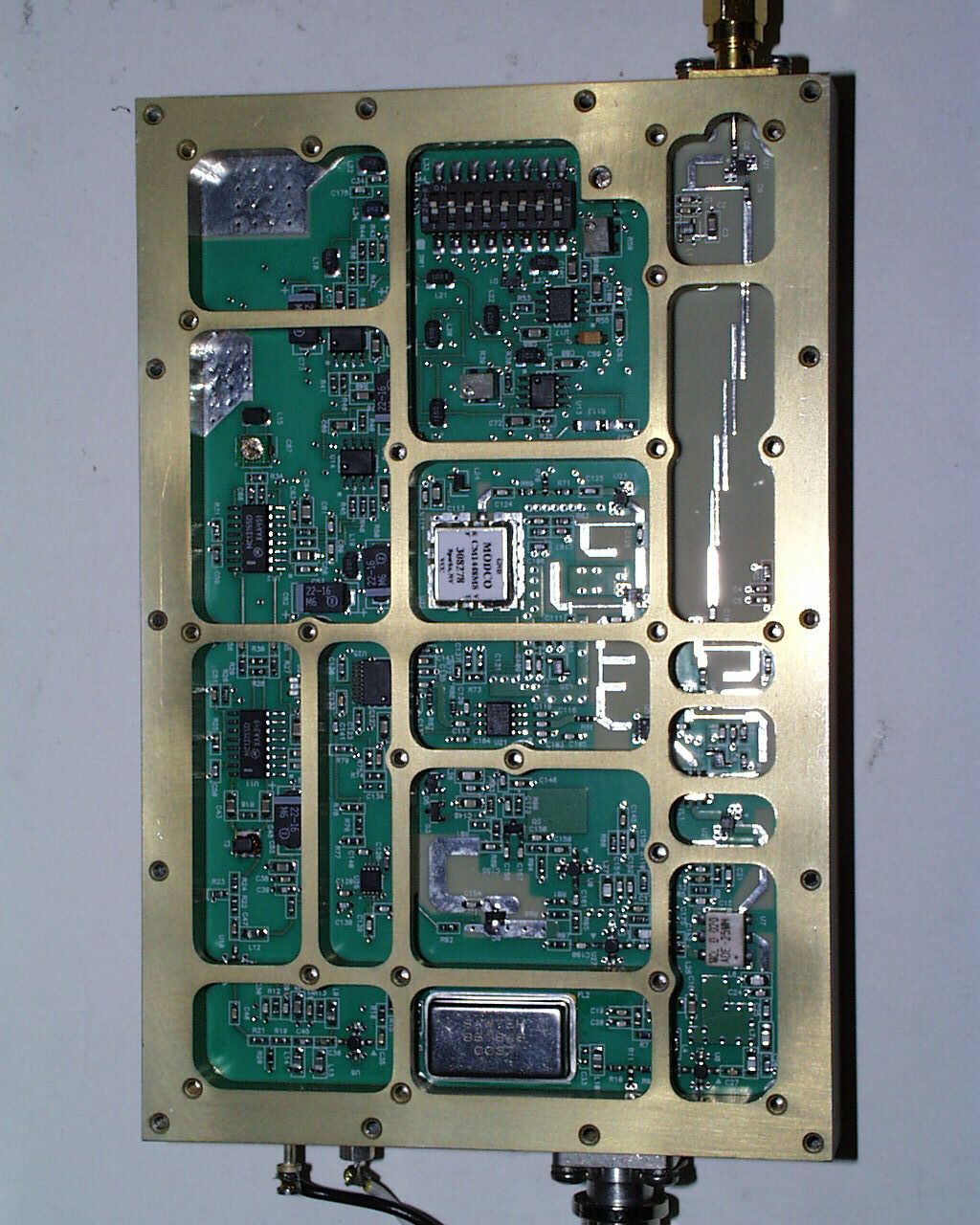

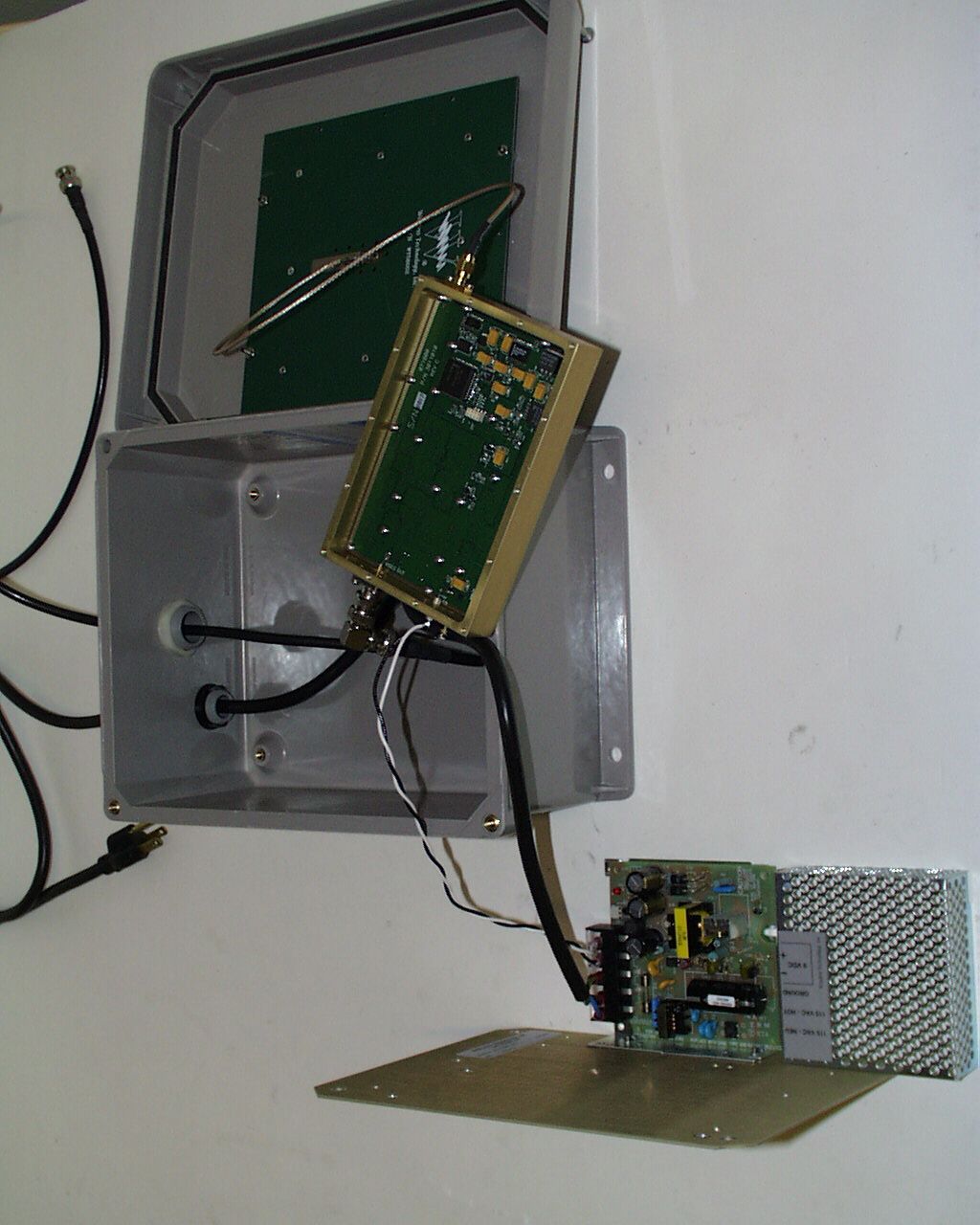

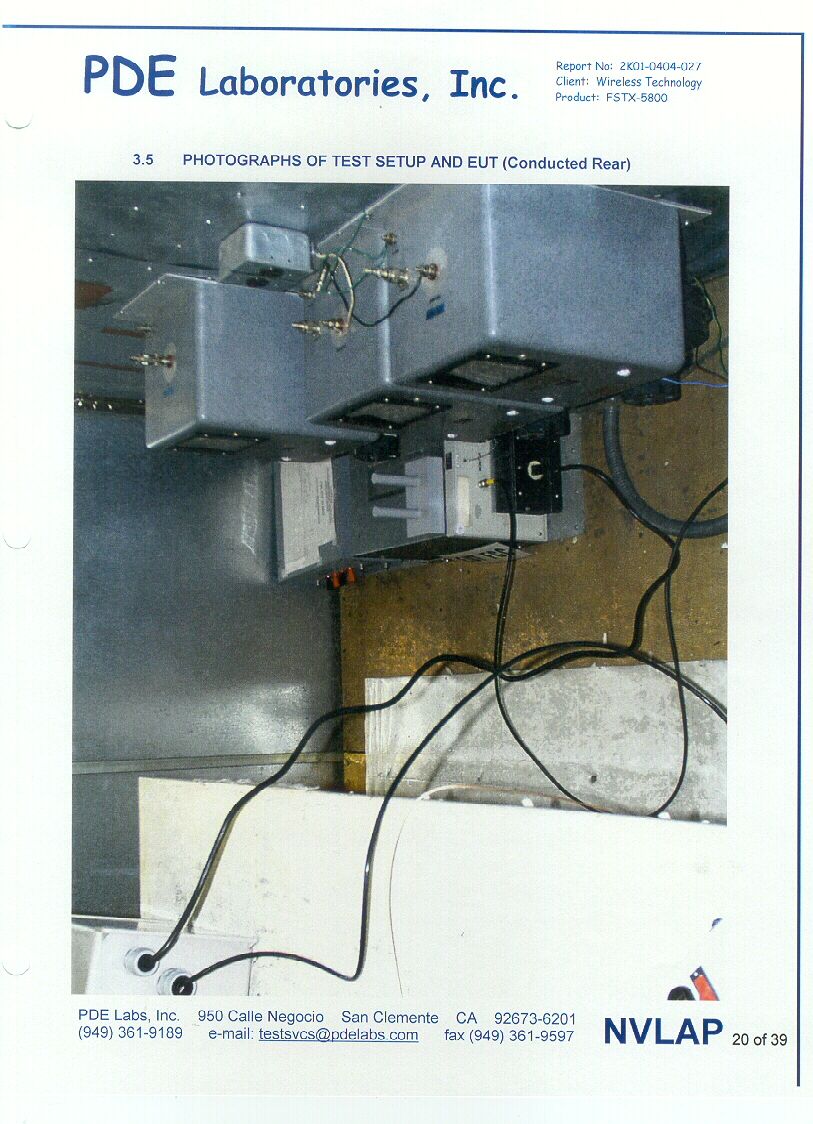

FCC PART 15 SUBPART C EVALUATION REPORT RADIO FREQUENCY INTERFERENCE TEST Prepared for: Wireless Technology, Inc. 2064 Eastman Avenue #113 Ventura, California 93003 Product Description: Video Transmitter FCC ID: GR5TX5800WBSRV Model: FSTX-5800 Test Completion Date : May 5, 2001 TABLE OF CONTENTS 1.0LETTER OF CERTIFICATION 2.0SUMMARY OF TEST 2.1 ADMINISTRATIVE DATA AND TEST DESCRIPTION 2.2 TEST RESULT - CONDUCTED EMISSIONS 2.3 TEST RESULT - RADIATED EMISSIONS 2.4 MODIFICATIONS 2.5 INTENT TO INCORPORATE ENGINEERING REWORK 2.6 RECOMMENDATIONS 3.0TEST CONFIGURATION AND DESCRIPTION OF EUT 3.1 SKETCH OF EQUIPMENT AND CABLE CONFIGURATION 3.2.1 DESCRIPTION OF EUT 3.2.2 DESCRIPTION OF PERIPHERAL EQUIPMENT 3.3 TYPES OF CABLES USED 3.4 OPERATION MODES 3.5 PHOTOGRAPHS OF TEST SETUP AND EUT 3.6 DETAILED BLOCK DIAGRAM OF EUT 4.0TEST EQUIPMENT AND TEST SETUPS 4.1 LIST OF TEST EQUIPMENT USED AND CALIBRATION DATES 4.2 CONDUCTED EMISSIONS TEST SETUP 4.3RADIATED EMISSIONS TEST SETUP 5.0TEST PROCEDURE 5.1 CONDUCTED EMISSIONS TEST 5.2 RADIATED PRELIMINARY TEST 5.3RADIATED EMISSIONS TEST 5.4FINAL RADIATED TESTING 6.0SAMPLE CALCULATIONS 7.0 MEASUREMENTS AND UNCERTAINTIES 8.0 LABELING AND NOTIFICATION REQUIREMENTS 1.0LETTER OF CERT IFIC AT ION PDE Laboratories, Inc is accredited by the U.S. National Institute Standards Techno logy under NVLAP as suppliers of test results to the criteria established by ISO/IEC guide 25 and ISO 9002. PDE Laboratories, Inc. has been validated by the Chinese Taipei Bureau of Standards, Metrology and Inspection (BSMI) under the Asia Pacific Economic Cooperation Mutual Recognition Arrangement (APEC MRA). PDE Labs is now provisionally designated to act as a Conformity Assessment Body (CAB) under Appendix B, Phase 1 Procedures of the APEC MRA. The BSMI assigned number is SL2-IN-E-059R. PDE Laboratories, Inc is approved by TUV Product Services as a test facility testing to the EMC DIRECTIVE 89/336/EEC. PDE Laboratories, Inc is approved as a contractor to Radio Frequency investigation LTD, a UK Competent Body and by Radio Frequency Technologies LTD, a Competent Body of Ireland. The data, data evaluation and equipment co nfiguration represented herein are a true and accurate representation of the test sample (EUT), and of the radio frequency susceptibility characteristics and measurements obtained as of the dates and at the times of the test under the conditio ns specified. The test results provided with this report indicate that the equipment tested is COMPLIANT with the followi ng R ules and Regulatio ns: 1)The Code of Federal Regulations 47, Part 15, Subpart C and ANSI C63.4 methods. Tests Performed By: ______________________ Terry Reysbergen Report Approved By: ______________________ David Feher 2.0SUMMARY OF TEST 2.1AADMINISTRATIVE DATA DEVICE TESTED:Description: Video Transmitter Model: FSTX-5800 ACCESSORIES:FSRX-5800 APPLICANT:Wireless Technology 2064 Eastman Avenue #113 Ventura, California 93003 CONTACT:Dan Fancher MANUFACTURER: Wireless Technology 2.1B TEST DESCRIPTION FREQUENCY RANGES:Conducted: 0.45 - 30.0 MHz Radiated: 30.0 - 1000 MHz TEST LOCATION:950 Calle Negocio, San Clemente, Calif. 92673 TEST DATES:May 5, 2001 PURPOSE OF TEST:To demonstrate compliance with the Class A limits of FCC Part 15 B and CSA 108.8-M1983. TESTS PERFORMED:1.Conducted Emissions Per ANSI C63.4. 2.Radiated emissions Per ANSI C63.4 at 10 Meters. 3.Engineering Evaluations All Measurement Data is acquired according to the content of ANSI C63.4. The Test Site Data and performance complies with ANSI C63.4, unless supplemented with additional requirements as noted in the test report. 2.2TEST RESULTS - CONDUCTED EMISSIONS Conducted Emission Results - High or Supply Lead 2.2TEST RESULTS - CONDUCTED EMISSIONS Conducted Emission Results – Low or Return Lead

2.3TEST RESULTS - RADIATED EMISSIONS Measurements taken at 3 Meters. 12MHz PRODUCT RADIATED EMISSIONS Test Date: May 5, 2001 MeasurementsSite No Emission Frequency MHz Spec Limit dB ABS UV/m dLim dB Mode Pol Hgt Cm AZM deg Corr Factor dB Comments 15800.0294.083.2-10.8PKH1000.8 Carrier 210600.054.031.6-22.4PKH10005.5 316400.054.029.0-25.0PKH10009.5 4PKH 5PKH 6PKH 7PKH 8PKH 9PKH 10PKH ** No measurable emissions from 30MHz to 1GHz NOTE: Fundamental Emission at 5800.02 Mhz. Emissions from the fourth harmonic and higher w ere not detectable and probably w ithin the noise floor of the measurement equipment if they exist at all. 2.4MODIFICATIONS None required to demonstrate compliance. Product compliant as tested. 2.5 INTENT TO INCORPORATE ENGINEERING REWORK (If required by 2.4 above) INTENT TO INCORPORATE ENGINEERING REWORK This is a letter of Intent to Incorporate the Engineering Rework as described in the above referenced PDE Laboratories. Test Report, Section 2.4, to achieve compliance with the intent of the testing as documented. I, the undersigned have the respo nsibility for marketing the device tested, and have implemented procedures to monitor the quality of the product (device tested), during continued manufacturing processes and possible product changes or enhancements, and take the respo nsibility to monitor continued compliance thro ugh periodic re- testing during the life of product (device tested), and re-testing any new configuration which might alter the status of the product's continued compliance to the applicable Rules and Regulations. [ NOT APPLICABLE FOR THIS TEST REPORT ] ________________________________________________ SignatureDate ______________________________ Name ______________________________ Title 2.6RECOMMENDATIONS None. Refer to paragraph 2.4 for any applicable comments and information. 3.0DESCRIPTION OF EUT CONFIGURATION 3.1SKETCH OF EQUIPMENT AND CABLE CONFIGURATION NOTE: Antenna w ithin EUT enclosure. The antenna and its interconnect cable to the transmitter output circuitry is w holly w ithin the enclosure and not accessible to the user. EUT 120VAC 60Hz 120VAC 60Hz Adaptor CCD Camera 3.2DESCRIPTION OF EUT AND PERIPHERAL EQUIPMENT 3.2.1 DESCRIPTION OF EUT The EUT is a Wireless Technology Video transmitter Model: FSTX-5800. It is intended to transmit over short distances real-time video and finds applications in remote viewing of various circumstances by authorized agencies and entities. Equipment:Video transmitter Manufacturer:Wireless Techno logy Model No.:FSTX-5800 Serial No.:Engineering Prototype Internal Frequencies:5.8GHz Power Supply:Internal Tested at: 120 VAC, 60 Hz. Model: S/N: RFI Suppressio n Features: Powerli ne Fi lter:N/A Ferrite Chokes:N/A Internal Compo nents: N/A Equipment: Manufacturer: Model No.: Serial No.: Located: 3.2.2 DESCRIPTION OF PERIPHERAL EQUIPMENT 1)Equipment:Color CCD Camera Manufacturer: Pelco Model No.:CC1400HZ16-4 Serial No.:911KV00018 2)Equipment:AC Adaptor for CCD Camera Manufacturer: Generic Model No.:AD41-1200500DU Serial No.:N/A 3.3TYPES OF CABLES USED: Pow er Cords 1)Unit:EUT Manufacturer: Generic Shielded:No Length:.5m I/O Cables - External 1)Connection:EUT to CCD Camera Manufacturer: Generic Shielded:Yes Connectors:BNC Length:1m
