GTOLHB15Bluetooth Headphone

LHB15 USER MANUAL 1.Location of Controls A：previous song/decrease volume previous song:quick press decrease volume:long press B：ON/OFF:long press play/pause: quick press C: answer call:quick press once dial number: quick press continuously twice D：Micro USB charging port E：next song/Increase volume next song:quick press once increase volume:long press 2. How to use it? A.Pair the headphones with a bluetooth enabled device Turn the headphone On by long press the power switch,a tone will be heard and the LED indicator light will alternately flash RED and BLUE. Keep your bluetooth headphone and bluetooth enabled device within 3feet of each other during the pairing process,set your mobile phone or other bluetooth enabled device to search for Bluetooth devices. When the bluetooth enabled device finds the headphone,select” SBT558” from the list of found devices.If required,enter the password 0000.Select Ok or Yes to pair with your device. After a successful registration,a tone will be heard and the LED indicator light will slowly blink BLUE. Note: if you would like to connect the headphones to another device,you must unpair the headphones from the currently paired device first.On your device’s bluetooth settings,select “PBT89”,then select “unpair”.When the headphones have been unpaired,it automatically goes into pairing mode again. B. Using as wired headphones Switch On the headphone.Connect the one end of the included 3.5mm Aux cable to the Aux In jack on the headphones,and the other end of the cable to an external device’s headphone jack(smartphone,tablet,computer,or MP3 player).Open a media player on your device and click on play to start playing your music. Use the controls on your connected device to control music playback and volume(Or you can use the volume control on the bluetooth headphone to control the volume,and control music playback by using the controls on your connected device). C.Charging the bluetooth headphones Connect the small end of the Micro USB cable to the charging port on the headphones. Connect the large end of the Micro USB cable to your computer’s USB port or an AC adaptor(not included). The LED indicator light turns RED when charging.It will turn off when fully charged. 3.Features: - DRIVER UNIT: 40MM - BUILT-IN BLUETOOTH CHIPSET: JL-BT 2.1 STEREO - PLAYING TIME: 12-14H - STANDBY TIME: 18-20H - BATTERY: 480MAH - OPERATION RANGE: 10-12M - FREQUENCY RANGE: 2.4GHZ-2.48GHZ - BUILT-IN MIC - AUX PORT - VOLUME CONTROL/MUSIC CONTROL/PLAY/PAUSE/ANSWER/HANG-UP FCC warning statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Linpa Technology Co.,Ltd Address: 114,C8, Flavor Commercial Street, Vanke Dream Town, Longgang District,Shenzhen City, China Tel: 86-755-89506972 Fax: 86-755-89506972 2014-10-27 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: GTOLHB15 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Sha Guo/ Contact information / address : 114,C8, Flavor Commercial Street, Vanke Dream Town, Longgang District,Shenzhen City, China Tel: 86-755-89506972 Fax: 86-755-89506972

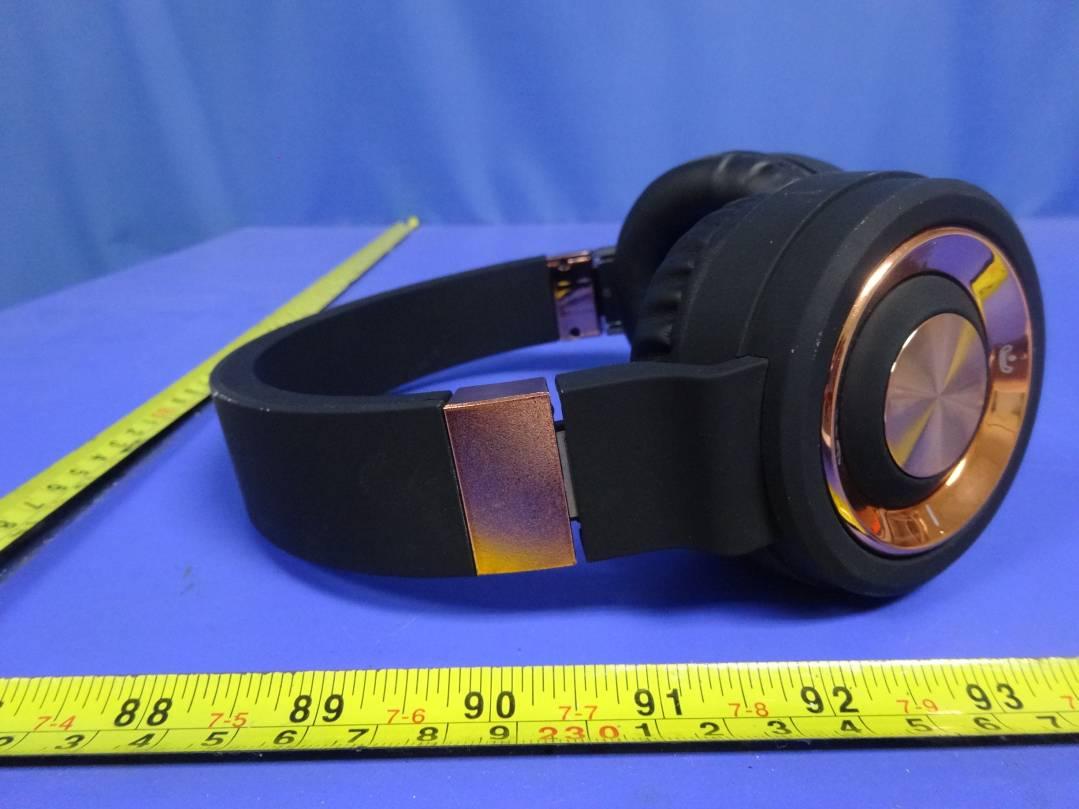

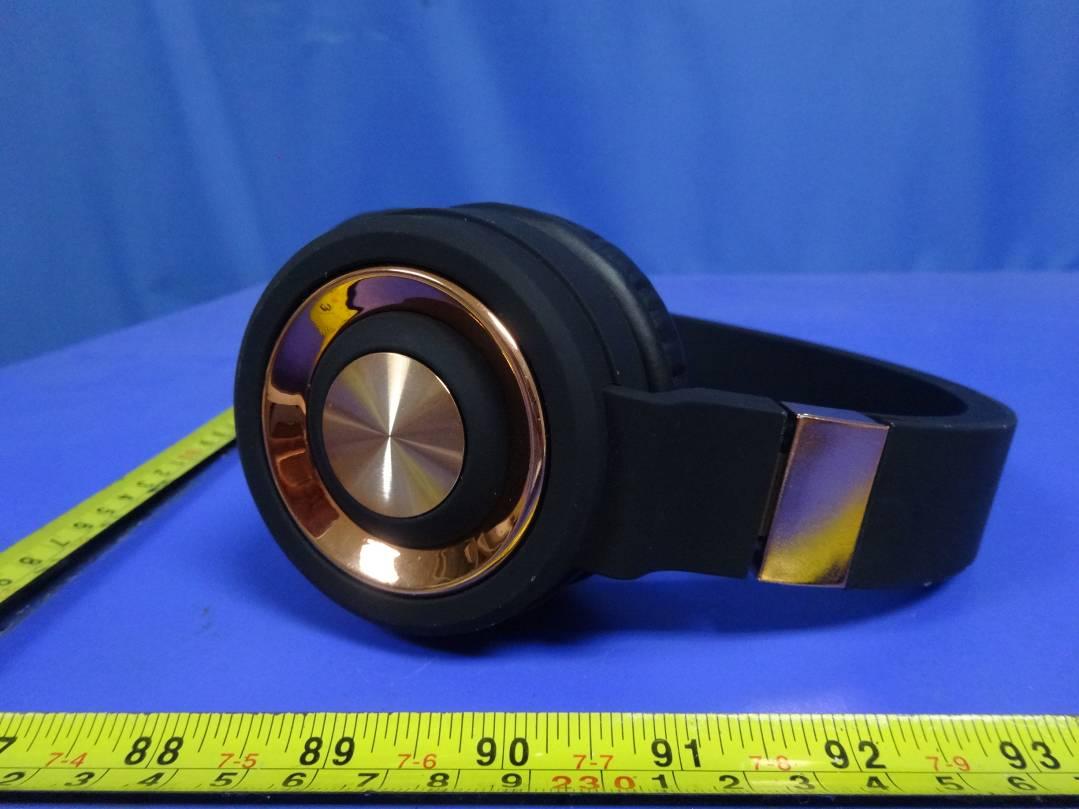

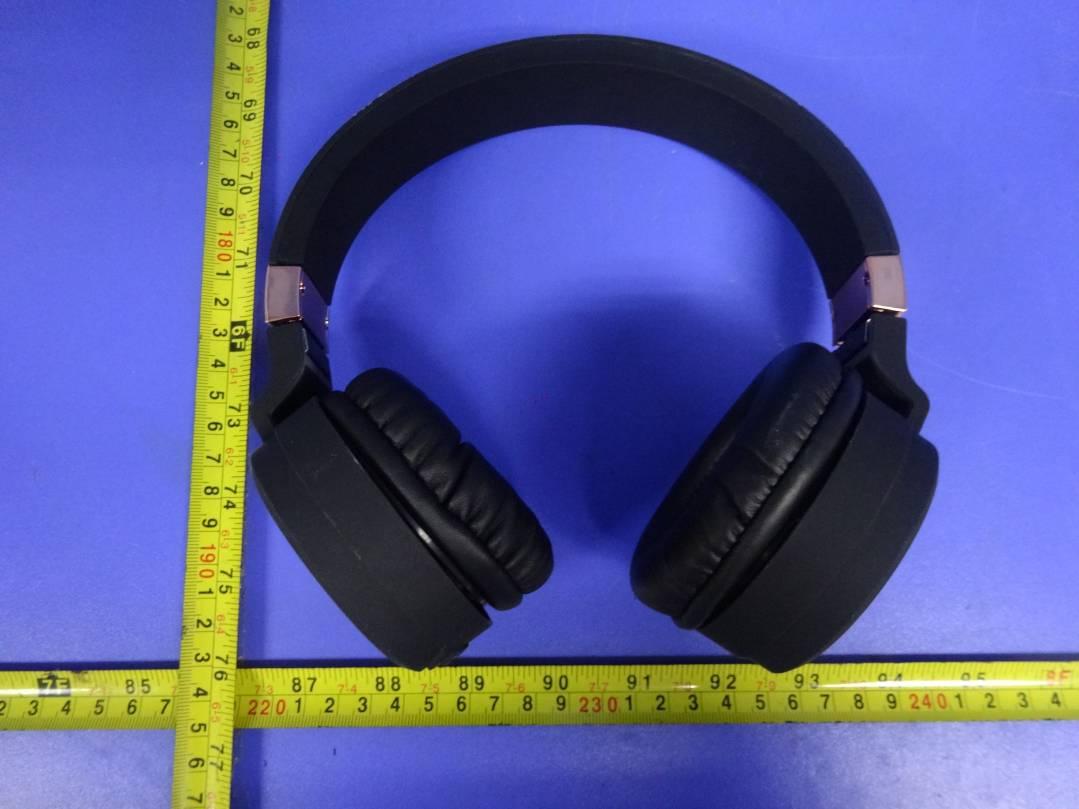

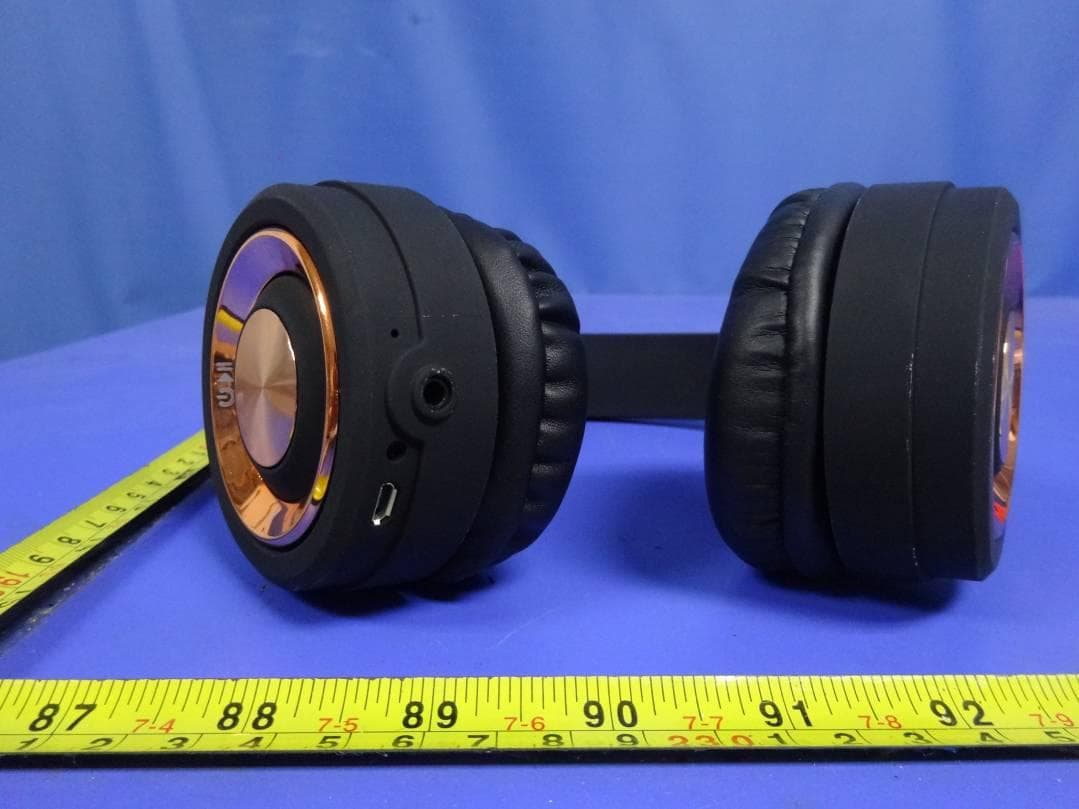

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.:LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1.EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.:LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.:LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.:LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID:GTOLHB15 Report No.:LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: 3.5x1.5cm Label And Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.:LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1.INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.:LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.: LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 36 FCC TEST REPORT FOR Shenzhen Linpa Technology Co.,Ltd Bluetooth Headphone Model No.: LHB15 Additional model No.: SBT558 Prepared for : Shenzhen Linpa Technology Co.,Ltd Address : 114,C8, Flavor Commercial Street, Vanke Dream Town, Longgang District,Shenzhen City, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : October 17, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : October 17, 2014 – October 27, 2014 Date of Report : October 27, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.: LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2013 Report Reference No. ................ : LCS1410170518E Date of Issue ................................... : October 27, 2014 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Linpa Technology Co.,Ltd Address ........................................... : 114,C8, Flavor Commercial Street, Vanke Dream Town, Longgang District,Shenzhen City, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247): 2013 Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : Bluetooth Headphone Trade Mark ..................................... : Linpa World/Sharper Image/Polaroid Model/ Type reference .................... : LHB15 Ratings ............................................ : DC 3.7V by battery Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.: LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1410170518E October 27, 2014 Date of issue Type / Model........................... : LHB15 EUT......................................... : Bluetooth Headphone Applicant............................... : Shenzhen Linpa Technology Co.,Ltd Address.................................. : 114,C8, Flavor Commercial Street, Vanke Dream Town, Longgang District,Shenzhen City, China Telephone............................... : 86-755-89506972 Fax.......................................... : 86-755-89506972 Manufacturer........................ : LINPA WORLD., Ltd Address................................... : 4 Floor B2 building Huaxing industrial park, Buxin village,Yantian district, Fenggang Town, Dongguan City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : LINPA WORLD., Ltd Address................................... : 4 Floor B2 building Huaxing industrial park, Buxin village, Yantian district, Fenggang Town, Dongguan City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: GTOLHB15 Report No.: LCS1410170518E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 36 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ......................................................................................................... 5 1.1 Description of Device (EUT)..........................................................................................................5 1.2 Support equipment List ...................................................................................................................5 1.3 External I/O Cable ..........................................................................................................................5 1.4 Description of Test Facility .............................................................................................................6 1.5 Statement of The Measurement Uncertainty ....................................................................................6 1.6 Measurement Uncertainty .................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:GTOLHB15 Report No.:LCS1410170518E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement (X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:GTOLHB15 Report No.:LCS1410170518E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Line Conducted Emissions Measurement Fig.3
