GV3-M01147KEYFOLIO EXPERT BLUETOOTH KEYBOARD

ACCO Brands, Inc.

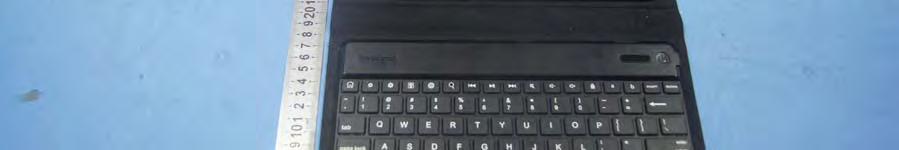

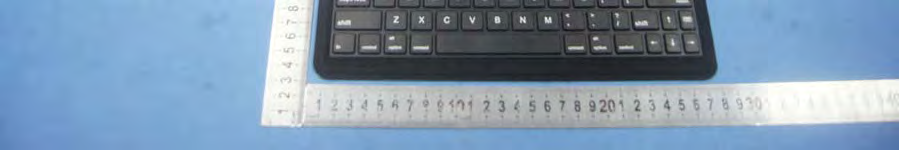

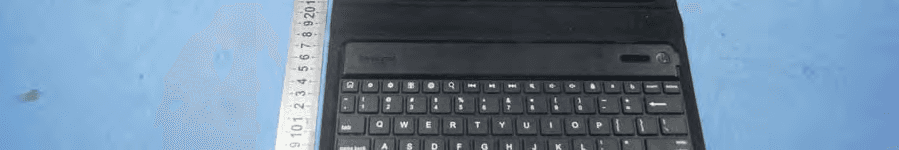

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Mar 01, 2012
Application Purpose: Original Equipment
Date of Application: Mar 01, 2012
Equipment Note: KEYFOLIO EXPERT BLUETOOTH KEYBOARD
Frequency Range: 2402.00000000 - 2480.00000000
Company: ACCO Brands, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

KeyFolio™ Expert Bluetooth® keyboard for iPad® 3 QUICK START GUIDE GUIDE DE DEMARRAGE RAPIDE KURZANLEITUNG SNELSTARTGIDS GUIDA RAPIDA GUÍA RÁPIDA GYORSKALAUZ PŘÍRUČKA ZAČÍNÁME SZYBKI START КРАТКОЕ РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ MANUAL DE INÍCIO RÁPIDO Register Now! Enregistrer maintenant ! Jetzt registrieren! Nu registreren Registrar ahora Registra adesso Regisztràljon most! Zaregistrujte se nyní! Zarejestruj się! Зарегистрироваться! Registe-se agora! register.kensington.com QUICK S TA RT G UIDE 2 A KeyFolio Expert B Charging Cable C Quick Start Guide D Caps Lock E Power/Charging Indicator Light F Bluetooth Status Indicator Light G On/Off Switch/Bluetooth Connection Button H MicroUSB Charging Connector Contents Components English QU ICK S TA RT G UI DE A B C FG H DE 3 Insert Your iPad and Connect the Keyboard 1 Insert your iPad all the way into the secured frame. 2 Find the best fit for your Keyboard and iPad 4 3 Press the On/Off Switch for 3 to 8 seconds. The Power Indicator Light glows. NOTE: When you first turn on the Keyboard, both the Power Indicator Light and the Bluetooth Status Indicator Light glow for 5 seconds. You cannot connect the Keyboard to your iPad until only the Power Indicator Light glows. 4 On your iPad, tap Settings. 5 Open Bluetooth and make sure Bluetooth is on. 6 On the Keyboard, press the Bluetooth Connection Button. The Bluetooth Status Indicator Light starts blinking for 10 minutes or until connected to a device. 7 The Keyboard now appears on your iPad screen. Tap Bluetooth Wireless Keyboard. 8 Your iPad screen displays a passkey. Enter the passkey on the Keyboard, and press Enter. 9 Your iPad screen shows the Keyboard as Connected. On the Keyboard, the Bluetooth Status Indicator Light turns off. 10 You can now use your Keyboard to type in any app. NOTE: To insure the K Lock key works correctly please ensure you do the following: Home page > Settings > General > Passcode key. Verify “Require Passcode” is set to “Immediately” otherwise a keyboard unlock will not require a passcode. Go back to previous menu and verify “Passcode Lock” is On. Note the following about the Bluetooth connection between the keyboard and your iPad: t ,FZCPBSEXJMMHPJOUPQBJSJOHNPEFJGUIFOn/Off Switch press for 8 seconds or longer then release (regardless of on or off state). t 1SFTTUIFOn/Off Switch for 3 to 8 seconds then release = toggle keyboard power (on to off, off to on). t 'JSTUUVSO 'BDUPSZEFGBVMU OPQSJPSQBJSFE#5EFWJDFT oFOUFSQBJSJOHNPEF automatically. t *O0/TUBUFPOMZ)PMEiCTRL + ALT + FN + F” for 3 seconds or more = reset to factory default mode (clear all previously paired BT devices in memory), ALL LEDs should flash on and off 3 times and keyboard should turn to off mode. t *GOPBDUJWFLFZQSFTTGPSNJOVUF UIFVOJUTIPVMEHPUPTMFFQNPEF t "OZUJNFBLFZJTQSFTTFEJOTMFFQNPEF UIFLFZCPBSETIPVMEBVUPNBUJDBMMZDPOOFDUUP last paired iPad if present. If iPad is not found after waking from sleep mode within 30 seconds, the device should go back to sleep. 5 LED Behavior and Explanation LED BehaviorExplanation t *GUIF,FZGPMJPJTPGG BTMFFQ PSUIFCBUUFSZJTEFBE UIF-&%TXJMMSFNBJO off. t *OJUJBMMZBUQPXFSVQ UIFPower and Bluetooth LEDs will turn on and stay lit for 5 seconds. t "GUFSTFDPOETUIFBluetooth LED will turn off, followed by the Power LED 0.5 second later. t 8IFOUIFBluetooth Connection Button is pressed, the Power LED will stay solidly lit, while the Bluetooth LED will begin to blink for 10 minutes or until connected to an iPad. t #MJOLQBUUFSO0/T 0''T t 0ODFUIF,FZGPMJPJTDPOOFDUFEXJUIZPVSJ1BE UIFPower LED will remain lit and all others will go off. t "MTP JGUIF,FZGPMJPJTBXPLFOGSPNTMFFQNPEF UIFPower LED will turn on immediately. t 8IJMFUIF,FZGPMJPJTDPOOFDUFEUPZPVSJ1BE UIFTUBUFPGUIF$BQT-PDL toggle is shown by the Caps Lock LED. t 8IFOUIF,FZGPMJPJTQMVHHFEJOUPBQPXFSTPVSDF UIFCharge LED will turn flash red and turn off only when charge is completed. Charge the Battery Charge your KeyFolio Expert before initial use or when the Charging Indicator glows red. 1 Insert the small end of the Charging Cable into the micro USB Charging Connector on the Keyboard. 2 Insert the other end of the Charging Cable into your iPad charger. 3 Plug your iPad charger into a working outlet. The Charging Indicator Light glows red. 4 When the Keyboard is fully charged, the Charging Indicator Light turns off. 6 Troubleshooting I can’t connect the Keyboard to my iPad. Try the following in sequence. You can stop when the problem is fixed. 1 Make sure you have installed and set up Bluetooth correctly on your iPad. Check the documentation that came with your iPad for instructions. 2 Make sure that the Keyboard is within range of your iPad. Maximum Bluetooth range is about 10 meters/33 feet. 3 If your iPad is connected to other Bluetooth devices, you may need to disconnect some devices before you can connect to the Keyboard. 4 If you changed any Bluetooth settings on your iPad, try connecting the Keyboard to your iPad again. 5 Make sure that both your iPad battery and the Keyboard battery are sufficiently charged. If this does not solve the problem, please contact Kensington Support at kensington.com. Technical Support Technical support is available to all registered users of Kensington products. Technical Support contact information can be found on the back page of this manual. Web Support You may find the answer to your problem in the Frequently Asked Questions (FAQ) section of the Support area on the Kensington Website: www.support.kensington.com. Telephone Support There is no charge for technical support except long-distance charges where applicable. Please visit www.kensington.com for telephone support hours. In Europe, technical support is available by telephone Monday to Friday 09:00 to 21:00 (Central European time). Please note the following when calling support: t $BMMGSPNBQIPOFXIFS…

Text truncated - open the document above for the full version.

Attestation Statements

ACCO Brands, Inc. February 12, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: GV3-M01147 To Whom It May Concern: This letter is to ascertain that ACCO Brands, Inc. （Product：KEYFOLIO EXPERT BLUETOOTH KEYBOARD Model name: M01147） has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Client’s signature: Client’s name / title: Maggie Zhang / Compliance Engineer Contact information / address: 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, California, United States

Cover Letter(s)

ACCO Brands, Inc. February 12, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ______ ACCO Brands, Inc.___hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: KEYFOLIO EXPERT BLUETOOTH KEYBOARD Model name: M01147 We affirm that between SIEMIC and __ ACCO Brands, Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Maggie Zhang / Compliance Engineer Contact information / address: 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, California, United States

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 ACCO Brands, Inc. February 12, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: GV3-M01147 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature: Client’s name / title: Maggie Zhang / Compliance Engineer Contact information / address: 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, California, United States

ID Label/Location Info

FCC Certification label Sample FCC ID: GV3-M01147 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired o peration.

ID Label/Location Info

FCC Certification Label Location Sample Label location

Internal Photos

Antenna

RF Exposure Info

2441 25.0 FCC ID : GV3-M01147 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2402 2480 Maximum measured transmitter power Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 0.499 0 0.499 Remark: The best case gain of the antenna is 0dBi. 0dBi logarithmic terms convert to numeric result is nearly 1 According to the formula. calculate the EIRP test result: EIRP= P x G = 0.499mW x 1.= 0.499mW Threshold at which no SAR required is 25.0mw. Maximum Tx power is 0.499mw EIRP. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Test Report

Page 1 of 82 FCC ID: GV3-M01147 ACCURATE TECHNOLOGY CO. LTD Report No.: ATE20120132 APPLICATION CERTIFICATION On Behalf of ACCO Brands, Inc. KEYFOLIO EXPERT BLUETOOTH KEYBOARD Model No.: M01147 FCC ID: GV3-M01147 Prepared for : ACCO Brands, Inc. Address : 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, California, United States Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20120132 Date of Test : February 9-21, 2012 Date of Report : February 21, 2012 Page 2 of 82 FCC ID: GV3-M01147 ACCURATE TECHNOLOGY CO. LTD Report No.: ATE20120132 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Accessory and Auxiliary Equipment ........................................................................................................5 1.3. Description of Test Facility ......................................................................................................................6 1.4. Measurement Uncertainty.........................................................................................................................6 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 7 3. OPERATION OF EUT DURING TESTING ................................................................................. 8 3.1. Operating Mode ........................................................................................................................................8 3.2. Configuration and peripherals ..................................................................................................................8 4. TEST PROCEDURES AND RESULTS ......................................................................................... 9 5. 20DB BANDWIDTH TEST............................................................................................................ 10 5.1. Block Diagram of Test Setup..................................................................................................................10 5.2. The Requirement For Section 15.247(a)(1) ............................................................................................10 5.3. EUT Configuration on Measurement .....................................................................................................10 5.4. Operating Condition of EUT ..................................................................................................................10 5.5. Test Procedure ........................................................................................................................................11 5.6. Test Result ..............................................................................................................................................11 6. CARRIER FREQUENCY SEPARATION TEST........................................................................ 15 6.1. Block Diagram of Test Setup..................................................................................................................15 6.2. The Requirement For Section 15.247(a)(1) ............................................................................................15 6.3. EUT Configuration on Measurement .....................................................................................................15 6.4. Operating Condition of EUT ..................................................................................................................15 6.5. Test Procedure ........................................................................................................................................16 6.6. Test Result ..............................................................................................................................................16 7. NUMBER OF HOPPING FREQUENCY TEST ......................................................................... 20 7.1. Block Diagram of Test Setup..................................................................................................................20 7.2. The Requirement For Section 15.247(a)(1)(iii) ......................................................................................20 7.3. EUT Configuration on Measurement .....................................................................................................20 7.4. Operating Condition of EUT ..................................................................................................................20 7.5. Test Procedure ........................................................................................................................................21 7.6. Test Result ..............................................................................................................................................21 8. DWELL TIME TEST ..................................................................................................................... 25 8.1. Block Diagram of Test Setup..................................................................................................................25 8.2. The Requirement For Section 15.247(a)(1)(iii) ......................................................................................25 8.3. EUT Configuration on Measurement .....................................................................................................25 8.4. Operating Condition of EUT ..................................................................................................................25 8.5. Test Procedure ..............…

Text truncated - open the document above for the full version.

Test Setup Photos

Conducted emissions test Radiated emissions test < 1GHz Radiated emissions test > 1GHz
