GV333062WIRELESS PRESENTATION REMOTE

Wireless Presentation Remote User Manual Congratulations! Your new Kensington Wireless Presentation Remote offers you increased control for more effective presentations. Please read this short manual to learn valuable information about the proper use and installation of your new Wireless Presentation Remote. Register your new Wireless Presentation Remote online at www.register. kensington.com. READ FIRST! Wireless Presentation Remote • 1 This manual is copyright © 2003 Kensington Technology Group, a division of ACCO Brands, Inc. Any unauthorized copying, duplicating, or other reproduction of the contents hereof is prohibited without written consent from Kensington Technology Group. All rights reserved. 7/03 Kensington is a registered trademark of ACCO World Corporation. Registration of the Kensington trademark is pending in several international locations. Mac and Macintosh are registered trademarks of Apple Computer, Inc. Microsoft is a registered trademark of Microsoft. All other registered and unregistered trademarks are the sole property of their respective owners. 901-0493-00 Kensington Technology Group 2000 Alameda de las Pulgas Second Floor San Mateo, CA 94403 USA www.kensington.com ACCO Europe PLC Gatehouse Road Aylesbury Bucks, HP19 8DT UNITED KINGDOM ACCO Canada Inc. 5 Precidio Court Brampton, Ontario L6S 6B7 CANADA Contacting Kensington Troubleshooting information and answers to frequently asked questions are available 24 hours a day on the Kensington Web site at www.support.kensington.com. Support by Telephone Technical Support is available by telephone. Please visit www.kensington.comfor hours. US 800-235-6708 or 650-572-2700 Fax 650-572-9675 Canada 800-535-4242 Mexico 52(55)5384-0620 8• Wireless Presentation Remote 33062_(901-0493-00)Print 7/1/03 1:14 PM Page 8 not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state and country to country. Federal Communications Commission Radio Frequency Interference Statement Note: The Kensington Wireless Presentation Remote has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. MODIFICATIONS: Modifications not expressly approved by Kensington may void the user’s authority to operate the device under FCC regulations and must not be made. SHIELDED CABLES: In order to meet FCC requirements, all connections to equipment using a Kensington input device should be made using only the shielded cable provided. Declaration of Conformity Compliance Statement for the Kensington Wireless Presentation Remote The Kensington Wireless Presentation Remote complies with Part 15 of the FCC Rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. As defined in Section 2.909 of the FCC Rules, the responsible party for this device is Kensington Technology Group, 2000 Alameda de las Pulgas, Second Floor, San Mateo, CA 94403, (650) 572-2700. Wireless Presentation Remote • 7 Important: Safety Information CAUTION! The Wireless Presentation Remote includes a built-in laser pointer. Therefore, as with any laser pointer, it is important to adhere to the following warnings and safety instructions to prevent injury: • Never shine a laser pointer into a person’s eyes, or stare into the laser beam. Pointing a laser pointer into a person’s eyes, or staring directly at the laser beam, can cause instant temporary vision dysfunction such as flashblindess, disorientation or glare. This can be particularly dangerous if the exposed person is engaged in a vision-critical activity such as driving. In addition, prolonged and/or repeated exposure to the laser beam can be hazardous and damaging to eyes. • Never aim a laser pointer anywhere on any or person or animal. Laser pointers are designed to illustrate inanimate objects only. In some states and provinces, it is illegal to aim a laser pointer on a law enforcement officer or on any other person. The purchaser/user is responsible for insuring that his or her use of the laser pointer conforms to any local laws. • Do not point a laser pointer at mirror-like surfaces. A reflected beam can act like a direct beam on the eye. •Laser pointers are not toys. Do not allow a minor to use a pointer unsupervised. In some states and provinces, it is illegal for a minor to purchase and/or use a pointer. The purchaser/user is responsible for insuring that his or her purchase or use of the laser pointer conforms to any local laws. Features Your new Kensington Wireless Presentation Remote is compact, comfortable and convenient. It allows you to control presentations up to 50 feet away. This all-in-one Wireless Presentation Remote is loaded with many features: 2• Wireless Presentation Remote 33062_(901-0493-00)Print 7/1/03 1:14 PM Page 2 • USB recei…

Text truncated - open the document above for the full version.

900Mhz Presenter Transmitter System Block RF Transmitter IC TX4915 MCU Hide Switch EEPROM ID Memory DATA Power Down Control Page-Up Switch Page-Down Switch Laser Module Switch Power Laser 14.1296Mhz 900Mhz Presenter Receiver System Block RF Receiver IC RX3930 MCU EEPROM ID Memory DATA Power Down Control PC USB Filter 14. 296Mhz 904Mhz

PHOTOS OF EUT (TX) PHOTOS OF EUT (RX)

Sample of FCC ID Label FCC ID: GV333062 The device is so small that the Two-Part warning statement does not have to go on the device. It will be really hard to read. We remove the Two-Part statement from the device since we already have it in the manual.

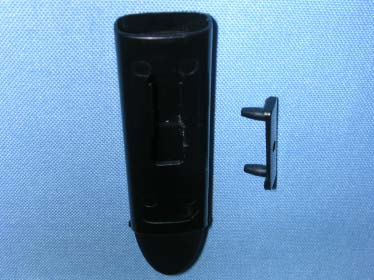

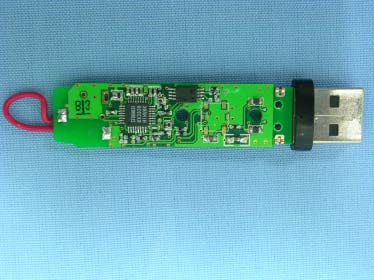

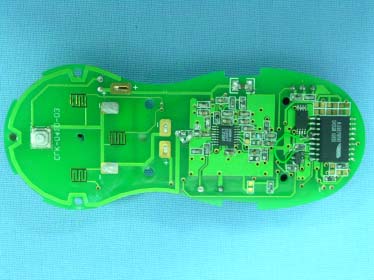

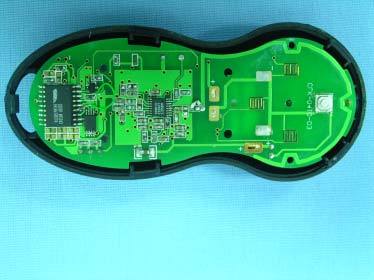

PHOTOS OF EUT (TX) PHOTOS OF EUT (TX) PHOTOS OF EUT (RX) PHOTOS OF EUT (RX)

FCC ID:GV333062 Operational Description of the equipment The Kensington Wireless Presentation Remote is compact, comfortable and convenient. It allows you to control presentations up to 50 feet away. This all-in-one Wireless Presentation Remote is loaded with many features: USB receiver stores conveniently inside the remote and automatically shuts it off to save battery life. Up to 50ft. of wireless range. Simple and easy to use – just plug & play. Built-in laser pointer. Compatible with most presentation applications including Microsoft® PowerPoint and Apple Keynote. Next slide, previous slide buttons. Hide button. No software required. PRODUCT Wireless Presentation Remote MODEL NO. K33062 POWER SUPPLY DC 3V CABLE N/A FREQUENCY 903.8MHz~904.8MHz CARRIER FREQUENCY 904.3MHz NUMBER OF CHANNEL 1 CHANNEL SPACING 180KHz RATED RF OUTPUT POWER 0dBm I.F. & L.O. I.F.: 10.7MHz, L.O.: 915MHz MODULATION TYPE ASK BIT RATE OF TRANSMISSION 5K ANTENNA TYPE Dipole Antenna

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 22-Jul-2003 Sheet of File: C:\My Documents\..\clk-041d-03-rev.sch Drawn By: OSCIN 1 OSCOUT 2 TXEN 3 VSS 4 PAOUT 5 VSS1 6 VCC1 7 MODIN 8 SW 16 LD 15 DO 14 RESB 12 RES 13 VREFP 11 VSS2 10 VCC2 9 U2TX4915 X114.1296MHz(dip) C522pF C6100pF POWER DOWN C46pF L322nH VCC C1103 C247pF L18n2 ANTENNA R110R C8220pF C7103 VCC DATA IN R210k C9103 C12103 R510R C1047pF C11103 R410R C16103 C1747pF VCC R310k C15103 C23DNF C13 103 0.021/1 Hsiaoming Kuo 2032 BATTERY Vin 1 GND 2 Vout 3 U3DNF D1DNF L6DNF BATTERY VCC C24DNF L58.2nHL6 8.2nH L227nH C26 DNF C25 DNF VCC S1 page up S2 page down R710K R910K VCC S4 reset R610K VCC C21104 X26MHz R10 100R P52 1 P51 18 P53 2 P50 17 TCC 3 OSCI 16 RESET 4 OSCO 15 VSS 5 VDD 14 P60.INT 6 P67 13 P61 7 P66 12 P62 8 P65 11 P63 9 P64 10 U178P156E C320pF C1420pF Low Batter detect 123 U5AIC1680 R11100k R810K VCC S3 application initalizer VCC VCC C22dnf C18DNF C19DNF C20DNF BATTERY GND 1 VCC 8 GND 2 GND 7 GND 3 CLK 6 GND 4 DATA 5 U4 24C02 VCC Data IN Power Down R12100k VCC C27DNF VCC JP?DNF R130R S5 LASER_BUTTON VCC D2 LASER_MODULE DNF COPPER R141M VCC 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 22-Jul-2003 Sheet of File: C:\My Documents\..\clk-042h-03-rev.sch Drawn By: 0.011/1 Hsiaoming Kuo C247pF C1103 C33.3pF C45.6pF C647pF L110nH L210nH C8 103 C7103 ANTENNA C3256pF C1447pF C15103 VD11233 L35.6uH R910k R410R R103k3 C24 1pF C12103 C13220pF C10103 C1147pF X1 14.296MHz( 貼片 3MM) P0.0 1 P0.1 2 P0.2 3 P0.3 4 P1.0 5 VSS 6 VPP 7 VREG 8 XTALIN/P2.1 9 XTALOUT 10 VCC 11 D- / SDATA 12 D+ /SCLK 13 P1.1 14 P0.7 15 P0.6 16 P0.5 17 P0.4 18 U2CY7C63723 VCC D1 green/smd/0603 R5330R VCC S1DNF C31104/0603 POWER DOWN 1234 CON14 HEADER C2910uF VCC R71K3 C25104/0603 GND 1 VCC 8 GND 2 GND 7 GND 3 CLK 6 GND 4 DATA 5 U3 24C02/small VCC L4 BIT L5 BIT D+ D- GND VCC D2 red/smd/0603 R6330R VCC Low Battery alarm Data&Reset Status DATA OUT USB & PS2 COMBO 12345678 9 10 11 12 13 14 15 16 1718192021222324 25 26 27 28 29 30 31 32 U1 RX3930 1 VCC12 RXIN3 VSS14 LNAOUT5 VSS26 MIXIN7 VSS38 MIXOUT 32 RXEN 31 OSCIN 30 OSCOUT 29 DO 28 VSS4 27VCC2 26 RES 25 RES- 9 IFIN- 10 IF IN 11 IF1 DEC 12 IF1 DEC- 13 IF1 OUT 14 VREFIF 15 VSS5 16 IF2 IN 17 IF2 DEC 18 IF2 DEC-19 VCC320 MUTE21 RSSI22 FM OUT23 IF2 OUT 24 QUAD VCC VCC VCC C947pF C16 103 C17 103 C18103 C19103 X210.7MHz/SMD C20103 VCC Powerdown C26100pF C2720pF C280R VCC L76n8 L66n8 VCC C23 103 C22104 R3 47k R2100k R1100k C21 104 U4 2904(TSOP) VCC DATA OUT R810R C51.8pF 1 2 3 4 5 6 X3B4015 OR B7605 C3333pF C3033pF L822nH 2 8 1 3 4 L9 22nH

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.:A03073106 Report No.:FCCA03073106 Page:2 of 18 R.O.C. Date:Sep. 22, 2003 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................3 1.1 DOCUMENT POLICY........................................................................................3 1.2 TEST STATEMENT............................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE......................................................4 2.1 GENERAL DESCRIPTION OF EUT..................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE....................................................4 2.3 DESCRIPTION OF TEST MODE.......................................................................4 2.4 DESCRIPTION OF SUPPORT UNIT.................................................................5 3. DESCRIPTION OF APPLIED STANDARDS......................................................5 4. CONDUCTED EMISSION TEST........................................................................6 4.1 CONDUCTED EMISSION LIMIT........................................................................6 4.2 TEST EQUIPMENT............................................................................................6 4.3 TEST SETUP.....................................................................................................7 4.4 TEST PROCEDURE..........................................................................................7 4.5 EUT OPERATING CONDITION.........................................................................7 4.6 TEST RESULT...................................................................................................8 5. RADIATED EMISSION TEST.............................................................................9 5.1 RADIATED EMISSION LIMIT.............................................................................9 5.2 TEST EQUIPMENT...........................................................................................10 5.3 TEST SET-UP...................................................................................................11 5.4 TEST PROCEDURE.........................................................................................12 5.5 EUT OPERATING CONDITION........................................................................12 5.6 RADIATED EMISSION TEST RESULT.............................................................13 6. PHOTOS OF TESTING....................................................................................16 7. TERMS OF ABRIVATION.................................................................................18 FCC ID:GV333062 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.:A03073106 Report No.:FCCA03073106 Page:3 of 18 R.O.C. Date:Sep. 22, 2003 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - AC power source, 120 Vac/60 Hz, was used during the test. FCC ID:GV333062 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.:A03073106 Report No.:FCCA03073106 Page:4 of 18 R.O.C. Date:Sep. 22, 2003 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Presentation Remote MODEL NO. K33062 POWER SUPPLY DC 3V CABLE N/A FREQUENCY 903.8MHz~904.8MHz CARRIER FREQUENCY 904.3MHz NUMBER OF CHANNEL 1 CHANNEL SPACING 180KHz RATED RF OUTPUT POWER 0dBm I.F. & L.O. I.F.: 10.7MHz, L.O.: 915MHz MODULATION TYPE ASK BIT RATE OF TRANSMISSION 5K ANTENNA TYPE Dipole Antenna NOTE: For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) FCC ID:GV333062 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.:A03073106 Report No.:FCCA03073106 Page:5 of 18 R.O.C. Date:Sep. 22, 2003 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:1992 and CISRP22:1997. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID/DOC CABLE 1 NOTEBOOK DELL PP01L DOC/3892E610 1.5m unshielded power cord 2 PRINTER EPSON STYLUS C20SX DOC/3902E004 1.5m unshielded power cord 1.2m shielded data cable 3 MONITOR SAMSUNG PG17IS DOC/3882A925 1.5m unshielded power cord 1.2m shielded data cable 4 MODEM ACEEX DM-1414 DOC 1.5m unshielded DC power cable 1.2m shielded data cable NOTE : For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of wireless product and to be connected with a PC system for normal use. According to the specifications provided by the applicant, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C ANSI C63.4:1992 All tests have been performed and recorded as per the above standards. FCC ID:GV333062 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, TEST REPORT Reference No.:A03073106 Report No.:FCCA03073106…

Text truncated - open the document above for the full version.

- Conducted test - Radiated test
