GV333364Kensington RDS FM Transmitter/Car Charger (K33364)

To use your RDS FM Transmitter/Car Charger: 1. Plug the RDS FM Transmitter/Auto Charger into the car’s DC power source (12V outlet or cigarette lighter). 2. Connect the tuning adapter to the dock connector on the bottom of the iPod. 3. Select any available FM frequency on your car stereo. (Choose a channel that has no signal or is currently not transmitting a radio station.) 4. Use the +/- tuning buttons on the tuning adapter to match this radio frequency on your iPod. 5. To store the station into the RDS FM Transmitter/ Car Charger’s memory, push and hold one of the three preset buttons for three seconds. 6. Turn on the iPod and play your favorite tunes through the radio. Note: If you want to turn your FM Transmitter off or stop charging the iPod, slide the on/off switch to off. Contacting Kensington Troubleshooting information and answers to frequently asked questions are available 24 hours a day on the Kensington Web site at www.kensington.com. Technical Support Technical support is available to all registered users of Kensington products. There is no charge for technical support except the cost of the phone call, and long distance charges where applicable. Technical Support Contact information can be found at the end of this instruction guide. Please go to www.kensington.comto register your product. Federal Communications Commission Information for product marked as K33364: This device complies with Part15 of the FCC Rules . Operation is subjectto the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MODIFICATIONS:Modifications not expressly approved by Kensington may void the user's authority to operate the device under the provisions of the FCC and must not be made. Operating Frequency Range: 88.1–107.9 MHz Declaration of Conformity Compliance Statement for product marked as K33364EU: Operation is subject to two conditions: (1) This device may not cause harmful interference, and, (2) this device must accept any interference received, including interference that may cause undesired operation. Kensington declares that this product is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC, EMC Directive 89/336/EEC, and Low Voltage Directive 73/23/EEC. For Europe, a copy of the Declaration of Conformity for this product may be obtained by clicking on the Compliance Documentationlink atwww.support.kensington.com. MODIFICATIONS:Modifications not expressly approved by Kensington may void the user's authority to operate the device under the provisions of any applicable R&TTE directives. Operating Frequency Range: 88.1–107.9 MHz Two-Year Limited Warranty KENSINGTON COMPUTER PRODUCTS GROUP ("KENSINGTON") warrants this product against defects in material and workmanship under normal use and service for two years from the original date of purchase. KENSINGTON, at its option, shall repair or replace the defective unit covered by this warranty. Please retain the dated sales receipt as evidence of the date of purchase. You will need it for any warranty service. In order to keep this limited warranty in effect, the product must have been handled and used as prescribed in the instructions accompanying this warranty. This limited warranty does not cover any damage due to accident, misuse, abuse or negligence. This limited warranty is valid only if the product is used with the equipment specified on the product box. Please check product box for details or call KENSINGTON technical support. DISCLAIMER OF WARRANTY EXCEPT FOR THE LIMITED WARRANTY PROVIDED HEREIN, TO THE EXTENT PERMITTED BY LAW, KENSINGTON DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ALL WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT THAT ANY IMPLIED WARRANTIES MAY NONETHELESS EXIST BY OPERATION OF LAW, ANY SUCH WARRANTIES ARE LIMITED TO THE TWO-YEAR DURATION OF THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. LIMITATION OF LIABILITY REPAIR OR REPLACEMENT OF THIS PRODUCT, AS PROVIDED HEREIN, IS YOUR EXCLUSIVE REMEDY. KENSINGTON SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST REVENUES, LOST PROFITS, LOSS OF USE OF SOFTWARE, LOSS OR RECOVERY OF DATA, RENTAL OF REPLACEMENT EQUIPMENT, DOWNTIME, DAMAGE TO PROPERTY, AND THIRD-PARTY CLAIMS, ARISING OUT OF ANY THEORY OF RECOVERY, INCLUDING WARRANTY, CONTRACT, STATUTORY OR TORT. NOTWITHSTANDING THE TERM OF ANY LIMITED WARRANTY OR ANY WARRANTY IMPLIED BY LAW, OR IN THE EVENT THAT ANY LIMITED WARRANTY FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL KENSINGTON’S ENTIRE LIABILITY EXCEED THE PURCHASE PRICE OF THIS PRODUCT. SOME STATES/COUNTIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE AND PROVINCE TO PROVINCE. The Following Information is Only for EU-member States: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Kensington and ACCO are registered trademarks of ACCO Brands. The Kensington Promise is a service mark of ACCO Brands. Apple and iPod are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Aerielle is a trademark of Aer…

Text truncated - open the document above for the full version.

333 Twin Dolphin Drive, Sixth Floor, Redwood Shores, CA 94065 tel 650.572.2700 fax 650.267.2800 www.kensington.com Date : July 7, 2006 The Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Attn. : Mr. Patrick Wong Dear Sir, Re. : Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, Raymon Hung RF Engineer Kensington Computer Products Group, a division of ACCO Brands, Inc.

333 Twin Dolphin Drive, Sixth Floor, Redwood Shores, CA 94065 tel 650.572.2700 fax 650.267.2800 www.kensington.com Date: July 7, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Fax: (310) 344-2050 To Whom It May Concern: RE: FCC ID GV333364 ACCO Brands, Inc. request under 47 CFR 0.457 and 0.459 that materials submitted to the commission be withheld from public inspection. Specifically, ACCO Brands, Inc. requests that the following be withheld from public inspection under 47 CFR 0.457 and 0.459 because the schematics and designs are considered confidential trade secrets which, typically, would be guarded from competitors: (1) Detailed circuit schematics found in the FCC electronic attachments. (2) Block Diagram found in the FCC electronic attachments (3) Operational Description (Theory of Operation) found in the FCC electronic attachments. Therefore, in accordance with CFR 47 0.457 and 0.459, ACCO Brands, Inc. requests that the above listed materials be withheld from public inspection. Sincerely Raymon Hung RF Engineer Kensington Computer Products Group, a division of ACCO Brands, Inc.

333 Twin Dolphin Drive, Sixth Floor, Redwood Shores, CA 94065 tel 650.572.2700 fax 650.267.2800 www.kensington.com Date : July 7, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 USA Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. as agent for ACCO Brands, Inc., 333 Twin Dolphin Drive, 6 th Floor, Redwood Shores, California, United States, 94065 to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of ACCO Brands, Inc. Product name : Kensington RDS FM Transmitter/Car Charger Model : K33364 This authorization will expire one year from the date of this letter. Raymon Hung RF Engineer

July 16, 2006 Federal Communications Commission 445 12th Street, SW Washington, DC 20554 P.O. Box 730 Junction City, CA 94352 Re: K33364US FCC ID:GV333364 Dear Sir: Regarding Part 15 Subpart C: § 15.19 Labeling requirements. We understand that the following statement should appear in a conspicuous location on the device: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. However due to the size of our consumer electronics device we have found that adding this text in the space available on the product would result in it being illegible to the user and we have therefore exercised the option to place this text in the user manual. Best regards, Matthew Hoag Project Manager – iPod Accessories.

DOC-FCC009 4/14/2005 Page 1 of 2 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: ACCO Brands, Inc. Item 2. Applicant's mailing address Line 1: 333 Twin Dolphin Drive, 6th Floor, Line 2: Redwood Shores, P.O.Box: City: State: CA Country (if foreign address): United States of America Zip/Postal Code: 94065 Item 3. FCC ID: Grantee code: GV3 Equipment Product Code (14 characters maximum): 33364 Item 4. Person at the applicant's address to receive grant or for contact: First Name: KC Mail Stop: Last Name: Lee Telephone: 852 26661807 Ext: Title: Manager E-mail: [email protected] Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Tai Po Industrial Estate, N.T., Hong Kong. Contact: KC Lee E-mail: [email protected] Item 6. Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) x Yes Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DXX * Description of Product as it is Marketed: Part 15 Low Power Communication Device Transmitter (NOTE: Kensington RDS FM Transmitter / Car Charger) Item 11. * Application is for: (please mark as appropriate) x Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes x No Ο Yes x No DOC-FCC009 4/14/2005 Page 2 of 2 (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: The Hong Kong Standards & Testing Centre Ltd. Last Name: KC Telephone 26661852 Ext Fax No. 26650848 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15 88.1-107.9 WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? x Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to c…

Text truncated - open the document above for the full version.

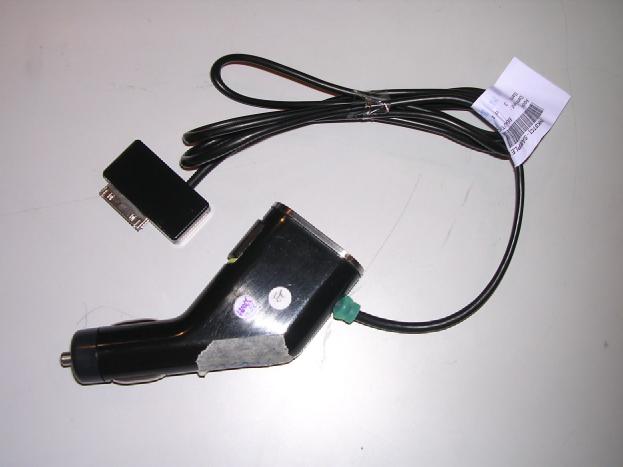

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

addendum R63R, Chip, 75 Ohms, 06021EachGeneric C33C, Cer. Chip, 470pF1EachGeneric L4FB, 82 Ohms @ 100 MHz1Each

Structure for PCA, Hero Main, 05120801-0009-02 Generated 18-Feb-2006 8:20:24 PM Structure RefItemDescriptionQtyUOMManufacturerManf Part No C110075/104C, Cer. Chip, X7R, 100nF, 50V, 10%, 06031EachPanasonicECJ1VB1H104K C211648/103C, Cer. Chip, X7R, 10nF, 16V, 10%, 04021EachGeneric C311776/105C, Cer. Chip, X5R, 1uF, 16V, 10%, 06031EachPanasonicECJ-1VB1C105K C410680/476C, Elec., Al., 47uF, 35V, 20%, SMT1EachPanasonicEEVFK1V470P C510680/476C, Elec., Al., 47uF, 35V, 20%, SMT1EachPanasonicEEVFK1V470P C611776/105C, Cer. Chip, X5R, 1uF, 16V, 10%, 06031EachPanasonicECJ-1VB1C105K C710075/104C, Cer. Chip, X7R, 100nF, 50V, 10%, 06031EachPanasonicECJ1VB1H104K C810776/107CC, Elec., Tant., Low ESR, 100uF, 10V, 20%, 6032M1EachAVXTPSC107M010_0100 C911654/106C, Cer. Chip, X5R/X7R, 10uF, 16V, 10%, 12061EachGeneric C1011654/225C, Cer. Chip, X5R/X7R, 2u2F, 16V, 10%, 12061EachGeneric C1110082/104C, Cer. Chip, X7R, 100nF, 16V, 10%, 06031EachGeneric C1211776/105C, Cer. Chip, X5R, 1uF, 16V, 10%, 06031EachPanasonicECJ-1VB1C105K C1311776/105C, Cer. Chip, X5R, 1uF, 16V, 10%, 06031EachPanasonicECJ-1VB1C105K C1411776/105C, Cer. Chip, X5R, 1uF, 16V, 10%, 06031EachPanasonicECJ-1VB1C105K C1510082/104C, Cer. Chip, X7R, 100nF, 16V, 10%, 06031EachGeneric C1611648/103C, Cer. Chip, X7R, 10nF, 16V, 10%, 04021EachGeneric C1711654/106C, Cer. Chip, X5R/X7R, 10uF, 16V, 10%, 12061EachGeneric C1811643/270C, Cer. Chip, C0G, 27pF, 50V, 5%, 04021EachGeneric C1911643/270C, Cer. Chip, C0G, 27pF, 50V, 5%, 04021EachGeneric C2010082/104C, Cer. Chip, X7R, 100nF, 16V, 10%, 06031EachGeneric C2111645/332C, Cer. Chip, X7R, 3n3F, 50V, 10%, 04021EachGeneric C2211643/151C, Cer. Chip, C0G, 150pF, 50V, 5%, 04021EachGeneric C2311645/332C, Cer. Chip, X7R, 3n3F, 50V, 10%, 04021EachGeneric C2411643/151C, Cer. Chip, C0G, 150pF, 50V, 5%, 04021EachGeneric C2510082/473C, Cer. Chip, X7R, 47nF, 16V, 10%, 06031EachGeneric C2611764/107BC, Elec., Tant., Standard, 100uF, 6V, 20%, 3528M1EachGeneric C2711648/103C, Cer. Chip, X7R, 10nF, 16V, 10%, 04021EachGeneric C2810082/104C, Cer. Chip, X7R, 100nF, 16V, 10%, 06031EachGeneric C2911643/121C, Cer. Chip, C0G, 120pF, 50V, 5%, 04021EachGeneric C3011643/330C, Cer. Chip, C0G, 33pF, 50V, 5%, 04021EachGeneric C3110080/102C, Cer. Chip, C0G, 1nF, 50V, 5%, 06031EachGeneric C3211643/8R2C, Cer. Chip, C0G, 8p2F, 50V, 5%, 04021EachGeneric C3410082/104C, Cer. Chip, X7R, 100nF, 16V, 10%, 06031EachGeneric C3510082/104C, Cer. Chip, X7R, 100nF, 16V, 10%, 06031EachGeneric C3611845/101C, Cer. Chip, C0G, 100pF, 50V, 2%, 06031EachGeneric C3711845/101C, Cer. Chip, C0G, 100pF, 50V, 2%, 06031EachGeneric C3811654/106C, Cer. Chip, X5R/X7R, 10uF, 16V, 10%, 12061EachGeneric C3910082/104C, Cer. Chip, X7R, 100nF, 16V, 10%, 06031EachGeneric C4011845/101C, Cer. Chip, C0G, 100pF, 50V, 2%, 06031EachGeneric C4111845/101C, Cer. Chip, C0G, 100pF, 50V, 2%, 06031EachGeneric C4211643/221C, Cer. Chip, C0G, 220pF, 50V, 5%, 04021EachGeneric C4311643/221C, Cer. Chip, C0G, 220pF, 50V, 5%, 04021EachGeneric C4411845/471C, Cer. Chip, C0G, 470pF, 50V, 2%, 06031EachGeneric C4511845/471C, Cer. Chip, C0G, 470pF, 50V, 2%, 06031EachGeneric C4611845/471C, Cer. Chip, C0G, 470pF, 50V, 2%, 06031EachGeneric C4711845/471C, Cer. Chip, C0G, 470pF, 50V, 2%, 06031EachGeneric Page 1 of 6 Structure for PCA, Hero Main, 05120801-0009-02 Generated 18-Feb-2006 8:20:24 PM C4811845/471C, Cer. Chip, C0G, 470pF, 50V, 2%, 06031EachGeneric C4911845/471C, Cer. Chip, C0G, 470pF, 50V, 2%, 06031EachGeneric C5010080/102C, Cer. Chip, C0G, 1nF, 50V, 5%, 06031EachGeneric D110015D, Switching, BAS16, SOT-231EachON SemiconductorBAS16LT1 D210015D, Switching, BAS16, SOT-231EachON SemiconductorBAS16LT1 D311844D, Schottky, MBRS130, 30V, 1A, SMB1EachON SemiconductorMBRS130T3G D411766D, Varactor, SMV1255, SC-791EachSkyworksSMV1255-079 D510009D, Schottky, BAT54, SOT-231EachON SemiconductorBAT54LT1 E111818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E211818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E311818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E411818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E511818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E611818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E711818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E811818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E911818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E1011818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E1111818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP E1211818/101E, TVS, 12WV, 100pF, 04021EachSFISFI0402-120E101NP L111665/101L, Fixed, Ferrite Bead, 3A, 12061EachStewardHI1206N101R-00 L211842/220L, Fixed, Ferrite, 22uH, 830mA, 20%, MSS61321EachCoilcraftMSS6132-223ML L311663/601L, Fixed, Ferrite Bead, 500mA, 08051EachStewardHZ0805E601R-00 L510065/680L, Fixed, Ceramic, 68nH, 5%, 08051EachCoilcraft0805CS680XJB L611663/601L, Fixed, Ferrite Bead, 500mA, 08051EachStewardHZ0805E601R-00 PCB1PCB, Hero Main1EachKensingtonIonocom 05120801-0006-02 Q111091Q, FET Enh N Chan, 2N7002, 60V, 115mA, SOT-231EachON Semiconductor2N7002LT1 Q211667Q, Gen. Purpose, Darlington NPN, 2SD2142K, SMT31EachRohm2SD2142K R111650/104R, Chip, 100k Ohms, 62mW, 5%, 04021EachGeneric R211699/374RR, Chip, 374R Ohms, 100mW, 1%, 06031EachGeneric R311699/1962R, Chip, 19k6 Ohms, 100mW, 1%, 06031EachGeneric R411697/4701R, Chip, 4k7 Ohms, 62mW, 1%, 04021EachGeneric R511697/4702R, Chip, 47k Ohms, 62mW, 1%, 04021EachGeneric R611699/127RR, Chip, 127R Ohms, 100mW, 1%, 06031EachGeneric R711699/1002R, Chip, 10k Ohms, 100mW, 1%, 06031EachGeneric R811691/140R, Varistor 14V, 08051EachBC Components2322-574-1003 R910083/000R, Chip, 0R0 Ohms, 100mW, 5%, 06031EachGeneric R1011697/4701R, Chip, 4k7 Ohms, 62mW, 1%, 04021EachGeneric R1111697/4702R, Chip, 47k Ohms, 62mW, 1%, 04021EachGeneric R1211697/4702R, Chip, 47k Ohms, 62mW, 1%, 04021EachGeneric R1311697/4701R, Chip, 4k7 Ohms, 62mW, 1%, 04021EachGeneric R1411650/473R, Chip, 47k Ohms, 62mW, 5%, 04021EachGener…

Text truncated - open the document above for the full version.

Structure for PCA, Hero Dongle, 05120801-0016-02 Generated 18-Feb-2006 8:23:27 PM Structure RefItemDescriptionQtyUOMManufacturerManf Part No J511780/30J, Signal, DD1, 30-Way, Male, Gold1EachJAEDD1P030A2 PCB1PCB, Hero Dongle1EachKensingtonIonocom 05120801-0013-03 R111697/5493R, Chip, 549k Ohms, 62mW, 1%, 04021EachGeneric R211697/7502R, Chip, 75k Ohms, 62mW, 1%, 04021EachGeneric R311697/7502R, Chip, 75k Ohms, 62mW, 1%, 04021EachGeneric R411697/4992R, Chip, 49k9 Ohms, 62mW, 1%, 04021EachGeneric R511697/4992R, Chip, 49k9 Ohms, 62mW, 1%, 04021EachGeneric S111866S, Tact Dome, SPNO1EachSwitchtech1197A S211866S, Tact Dome, SPNO1EachSwitchtech1197A S311866S, Tact Dome, SPNO1EachSwitchtech1197A ASS1ASS, Hero Dongle PCAAssociatedKensingtonIonocom 05120801-0014-02 CCT1CCT, Hero DongleAssociatedKensingtonIonocom 05120801-0010-02 Page 1 of 2 Structure for PCA, Hero Dongle, 05120801-0016-02 Generated 18-Feb-2006 8:23:27 PM Alternatives ItemAlt ItemDescriptionManufacturerManf Part No 11780/30J, Signal, DD1, 30-Way, Male, GoldJAEDD1P030A2 11782/30J, Signal, PD-13630, 30-Way, Male, GoldFoxlinkPD-13630 11866S, Tact Dome, SPNOSwitchtech1197A 11868S, Tact Dome, SPNOSwitronicIT-1197A Page 2 of 2

STC Test Report Date : 2006-07-13 Page 1 of 21 No. : HM156814 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: ACCO Brands, Inc. 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, United States of America, 94065 Description of Samples: Model name: Kensington RDS FM Transmitter/Car Charger Model no.: K33364 Brand name: ACCO Brands, Inc. FCC ID: GV333364 Date Samples Received: 2006-06-12 Date Tested: 2006-06-19 to 2006-06-21 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- TSANG Chi Ho, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2006-07-13 Page 2 of 21 No. : HM156814 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 21 Content Page 2-3 of 21 1.0 General Details 1.1 Test Laboratory Page 4 of 21 1.2 Applicant Details Page 4 of 21 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 21 Description of EUT operation 1.4 Date of Order Page 5 of 21 1.5 Submitted Samples Page 5 of 21 1.6 Test Duration Page 5 of 21 1.7 Country of Origin Page 5 of 21 2.0 Technical Details 2.1 Investigations Requested Page 6 of 21 2.2 Test Standards and Results Summary Page 6 of 21 3.0 Test Results 3.1 Emission Page 7-14 of 21 3.2 Bandwidth Measurement Page 15-18 of 21 STC Test Report Date : 2006-07-13 Page 3 of 21 No. : HM156814 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 19 of 21 Appendix B Photographs Page 20-21 of 21 STC Test Report Date : 2006-07-13 Page 4 of 21 No. : HM156814 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant ACCO Brands, Inc. 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, United States of America, 94065 Manufacturer Shenzhen Synchron Electronics Co., Ltd. No. 9, Mei Lin Road, Xia Mei Lin, Fu Tian Area, Shenzhen, China STC Test Report Date : 2006-07-13 Page 5 of 21 No. : HM156814 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Kensington RDS FM Transmitter/Car Charger Manufacturer: Shenzhen Synchron Electronics Co., Ltd. Brand Name: ACCO Brands, Inc. Model Number: K33364 Input Voltage: 12Vd.c. car battery 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an ACCO Brands, Inc., Kensington RDS FM Transmitter/Car Charger. It is trigger transmitter, modulation by audio input and type is frequency modulation. 1.4 Date of Order 2006-06-12 1.5 Submitted Sample(s): 1 Sample per model 1.6 Test Duration 2006-06-19 to 2006-06-21 1.7 Country of Origin China STC Test Report Date : 2006-07-13 Page 6 of 21 No. : HM156814 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.2…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
