GV333373Wireless Presenter

Contents AWireless PresenterC2 AAA Batteries BUSB Wireless ReceiverDInstruction Guide Congratulations! Your new Kensington Wireless Presenter offers you increased control for more effective presentations. Please read this short manual to learn valuable infor- mation about the proper use and installation of your new Wireless Presenter. Register your new Wireless Presenter online atwww.register.kensington.com. Wireless Presenter Instruction Guide ACB Instruction Guide Guide d’instructions Bedienungsanleitung Handleiding Istruzioni Manual de instrucciones D Features Your new Wireless Presenter is compact, comfortable and convenient. It allows you to control presentations up to 60 feet (18m) away. This all-in-one Wireless Presentation Remote is loaded with many features: 1. USB receiver stores conveniently inside the remote and automatically shuts it off to save battery life 2. Up to 60ft (18m) of wireless range 3. Simple and easy to use — just plug & play 4. Compatible with most presentation applications including Microsoft® PowerPoint® and Apple Keynote.™ 5. Play slideshow 6. Next slide, previous slide buttons 7. Hide button Specifications Range:Up to 60 feet (18m) Frequency:2.4 GHz Battery:2 AAA batteries System Requirement: PC running Windows XP®,2000®; Macintosh® running Mac® OS 10.2.8 or later; Available USB port. Connecting your Presenter To connect to a USB port: Plug the Presentation Remote USB Receiver into your computer’s USB port. You may also use the spare USB port on your keyboard or a USB port on a hub connected to your computer. You do not need to turn off your computer before connecting or disconnecting a USB device. About your Wireless Presenter •The maximum range is 60 ft (18m) between the receiver and the remote. •The receiver has a single light indicator with 2 colors, green and red. For every button press of the presenter, the receiver LED quickly flashes green to indicate that the battery level is good. The LED will flash red on every button press if the battery level is low. •The Wireless Presenter should work up to one year with the batteries that come with it. This is based on average usage. To extend battery life when not in use, be sure to turn off the remote by inserting the receiver into the remote. •Always replace the batteries in sets, using the same age and brand of batteries. •Always dispose of batteries properly. Contacting Kensington Troubleshooting information and answers to frequently asked questions are available 24 hours a day on the Kensington Web site at www.kensington.com. Technical Support Technical support is available to all registered users of Kensington products. There is no charge for technical support except the cost of the phone call, and long distance charges where applicable. Technical Support Contact information can be found at the end of this instruction guide.

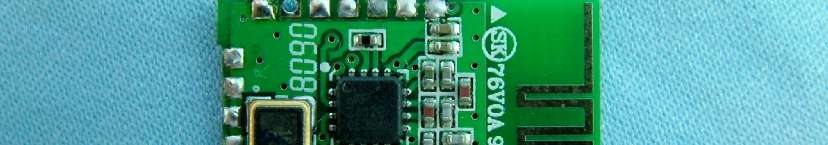

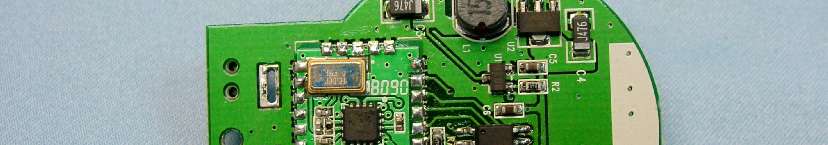

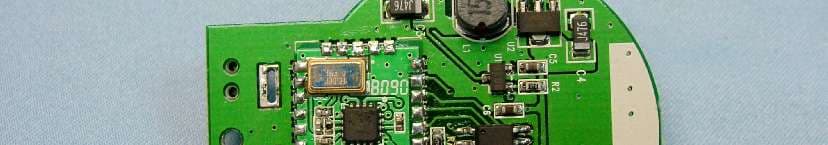

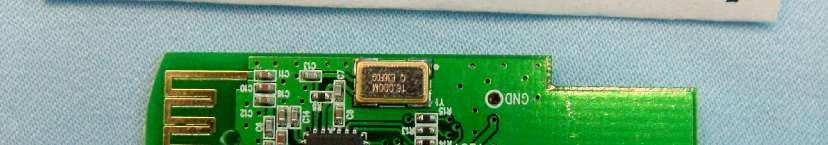

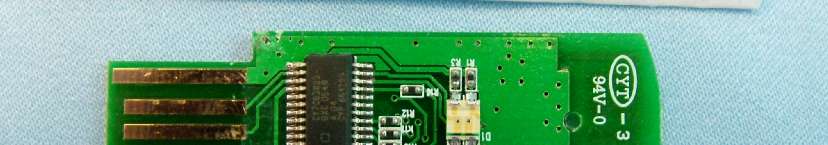

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: GV333373 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: GV333373 Report No.: RF950327A05A Reference No.: 950407A17 Operational Description The transmitter of the EUT (Wireless Presenter) is powered by 3.0V batteries. The type of antenna is 1/2 ware-length monopole patch antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No: SA950327A05A1 Reference No.: 950407A17 RF EXPOSURE REPORT REPORT NO.: SA950327A05A MODEL NO.: 33373 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : ACCO Brands, Inc. ADDRESS : 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, 94065, USA ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. Report No: SA950327A05A2 Reference No.: 950407A17 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: SA950327A05A3 Reference No.: 950407A17 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit data at lowest, middle and highest channel individually. Report No: SA950327A05A4 Reference No.: 950407A17 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.407 High2.407 24.93 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power 0.371.089 EIRP Power2.371.726 *Note: The antenna is 1/2 ware-length monopole patch antenna with 2dBi gain Threshold for no SAR evaluation is 24.93mW Transmitter power is 1.726mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF950327A05A1Report Format Version 2.0.5 Reference No.: 950407A17 FCC TEST REPORT REPORT NO.: RF950327A05A MODEL NO.: 33373 RECEIVED: Mar. 27, 2006 TESTED: Mar. 31 ~ Apr. 4, 2006 ISSUED: Apr. 11, 2006 APPLICANT: ACCO Brands, Inc. ADDRESS: 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, 94065, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950327A05A2Report Format Version 2.0.5 Reference No.: 950407A17 Table of Contents 1.CERTIFICATION...........................................................................................4 2.SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY.................................................................5 3.GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:...............8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...............................9 3.4DESCRIPTION OF SUPPORT UNITS..........................................................9 4.TEST TYPES AND RESULTS.....................................................................10 4.1CONDUCTED EMISSION MEASUREMENT..............................................10 4.2RADIATED EMISSION Measurement.........................................................10 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................10 4.2.2TEST INSTRUMENTS................................................................................11 4.2.3TEST PROCEDURES.................................................................................12 4.2.4DEVIATION FROM TEST STANDARD.......................................................12 4.2.5TEST SETUP..............................................................................................13 4.2.6EUT OPERATING CONDITIONS................................................................13 4.2.7TEST RESULTS..........................................................................................14 4.36dB BANDWIDTH MEASUREMENT..........................................................16 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................16 4.3.2TEST INSTRUMENTS................................................................................16 4.3.3TEST PROCEDURE...................................................................................16 4.3.4DEVIATION FROM TEST STANDARD.......................................................16 4.3.5TEST SETUP..............................................................................................16 4.3.6EUT OPERATING CONDITIONS................................................................16 4.3.7TEST RESULTS..........................................................................................17 4.4MAXIMUM PEAK OUTPUT POWER..........................................................18 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........18 4.4.2INSTRUMENTS..........................................................................................18 4.4.3TEST PROCEDURES.................................................................................18 4.4.4DEVIATION FROM TEST STANDARD.......................................................18 4.4.5TEST SETUP..............................................................................................19 4.4.6EUT OPERATING CONDITIONS................................................................19 4.4.7TEST RESULTS..........................................................................................19 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................20 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................20 4.5.2TEST INSTRUMENTS................................................................................20 4.5.3TEST PROCEDURE...................................................................................20 4.5.4DEVIATION FROM TEST STANDARD.......................................................20 4.5.5TEST SETUP..............................................................................................20 4.5.6EUT OPERATING CONDITION..................................................................20 Report No.: RF950327A05A3Report Format Version 2.0.5 Reference No.: 950407A17 4.5.7TEST RESULTS..........................................................................................21 4.6BAND EDGES MEASUREMENT................................................................22 4.6.1LIMITS OF BAND EDGES MEASUREMENT..............................................22 4.6.2TEST INSTRUMENTS................................................................................22 4.6.3TEST PROCEDURE...................................................................................22 4.6.4DEVIATION FROM TEST STANDARD.......................................................22 4.6.5EUT OPERATING CONDITION..................................................................22 4.6.6TEST RESULTS..........................................................................................23 4.7ANTENNA REQUIREMENT................................................................…

Text truncated - open the document above for the full version.

Report No.: RF950327A05A28Report Format Version 2.0.5 Reference No.: 950407A17 5. PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
