GV333374-PWireless Presenter with Laser Pointer/Wireless Presenter

Contents AWireless Presenter with Laser Pointer BUSB Wireless Receiver C2 AAA Batteries DInstruction Guide Getting Started Your new Wireless Presenter with Laser Pointer offers you increased control for more effective presentations. Please read this short manual to learn valuable information about the proper use and installation of your new Wireless Presenter with Laser Pointer. Register your new Wireless Presenter with Laser Pointer online atwww.register.kensington.com. Specifications Range:Up to 60 feet (18m) Frequency:2.4 GHz Battery:2 AAA batteries System Requirement: PC running Windows XP®, 2000®; Macintosh® running Mac® OS 10.2.8 or later; Available USB port. Wireless Presenter with Laser Pointer Instruction Guide ACB Instruction Guide Guide d’instructions Bedienungsanleitung Handleiding Istruzioni Manual de instrucciones D N1368 Kensington Computer Products Group A Division of ACCO Brands 333 Twin Dolphin Drive, Redwood Shores, CA 94065 Designed in California, U.S.A. by Kensington Made in China www.kensington.com Technical Support United States1 800 535 4242 901-1943-00 Federal Communications Commission Radio Frequency Interference Statement Note: The Wireless Presenter with Laser Pointer model number 33374 has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. MODIFICATIONS: Modifications not expressly approved by Kensington may void the user’s authority to operate the device under FCC regulations and must not be made. Declaration of Conformity Compliance Statement for the Wireless Presenter with Laser Pointer The Wireless Presenter with Laser Pointer model number 33374 complies with Part 15 of the FCC Rules and Industry Canada RSS-210. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. As defined in Section 2.909 of the FCC Rules, the responsible party for this device is Kensington Computer Products Group, 333 Twin Dolphin Drive, CA 94065, USA. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. The Following Information is Only for EU-member States: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Kensington is a registered trademark of ACCO Brands. The Kensington Promise is a service mark of ACCO Brands. Microsoft, Powerpoint, Windows and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Apple, Macintosh, Mac and Keynote are trademarks of Apple Computer, Inc. All other trademarks are the property of their respective owners. ©2006 Kensington Computer Products Group, a division of ACCO Brands. Any unauthorized copying, duplicating, or other reproduction of the contents hereof is prohibited without written consent from Kensington Computer Products Group. All rights reserved. 4/06 ACCO Canada Inc. 5 Precidio Court Brampton Ontario L6S 6B7 Canada ACCO Australia Level 2, 8 Lord St Botany NSW 2019 PO Box 311 Rosebery NSW 1445 Australia Complies with 21 CFR 1040.10 except for deviations pursuant to Laser Notice No.50,dated July 26,2001 AVOID EXPOSURELASER RADIATION IS EMITTED FROM THIS APERTURE LASER RADIATION-DO NOTSTARE INTO BEAMCLASS 2 LASER PRODUCT MAXIMUM OUTPUT:<1mW WAVELENTH:650+20nm CAUTION! The Wireless Presenter with Laser Pointer includes a built-in laser pointer. Therefore, as with any laser pointer, it is important to adhere to the following warnings and safety instructions to prevent injury: •Never shine a laser pointer into a person’s eyes, or stare into the laser beam. Pointing a laser pointer into a person’s eyes, or staring directly at the laser beam, can cause instant temporary vision dysfunction such as flashblindness, disorientation or glare. This can be particularly dangerous if the exposed person is engaged in a vision-critical activity such as driving. In addition, prolonged and/or repeated exposure to the laser beam can be hazardous and damaging to eyes. •Never aim a laser pointer anywhere on any or person or animal. Laser pointers are designed to illustrate inanimate objects only. In some states and provinces, it is illegal to aim a laser pointer on a law enforcement officer or on any other person. The purchaser/user is responsible for insuring that his or her use of the laser pointer conforms to any local laws. •Do not point a laser pointer at mirror-like surfaces. A reflected beam can act like a direct beam on the eye…

Text truncated - open the document above for the full version.

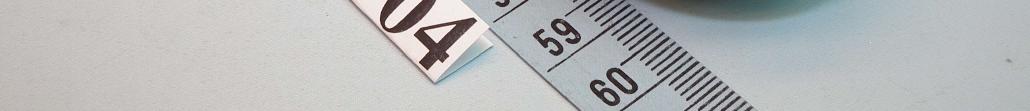

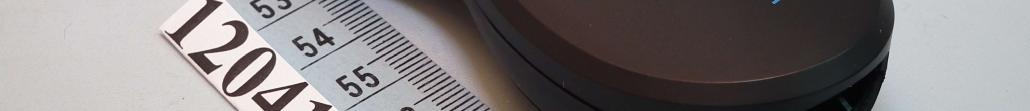

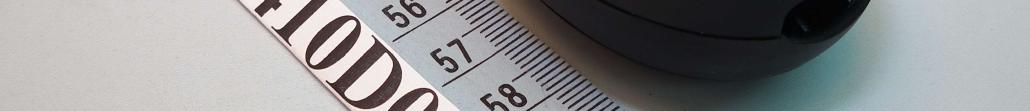

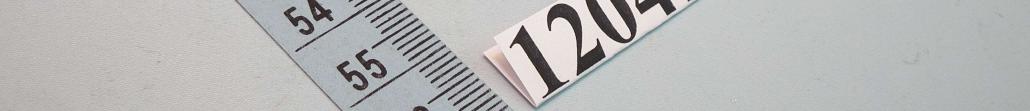

Page 1 CONSTRUCTION PHOTOS OF EUT

LABEL LOCATION Label Location

Page 2 Page 3 Page 4 With Laser Pointer Page 5 Without Laser Pointer

FCC ID: GV333374-P Report No.: RF120410D04 Operational Description The transmitter of the EUT (Wireless Presenter with Laser Pointer, Wireless Presenter) is powered by 3.0Vdc from batteries. The type of antenna is Printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF120410D04 1 Report Format Version 4.2.0 FCC TEST REPORT REPORT NO.: RF120410D04 MODEL NO.: 33374-P, 33373-P FCC ID: GV333374-P RECEIVED: Apr. 10, 2012 TESTED: Apr. 10, 2012 ISSUED: Apr. 24, 2012 APPLICANT: ACCO Brands, Inc. ADDRESS: 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, 94065, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This test report consists of 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF120410D04 2 Report Format Version 4.2.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY...............................................................5 3. GENERAL INFORMATION...........................................................................6 3.1 GENERAL DESCRIPTION OF EUT............................................................6 3.2 DESCRIPTION OF TEST MODES..............................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................9 3.4 DESCRIPTION OF SUPPORT UNITS........................................................9 4. TEST TYPES AND RESULTS.....................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT............................................10 4.2 RADIATED EMISSION AND BAND EDGE MEASUREMENT...................10 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................10 4.2.2 TEST INSTRUMENTS..............................................................................11 4.2.3 TEST PROCEDURES...............................................................................12 4.2.4 DEVIATION FROM TEST STANDARD.....................................................12 4.2.5 TEST SETUP............................................................................................13 4.2.6 EUT OPERATING CONDITIONS..............................................................13 4.2.7 TEST RESULTS........................................................................................14 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................19 6. INFORMATION ON THE TESTING LABORATORIES................................20 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.......................................................21 Report No.: RF120410D04 3 Report Format Version 4.2.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF120410D04 Original release Apr. 24, 2012 Report No.: RF120410D04 4 Report Format Version 4.2.0 1. CERTIFICATION PRODUCT: Wireless Presenter with Laser Pointer, Wireless Presenter BRAND NAME: Kensington MODEL NO.: 33374-P, 33373-P APPLICANT: ACCO Brands, Inc. TESTED: Apr. 10, 2012 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.10-2009 The above equipment (model no.: 33374-P) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: ( Celia Chen / Senior Specialist ) APPROVED BY : , DATE: ( Ken Liu / Manager ) Report No.: RF120410D04 5 Report Format Version 4.2.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULT REMARK 15.207 Conducted Emission Test N/A Power supply is 3.0Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 15.209 PASS Meet the requirement of limit. Minimum passing margin is -10.1dB at 2390.00MHz. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Frequency Uncertainty 30MHz ~ 1GHz 3.78 dB Radiated emissions Above 1GHz 3.36 dB Report No.: RF120410D04 6 Report Format Version 4.2.0 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT EUT Wireless Presenter with Laser Pointer, Wireless Presenter MODEL NO. 33374-P, 33373-P FCC ID GV333374-P POWER SUPPLY 3.0Vdc from batteries MODULATION TYPE GFSK OPERATING FREQUENCY 2402MHz ~ 2479MHz NUMBER OF CHANNEL 78 ANTENNA TYPE Printed antenna with 2dBi gain ANTENNA CONNECTOR N/A DATA CABLE N/A I/O PORTS N/A ASSOCIATED DEVICES N/A NOTE: 1. The EUT is a transceiver, which has several models for following difference: Product Name Brand Name Model No. Difference Wireless Presenter with Laser Pointer Kensington 33374-P With Laser Pointer Wireless Presenter Kensington 33373-P Without Laser Pointer After pre-tested, model: 33374-P was selected as a representative one and therefore only i…

Text truncated - open the document above for the full version.

Report No.: RF120410D04 1 Report Format Version 4.2.0 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
