GV364379MPilotboard Wireless Desktop

PilotBoard Wireless Desktop User Manual Congratulations! Your new Kensington PilotBoard Wireless Desktop offers you the freedom to work and play the way that you want to. With Innovative features like the hot keys and the zoom/scroll wheel, you can perform many common Internet and multimedia functions at a single touch of a button. Please read this short manual to learn how to install and use your new PilotBoard Wireless Desktop. Register your new products on line atwww.register.kensington.com. PilotBoard Wireless Desktop • 1 READ FIRST! 64379_WlessPilotBd 10/8/04 2:12 PM Page 1 • Adjust the keyboard and chair height so your elbows are near your body, your forearms are parallel to the floor, and your upper arms hang naturally at your sides. • Adjust the keyboard slope so that your wrists are in a natural, straight position while typing. • Keep your fingers relaxed. Do not strike the keys with excessive force. • Do not overextend fingers or bend your wrists unnaturally to hit hard-to- reach keys. Instead, move your whole arm. DON’TDODON’T Your hands and wrists should be in a neutral position. Your wrist should not bend too much to one side or the other. DON’TDODON’T You may be more comfortable typing with your wrists floating slightly above the keyboard. For more information on good computing habits, please visit Healthy Computing.com TM atwww.healthycomputing.com. PilotBoard Wireless Desktop • 3 Important: Computer User Health Information In recent years, medical attention on occupational injuries has identified normal, seemingly harmless activities as a potential cause of a wide range of problems collectively known as Repetitive Stress Injuries (RSI) or Cumulative Trauma Disorders (CTD). It is now recognized that any repetitive motion may contribute to these health problems. As a computer user, you might also be at risk. By paying attention to the way you perform your work, use your computer and phone, play sports, and work around the house, you can identify the behaviors that may be putting you at risk. If you experience pain, swelling, numbness, or weakness in your wrists or hands (especially during sleep), see your physician immediately. These symptoms could mean that you are developing a repetitive stress injury that requires prompt medical attention. For more detailed infor- mation, consult your doctor or a reputable book. HEALTH WARNING: Use of a keyboard or pointing device may be linked to serious injuries or disorders. Please visitwww.healthycomputing.comor www.kensington.comfor important safety tips when using this device. Using your Kensington PilotBoard Wireless Desktop Many factors go into creating a comfortable workspace, including proper placement and adjustment of furniture and equipment, lighting, and other environmental considerations. • Computing is more comfortable and your body is more relaxed with the keyboard placed directly in front of you. 2 • PilotBoard Wireless Desktop 64379_WlessPilotBd 10/8/04 2:12 PM Page 2 Plugging in Wireless Receiver To connect to a Do this: PS2 portTurn off your computer. PC only Locate the purple USB/PS2 adapter. Connect the purple USB/PS2 adapter onto the USB side of the y shaped cable on the wireless receiver. Insert the purple PS2 plug into the keyboard port on the back of the computer. Insert the green PS2 plug into the mouse port on the back of the computer. Reboot your computer. To connect to a Do this: USB portIf you wish to use the USB port you do not need to plug in the PS2 PC or Mac®plug at all. The USB port works for both wireless mouse and keyboard. Plug USB connector of the wireless receiver into the USB port on the back of the computer. If you connect USB plug for the first time you will see Windows perform its USB device enumerations. (Note that the green PS2 mouse end of the "y" cable will remain unplugged, simply lying on the desktop). If using Windows® ‘98 you may need to reboot your computer. With Windows 2000, ME, XP, and Mac OS, your new keyboard is ready to use. CAUTION: Never force a connection. Turn the connector until it aligns correctly with the port on the computer. Important: Battery Information 1.Alwaysdispose of batteries properly. 2.Alwaysreplace the batteries in sets, using the same age and brand of batteries. 3.AlwaysRemove the batteries if you will not be using the devices for more than two weeks. Installing the Batteries in the Mouse and Keyboard Please be sure that the batteries are installed properly in both the PilotBoard wireless keyboard and wireless mouse. The proper orientation for the batteries is indicated in the battery compartment for each device. Average battery life for your PilotBoard wireless mouse is 2–3 months depending on usage. The wireless receiver indicator light will turn red when low batteries are detected. You may also notice erratic cursor tracking or missed keystrokes. Replacing the batteries will solve this issue. 4 • PilotBoard Wireless DesktopPilotBoard Wireless Desktop • 5 64379_WlessPilotBd 10/8/04 2:12 PM Page 4 Software Drivers Depending upon the operating system that you are running and the features that you would like to use, it may be necessary for you to install the Kensington soft- ware drivers; MouseWorks™ for the mouse and KeyboardWorks™ for the keyboard. We suggest that you try all of the functions on your keyboard before installing the driver to see if you are satisfied with the functionality of the keyboard and mouse or if you need the drivers to achieve your desired level of functionality. Installing Kensington KeyboardWorks software Now that you have successfully connected the wireless keyboard, mouse, and receiver, please proceed to the following software installation section before using PilotBoard Wireless Desktop. Please make sure all PilotBoard components are connected according to user manual instruction before any software installation. Windows ‘98 or Mac OS 10.2X It is required for Windows 98 or Mac OS 10.2x user to install Kensington KeyboardWorks s…

Text truncated - open the document above for the full version.

Page 5

FCC ID: GV364379M FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

PilotBoard Wireless Desktop 900-1122-00 MADE IN CHINA Pilotboard Wireless Desktop Model # 64379 S/N: Kensington Technology Group www,kensington.com 800-535-4242 FCC ID: GV364379 AYYWWXXXXXX FOR HOME OR OFFICE USE Tested to comply with FCC Standards. PilotBoard Wireless Desktop (hole) 10.1mm

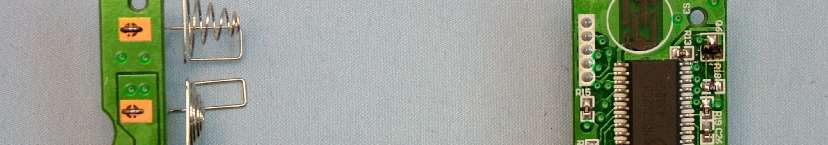

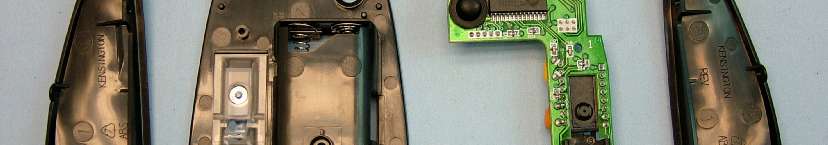

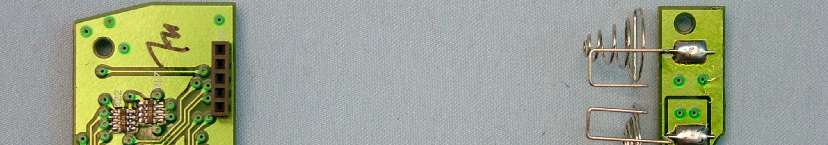

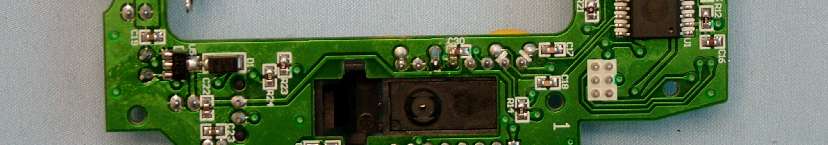

Page 6 Page 7 Page 8 Page 9

FCC ID: GV364379M Report No.: RF931220A08A Operational Description The transmitter of the EUT (PilotBoard Wireless Desktop) is powered by 3V batteries. The type of antenna is Loop antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: GV364379M Report No.: RF931220A08A1Report Format Version 2.0.1 Reference No.: 931220A08 FCC TEST REPORT REPORT NO. :RF931220A08A MODEL NO. :64379 RECEIVED :Dec. 20, 2004 TESTED :Dec. 21, 2004 ISSUED:Dec. 30, 2004 APPLICANT : ACCO Brands Inc. ADDRESS : 2000 Alameda de las Pulgas 2nd Floor, San Mateo, CA 94403, United States ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agency. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: GV364379M Report No.: RF931220A08A2Report Format Version 2.0.1 Reference No.: 931220A08 Table of Contents 1CERTIFICATION ............................................................................................3 2SUMMARY OF TEST RESULTS....................................................................4 2.1MEASUREMENT UNCERTAINTY .................................................................4 3GENERAL INFORMATION ............................................................................5 3.1GENERAL DESCRIPTION OF EUT...............................................................5 3.2DESCRIPTION OF TEST MODES.................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ................................6 3.4DESCRIPTION OF SUPPORT UNITS ...........................................................7 3.5CONFIGURATION OF SYSTEM UNDER TEST............................................7 4TEST PROCEDURE AND RESULT ...............................................................8 4.1CONDUCTED EMISSION MEASUREMENT .................................................8 4.2RADIATED EMISSION MEASUREMENT ......................................................8 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT....................................8 4.2.2TEST INSTRUMENT......................................................................................9 4.2.3TEST PROCEDURE ....................................................................................10 4.2.4DEVATION FROM TEST STANDARD .........................................................10 4.2.5TEST SETUP ............................................................................................... 11 4.2.6EUT OPERATING CONDITION ................................................................... 11 4.2.7TEST RESULTS...........................................................................................12 5PHOTOGRAPHS OF THE TEST CONFIGURATION...................................14 6INFORMATION ON THE TESTING LABORATORIES .................................15 FCC ID: GV364379M Report No.: RF931220A08A3Report Format Version 2.0.1 Reference No.: 931220A08 1 CERTIFICATION PRODUCT NAME :Pilotboard Wireless Desktop BRAND NAME:Kensington, ACCO MODEL NO. :64379 APPLICANT :ACCO Brands Inc. TESTED :Dec. 21, 2004 TEST SAMPLE :ENGINEERING SAMPLE STANDARDS :FCC Part 15, Subpart C (15.227) ANSI C63.4-2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Dec. 30, 2004 ( Annie Chang ) TECHNICAL ACCEPTANCE :, DATE:Dec. 30, 2004 Responsible for EMI ( Arthur Lin ) APPROVED BY : , DATE: Dec. 30, 2004 ( Cody Chang, Deputy Manager ) FCC ID: GV364379M Report No.: RF931220A08A4Report Format Version 2.0.1 Reference No.: 931220A08 2 SUMMARY OF TEST RESULTS After estimating all the combination of every test mode and channel, the result shown as below is the worst case. The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestNA Power supply is 1.5Vdc * 2 battery 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is -8.65 dB at 325.47 MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTUNCERTAINTY Radiated emissions3.86 dB FCC ID: GV364379M Report No.: RF931220A08A5Report Format Version 2.0.1 Reference No.: 931220A08 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT PilotBoard Wireless Desktop MODEL NO64379 POWER SUPPLY 1.5Vdc * 2 battery for transmitter MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045 MHz MAXIMUM FIELD STRENGTH 0.176 mV/m @ 3m NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA NOTE: 1. The EUT is a wireless Mouse. 2. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. FCC ID: GV364379M Report No.: RF931220A08A6Report Format Version 2.0.1 Reference No.: 931220A08 3.2 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.045MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a PilotBoard Wireless Desktop. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC Part 15, Subpart C (15.227) ANSI C63.4-2003 All test items have been performed and recorded as per the above standards. FCC ID: GV364379M Report No.: RF931220A08A7Report Format Version 2.0.1 Reference No.: 931220A08 3.4 DESCRIPTION OF SUPPORT UNITS NA …

Text truncated - open the document above for the full version.

FCC ID: GV364379M Report No.: RF931220A08A14Report Format Version 2.0.1 Reference No.: 931220A08 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
