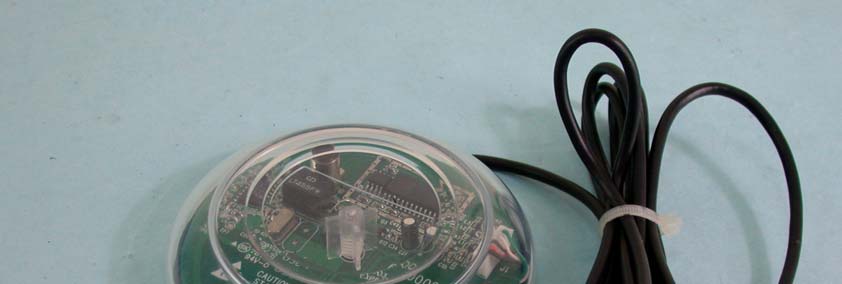

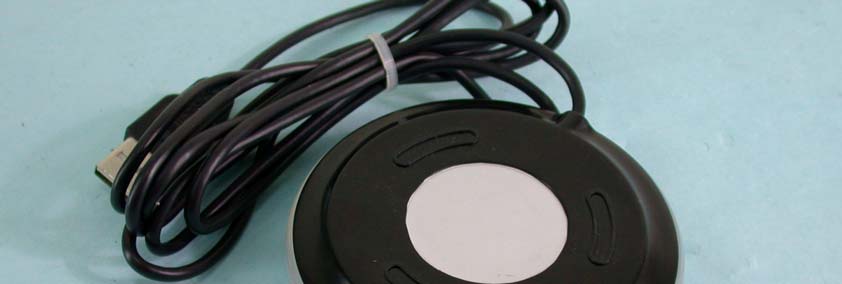

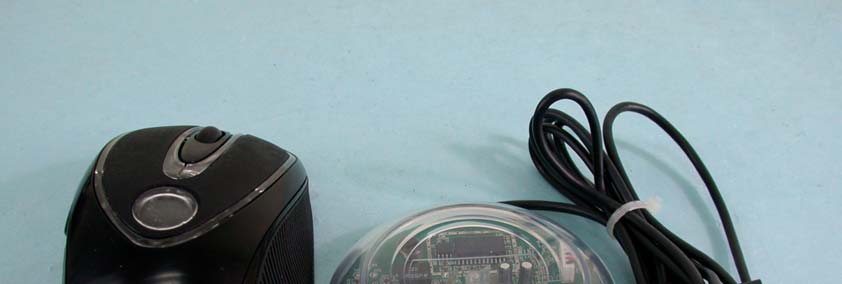

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

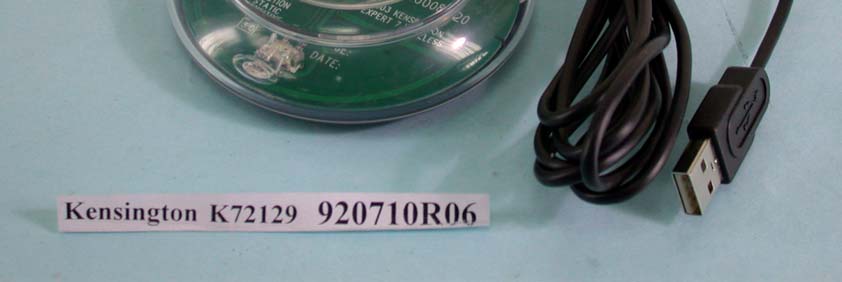

Page 1 Label Location Label Location

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: GV372129 ADT No.920710R06 Operational Description The transmitter of the EUT ( PilotMouse Optical Wireless ) is powered by 3V Battery. The receiver is powered by host computer. The antenna used in this product is Printed Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: GV372129 Report No.: RF920710R061Issued: July 23, 2003 FCC TEST REPORT REPORT NO.: RF920710R06 MODEL NO.: K72129 RECEIVED: July 10, 2003 TESTED: July 16 ~ 21, 2003 APPLICANT: ACCO Brands, Inc. ADDRESS: 2855 Campus Drive San Mateo, CA 94403 United States ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: GV372129 Report No.: RF920710R062Issued: July 23, 2003 Table of Contents 1CERTIFICATION ........................................................................................... 3 2SUMMARY OF TEST RESULTS................................................................... 4 3GENERAL INFORMATION ........................................................................... 5 3.1GENERAL DESCRIPTION OF EUT.............................................................. 5 3.2DESCRIPTION OF TEST MODES................................................................ 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 6 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 6 4TEST PROCEDURE AND RESULT .............................................................. 7 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 7 4.2RADIATED EMISSION MEASUREMENT ..................................................... 7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................... 7 4.2.2TEST INSTRUMENT..................................................................................... 8 4.2.3TEST PROCEDURE ..................................................................................... 9 4.2.4TEST SETUP .............................................................................................. 10 4.2.5EUT OPERATING CONDITION .................................................................. 10 4.2.6TEST RESULT .............................................................................................11 4.3ANTENNA REQUIREMENT........................................................................ 13 4.3.1STANDARD APPLICABLE .......................................................................... 13 4.3.2ANTENNA CONNECTED CONSTRUCTION.............................................. 13 5PHOTOGRAPHS OF THE TEST CONFIGURATION.................................. 14 6INFORMATION ON THE TESTING LABORATORIES ................................ 15 FCC ID: GV372129 Report No.: RF920710R063Issued: July 23, 2003 1 CERTIFICATION PRODUCT : PilotMouse Optical Wireless BRAND NAME : Kensington MODEL NO : K72129 TEST ITEM: ENGINEERING SAMPLE APPLICANT : ACCO Brands, Inc. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from July 16 ~ July 21, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: GV372129 Report No.: RF920710R064Issued: July 23, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –10.20dBuV/m at 53.99MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: GV372129 Report No.: RF920710R065Issued: July 23, 2003 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT PilotMouse Optical Wireless MODEL NO. K72129 POWER SUPPLY 3VDC for Mouse from AA battery x 2 MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 26.995MHz BANDWIDTH OF EACH CHANNEL NA NUMBER OF CHANNEL 1 ANTENNA TYPE Printed Antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. For more detailed feature description of the EUT, please refer to user’s manual. FCC ID: GV372129 Report No.: RF920710R066Issued: July 23, 2003 3.2 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 126.995 MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a PilotMouse Optical Wireless. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC 47 CFR Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA FCC ID: GV372129 Report No.: RF920710R067Issued: July 23, 2003 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above 9605003 As shown in 15…
