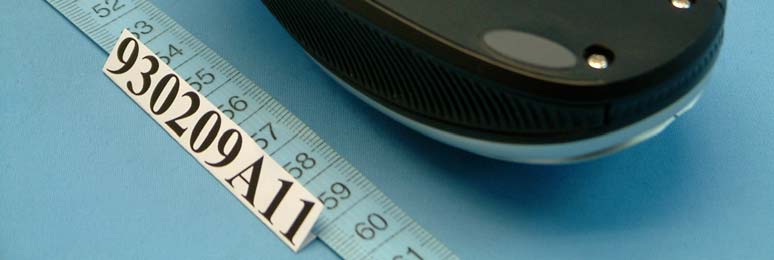

GV372216PilotMouse Optical Wireless 3 Button

Contacting KensingtonTroubleshooting information and answers to frequently asked questions are available 24 hours a day on the Kensington Website at www.support.kensington.com.Support by TelephoneTechnical Support is available by telephone. Please visit www.kensington.com for hours.US/Canada 800-535-4242 or 650-572-2700Mexico 52(55)5384-0620 Kensington Technology Group2000 Alameda de las PulgasSecond FloorSan Mateo, CA 94403USAwww.kensington.com ACCO Europe Gatehouse RoadAylesbury BucksHP19 8 DT, UNITED KINGDOM ACCO Canada Inc.5 Precidio CourtBrampton, Ontario L6S 6B7 CANADA 901-0565-00 This manual is copyright ©2004 Kensington Technology Group, a division of ACCO Brands, Inc. Anyunauthorized copying, duplicating, or other reproduction of the contents hereof is prohibited without writtenconsent from Kensington Technology Group. All rights reserved. 1/04Kensington is a registered trademark of ACCO World Corporation. All other registered and unregisteredtrademarks are the sole property of their respective owners. PilotMouse Wireless User ManualIndex Plugging In Your Device . . . . . . . . . . .page 1Installing MouseWorks CD . . . . . . . . .page 2Battery Installation . . . . . . . . . . . . . . .page 3Wireless Installation . . . . . . . . . . . . . .page 4-5Common Troubleshooting Steps . . . .page 6Comfort Guidelines . . . . . . . . . . . . . . .page 7Technical Support . . . . . . . . . . . . . . . . .page 8Warranty Information . . . . . . . . . . . . .page 9-10 72216_901056000print.qxd 3/3/2004 9:44 AM Page 12 This equipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radio com-munications.However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.MODIFICATIONS: Modifications not expressly approved by Kensington may void the user’s authority to operate the device under FCC regulations and must not be made.SHIELDED CABLES: In order to meet FCC requirements, all connections to equipment using a Kensington input device should be made using only the shielded cable provided.Declaration of Conformity Compliance Statement for theKensington PilotMouseThe Kensington PilotMouse Wireless (72216) complies with Part 15 of the FCC Rules.Operation is subject to two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference that maycause undesired operation. As defined in Section 2.909 of the FCC Rules, the responsible partyfor this device is Kensington Technology Group, 2000 Alameda de las Pulgas, Second Floor, SanMateo, CA 94403, (650) 572-2700.Warranty Information (continued) 10 PS/2 Connector Plugging In Your Device 1 USB Connector Turn off your computer beforeplugging in ANY PS/2 device. 72216_901056000print.qxd 3/3/2004 9:44 AM Page 2 5-Year WarrantyKENSINGTON TECHNOLOGY GROUP (“KENSINGTON”) warrants this PRODUCT against defectsin material and workmanship under normal use and service for five years from the originaldate of purchase. KENSINGTON, at its option, shall repair or replace the defective unit coveredby this warranty. Please retain the dated sales receipt as evidence of the date of purchase. Youwill need it for any warranty service.In order to keep this warranty in effect, the product must have been handled and used as pre-scribed in the instructions accompanying this warranty. This warranty does not cover anydamage due to accident, misuse, abuse, or negligence. This warranty is valid only if the prod-uct is used on the computer or system specified on the product box. Please check product boxfor details or call technical support.Repair or replacement, as provided under this warranty, is your exclusive remedy. KENSINGTON shall not be liable for any incidental or consequential damages. Implied war-ranties of merchantability and fitness for a particular purpose on this product are limited induration to the duration of this warranty.Some states/countries do not allow the exclusion or limitation of incidental or consequentialdamages, so the above limitation or exclusion may not apply to you. Some states/countries donot allow limitations on how long an implied warranty lasts, so the above limitation may notapply to you. This warranty gives you specific legal rights, and you may also have other rightsthat vary from state to state and country to country.Federal Communications Commission Radio FrequencyInterference StatementNote: The Kensington PilotMouse Wireless has been tested and found to comply with the lim-its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residential installation.Warranty Information9 2 Get the latest and most updated version of MouseWorks which includes bug fixes,updates and the latest peripheral support at our Web site: www.software.kensington.com Installing MouseWorks® Why should I use MouseWorks®?It is not necessary to install MouseWorks in Windows® 98 or later. However,installing MouseWorks® will provide you with additional advanced features.Programmable buttons, enabling features such as horizontal scrolling, and finetuning of cursor movement are only a few examples of what MouseWorks® cando for you.Supported Systems:Windows® PC – Windows 98® and laterApple Mac® – OS10.2.x and higher. Please note, for OS10.3 (Panther)…

Text truncated - open the document above for the full version.


Page 5

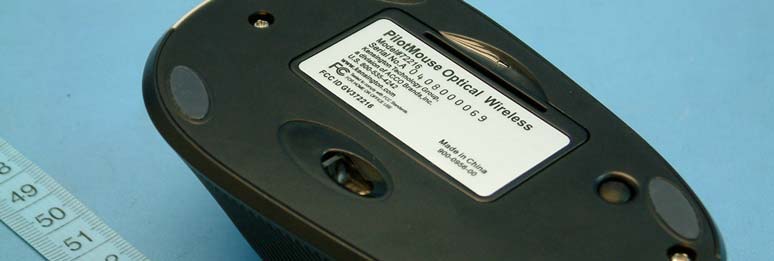

FCC ID LOCATION

Page 6 Page 7 Page 8 Page 9

FCC ID: GV372216 Report No.: RF930209A11 Operational Description The transmitter of the EUT (PilotMouse Optical Wireless 3 Button) is powered by 3V Batteries. The type of antenna is printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: GV372216 Report No.: RF930209A111Issued: Mar. 16, 2004 FCC TEST REPORT REPORT NO.: RF930209A11 MODEL NO.: 72216 RECEIVED: Feb. 9, 2004 TESTED: Mar. 1, 2004 APPLICANT: ACCO Brands, Inc. ADDRESS: 2000 Alameda de las Pulgas 2nd Floor, San Mateo, CA 94403 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 13 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any U.S. government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: GV372216 Report No.: RF930209A112Issued: Mar. 16, 2004 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION ..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT.................................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 DEVIATION FROM TEST STANDARD............................................................9 4.2.5 TEST SETUP.................................................................................................10 4.2.6 EUT OPERATING CONDITION.....................................................................10 4.2.7 TEST RESULT............................................................................................... 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................12 6INFORMATION ON THE TESTING LABORATORIES...................................13 FCC ID: GV372216 Report No.: RF930209A113Issued: Mar. 16, 2004 1 CERTIFICATION PRODUCT : PilotMouse Optical Wireless 3 Button BRAND NAME : Kensington, Primax, ACCO MODEL NO : 72216 APPLICANT : ACCO Brands, Inc. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Mar. 1, 2004. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. PREPARED BY:, DATE:Mar. 16, 2004 APPROVED BY:, DATE: Mar. 16, 2004 ( Mike Su, Manager ) ( Annie Chang ) FCC ID: GV372216 Report No.: RF930209A114Issued: Mar. 16, 2004 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –3.79dBuV at 30.00MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: GV372216 Report No.: RF930209A115Issued: Mar. 16, 2004 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT PilotMouse Optical Wireless 3 Button MODEL NO.72216 POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE 1.5m (Shielded) I/O PORTS USB port (Additional PS/2 adapter) ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of PilotMouse Optical Wireless 3 Button. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: GV372216 Report No.: RF930209A116Issued: Mar. 16, 2004 3.2 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.045MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a PilotMouse Optical Wireless 3 Button. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT was tested standalone. FCC ID: GV372216 Report No.: RF930209A117Issued: Mar. 16, 2004 4 TEST PROCEDURE AND RESULT 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above 9605003 As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of an…

Text truncated - open the document above for the full version.

FCC ID: GV372216 Report No.: RF930209A1112Issued: Mar. 16, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
