GV372238PilotMouse Laser Wireless Micro

333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, 94065, USA tel 650.572.2700 fax 650.572.9675 www.kensington.com Power of Attorney Date: 2006/02/08 To whom it may concern: We, the undersigned ACCO Brands, Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours,

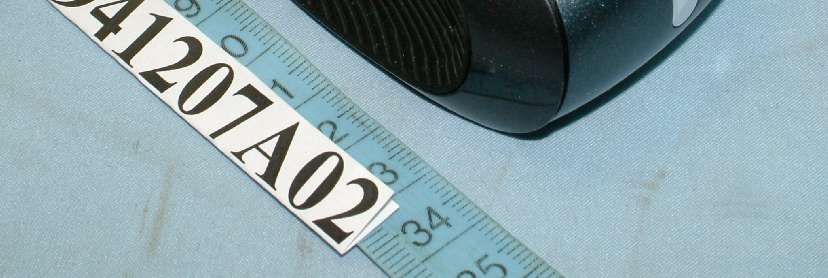

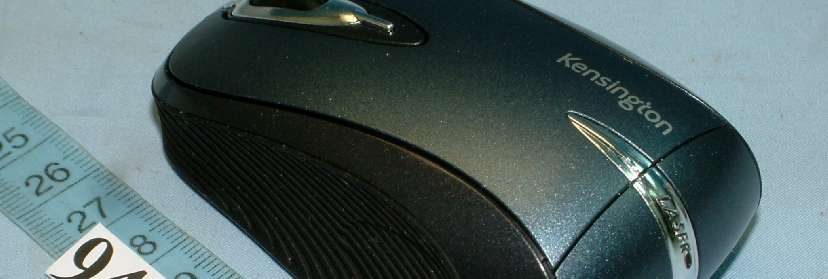

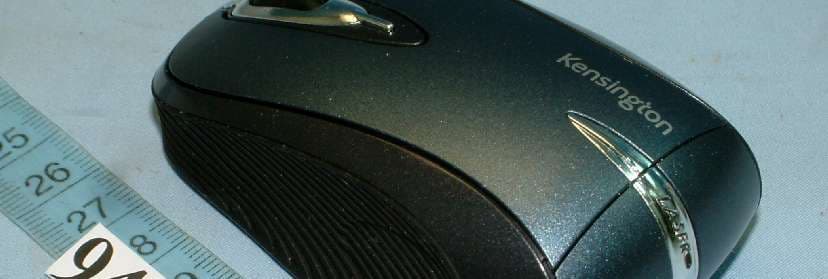

Page 1 CONSTRUCTION PHOTOS OF EUT

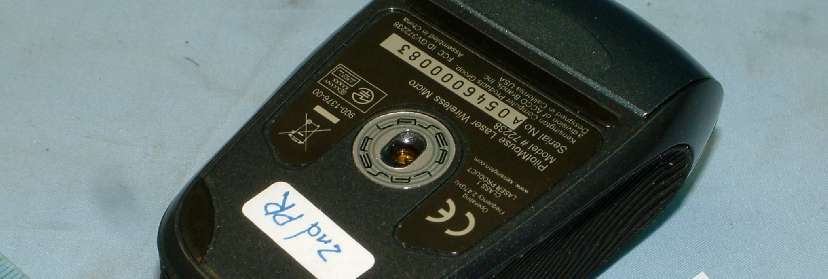

FCC ID: GV372238 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

1:1 FCC ID:GV372238 900-1376-00 Model# 72238 PilotMouse Laser Wireless Micro a division of ACCO Brands,Inc. Assembled in China Kensington Computer Products Group, Serial No. A Y Y W W X X X X X X Operating Frequency 2.47GHz CLASS 1 LASER PRODUCT www.kensington.com Designed in California USA R XXXNY XXXXX 2.4DS1 FCC ID:GV372238 900-1376-00 Model# 72238 PilotMouse Laser Wireless Micro a division of ACCO Brands,Inc. Assembled in China Kensington Computer Products Group, Serial No. A Y Y W W X X X X X X Operating Frequency 2.47GHz CLASS 1 LASER PRODUCT www.kensington.com Designed in California USA R XXXNY XXXXX 2.4DS1

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: GV372238 Report No.: RF941207A02 Operational Description The transmitter of the EUT (PilotMouse Laser Wireless Micro) is powered by 1.5V battery. The type of antenna is Printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No: SA941207A021 RF EXPOSURE REPORT REPORT NO.: SA941207A02 MODEL NO.: 72238 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : ACCO Brands, Inc. ADDRESS : 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, 94065, USA ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. Report No: SA941207A022 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: SA941207A023 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by manufacturer enabled the EUT to transmit data at lowest, middle and highest channel individually. Report No: SA941207A024 5. Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.470 High2.470 24.29 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power-1.830.656 EIRP Power-2.540.557 *Note: The antenna is Printed antenna with -0.71dBi gain Threshold for no SAR evaluation is 24.29mW Transmitter power is 0.656mW Conclusion: No SAR evaluation required since Transmitter Power is below FCC threshold

Report No.: RF941207A021Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF941207A02 MODEL NO.: 72238 RECEIVED: Dec. 7, 2005 TESTED: Jan. 25 ~ Feb. 6, 2006 ISSUED: Feb. 8, 2006 APPLICANT: ACCO Brands, Inc. ADDRESS: 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, 94065, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 29 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF941207A022Report Format Version 2.0.5 Table of Contents 1.CERTIFICATION...........................................................................................4 2.SUMMARY OF TEST RESULTS...................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................5 3.GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:...............8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...............................9 3.4DESCRIPTION OF SUPPORT UNITS..........................................................9 4.TEST TYPES AND RESULTS.....................................................................10 4.1CONDUCTED EMISSION MEASUREMENT..............................................10 4.2RADIATED EMISSION MEASUREMENT...................................................10 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................10 4.2.2TEST INSTRUMENTS................................................................................11 4.2.3TEST PROCEDURES.................................................................................12 4.2.4DEVIATION FROM TEST STANDARD.......................................................12 4.2.5TEST SETUP..............................................................................................13 4.2.6EUT OPERATING CONDITIONS................................................................13 4.2.7TEST RESULTS..........................................................................................14 4.36dB BANDWIDTH MEASUREMENT..........................................................16 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT.......................................16 4.3.2TEST INSTRUMENTS................................................................................16 4.3.3TEST PROCEDURE...................................................................................16 4.3.4DEVIATION FROM TEST STANDARD.......................................................16 4.3.5TEST SETUP..............................................................................................16 4.3.6EUT OPERATING CONDITIONS................................................................16 4.3.7TEST RESULTS..........................................................................................17 4.4MAXIMUM PEAK OUTPUT POWER..........................................................18 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........18 4.4.2INSTRUMENTS..........................................................................................18 4.4.3TEST PROCEDURES.................................................................................18 4.4.4DEVIATION FROM TEST STANDARD.......................................................18 4.4.5TEST SETUP..............................................................................................19 4.4.6EUT OPERATING CONDITIONS................................................................19 4.4.7TEST RESULTS..........................................................................................19 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................20 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................20 4.5.2TEST INSTRUMENTS................................................................................20 4.5.3TEST PROCEDURE...................................................................................20 4.5.4DEVIATION FROM TEST STANDARD.......................................................20 4.5.5TEST SETUP..............................................................................................20 4.5.6EUT OPERATING CONDITION..................................................................20 Report No.: RF941207A023Report Format Version 2.0.5 4.5.7TEST RESULTS..........................................................................................21 4.6BAND EDGES MEASUREMENT................................................................22 4.6.1LIMITS OF BAND EDGES MEASUREMENT..............................................22 4.6.2TEST INSTRUMENTS................................................................................22 4.6.3TEST PROCEDURE...................................................................................22 4.6.4DEVIATION FROM TEST STANDARD.......................................................22 4.6.5EUT OPERATING CONDITION..................................................................22 4.6.6TEST RESULTS..........................................................................................23 4.7ANTENNA REQUIREMENT........................................................................26 4.7.1STANDARD APPLICABLE.......................................................…

Text truncated - open the document above for the full version.

Report No.: RF941207A0227Report Format Version 2.0.5 5. PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
