GV372265Notebook Optical Wireless Mouse

Battery Status INSTRUCTION GUIDE GUIDE DE L'UTILISATEUR BENUTZERHANDBUCH INSTRUCTIEBOEKJE GUIDA PER L'UTENTE MANUAL DEL USUARIO Wireless Notebook Keypad and Mouse set English English Français Français Deutsch Deutsch PC/CAL Key LCD Screen Indicator Light INSTRUCTION GUIDE To switch between Calculator Mode and Keypad Mode, press the PC/CAL key. When Keypad Mode is active, the LCD Screen displays a row of dashes. NOTE: To use Keypad Mode, you must turn off Num Lock on your laptop keyboard. Calculator Mode Keys Keypad Mode Keys The Keypad Mode Keys have different functions depending on whether Num Lock is turned on or off on the keypad. In Keypad Mode, the two rows of small keys at the top of the keypad have no function. Num Lock On NOTE: When Num Lock is on, the LCD Screen displays NUM. Num Lock Off To turn Num Lock off, press the Num Lock key in the upper-left corner of the keypad, below the two rows of small keys. Getting Help Common Troubleshooting Steps 1. Verify that each device is turned on. 2. Unplug and replug the receiver. 3. Install fresh batteries in the keypad and/or mouse. 4. Test the device on another USB port or computer. 5. Some surfaces, such as reflective surfaces like glass or mirrors, may “trick” the mouse sensor. This product will not work with well these types of surfaces. Try to use it on another surface. 6. Make sure the battery door is properly closed and locked in place. 7. When the keypad is in Calculator Mode , press the AC button to turn the calculator back ON. Technical Support Technical support is available to all registered users of Kensington products. There is no charge for technical support except the cost of the phone call, and Long-distance charges where applicable. Technical Support Contact information can be found on the back page of this manual. Technical Support Tips • You may find the answer to your problem in the Frequently Asked Questions (FAQ) section of the Support area on the Kensington Website: www.support.kensington.com. • Call from a phone where you have access to your computer. • Be prepared to provide the following information: – Name, address, and telephone number – Name of the Kensington product – Make and model of your computer – System software and version – Symptoms of the problem and what led to them Two-Year Limited Warranty KENSINGTON COMPUTER PRODUCTS GROUP (“KENSINGTON”) warrants Wireless Notebook Keypad and Mouse Set against defects in material and workmanship under normal use and service for two years from the original date of purchase. KENSINGTON, at its sole option, shall repair or replace the defective unit covered by this warranty. Please retain the dated sales receipt as evidence of the date of purchase. You will need it for any warranty service. In order to keep this warranty in effect, the product must have been handled and used as prescribed in the instructions accompanying this warranty. This warranty does not cover any damage due to accident, misuse, abuse, or negligence. RF Technical Specifications Mouse: Single Channel—RF Frequency 27.095mHz Keypad: Single Channel—RF Frequency 27.195mHz Declaration of Conformity Compliance Statement This product complies with Part 15 of the FCC Rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. As defined in Section 2.909 of the FCC Rules, the responsible party for this device is Kensington Computer Products Group, 333 Twin Dolphin Drive, Redwood Shores, CA 94065, USA. This Class [B] digital apparatus complies with Canadian ICES-003. FCC Interference Statement The receiver part has been tested and found to comply with the limits for a Class B digital device, Pusuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particalar installation. If this equipment does cause harmful interference to radio or television reception, which ca be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna – Increase the separation between the equipment and receiver – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected – Consult the dealer or an experienced radio/TV technician for help Modifications: Any changes or modifications not expressly approved by Kensington could void the user's authority to operate the equipment. CE Declaration of Conformity Kensington declares that this product is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC, EMC Directive 89/336/EEC, and Low Voltage Directive 73/23/EEC. For Europe, a copy of the Declaration of Conformity for this product may be obtained by clicking on the ‘Compliance Documentation’ link at www.support.kensington.com. Safety and Usage Guidelines 1. In the absence of proper operation and if customer initiated troubleshooting is unsuccessful, switch off the device and call Kensington technical support. 2. Do not disassemble this product or expose it to liquid, humidity, moisture, or temperatures outside the specified operating ranges of 0 deg C (32 deg F) to 40 deg C (104 deg F). 3. If your product is exposed to out-of-range temperatures, switch it off and allow temperature to return to the normal operating range. Information for EU Member-States Only The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you wil…

Text truncated - open the document above for the full version.

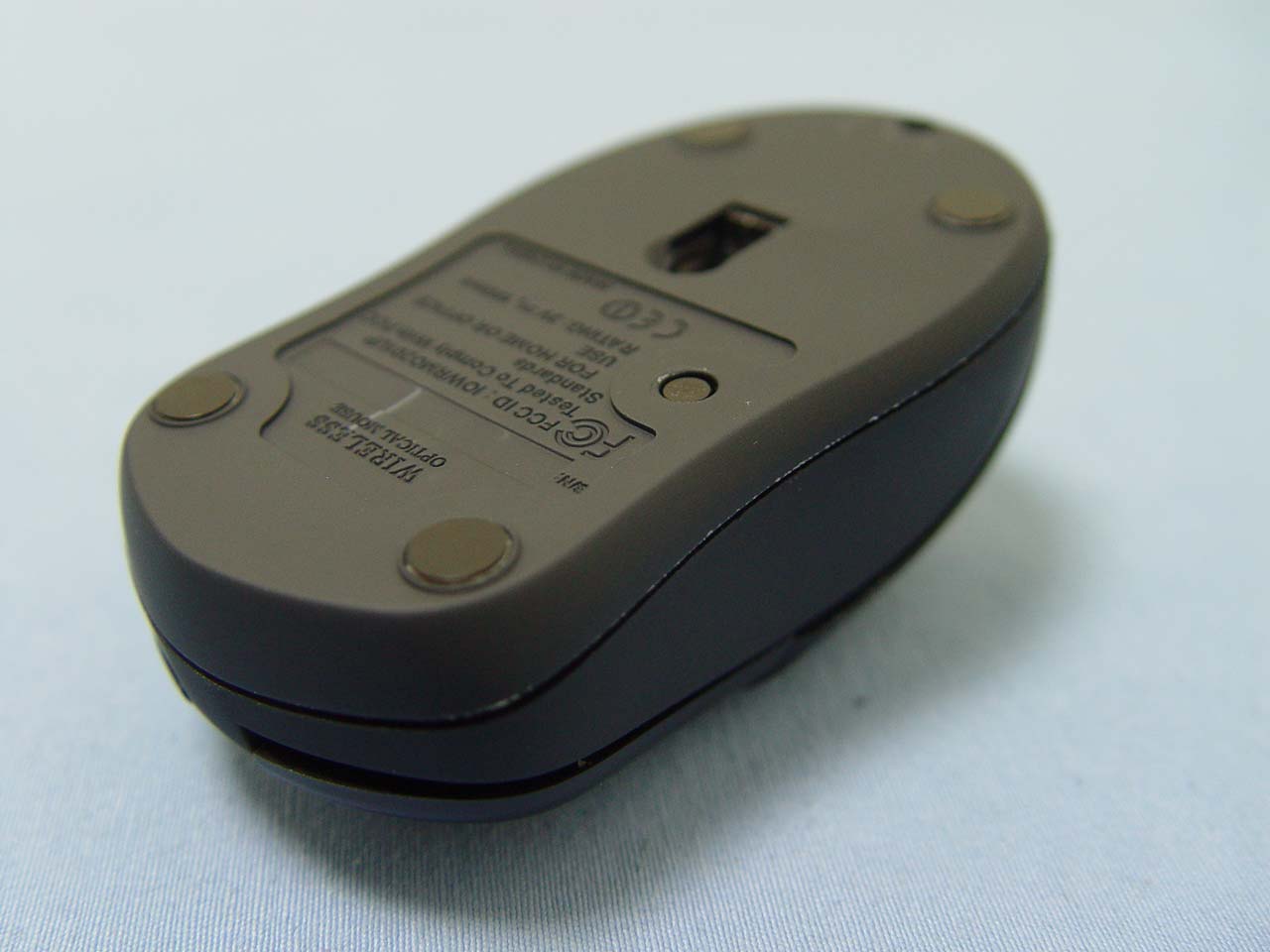

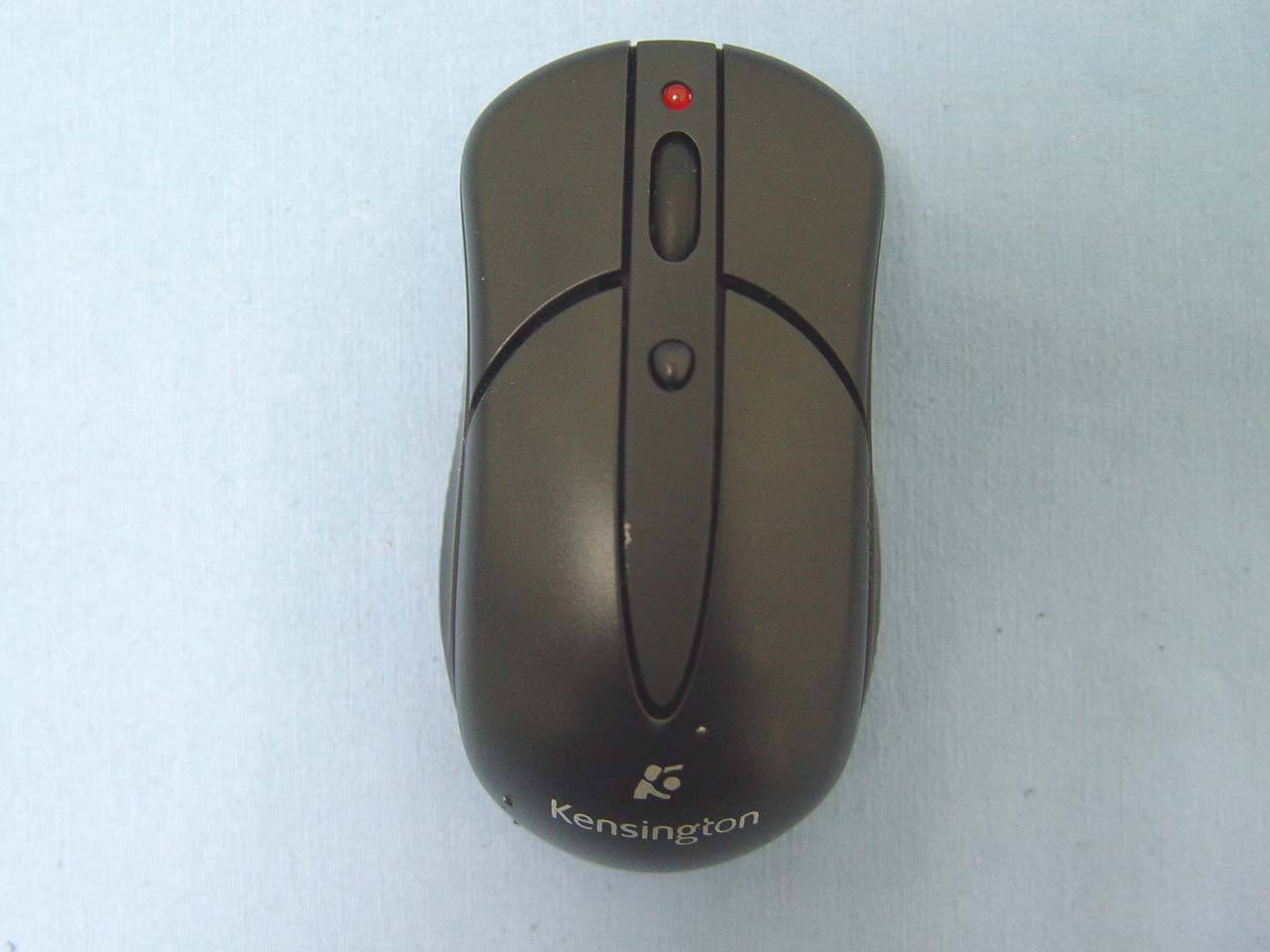

Compliance Certification Services Inc. Report No.: 61019003 Date of Issue: November 6, 2006 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61019003 Date of Issue: November 6, 2006 Page 2 Rev.00

Compliance Certification Services Inc. Report No.: 61019003 Date of Issue: November 6, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61019003 Date of Issue: November 6, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 61019003 Date of Issue: November 6, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 61019003 Date of Issue: November 6, 2006 Page 6 Rev.00

MOUSE Antenna Spec

Compliance Certification Services Inc. Report No.: 61019003-RP1 FCC ID: GV372265 Date of Issue: November 2, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 18 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Notebook Optical Wireless Mouse Trade Name / Model: CHIC / RMO234 Kensington / 72265 Issued to ACCO Brands, Inc. 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, California United States Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 61019003-RP1 FCC ID: GV372265 Date of Issue: November 2, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT .................................................................................................... 10 7. FCC PART 15.227 REQUIREMENTS...................................................................................... 11 7.1 20 DB BANDWIDTH .......................................................................................................... 11 7.2 RADIATED EMISSIONS........................................................................................................... 13 7.3 POWERLINE CONDUCTED EMISSIONS.................................................................................... 17 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 18 Compliance Certification Services Inc. Report No.: 61019003-RP1 FCC ID: GV372265 Date of Issue: November 2, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Notebook Optical Wireless Mouse Trade Name / Model Number CHIC / RMO234 Kensington / 72265 Model Difference All the specification and layout are identical except they come with different model numbers for marketing purposes. Power Supply Powered by AAA batteries × 2 (DC 3V) Frequency Range 27.095 MHz Modulation Technique FSK Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: GV372265 filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 61019003-RP1 FCC ID: GV372265 Date of Issue: November 2, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4, FCC 47 CFR 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.227. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane according to the requirements in Section 13.1.4.1 of ANSI C63.4. Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61019003-RP1 FCC ID: GV372265 Date of Issue: November 2, 2006 Page 18 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos
