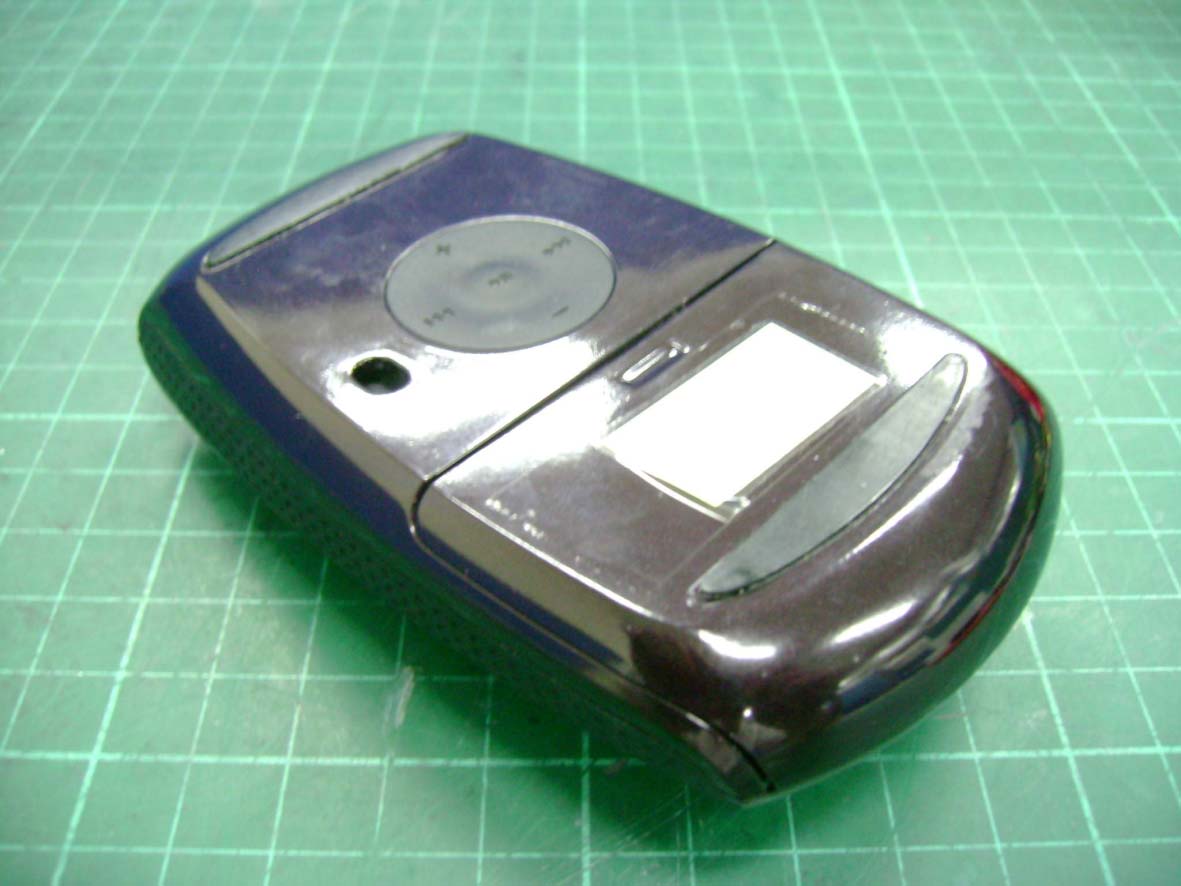

Photo 1: External photo of EUT M01004-M Photo 2: External photo of EUT M01004-M

Photo 1: Internal photo of EUT M01004-M Photo 2: Internal photo of EUT M01004-M Photo 3: Internal photo of EUT Photo 4: Internal photo of EUT Photo 5: Internal photo of EUT Photo 6: Internal photo of EUT Photo 7: Internal photo of EUT Photo 8: Internal photo of EUT Photo 9: Internal photo of EUT Antenna Location Photo 10: Internal photo of EUT Photo 11: Internal photo of EUT Photo 12: Internal photo of EUT

FCC ID. : GV3M01004-M Report No.: EME-070794 Page 1 of 37 EMC TEST REPORT Report No. : EME-070794 Model No. : M01004-M Issued Date : Aug. 14, 2007 Applicant : ACCO BRANDS, INC 333 Twin Dolphin Drive, Sixth Floor, Redwood Shores, CA94065, USA Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 37 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Jimmie Liu Project Engineer Reviewed By Kevin Chen FCC ID. : GV3M01004-M Report No.: EME-070794 Page 2 of 37 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 1.1 Identification of the EUT ........................................................................................4 1.2 Additional information about the EUT....................................................................4 1.3 Antenna description.................................................................................................4 2. Test specifications .........................................................................................................5 2.1 Test standard............................................................................................................5 2.2 Operation mode .......................................................................................................5 2.3 Test equipment ........................................................................................................6 3. Minimum 6dB Bandwidth test ......................................................................................7 3.1 Operating environment............................................................................................7 3.2 Test setup & procedure ............................................................................................7 3.3 Measured data of Minimum 6dB Bandwidth test results ........................................7 4. Maximum Output Power test ......................................................................................11 4.1 Operating environment..........................................................................................11 4.2 Test setup & procedure ..........................................................................................11 4.3 Measured data of Maximum Output Power test results ........................................11 5. RF Antenna Conducted Spurious test..........................................................................12 5.1 Operating environment..........................................................................................12 5.2 Test setup & procedure ..........................................................................................12 5.3 Measured data of the highest RF Antenna Conducted Spurious test result ..........12 6. Radiated Emission test ................................................................................................22 6.1 Operating environment..........................................................................................22 6.2 Test setup & procedure ..........................................................................................22 6.3 Emission limits ......................................................................................................23 6.4 Radiated spurious emission test data.....................................................................24 6.4.1 Measurement results: frequencies equal to or less than 1 GHz..........................24 6.4.2 Measurement results: frequency above 1GHz ...................................................25 7. Power Spectrum Density test ......................................................................................28 7.1 Operating environment..........................................................................................28 7.2 Test setup & procedure ..........................................................................................28 7.3 Measured data of Power Spectrum Density test results ........................................28 8. Emission on the band edge..........................................................................................32 8.1 Operating environment..........................................................................................32 8.2 Test setup & procedure ..........................................................................................32 8.3 Test Result .............................................................................................................33 FCC ID. : GV3M01004-M Report No.: EME-070794 Page 3 of 37 Summary of Tests Kensington ® SlimBlade TM Media Mouse -Model: M01004-M FCC ID: GV3M01004-M Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Pass Maximum Output Power test 15.247(b) Pass RF Antenna Conducted Spurious test 15.247(d) Pass Radiated Spurious Emission test 15.205, 15.209 Pass Power Spectrum Density test 15.247(e) Pass Emission on the Band Edge test 15.247(d) Pass FCC ID. : GV3M01004-M Report No.: EME-070794 Page 4 of 37 1. General information 1.1 Identification of the EUT Applicant : ACCO BRANDS, INC Product : Kensington ® SlimBlade TM Media Mouse Model No. : M01004-M FCC ID. : GV3M01004-M Frequency Range : 2402~2474MHz Channel Number : 13Channels Frequency of Each Channel : 2402+6k, k=0~12 Type of Modulation : GFSK Rated Power : 1.5Vdc from battery Power Cord : N/A Sample Received : Jul. 24, 2007 Test Date(s) : Aug. 08, 2007~ Aug. 09, 2007 1.2 Additional information about the EUT The EUT …

Text truncated - open the document above for the full version.

FCC ID. : GV3M01004-M Report No.: EME-070794 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-070794 Model No. : M01004-M Issued Date : Aug. 14, 2007 Applicant : ACCO BRANDS, INC 333 Twin Dolphin Drive, Sixth Floor, Redwood Shores, CA94065, USA Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 5 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Jimmie Liu Project Engineer Reviewed By Kevin Chen FCC ID. : GV3M01004-M Report No.: EME-070794 Page 2 of 5 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 FCC ID. : GV3M01004-M Report No.: EME-070794 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Kensington ® SlimBlade TM Media Mouse -Model: M01004-M FCC ID: GV3M01004-M Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Pass FCC ID. : GV3M01004-M Report No.: EME-070794 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is near by the human body (assume 0.1cm), the EUT was defined as a Portable Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited distance from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. This a portable/mobile device and the max peak output power is -0.52 dBm (0.00099 W). Lower that low threshold 60/f GHz mW (24.48 mW), d<2.5 cm general population category. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : GV3M01004-M Report No.: EME-070794 Page 5 of 5 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a portable device operates at 2412MHz and its maximum output power is 20mW, and the maximum gain of antenna is 1 (numeric) /0dBi. Then the power density (S) = (20 * 1)/4*π*(0.1) 2 = (mW/cm 2 ) 4. Test results Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 0 2402 0.77 0.74 0.000113431 1.0 6 2438 0.77 0.97 0.000109832 1.0 12 2474 0.77 0.99 0.000135435 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. Therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

Photo 1: Radiated Emission Test set-up photo M01004-M Photo 2: Radiated Emission Test set-up photo M01004-M
