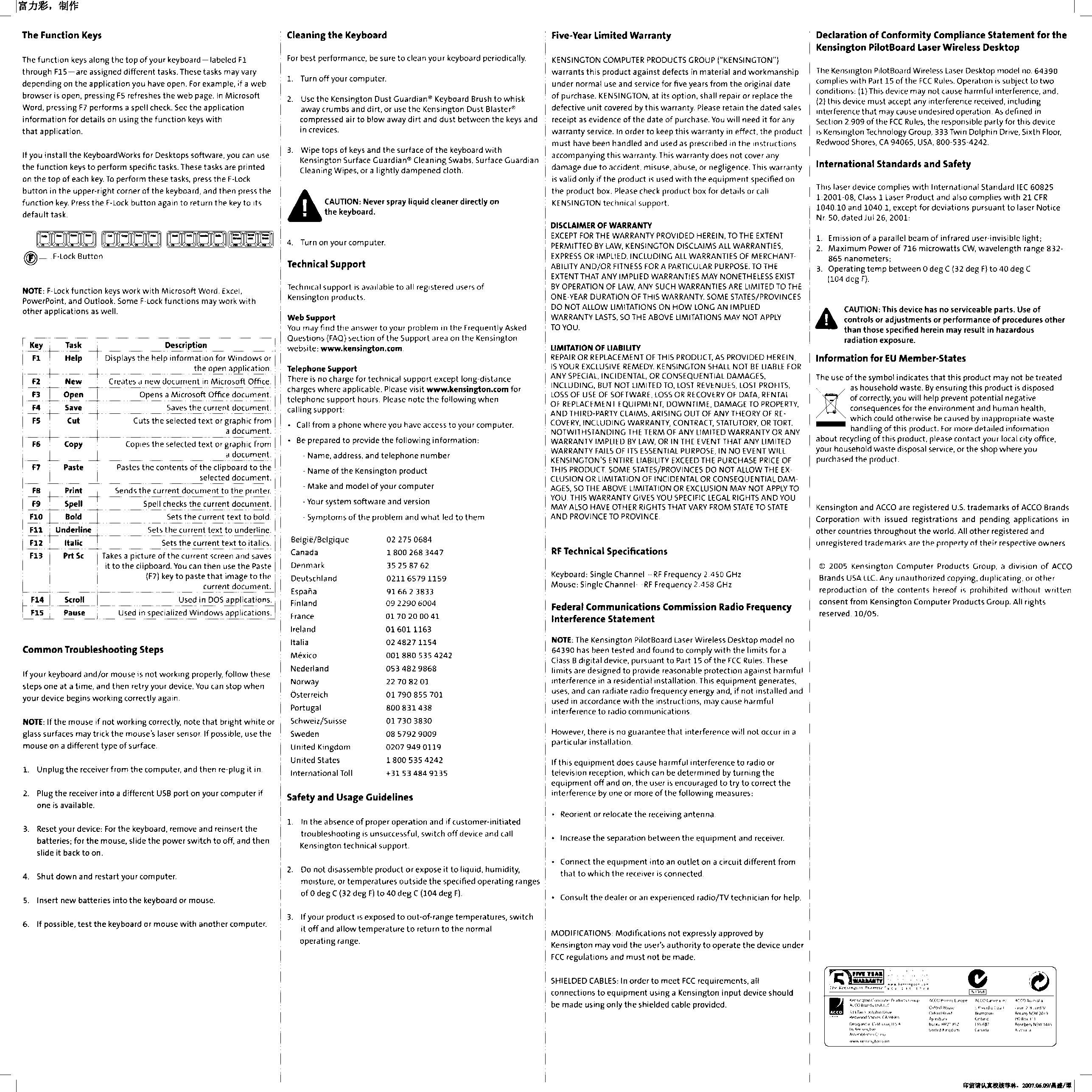

Getting Started Your PilotMouse Laser Wireless Pro provides unrivaled precision and convenience. To begin using your PilotMouse Laser Wireless Pro, you will need to: 1.Open the battery cover 2.Install the batteries 3.Plug the USB Wireless Receiver into a USB porton your computer. The PilotMouse Laser Wireless Pro will then be ready to use. Battery Installation Your PilotLaser Wireless Pro requires two (2) AA batteries (C). Insertthe batteries as indicated and replace the cover. Average battery life for your wireless mouse is 9–10 months, depending on usage. Making a Connection Plug the USB Wireless Receiver into a USB porton your computer. Make sure thatthe On/Off switch (G) on the underside of your mouse is in the “on”position Your mouse should now be ready to use. IMPORTANT: This wireless device is similar to an FM radio, the position of your computer and surrounding objects (especially metal objects) may effectyour wireless reception and range (average range is approximately 10 meters or 30 feet). NOTE: Unlike older optical mice, a laser mouse does notemitvisible light. Your new mouse will operate correctly even if you do notsee a light. Programming Your Mouse You may program your mouse buttons by downloading the latestversion of MouseWorks® software available atwww.software.kensington.com. The install is optional; your mouse will function withoutinstalling the software. MouseWorks is currently only available in English. Extending Battery Life To save battery power, turn off the mouse when notin use by sliding the On/Off switch (G) located on the bottom of your mouse to the “off”position. Common Troubleshooting Steps 1.Unplug and re-plug the receiver. Establish a new wireless connection. 2.Install a fresh setof batteries in the mouse. 3.Testthe device on another USB portor computer. 4.Some surfaces may “trick”the laser sensor, such as reflective surfaces like glass or mirrors. The laser sensor should perform well on all other surfaces. 5.If you would like to program buttons, have advanced acceleration control or seta restreminder, please visitwww.software.kensington.comto download the latestMouseWorks software. Be sure to install the correct version for your mouse. 6.To save battery power, turn off the mouse when notin use. Important: Computer User Health Information In recentyears, medical attention on occupational injuries has identified normal, seemingly harmless activities as a potential cause of a wide range of problems collectively known as Repetitive Stress Injuries (RSI) or Cumulative Trauma Disorders (CTD). Itis now recognized thatany repetitive motion may contribute to these health problems. As a computer user, you mightalso be atrisk. By paying attention to the way you perform your work, use your computer and phone, play sports, and work around the house, you can identify the behaviors thatmay be putting you atrisk. If you experience pain, swelling, numbness, or weakness in your wrists or hands (especially during sleep), see your physician immediately. These symptoms could mean that you are developing a repetitive stress injury thatrequires promptmedical attention. For more detailed information, consultyour doctor. Technical Support Technical supportis available to all registered users of Kensington products. There is no charge for technical supportexceptthe costof the phone call, and long distance charges where applicable. Technical SupportContactinformation can be found atthe end of this instruction guide. Technical SupportTips •You may find the answer to your problem in the Frequently Asked Questions (FAQ) section of the Supportarea on the Kensington Website: www.support.kensington.com. •Call from a phone where you have access to your computer •Be prepared to provide the following information: -Name, address, and telephone number -The name of the Kensington product -Make and model of your computer -Your system software and version -Symptoms of the problem and whatled to them 5-year Limited Warranty KENSINGTON COMPUTER PRODUCTS GROUP (“KENSINGTON”) warrants this productagainstdefects in material and workmanship under normal use and service for five years from the original date of purchase. KENSINGTON, atits option, shall repair or replace the defective unitcovered by this warranty. Please retain the dated sales receiptas evidence of the date of purchase. You will need itfor any warranty service. In order to keep this warranty in effect, the productmusthave been handled and used as prescribed in the instructions accompanying this warranty. This warranty does notcover any damage due to accident, misuse, abuse or negligence. This warranty is valid only if the productis used with the equipmentspecified on the product box. Please check productbox for details or call KENSINGTON technical support. DISCLAIMER OF WARRANTY EXCEPT FOR THE WARRANTY PROVIDED HEREIN, TO THE EXTENT PERMITTED BY LAW, KENSINGTON DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ALL WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT THAT ANY IMPLIED WARRANTIES MAY NONETHELESS EXIST BY OPERATION OF LAW, ANY SUCH WARRANTIES ARE LIMITED TO THE FIVE-YEAR DURATION OF THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. LIMITATION OF LIABILITY REPAIR OR REPLACEMENT OF THIS PRODUCT, AS PROVIDED HEREIN, IS YOUR EXCLUSIVE REMEDY. KENSINGTON SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST REVENUES, LOST PROFITS, LOSS OF USE OF SOFTWARE, LOSS OR RECOVERY OF DATA, RENTAL OF REPLACEMENT EQUIPMENT, DOWNTIME, DAMAGE TO PROPERTY, AND THIRD-PARTY CLAIMS, ARISING OUT OF ANY THEORY OF RECOVERY, INCLUDING WARRANTY, CONTRACT, STATUTORY OR TORT. NOTWITHSTANDING THE TERM OF ANY LIMITED WARRANTY OR ANY WARRANTY IMPLIED BY LAW, OR IN THE EVENT THAT ANY LIMITED WARRANTY FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL KENSINGTON’S ENTIRE …

Text truncated - open the document above for the full version.

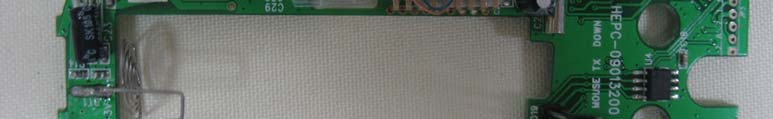

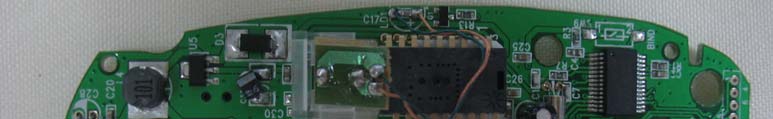

Project No.: 0706C142 Page 2 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 2 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 3 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 3 of 10 Neutron Engineering Inc. 0706C142 0706C142

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Project No.: 0706C142 Page 4 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 4 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 5 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 5 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 6 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 6 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 7 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 7 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 8 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 8 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 9 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 9 of 10 Neutron Engineering Inc. 0706C142 0706C142 Project No.: 0706C142 Page 10 of 10 Neutron Engineering Inc. 0706C142

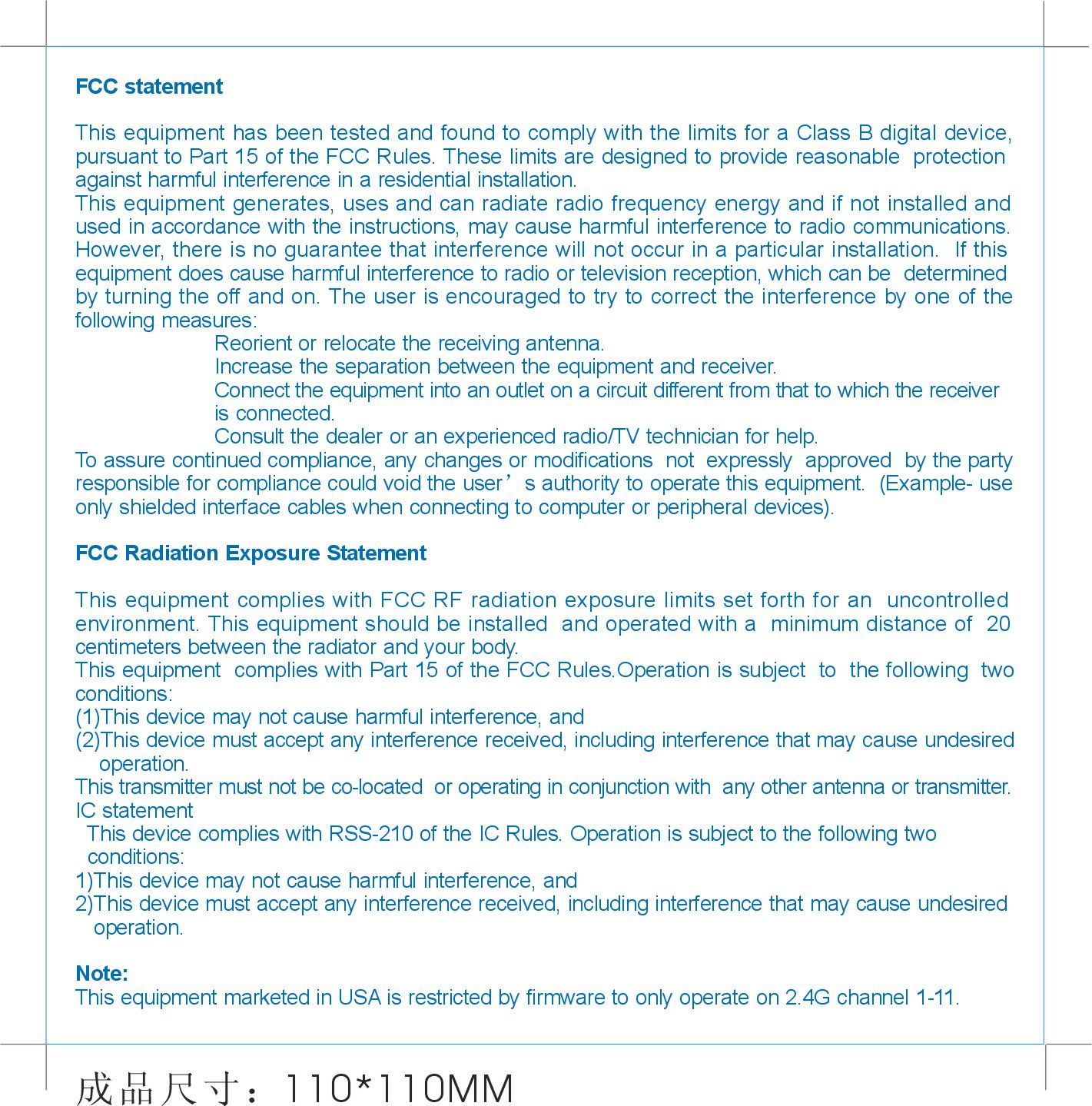

1.1. Test Result of RF Exposure Evaluation . Product: MOUSE . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is -0.19 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: FSK Test Date: Jul. 14, 2007 Temperature:25 °C Humidity: 60％ Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2402 -5.20 0.000058 09 2448 -3.39 0.000087 16 2480 -4.18 0.000073 The MPE is calculated as 0.000087 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2400-2483.5 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Report No.: NEI-FCCP-1-0706C142 Page 1 of 38 Neutron Engineering Inc. EMC TEST Report FCC ID: GV3M01006-M This report concerns (check one) : Original Grant Class I Change Issued Date : Jul. 12, 2007 Project No. : 0706C142 Equipment : MOUSE Model No. : M01006-M Applicant : ACCO Brands.lnc. Address: No.1333 Twin Dolphin Drive sixth Floor Redwood Shores CA 94065,USA Tested by: Neutron Engineering Inc. EMC Laboratory Date of Test: Jul. 07, 2007 ~ Jul. 12, 2007 Testing Engineer : (Jeff Yang) Technical Manager : (Steven Lu) Authorized Signatory : (Andy Chiu) NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr City, Taipei, Taiwan TEL : (02) 2646-5426 FAX : (02) 2646-6815 Report No.: NEI-FCCP-1-0706C142 Page 2 of 38 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-0706C142 Page 3 of 38 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 4 2 . SUMMARY OF TEST RESULTS 4 2.1 TEST FACILITY 4 2.2 MEASUREMENT UNCERTAINTY 4 3 . GENERAL INFORMATION 4 3.1 GENERAL DESCRIPTION OF EUT 4 3.2 DESCRIPTION OF TEST MODES 4 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 4 3.4 DESCRIPTION OF SUPPORT UNITS 4 4 . EMC EMISSION TEST 4 4.1 CONDUCTED EMISSION MEASUREMENT 4 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 4 4.1.2 MEASUREMENT INSTRUMENTS LIST 4 4.1.3 TEST PROCEDURE 4 4.1.4 DEVIATION FROM TEST STANDARD 4 4.1.5 TEST SETUP 4 4.1.6 EUT OPERATING CONDITIONS 4 4.1.7 TEST RESULTS 4 4.2 RADIATED EMISSION MEASUREMENT 4 4.2.1 RADIATED EMISSION LIMITS 4 4.2.2 MEASUREMENT INSTRUMENTS LIST 4 4.2.3 TEST PROCEDURE 4 4.2.4 DEVIATION FROM TEST STANDARD 4 4.2.5 TEST SETUP 4 4.2.6 EUT OPERATING CONDITIONS 4 4.2.7 TEST RESULTS (Between 30 – 1000 MHz) 4 4.2.8 TEST RESULTS (Above 1000 MHz) 4 4.2.9 TEST RESULTS (2400 – 2483.5 MHz) 4 4.2.10 TEST RESULTS (Restricted Bands Requirements) 4 5 . EUT TEST PHOTO 4 Report No.: NEI-FCCP-1-0706C142 Page 4 of 38 Neutron Engineering Inc. 1. CERTIFICATION Equipment : MOUSE Trade Name : Kensington M o d e l N o . : M01006-M A p p l i c a n t : ACCO Brands.lnc Data of Test : Jul. 07, 2007 ~ Jul. 12, 2007 Te s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.249) / RSS-210: 2004/ ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-0706C142) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and CNLA according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: NEI-FCCP-1-0706C142 Page 5 of 38 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission - N/A 15.249 Radiated Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: NEI-FCCP-1-0706C142 Page 6 of 38 Neutron Engineering Inc. 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS02 at the location of No.132-1, Lane 329, Sec. 2, Palain Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 A. Conducted Measurement : Test Site Method Measurement Frequency Range U，(dB) NOTE C01 ANSI 150 KHz ~ 30MHz 1.94 B. Radiated Measurement : Test Site Method Measurement Frequency Range Ant. H / V U，(dB) NOTE OS-01 ANSI 30MHz ~ 200MHz V 3.82 30MHz ~ 200MHz H 3.60 200MHz ~ 1,000MHz V 3.86 200MHz ~ 1,000MHz H 3.94 OS-02 ANSI 30MHz ~ 200MHz V 2.48 30MHz ~ 200MHz H 2.16 200MHz ~ 1,000MHz V 2.50 200MHz ~ 1,000MHz H 2.66 Report No.: NEI-FCCP-1-0706C142 Page 7 of 38 Neutron Engineering Inc. 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Equipment MOUSE Trade Name Kensington Model No. M01006-M OEM Brand/Model No. N/A Model Difference N/A Product Description The EUT is a MOUSE. Product Type Low Power Communication Device Operation Frequency: 2402~2480 MHz Modulation Type: FSK Number Of Channel 16 CH Antenna Designation: Integra Antenna Gain(Peak) -0.19dBi Output Power: 86.14 dBuv/m (AV Max.) Based on the application, features, or specification exhibited in User's …

Text truncated - open the document above for the full version.

Report No.: NEI-CANADA-1-0706C142 Page 42 of 43 Neutron Engineering Inc. Radiated Measurement Photos TX mode Report No.: NEI-CANADA-1-0706C142 Page 42 of 43 Neutron Engineering Inc. Radiated Measurement Photos TX mode Report No.: NEI-CANADA-1-0706C142 Page 43 of 43 Neutron Engineering Inc. Radiated Measurement Photos RX mode Report No.: NEI-CANADA-1-0706C142 Page 43 of 43 Neutron Engineering Inc. Radiated Measurement Photos RX mode
