GV3M01084-DWireless Presenter Pro with green Laser Pointer

23 901-2410-00 KL ACCO Brands Europe Oxford House Oxford Road Aylesbury Bucks, HP21 8SZ United Kingdom ACCO Brands Canada 5 Precidio Court Brampton Ontario, L6S 6B7 Canada Kensington Computer Products Group A Division of ACCO Brands 333 Twin Dolphin Drive, 6th Floor Redwood Shores, CA 94065 Designed in California, U.S.A. by Kensington Made in China www.kensington.com ACCO Australia Level 2, 8 Lord St Botany NSW 2019 PO Box 311 Rosebery NSW 1445 Australia N1368 Technical Support / Assistance technique / Technischer Support / Technische ondersteuning / Supporto tecnico / Asistencia técnica / Műszaki támogatás / Technická podpora / Pomoc techniczna /    / Assistência técnica België / Belgique 02 275 0684 Canada 1 800 268 3447 Denmark 35 25 87 62 Deutschland 0211 6579 1159 España 91 662 38 33 Finland 09 2290 6004 France 01 70 20 00 41 Hungary 20 9430 612 Ireland 01 601 1163 Italia 02 4827 1154 México 55 15 00 57 00 Nederland 053 482 9868 Norway 22 70 82 01 Österreich 01 790 855 701 Portugal 800 831 438 Russia 007 495 933 5163 Schweiz / Suisse 01 730 3830 Sweden 08 5792 9009 United Kingdom 0207 949 0119 United States 1 800 535 4242 International Toll +31 53 484 9135 Wireless Presenter Pro with Green Laser Pointer Instruction Guide Használati útmutató Guide d’instructions Příručka s pokyny Bedienungsanleitung Instrukcja obsługi Handleiding   Istruzioni Manual de instruções Manual de instrucciones Contents / Contenu / Inhalt / Inhoud / Contenuto / Contenido / Tartalomjegyzék / Obsah / Zawartość opakowania /  / Conteúdo INSTRUCTION GUIDE 23 Laser pointer / Pointeur laser / Laserpointer / Laseraanwijzer / Puntatore laser / Puntero láser / Lézeres mutató / Laserový ukazatel / Wskaźnik laserowy / Лазерная указка / Apontador laser Next / Suivant / Weiter / Volgende / Avanti / Siguiente / Tovább / Další / Dalej / Далее / Apontador laser Black screen / Écran vide / Schwarzer Bildschirm / Zwart scherm / Schermo nero / Pantalla negra / Fekete képernyő / Černá obrazovka / Wygaszony ekran / Черный экран / Ecrã a preto Previous / Précédent / Zurück / Vorige / Precedente / Anterior / Előző / Předchozí / Wstecz / Назад / Anterior Getting Started / Démarrage / Erste Schritte / Aan de slag / Introduzione / Introducción / Első lépések / Začínáme / Przygotowanie do pracy /    / Introdução 1 2 3 On/Off Switch / Interrupteur Marche/Arrêt / Ein-/Ausschalter / Aan-uit-schakelaar / Interruttore On/Off / Interruptor de encendido/apagado / BE/KI kapcsoló / Vypínač / Włączanie/wyłączanie / Выключатель питания / Interruptor On/Off (Ligado/Desligado) ActionLED behavior Power On / Marche / Einschalten / Inschakelen / Acceso / Alimentación encendida / Bekapcsolva / Zapnutí / Włączone zasilanie / Питание вкл / Alimentação ligada Green on (3 secs) / Voyant vert allumé (3 secs) / Grüne LED an (3 Sek.) / Groen aan (3 sec.) / Verde - Acceso (3 sec.) / Verde encendido (3 segundos) / Zöld lámpa bekapcsolva (3 mp) / Svítí zelená (3 sek.) / Świeci na zielono (3 s) / Зеленый горит (3 сек.) / Verde aceso (3 seg.) Laser On / Laser allumé / Laser an / Laser aan / Laser acceso / Láser encendido / Lézer bekapcsolva / Zapnutí laseru / Włączony laser / Лазер вкл / Laser ligado Green On / Voyant vert allumé / Grüne LED an / Groen aan / Verde - Acceso / Verde encendido / Zöld lámpa bekapcsolva / Svítí zelená / Świeci na zielono / Зеленый горит / Verde aceso Low Battery / Voyant de batterie faible / Akku fast leer / Batterij bijna leeg / Batteria scarica / Nivel de batería bajo / Akkumulátor kimerülőben / Slabá baterie / Niski stan baterii / Низкий уровень заряда батареи / Bateria Fraca Red Blinking / Voyant rouge clignotant / Rote LED blinkt / Rood knipperend / Rosso lampeggiante / Rojo parpadeando / Villogó piros lámpa / Bliká červená / Miga na czerwono / Красный мигает / Vermelho a piscar 150' (50m) max. 150’ (50m) max. Maximal 50 m (150 Fuß) Max. 50 meter (150 voet) 50 m max 150’ (50m) máx. 150’ (50m) max. Max. 150’ (50m). 150’ (50m) maks. 150’ (50 м) макс. 150’ (50m) máx. 45 English Registering Your Kensington Product Register your Kensington product online at www.kensington.com. CAUTION! IMPORTANT SAFETY INSTRUCTIONS The Wireless Presenter Pro with Green Laser Pointer includes a built-in laser pointer. Therefore, as with any laser pointer, it is important to adhere to the following warnings and safety instructions to prevent injury: • Never shine a laser pointer into a person’s eyes, or stare into the laser beam. Pointing a laser pointer into a person’s eyes, or staring directly at the laser beam, can cause instant temporary vision dysfunction such as flash blindness, disorientation or glare. This can be particularly dangerous if the exposed person is engaged in a vision-critical activity such as driving. In addition, prolonged and/or repeated exposure to the laser beam can be hazardous and damaging to eyes. • Never aim a laser pointer anywhere on any or person or animal. Laser pointers are designed to illustrate inanimate objects only. In some states and provinces, it is illegal to aim a laser pointer on a law enforcement officer or on any other person. The purchaser/user is responsible for insuring that his or her use of the laser pointer conforms to any local laws. • Do not point a laser pointer at mirror-like surfaces. A reflected beam can act like a direct beam on the eye. • Laser pointers are not toys. Do not allow a minor to use a pointer unsupervised. In some states and provinces, it is illegal for a minor to purchase and/or use a pointer. The purchaser/user is responsible for insuring that his or her purchase or use of the laser pointer conforms to any local laws. Technical Support Technical support is available to all registered users of Kensington products. There is no charge for technical support except the cost of the phone call, and long distance charges where applicable. Technical Support Contact information can be found on the back page of this manual. T…

Text truncated - open the document above for the full version.

FCC ID: GV3M01084-D

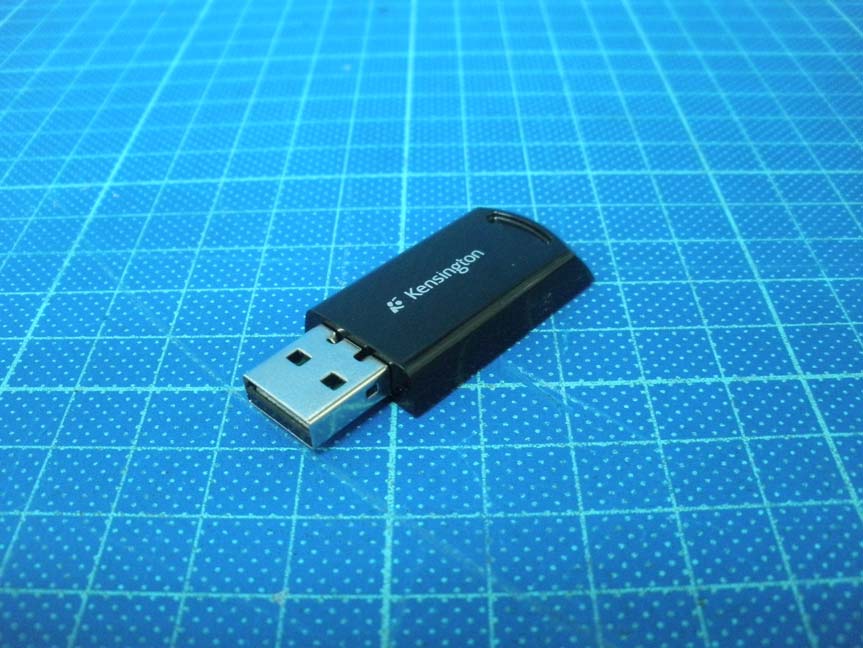

External photo of EUT

FCC ID Location

Internal photo of EUT Antenna

FCC ID. : GV3M01084-D Report No.: TS10030081-EME Page 1 of 24 EMC TEST REPORT Report No. : TS10030081-EME Model No. : M01084-D Issued Date : Apr. 19, 2010 Applicant: ACCO Brands, Inc. 333 Twin Dolphin Drive, 6 th Floor, Redwood Shores, CA 94065 Test Method/ Standard: 47 CFR FCC Part 15.249 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Sunny Liu / Senior Officer These measurements were taken by: Sign on File Leon Cheng / Engineer The test report was reviewed by: Name Jacky Chen Title Engineer FCC ID. : GV3M01084-D Report No.: TS10030081-EME Page 2 of 24 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT........................................................................................ 4 1.2 Additional information about the EUT ................................................................... 5 1.3 Antenna description ................................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard ........................................................................................................... 6 2.2 Operation mode ...................................................................................................... 6 2.3 Test equipment........................................................................................................ 7 3. Radiated emission test .................................................................................................. 8 3.1 Operating environment ........................................................................................... 8 3.2 Test setup & procedure ........................................................................................... 8 3.3 Emission limit......................................................................................................... 9 3.3.1 Fundamental and harmonics emission limits ...................................................... 9 3.3.2 General radiated emission limits ......................................................................... 9 3.4 Radiated spurious emission test data .................................................................... 10 3.4.1 Measurement results: frequencies equal to or less than 1 GHz ......................... 10 3.4.2 Measurement results: frequency above 1GHz....................................................11 3.4.3 Measurement results: Fundamental emission.................................................... 14 4. Radiated emission on the band edge FCC 15.209 ...................................................... 15 6. Calculation of Average Factor .................................................................................... 21 FCC ID. : GV3M01084-D Report No.: TS10030081-EME Page 3 of 24 Summary of Tests Test Reference Results Radiated Emission test 15.249(a), (c), (d), 15.209 Pass Emission on the Band Edge 15.209 Pass Conducted Emission of AC Power 15.207 Pass Calculation of Average Factor 15.35 Pass FCC ID. : GV3M01084-D Report No.: TS10030081-EME Page 4 of 24 1. General information 1.1 Identification of the EUT Product: Wireless Presenter Pro with Green Laser Pointer Model No.: M01084-D (Receiver) FCC ID.: GV3M01084-D Frequency Range: 2412 MHz ~ 2472 MHz Channel Number: 5 channels Frequency of Each Channel: 2412 MHz, 2427 MHz, 2450 MHz, 2467 MHz, 2472 MHz Type of Modulation: GFSK Rated Power: DC 5 V from Notebook PC Power Cord: N/A Data Cable: N/A Sample Received: Mar. 12, 2010 Test Date(s): Apr. 13, 2010 ~ Apr. 15, 2010 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. : GV3M01084-D Report No.: TS10030081-EME Page 5 of 24 1.2 Additional information about the EUT The EUT is a Wireless USB dongle and was defined as information technology equipment. For more detail features, please refer to User's manual as file name “Installation guide.pdf” 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Type : PCB printed antenna Connector Type : N/A 1.4 Peripherals equipment Peripherals Brand Model No. Serial No. Description of Data Cable Notebook PC DELL Latitude D6102YWZK1S N/A FCC ID. : GV3M01084-D Report No.: TS10030081-EME Page 6 of 24 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 …

Text truncated - open the document above for the full version.

Conducted Emission Test set-up photo Radiated Emission Test set-up photo
