GV3M01092-DPro FitTM 2.4GHz Wireless USB Dongle

ACCO Brands, Inc.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 12, 2010
Application Purpose: Original Equipment
Date of Application: Apr 12, 2010
Equipment Note: Pro FitTM 2.4GHz Wireless USB Dongle
Frequency Range: 2418.00000000 - 2463.00000000
Company: ACCO Brands, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AB E CD QUICK START G U I DE N1368 Kensington Computer Products GroupA Division of ACCO Brands333 Twin Dolphin Driv e, 6th FloorRedwood Shores, CA 94065 Made in Chinawww.kensington.com ACCO Brands EuropeOxford HouseOxford RoadAylesburyBucks, HP21 8SZUnited KingdomACCO Brands Canada5 Precidio CourtBrampton Ontario, L6S 6B7 Canada ACCO AustraliaLevel 2, 8 Lord StBotany NSW 2019PO Box 311Rosebery NSW 1445Australia 901-2383-00KL Pointer Speed Adjust / Réglage de la vitesse du pointeur / Anpassung der Zeigergeschwindigkeit / Snelheid van de muisaanwijzer aanpassen / Regolazione velocità puntatore / Ajuste de velocidad de puntero / Állítsa be a mutató sebességét / Upravte rychlost ukazatele / Dostosuj szybkość wskaźnika / Настройка скорости движения указателя / Ajuste da velocidade do ponteiro A. Wireless Mouse / Souris sans fil / Kabellose Maus / draadloze muis / Mouse wireless / Ratón inalámbrico / Vezeték nélküli egér / Bezdrátová myš / Mysz bezprzewodowa / Беспроводная мышь / Rato sem fios B. Wireless USB receiver / Récepteur USB sans fil / Kabelloser USB-Empfänger / Draadloze USB-ontvanger / Ricevitore wireless USB / Receptor USB inalámbrico / USB vezeték nélküli vevőegység / USB bezdrátový přijímač / Odbiornik bezprzewodowy USB / Беспроводной USB-приемник / Receptor USB sem fios Pro Fit™ 2.4 GHz Wireless Mid-Size MouseQUICK START GUIDEGUIDE DE DEMARRAGE RAPIDEKURZANLEITUNGSNELSTARTGIDSGUIDA RAPIDAGUÍA RÁPIDA C. Quick start guide / Guide de demarrage rapide / Kurzanleitung / Snelstartgids / Guida rapida / Guía rápida / Gyorskalauz / Příručka začínáme / Szybki start / Kраткое руководство пользователя / Manual de início rápido D. Warranty / Livret de garantie / Garantiekarte / Garantiekaart / Scheda di garanzia / Tarjeta de garantía / Garanciakártya / Záruční list / Karta gwarancyjna / Гарантийный талон / Cartão de garantia E. 2 ‘AAA’ batteries / 2 piles AAA / 2 AAA-Batterien / 2 AAA-batterijen / 2 batterie AAA / 2 pilas AAA / 2 AAA akkumulátorok / 2 baterie AAA / 2 baterie AAA / 2 батареи типа AAA / 2 pilhas AAA English Common Troubleshooting Steps1. Unplug and re-plug the receiver.2. Install a fresh set of batteries in the mouse.3. Follow steps below to re-establish a wireless connection.4. Test the device on another USB port or computer.5. Some surfaces (including reflective surfaces like glass or mirrors) may “trick” the optical sensor. Use of a mousepad is recommended in these cases. Re-Establishing A Wireless ConnectionWith the USB receiver in position and mouse turned on, press the “connect” button on the receiver, and within 6 seconds, also press the “connect” button on the bottom of the mouse.Web SupportYou may find the answer to your problem in the Frequently Asked Questions (FAQ) section of the Support area on the Kensington Website: www.support.kensington.com. Telephone SupportThere is no charge for technical support except long-distance charges where applicable. Please visit www.kensington.com for telephone support hours. In Europe, technical support is available by telephone Monday to Friday 09:00 to 21:00 (Central European time). When calling support, please call from a phone where you have access to your device, and be ready to provide:t :PVSOBNF BEESFTT BOEUFMFQIPOFOVNCFSt /BNFPGUIF,FOTJOHUPOQSPEVDUt .BLFBOENPEFMPGZPVSDPNQVUFS BOEPQFSBUJOHTZTUFN Deutsch Allgemeine Maßnahmen zur Fehlerbehebung1. Ziehen Sie den Empfänger ab, und stecken Sie ihn wieder ein. 2. Legen Sie einen neuen Satz Batterien in die Maus ein.3. Befolgen Sie die folgenden Schritte, um eine kabellose Verbindung erneut herzustellen. 4. Testen Sie das Gerät über einen anderen USB-Anschluss oder an einem anderen Computer. 5. Einige Oberflächen (z. B. reflektierende Oberflächen wie etwa Glas oder Spiegel) „überlisten“ den Sensor der Maus. In diesem Fall empfiehlt sich die Verwendung eines Mauspads. So stellen Sie eine kabellose Verbindung erneut her:Drücken Sie bei ordnungsgemäß positioniertem USB-Empfänger und eingeschalteter Maus auf die Verbindungstaste am Empfänger und innerhalb von 6 Sekunden zusätzlich auf die Verbindungstaste an der Unterseite der Maus.Unterstützung über das InternetViele Probleme lassen sich bereits mithilfe der „Häufig gestellten Fragen“ (Frequently Asked Questions, (FAQ)) im Unterstützungsbereich auf der Kensington-Website lösen: www.support.kensington.com. Telefonische UnterstützungMit Ausnahme von eventuellen Ferngesprächsgebühren entstehen keine Kosten für die technische Unterstützung. Die Geschäftszeiten der telefonischen Unterstützung entnehmen Sie bitte unserer Website www.kensington.com. In Europa sind wir telefonisch für Sie da: von Montag bis Freitag zwischen 9:00 und 21:00 Uhr.Benutzen Sie für Anrufe beim Support ein Telefon, von dem aus Sie Zugriff auf das Gerät haben, und halten Sie die folgenden Informationen bereit:t /BNF "OTDISJGU 5FMFGPOOVNNFSt #F[FJDIOVOHEFT,FOTJOHUPO1SPEVLUTt )FSTUFMMFSVOE.PEFMMEFT$PNQVUFSTTPXJFEFT#FUSJFCTTZTUFNT GYORSKALAUZPŘÍRUČKA ZAČÍNÁMESZYBKI STARTКРАТКОЕ РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯMANUAL DE INÍCIO RÁPIDO Contents / Contenu / Inhalt / Inhoud / Contenuto / Contenido / Tartalom / Obsah / Spis treści / Содержание / Conteúdo Français Conseils de dépannage1. Débranchez et rebranchez le récepteur.2. Installez des piles neuves dans la souris3. Suivez les étapes ci-dessous pour rétablir une connexion sans fil.4. Testez le dispositif sur un autre port USB ou sur un autre ordinateur. 5. Certaines surfaces (y compris les surfaces réfléchissantes telles que le verre ou les miroirs) peuvent « tromper » le capteur optique. Dans ces cas, il est recommandé d’utiliser un tapis de souris. Pour établir une nouvelle connexion sans fil :Une fois le récepteur USB positionné et la souris en marche, appuyez sur le bouton « connect » du récepteur et, dans les 6 secondes, appuyez également sur le bouton « connect » situé sous la souris.Assistance WebIl se peut que vous trouviez une solution à votre problème dans la Foire aux questions (FAQ)…

Text truncated - open the document above for the full version.

Block Diagram

2.4G RF CHIP A7105 REC MCU SN8F2271 CRYSTAL 16MHz ANT USB PORT PC

Cover Letter(s)

ACCO Brands, Inc. Date:2010-04-12 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: GV3M01092-D To Whom It May Concern: This letter is to ascertain that ACCO Brands, Inc.. Product Pro FitTM 2.4GHz Wireless Mid-size Mouse. (M/N: M01092-D) has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely,

External Photos

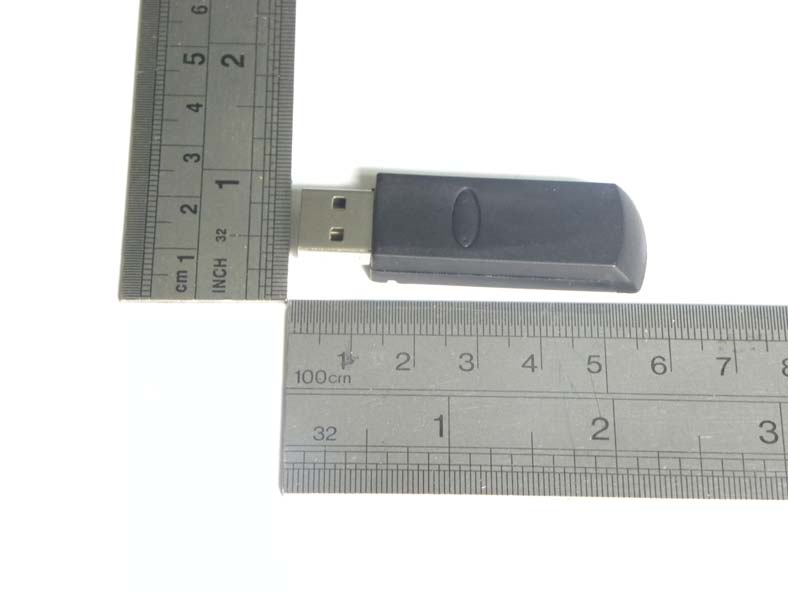

General Appearance of the EUT

ID Label/Location Info

IC ID Lable Location On EUT

Operational Description

Operation Description The power of the remote unit is provided by USB. The oscillation and emission circuit is controlled by the output of the transmitter chipset A7105. While the RFout pin of A7105 is high the oscillation and emission circuit will be turned on and send out the radio frequency signal. While the RFout pin of A7105 is low the oscillation and emission circuit will be turned off and send out nothing. This procedure generates a GFSK modulated radio frequency signal. In the condition without key pressed ,the transmitter MCU SN8P2213 stays in the sleeping mode and its output is low and the oscillation and emission circuit to be turned off and without radio frequency signal output. When any key is pressed, the transmitter MCU SN8P2213 will read the EEPROM for configuration progressing, Then the transmitter chip A7105 send out a coded signal and this signal to modulate a 2.4GHz oscillation circuit base on a 16MHz Crystal to generate a GFSK modulation radio frequency signal. This modulation signal is directly sent out by transmitter chip A7105 through a antenna matching network.

Schematics

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 25-Jan-2010 Sheet of File: F:\news\SONIX\TM081G-A5090.DDB Drawn By: 1234 CON1USB CON USB-USB+ D+D- C190.1U C1710U R424R524 BUTTON SW-ID_1SW-PB\2P RSSI 1 BPBG 2 RFI 3 RFO 4 VDA2 5 VT 6 GND 7 XI 8 XO 9 VDA3 10 SCS 11 SCK 12 DVDD 13 SDIO 14 GND 15 CKO 18 GIO2 17 GIO1 16 REGI 19 VDA1 20 U1 A7105PKG C7120pF C81.5nF C1022pF C6 10pF ANT C11100pF C12 NC REGOA C30.1uF C9 680pF C1310nF REGOA REGOA RF_SCSRF_SCKVDD_DRF_SDIO RF_GIO1 RF_GIO2 RF_CKO C2 2.2uF C12.2uF C161pF C42.2uF C50.1uF V33 VDD L22.2nH L4 0R L31.2nH R1NC R2200 C1533pF C1433pF Y1 CRYSTAL XOUT XIN R61K R71K RF_SCS SCS_MCU Dongle 2271(A7105PKG) RF_SDIOVDDRF_GIO2RF_SCK RF_GIO1 SCS_MCU BUTTON C230.1U C1810U D- D+ V33 C211uF XOUT XIN 2008.10.29 VREG33 16 DN 15 DP 14 VSS 13 VDD 1 P0.1/INT0 2 P5.0/SCK 3 P5.2/SDO 4 VREG25 12 P1.4 11 P1.6/RST 10 P1.3 9 P5.1/SDI 5 P1.0 6 P1.1 7 P1.2 8 U2Component_1 L5 2.7nH C221pF C200.5pF P1.3 P1.3 1 J1CON/1P 1.27 1 J5CON/1P 1.27 1 J2CON/1P 1.27 1 J3CON/1P 1.27 1 J7CON/1P 1.27 1 J6CON/1P 1.27 1 J4CON/1P 1.27

Test Report

DONGGUAN EMTEK CO., LTD. REPORT NO: ED10040016-1 FCC ID: GV3M01092-D DATE: 04/08/2010 Page 1 of 28 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Pro Fit TM 2.4GHz Wireless Mid-size Mouse. MODEL No.: M01092-D BRAND NAME: FCC ID: GV3M01092-D REPORT NO: ED10040016-1 ISSUE DATE: April 08, 2010 Prepared for ACCO Brands, Inc. 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, 94065, U.S.A Prepared by DONGGUAN EMTEK CO., LTD No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK CO., LTD. REPORT NO: ED10040016-1 FCC ID: GV3M01092-D DATE: 04/08/2010 Page 2 of 28 VERIFICATION OF COMPLIANCE Applicant: ACCO Brands, Inc. 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA, 94065, U.S.A Product Description: Pro Fit TM 2.4GHz Wireless Mid-size Mouse. Brand Name: Model Number: M01092-D File Number: ED10040016-1 Date of Test: January 14, 2010 to March 30, 2010 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Approved By Nicol Lee / Q.A. Manager DONGGUAN EMTEK CO., LTD. DONGGUAN EMTEK CO., LTD. REPORT NO: ED10040016-1 FCC ID: GV3M01092-D DATE: 04/08/2010 Page 3 of 28 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ........................................................................................................4 1.1 PRODUCT DESCRIPTION........................................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 4 1.3 TEST METHODOLOGY.............................................................................................................................. 4 1.4 SPECIAL ACCESSORIES............................................................................................................................ 4 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. CONDUCTED EMISSIONS TEST ..................................................................................... 11 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 11 5.4 CONDUCTED EMISSION LIMIT................................................................................................................ 12 5.5 MEASUREMENT RESULT:....................................................................................................................... 12 5.6 CONDUCTED MEASUREMENT PHOTOS: .................................................................................................. 15 6. RADIATED EMISSION TEST ......................................................................................................16 6.1 MEASUREMENT PROCEDURE................................................................................................................. 16 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 17 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 18 6.4 OUT OF BAND RADIATED MEASUREMENT RESULT.............................................................................. 18 6.5 RADIATED MEASUREMENT PHOTOS:.................................................................................................... 22 7. BAND EDGE .................................................................................................................................... 23 8. ANTENNA APPLICATION ........................................................................................................... 25 8.1 ANTENNA REQUIREMENT........................................................................................................................... 2…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emission Setup Photos Conducted Emission Setup Photos
