GV3M01125-DWireless Security Tether & Case

2 Register Now! Enregistrer maintenant ! Jetzt registrieren! Nu registreren Registrar ahora Registra adesso Registe-se agora! register.kensington.com BungeeAir ™ Protect Wireless Security Tether ™ & Case Contents / Contenu / Inhalt / Inhoud / Contenuto / Contenido / Conteúdo QUICK START GUIDE GUIDE DE DEMARRAGE RAPIDE KURZANLEITUNG SNELSTARTGIDS GUIDA RAPIDA GUÍA RÁPIDA MANUAL DE INÍCIO RÁPIDO 3 Product Set-Up Congratulations on your purchase You are almost done. Follow these 3 simple steps to get the full functionality from your BungeeAir™ Protect. 1. From your iPhone search on the App Store SM for: BungeeAir and download the free BungeeAir app. 2. Attach the BungeeAir adaptor to your iPhone 4 as detailed in the following pages. 3. Launch the BungeeAir app. The following steps are recommended. These steps will allow the BungeeAir app to trigger an immediate screen lock and require the entry of your unique passcode to unlock the screen thus providing optimum protection for your stored information. 1. On your iPhone 4 go to Settings -> General -> Passcode Lock. 2. Set the “Require Passcode” duration to: Immediately. 3. If not enabled press “Turn Passcode On” and input a passcode. Do not forget your passcode as you will need this if the iPhone 4 screen should lock. The following pages will guide you through the set-up, charging, tether, and “Find My” functionality of Kensington’s BungeeAir Protect product. Configuration du produit Nous vous remercions de votre achat Vous avez presque terminé. Veuillez suivre ces trois étapes simples pour profiter de toutes les fonctionnalités de votre BungeeAir™ Protect. 1. Recherchez « BungeeAir »avec votre iPhone dans l’App Store SM et téléchargez l’app gratuite BungeeAir. 2. Attachez votre adaptateur BungeeAir à votre iPhone 4 en suivant les indications des pages suivantes. 3. Lancez l’app BungeeAir. Nous vous recommandons de suivre les étapes suivantes. Ces étapes vont permettre à l’app BungeeAir de verrouiller immédiatement votre écran. Votre code secret unique vous permettra de le déverrouiller et vos informations seront protégées de façon optimale. 1. Sur votre iPhone 4, accédez à Réglages -> Général -> Verrouillage par code. 2. Réglez la durée de « Exiger le code » sur : Immédiatement. 3. Si le code n’est pas activé, appuyez sur « Activer le code » et entrez un mot de passe. N’oubliez pas votre mot de passe. Vous en aurez besoin pour déverrouiller l’écran de votre iPhone 4. 54 Les pages suivantes vont vous aider à configurer, charger, relier et utiliser la fonctionnalité « Trouver mon » du produit BungeeAir Protect de Kensington. Inbetriebnahme des Produkts Herzlichen Glückwunsch zum Erwerb Sie sind so gut wie fertig. Führen Sie die folgenden 3 einfachen Schritte aus und Sie können sämtliche Funktionen von BungeeAir™ Protect nutzen. 1. Suchen Sie über Ihr iPhone im App Store SM nach „BungeeAir“ und laden Sie die kostenlose BungeeAir App herunter. 2. Bringen Sie den Adapter an Ihrem iPhone 4 an, wie dies auf den folgenden Seiten beschrieben wird. 3. Starten Sie die BungeeAir App. Es empfiehlt sich, die folgenden Schritte auszuführen. Mit diesen Schritten wird die BungeeAir App in die Lage versetzt, eine sofortige Bildschirmsperre auszulösen, die nur mit Ihrem eindeutigen Code entsperrt werden kann, was für einen optimalen Schutz Ihrer gespeicherten Informationen sorgt. 1. Wählen Sie auf dem iPhone 4 „Einstellungen“ -> „Allgemein“ -> „Code- Sperre“ aus. 2. Legen Sie unter „Code anfordern“ für die Dauer fest: Sofort. 3. Drücken Sie, sofern noch keine Aktivierung besteht, auf „Code aktivieren“ und geben Sie ein Kennwort ein. Vergessen Sie Ihr Kennwort nicht. Sie benötigen es, um den Bildschirm Ihres iPhone 4 zu entsperren. Auf den folgenden Seiten finden Sie eine Anleitung für das Einrichten, Laden, Verbinden und für die Verwendung der Suchfunktion des Kensington BungeeAir Protect. Productinstallatie Gefeliciteerd met uw aankoop U bent bijna klaar. Voer de volgende 3 eenvoudige stappen uit om de volledige functionaliteit uit uw BungeeAir™-voeding te halen. 1. Zoek vanaf uw iPhone in de App Store SM naar “BungeeAir” en download de gratis BungeeAir-toepassing. 2. Bevestig de adapter aan uw iPhone 4 volgens de aanwijzingen op de volgende pagina’s. 3. Start de BungeeAir-toepassing. De volgende stappen worden aanbevolen. Door deze stappen uit te voeren kan de BungeeAir-toepassing een onmiddellijke schermvergrendeling uitvoeren en de invoer van een unieke wachtwoordcode afdwingen om het scherm te ontgrendelen, waardoor uw opgeslagen informatie optimaal wordt beschermd. 1. Ga op uw iPhone 4 naar Instellingen -> Algemeen -> Codeslot. 2. Stel de duur van “Vraag om code” in op: Direct. 3. Druk bij niet-inschakeling op “Zet code aan” en geef uw wachtwoord op. Zorg ervoor dat u uw wachtwoord niet vergeet, aangezien u dit nodig hebt als het iPhone 4-scherm wordt vergrendeld. De volgende pagina’s bieden een kennismaking met de installatie, het opladen, de band en de functionaliteit van “Zoek mijn” van uw BungeeAir- voedingsproduct van Kensington. Installazione del prodotto Congratulazioni per l’acquisto Le operazioni sono state quasi completate. Per usufruire di tutte le funzionalità di BungeeAir™ Protect, seguire questi 3 semplici passaggi. 1. Dall’iPhone cerca “BungeeAir” su App Store SM e scarica l’app gratuita BungeeAir. 2. Collega l’adattatore BungeeAir all’iPhone 4 come spiegato nelle pagine seguenti. 3. Avviare l’applicazione BungeeAir. Si consiglia di eseguire i seguenti passaggi, che consentono di attivare un blocco di schermata immediato e richiedere l’immissione di un codice univoco per sbloccare lo schermo offrendo una protezione ottimale delle informazioni archiviate. 1. Nell’iPhone 4 passare a Impostazioni -> Generali -> Blocco con codice. 2. Impostare la durata “Richiedi codice” su: Subito. 3. Premere “Abilita codice”, se non è già abilitato e inserire una password. Memorizzare la password poiché verrà richiesta in caso di blocco dello schermo dell’iP…

Text truncated - open the document above for the full version.

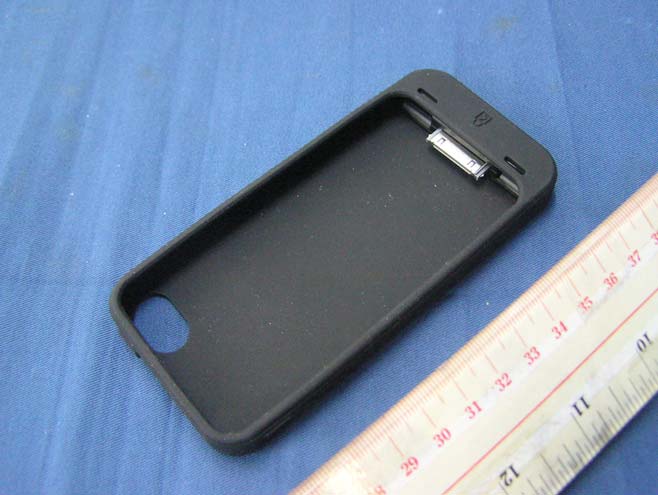

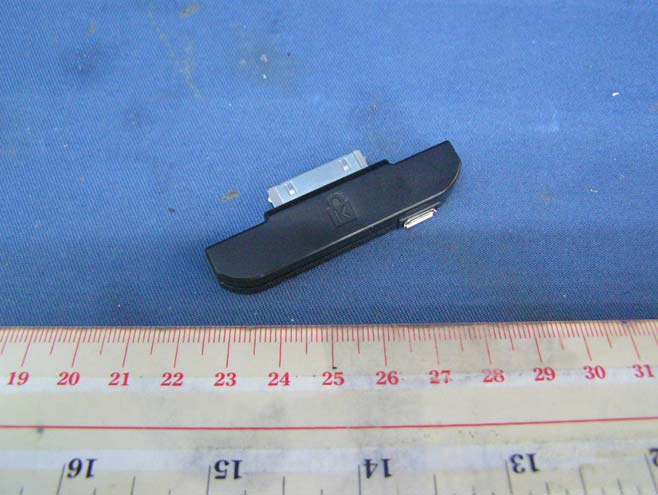

INTERTEK TESTING SERVICE Report No.: HK11080696-1 FCC ID: GV3M01125-D Equipment Photographs Model : M01125-D (External) INTERTEK TESTING SERVICE Report No.: HK11080696-1 FCC ID: GV3M01125-D Equipment Photographs Model : M01125-D (External)

Label Artwork FCC ID: GV3M01125-D IC: 6128A-M01125D Label size: 53mm X 11mm Label location

INTERTEK TESTING SERVICE Report No.: HK11080696-1 FCC ID: GV3M01125-D Equipment Photographs Model : M01125-D (Internal) INTERTEK TESTING SERVICE Report No.: HK11080696-1 FCC ID: GV3M01125-D Equipment Photographs Model : M01125-D (Internal)

INTERTEK TESTING SERVICES Report No.: HK11080696-1 Sample No.: 1/2 (Docking) Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement

Report no.: HK11080696-1 Mode: Transmitting mode Ctrl No.: 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.AUG.2011 09:37:17 Report no.: HK11080696-1 Mode: Transmitting mode Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 41.27 N -24.47 2 CISPR Average195 kHz 34.43 N -19.38 2 CISPR Average514.5 kHz 27.06 N -18.93 2 CISPR Average577.5 kHz 25.34 N -20.65 2 CISPR Average834 kHz 25.38 N -20.62 2 CISPR Average1.1535 MHz 26.10 N -19.89 2 CISPR Average2.1165 MHz 25.77 L1 -20.22 2 CISPR Average2.1795 MHz 26.39 L1 -19.60 1 Quasi Peak 3.0795 MHz 29.21 L1 -26.79 1 Quasi Peak 4.8075 MHz 33.87 N -22.12 2 CISPR Average4.8075 MHz 26.62 N -19.37 2 CISPR Average14.7705 MHz 31.88 N -18.11 2 CISPR Average16.3995 MHz 32.44 N -17.55 Date: 20.AUG.2011 09:36:54

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11080696-1 ACCO Brands, Inc. Application For Certification (Original Grant) (FCC ID: GV3M01125-D) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: September 23, 2011 INTERTEK TESTING SERVICES Report No.: HK11080696-1 FCC ID: GV3M01125-D i GENERAL INFORMATION ACCO Brands, Inc. BRAND NAME: BungeeAir™ Protect, MODEL: M01125-D FCC ID: GV3M01125-D Grantee: ACCO Brands, Inc. Grantee Address: 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, CA 94065, USA. Contact Person: Maggie Zhang Tel: 650-267-2711 Fax: 604-431-5155 e-mail: [email protected] Manufacturer: Beautiful Enterprise Co. Ltd. Manufacturer Address: 26th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong. Brand Name: BungeeAir™ Protect Model: M01125-D Type of EUT: Transceiver Description of EUT: Wireless Security Tether & Case Serial Number: N/A FCC ID: GV3M01125-D Date of Sample Submitted: August 12, 2011 Date of Test: August 25, 2011 Report No.: HK11080696-1 Report Date: September 23, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11080696-1 FCC ID: GV3M01125-D ii SUMMARY OF TEST RESULT ACCO Brands, Inc. BRAND NAME: BungeeAir™ Protect, MODEL: M01125-D FCC ID: GV3M01125-D TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11080696-1 FCC ID: GV3M01125-D iii Table of Contents 1.0 General Description.............................................................................................1 1.1 Product Description............................................................................................1 1.2 Related Submittal(s) Grants...............................................................................1 1.3 Test Methodology...............................................................................................1 1.4 Test Facility ........................................................................................................1 2.0 System Test Configuration .................................................................................2 2.1 Justification.........................................................................................................2 2.2 EUT Exercising Software ...................................................................................2 2.3 Special Accessories ...........................................................................................2 2.4 Equipment Modification......................................................................................2 2.5 Measurement Uncertainty..................................................................................3 2.6 Support Equipment List and Description ...........................................................3 3.0 Emission Results .................................................................................................4 3.1 Field S…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11080696-1 FCC ID: GV3M01125-D i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : M01125-D INTERTEK TESTING SERVICE Report No: HK11080696-1 FCC ID: GV3M01125-D ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : M01125-D INTERTEK TESTING SERVICE Report No: HK11080696-1 FCC ID: GV3M01125-D iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : M01125-D

INTERTEK TESTING SERVICE Report No: HK11080696-1 FCC ID: GV3M01125-D Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : M01125-D INTERTEK TESTING SERVICE Report No: HK11080696-1 FCC ID: GV3M01125-D Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : M01125-D
