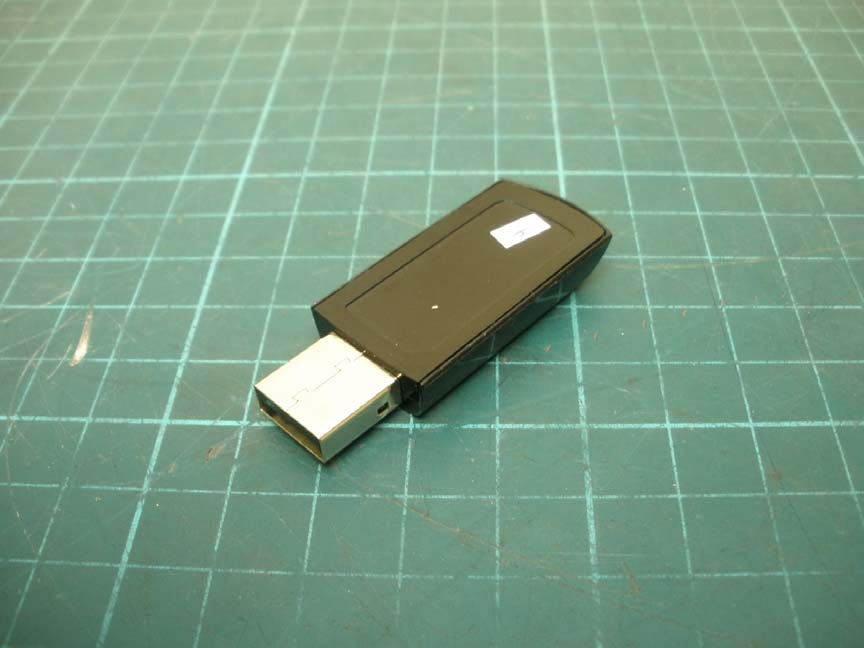

External photo of EUT

Internal photo of EUT Antenna

FCC ID. : GV3M01133-D Report No.: TS11010017-EME Page 1 of 24 EMC TEST REPORT Report No. : TS11010017-EME Model No. : M01133-D Issued Date : Jan. 24, 2011 Applicant: ACCO Brands, Inc. 333 Twin Dolphin Drive, 6 th Floor, Redwood Shores, CA 94065, USA Test Method/ Standard: 47 CFR FCC Part 15.249 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Sunny Liu / Senior Officer These measurements were taken by: Sign on File Terry Hsu / Engineer The test report was reviewed by: Name Jimmy Yang Title Engineer FCC ID. : GV3M01133-D Report No.: TS11010017-EME Page 2 of 24 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT........................................................................................ 4 1.2 Additional information about the EUT ................................................................... 5 1.3 Antenna description ................................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard ........................................................................................................... 6 2.2 Operation mode ...................................................................................................... 6 2.3 Test equipment........................................................................................................ 7 3. Radiated emission test .................................................................................................. 8 3.1 Operating environment ........................................................................................... 8 3.2 Test setup & procedure ........................................................................................... 8 3.3 Emission limit......................................................................................................... 9 3.3.1 Fundamental and harmonics emission limits ...................................................... 9 3.3.2 General radiated emission limits ......................................................................... 9 3.4 Radiated spurious emission test data .................................................................... 10 3.4.1 Measurement results: frequencies equal to or less than 1 GHz ......................... 10 3.4.2 Measurement results: frequency above 1GHz....................................................11 3.4.3 Measurement results: Fundamental emission.................................................... 14 4. Radiated emission on the band edge FCC 15.209 ...................................................... 15 5. Conducted emission test FCC 15.207 ........................................................................ 17 5.1 Operating environment ......................................................................................... 17 5.2 Test setup & procedure ......................................................................................... 17 5.3 Emission limit....................................................................................................... 17 5.4 Uncertainty of Conducted Emission..................................................................... 18 5.5 Conducted emission data FCC 15.207 ................................................................. 19 6. Calculation of Average Factor .................................................................................... 21 FCC ID. : GV3M01133-D Report No.: TS11010017-EME Page 3 of 24 Summary of Tests Test Reference Results Radiated Emission test 15.249(a), (c), (d), 15.209 Pass Emission on the Band Edge 15.209 Pass Conducted Emission of AC Power 15.207 Pass Calculation of Average Factor 15.35 Pass FCC ID. : GV3M01133-D Report No.: TS11010017-EME Page 4 of 24 1. General information 1.1 Identification of the EUT Product: Presenter Pro Remote – Green Laser and Memory Model No.: M01133-D FCC ID.: GV3M01133-D Frequency Range: 2412 MHz ~ 2472 MHz Channel Number: 5 channels Frequency of Each Channel: 2412 MHz, 2427 MHz, 2450 MHz, 2467 MHz, 2472 MHz Access scheme: GFSK Rated Power: DC 5 V Power Cord: N/A Data Cable: N/A Sample Received: Jan. 03, 2011 Test Date(s): Jan. 11, 2011 ~ Jan. 24, 2011 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. : GV3M01133-D Report No.: TS11010017-…
