GV3M01222Bluetooth Keyboard

M01222 BT3.0 Instruction Manual ·Contents 1、Bluetooth keyboard 1PCS 2、Instruction manual 1PCS 3、USB Charging cable 1PCS ·Product Features 1、 use Broadcom20730 main control chip, have Bluetooth3.0 interface. 2、industry leading bluetooth solutions, WIDCOMM BTW (Microsoft officially designated software) bluetooth software 3、Ultra slim body with scissors -switch keys frame design. The ergonomic design enable users to work long time without fatigue and comfortable handling feel. 4、With aluminum back plate design,the keyboard is super light and durable. 5、Mute design: effectively avoid other person sleeping(especially for one room with several person). 6、Support iPad,Iphone,Mac,Windows and Android system etc.It’s more convenient for you. 7、Work Environment:Temperature 0-55 °C,humidity: 20%-80% 8、Built in lithium battery,avoid changing battery frequently. ·Specification 1、executive standard: bluetooth V3.0 2、maximum operating distance: 10 meters 3、modulation mode: 2.4 G straight sequence fh (FHSS) 4、transmit power: Class 2 levels 5、working voltage: 3.7V 6、working current: <2.0 MA 7、standby current: 1.0 MA 8、sleep current55uA 9、charging current: 150MA 10、standby time: 160days 11、theoretical use time: 30days 12、continuous uninterrupted use time: 120hours 13、theoretical charging time: 2.5 hours 14、lithium battery capacity: 1500mAh 15、lithium battery life span: three years 16、the lithium battery type: 4.0 * 20 * 35MM 17、the key dynamics: 60 + 10g 18、buttons life: 5 million times 19、Dimension:L246mm*W191.5mm*H9.6mm ·Bluetooth keyboard installation 1． Keyboard pair with iPad procedure: （1）、Turn on the swith”ON”,the blue indicator light 5 seconds then extinguished which advise you the keyboard be turned on.Please see below instruction picture. （2）、 Press “Connect”button,”Status” indicator twinkle which advise you is pairing. （3）、Click the setting button of IPAD and IPHONE,Then choose the General and bluetooth.Turn on the bluetooth,then the IPAD will searching bluetooth device . （4）、After the IPAD and IPHNE find out the bluetooth device and connect the bluetooth keyboard(see blow picture),IPAD will advise you input the password. Then press “Enter”key. Warning :There are no advise when you input the password.Please make sure input correct and press enter button. （5）、If IPAD and keyboard connect success.The Status indicator will extinguished .You can use the keyboard. ·How to place iPad and keyboard. 1、Turn on the”open” switch,the stand will stand up automatically as follow pictures: 2、Put your iPad into the groove of keyboard.The stand will support the iPad perfect. ·Keyboard and iPad hotkeys specification. Press this button can return iPad home page. Press this button can control IPAD screen brightness dark. Press this button can control IPAD screen brightness light. When in use IPAD edit the document by this button to call up and hidden IPAD virtual keyboard. IPAD locked in on this key, IPAD into the screen saver pictures interface IPAD in boot state, press this button can enter the IPAD search page. Press this button can change the input language of iPad. When the IPAD in music broadcast, click this button can control music upgrade . IPAD in boot state, press this button can control the play/pause music. When the IPAD in music broadcast, click this button can control music downwards. Press this button can be mute, click again, hold "cancel mute . Press this button can increase the volume. Press this button can lock IPAD screen. ·Charging When you use keyboard in process,the status tinkle which advise you the battery is shortage.You should charging. （1）、Separate put the USB terminal cable plug into the PC and keyboard.As follow picture. （2）、When you charging,the red light on.When the light off,the battery is full enough.(theoretical charging time 2hours) ·Storage (1)、When you don’t want to use the keyboard and carry,please close the back stand.Then put iPad cover the keyboard,the screen of iPad will turn off automatically. （2）、When you don’t want to use the keyboard and carry.Don’t forget turn off the power switch of keyboard.In order to extend your battery life span. （3）、If you want to store the keyboard long time.Don’t forget charging the keyboard around 1hour till the battery half which can extend your battery life span. ·Troubleshooting Keyboard and IPAD cannot establish connections ①、please check your iPad bluetooth device is already open and went in search of state. ②、 Press and release the”connect” button of keyboard ,check the Status indicator flash or not. ③、keyboard and iPad connected within 10 meters from working range. ④、Bluetooth devices of iPad changing or not, if it is,need to match again. ⑤、Your iPad bluetooth device is also connected to the other bluetooth terminal and confirm Ipad bluetooth device speed. ⑥、Checking your battery, if there is electricity shortage, please charge. This equipment already through the class B digital equipment testing This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which…

Text truncated - open the document above for the full version.

FCC ID: GV3M01222 Label Location on EUT FCC ID Label: Size: 40mm * 30 mm BLUETOOTH KEYBOARD M/N: M01222 FCC ID: GV3M01222 ACCO Brands, Inc Made in China

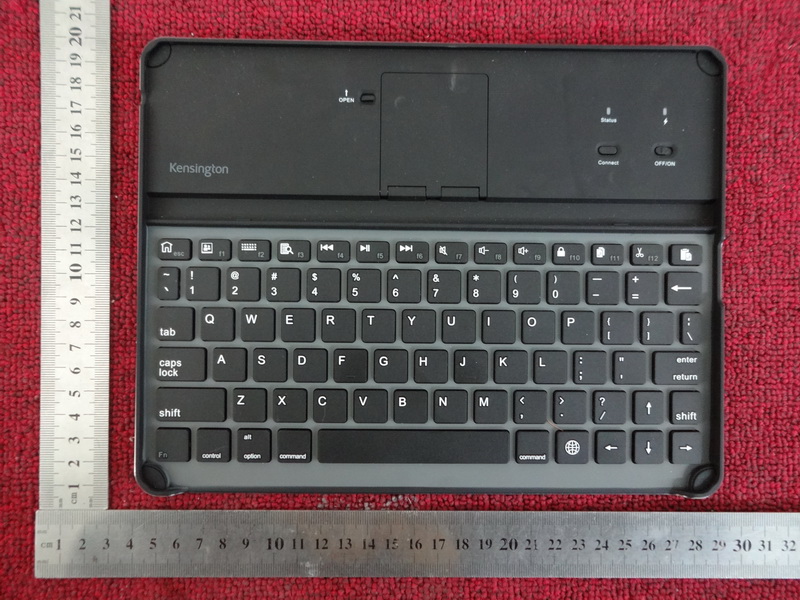

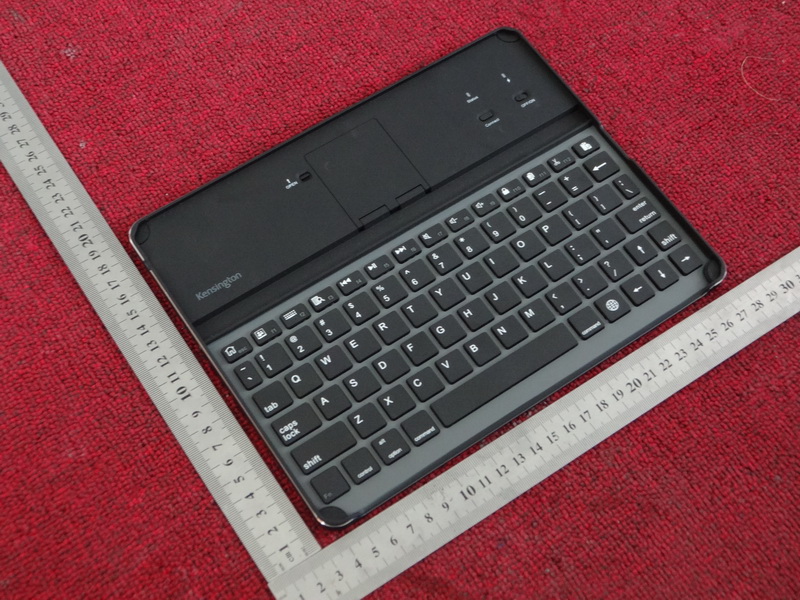

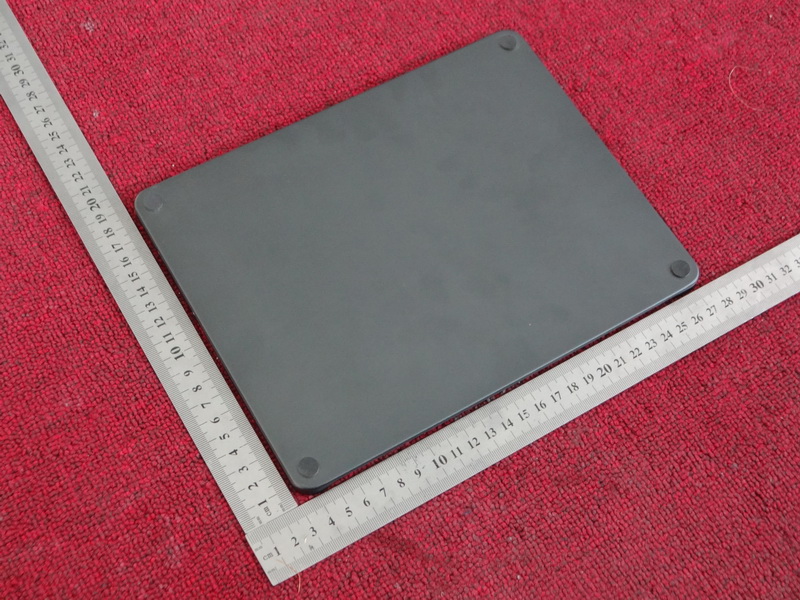

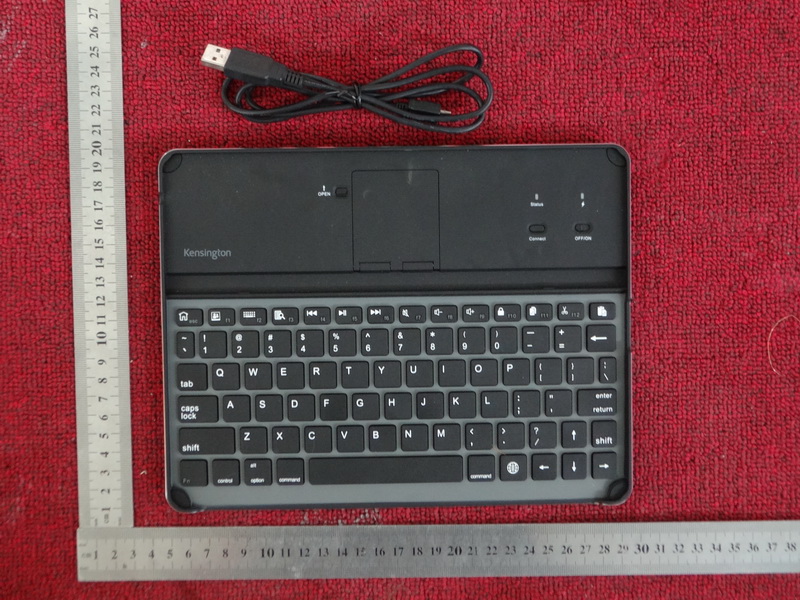

Report No.: 1305001436 Issued: May 25, 2013 Revised: None FCC ID: GV3M01222 Internal photograph of EUT Battery photograph of EUT Report No.: 1305001436 Issued: May 25, 2013 Revised: None FCC ID: GV3M01222 Battery photograph of EUT PCB photograph of EUT Report No.: 1305001436 Issued: May 25, 2013 Revised: None FCC ID: GV3M01222 PCB photograph of EUT PCB photograph of EUT Report No.: 1305001436 Issued: May 25, 2013 Revised: None FCC ID: GV3M01222 PCB photograph of EUT PCB photograph of EUT Report No.: 1305001436 Issued: May 25, 2013 Revised: None FCC ID: GV3M01222 PCB photograph of EUT PCB photograph of EUT

This device is a Bluetooth Keyboard . The frequence is from 2.402GHz to 2.480GHz ,use internal antenna to work 10M distance, The main chips is BCM20730 The USB interface of this device is just for charging, It can’t used for data exchange with PC. Voltage supply: DC 3.7V 1500mAh. the device designated with the following general information and technical specification as following: Main Chipset BCM20730 Antenna Type PCB Antenna Antenna Gain 0.5 dBi Frequency Band 2402-2480MHz Modulation type GFSK, π/4-DQPSK, 8DPSK Channel Number 79 channels Bluetooth Version V3.0 Oscillating Frequency 24MHz Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Product Name Schematic Name Revision Page Date Drawing byAuthorize by ITON TECHNOLOGY Auditing by Li Mei Hai BT3GMD-B47PBT3GMD-B47P 1 of 1 1.0 20110617 RST_N G8 UART_TXD G5 UART_RXD H5 P28 B5 P29 A5 P30 E4 P31 E7 P34 B6 P35 D5 P36 C4 P37 C3 P0 F6 P1 G6 P2 H8 P3 F8 P4 H7 P5 E6 P6 F5 P7 C5 P8 F4 P9 A1 P10 D2 P11 C2 P12 B2 P13 F3 P14 D3 P15 A2 P16 C8 P17 H4 P18 C7 P19 B8 P20 A8 P21 C6 P22 G4 P23 E3 P24 A7 P25 B7 P26 A4 P27 B4 SCL E8 SDA F7 P32 D6 P33 D8 TMC G7 VSS D4 VSS1 E5 VDDO A6 VDDO1 D7 VDDC H6 VSS5 F2 VSS4 G2 VSS3 G1 VSS2 E2 XTALI32K A3 XTALO32K B3 XTALI H3 XTALO G3 RF F1 LDOIN B1 LDOOUT C1 VDDIF D1 VDDFE E1 VDDVCO H1 VDDPLL H2 BCM20730 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U2 24LC128 1 1 2 2 AA R7 2.7NH FB1 120@100MHZ FB2 120@100MHZ 1 3 2 4 Y1 24MHZ C1422PF C15 22PF C131.8PF C161.8PF C182.2PF C202.2PF XIN_32XOUT_32 P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31 P32 P33 P34 P35 P36 P37 SCL SDA UP_TX UP_RX REST R6 10K R3 10K R4 10K R5 10K VBAT C40.01UF C3 0.1UF VBAT SCLWPSDA R2 10K C5 0.1UF VBAT C6 2.2UF VBAT C2 1UF C1 0.1UF 1P2VC C7 0.01UF C8 10PF C9 0.01UF C19 0.01UF 1P2VC 1P2VRF R8 0R C22 2.2UF C21 2.2UF C11 1UF R13 0R 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 U1 BT3GMD-B47P GND GND P13 P8 P17 P22 UP_TX UP_RX P6 P0 P1 P5 P4 P2 P31 REST P3 SDA SCL P32 P16 P18 P19 P25 VBAT GND P20 P24 P21 P7 P29 P28 P27 P26 P36 P30 P38 P37 P15 P14 P12 P9 P23 P11 P10 GND GND C10 2.4NH

FCC ID TEST REPORT for BLUETOOTH KEYBOARD MODEL: M01222 FCC ID: GV3M01222 Test Report Number: 1305001436 Issued Date: May 25, 2013 Issued for: ACCO Brands, Inc. 333 Twin Dolphin Drive, 6 th Floor, Redwood Shores, California, United States Issued By: SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD. 5/F,Block 4, Anhua Industrial Zone., No.8 Tairan Rd. Chegongmiao, Futian District Shenzhen, China TEL: +86-755-83448688 FAX: +86-755-83442996 Report No.: 1305001436 Issued:May 25, 2013 Revised: None FCC ID: GV3M01222 TRF No.: FCC PART 15C-15.247/A0 Page 2 of 77 TEST CERTIFICATION Product: BLUETOOTH KEYBOARD Model: M01222 Applicant: ACCO Brands, Inc. 333 Twin Dolphin Drive, 6 th Floor, Redwood Shores, California, United States Factory: SHENZHEN PAOLUY SILICONE TECHNOLOGY CO., LTD Ath Building 5th floor, Forzen Industrial park, Fuyuan 2nd Road, Heping Village Fuyong Town, Baoan District, Shenzhen, China Trade Mark: N/A Tested: May 10, 2013~May 25, 2013 Test Voltage: DC 5 V(DC From Adapter, Adapter input 120Vac, 60Hz) Applicable Standards: FCC Part 15 Subpart C: 2012 ANSI C63.4: 2009 Deviation from Applicable Standard None The above equipment has been tested by SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: 2013-5-25 (Brown Lu) Check By: Date: 2013-5-25 (Terry Tang) Approved By: Date: 2013-5-25 (Jack Chung) Report No.: 1305001436 Issued:May 25, 2013 Revised: None FCC ID: GV3M01222 TRF No.: FCC PART 15C-15.247/A0 Page 3 of 77 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1 FACILITIES AND ACCREDITATIONS 6 1.1. FACILITIES 6 1.1.1 ACCREDITATIONS 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 CONFIGURATION OF SYSTEM UNDER TEST 10 2.5 DESCRIPTION OF SUPPORT UNITS (CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 30 4 . NUMBER OF HOPPING CHANNEL 38 4.1 APPLIED PROCEDURES / LIMIT 38 4.1.1 TEST PROCEDURE 38 4.1.2 DEVIATION FROM STANDARD 38 Report No.: 1305001436 Issued:May 25, 2013 Revised: None FCC ID: GV3M01222 TRF No.: FCC PART 15C-15.247/A0 Page 4 of 77 Table of Contents Page 4.1.3 TEST SETUP 38 4.1.4 EUT OPERATION CONDITIONS 38 4.1.5 TEST RESULTS 39 5 . AVERAGE TIME OF OCCUPANCY 41 5.1 APPLIED PROCEDURES / LIMIT 41 5.1.1 TEST PROCEDURE 41 5.1.2 DEVIATION FROM STANDARD 41 5.1.3 TEST SETUP 42 5.1.4 EUT OPERATION CONDITIONS 42 5.1.5 TEST RESULTS 43 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 49 6.1 APPLIED PROCEDURES / LIMIT 49 6.1.1 TEST PROCEDURE 49 6.1.2 DEVIATION FROM STANDARD 49 6.1.3 TEST SETUP 49 6.1.4 EUT OPERATION CONDITIONS 49 6.1.5 TEST RESULTS 50 7 . BANDWIDTH TEST 56 7.1 APPLIED PROCEDURES / LIMIT 56 7.1.1 TEST PROCEDURE 56 7.1.2 DEVIATION FROM STANDARD 56 7.1.3 TEST SETUP 56 7.1.4 EUT OPERATION CONDITIONS 56 7.1.5 TEST RESULTS 57 8 . PEAK OUTPUT POWER TEST 63 8.1 APPLIED PROCEDURES / LIMIT 63 8.1.1 TEST PROCEDURE 63 8.1.2 DEVIATION FROM STANDARD 63 8.1.3 TEST SETUP 63 8.1.4 EUT OPERATION CONDITIONS 63 8.1.5 TEST RESULTS 64 9. Antenna Application 62 9.1 Antenna requirement 66 9.2 Result 66 10. EUT TEST PHOTO 70 11 PHOTOGRAPHS OF EUT 71 Report No.: 1305001436 Issued:May 25, 2013 Revised: None FCC ID: GV3M01222 TRF No.: FCC PART 15C-15.247/A0 Page 5 of 77 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: 1305001436 Issued: May 25, 2013 Revised: None FCC ID: GV3M01222 TRF No.: FCC PART 15C-15.247/A0 Page 6 of 77 1 FACILITIES AND ACCREDITATIONS 1.1. FACILITIES All measurement facilities used to collect the measurement data are located at East 5/Block 4 Anhua Industrial Zone, No.8, Tairan Road, Chegongmiao, Futian District, Shenzhen, Guangdong, China The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interference Measuring Apparatus and Measurement Methods.” 1.2 ACCREDITATIONS The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Labo…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST RADIATED EMISSION TEST
