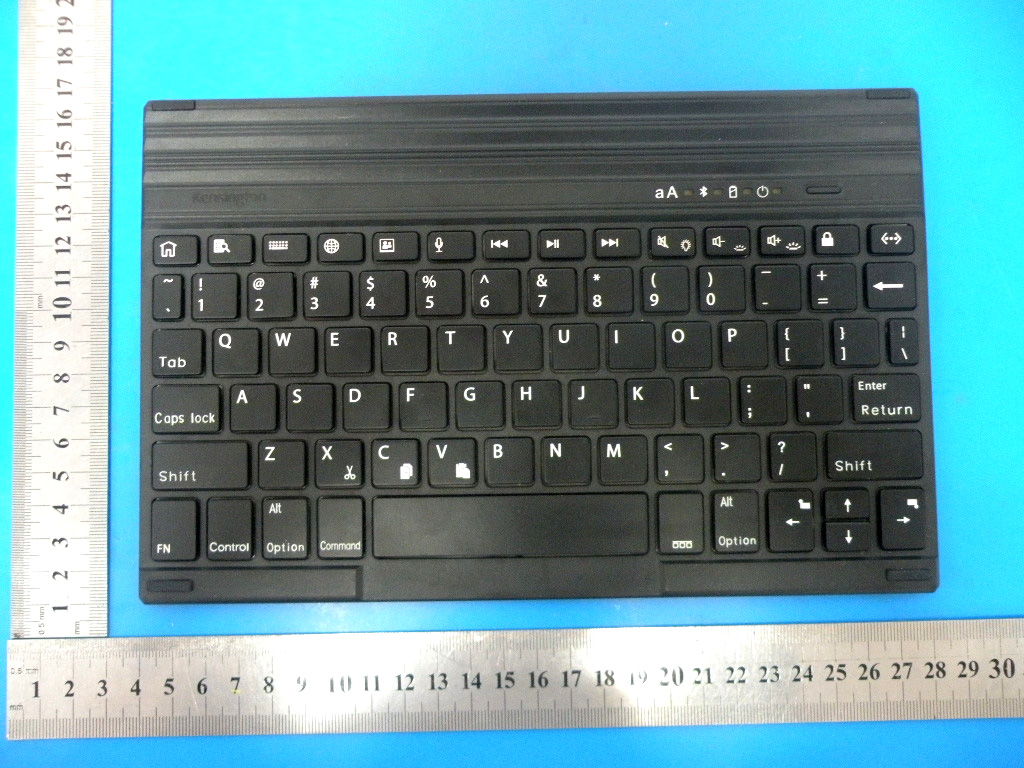

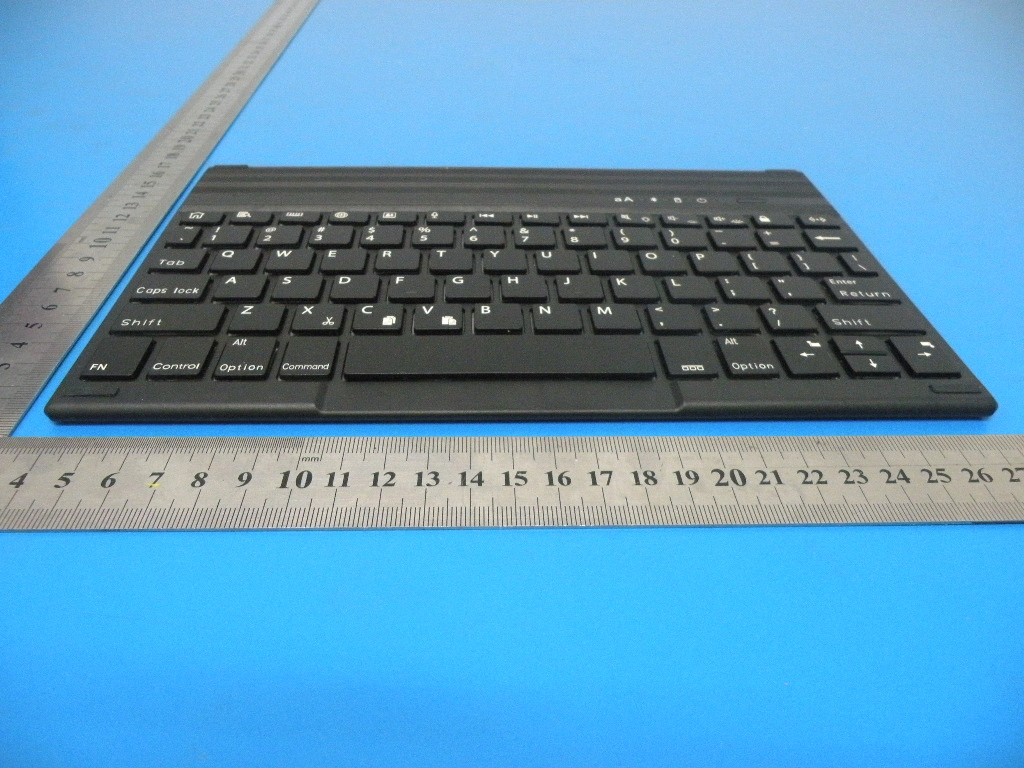

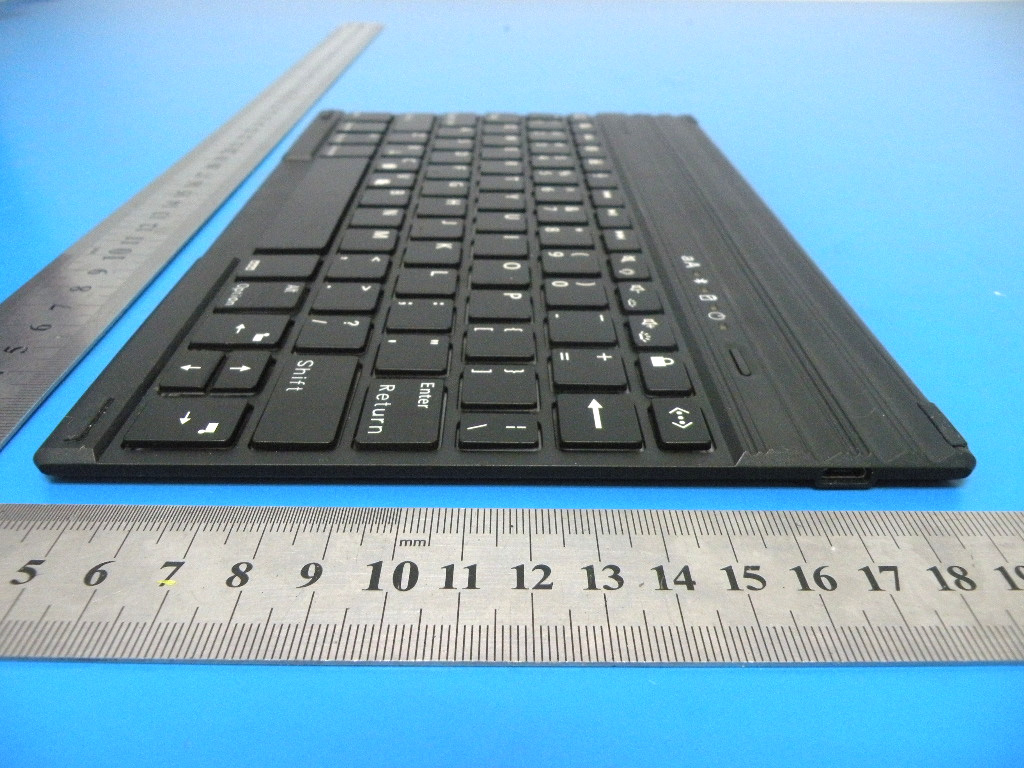

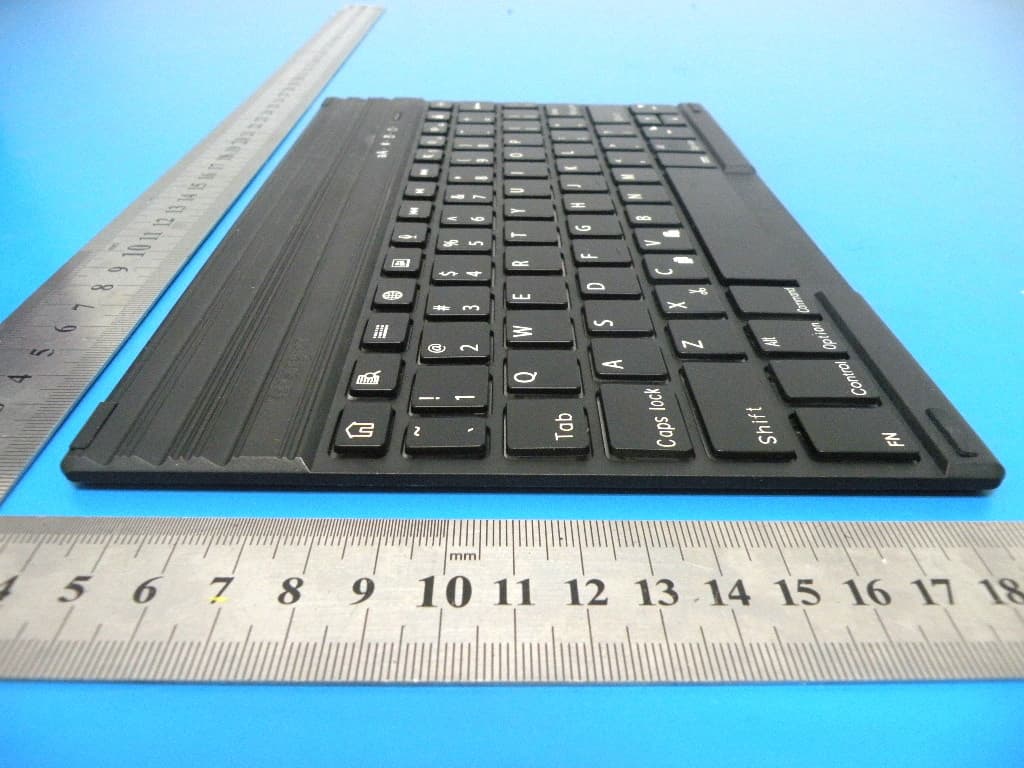

GV3M01243BLUETOOTH KEYBOARD

M01243 User manual 1、Contents 1.1、Bluetooth keyboard 1PCS 1.2、Instruction manual 1PCS 1.3、USB Charging cable 1PCS 2、Product Features 2.1、use Broadcom20730 main control chip, have Bluetooth3.0 interface. 2.2、industry leading bluetooth solutions, WIDCOMM BTW (Microsoft officially designated software) bluetooth software. 2.3、built-in power management software, can be in Microsoft's Windows system automatically usable capacity 2.4、Put the magnet between the keyboard and leather case. The keyboard and leather case can be separated use. 2.5、Mute design: effectively avoid other person sleeping(especially for one room with several person). 2.6、Architecture design, provides comfortable handling feel 2.7、Caps lock signal helps in capital letters writing 2.8、Support Iphone, Mac, Windows and Android system etc. It’s more convenient for you. 3、Specifications 3.01、Executive standard: Bluetooth V3.0 3.02、Maximum operating distance: 10 meters 3.03、（FHSS）Modulation mode: 2.4 G straight sequence fh (FHSS) 3.04、Transmit power: Class 2 levels 3.05、Working voltage: 3.7V 3.06、 Turn on the LED backlight:98mA Turn off the backlight: 3.0mA 3.07、standby current: 1.5MA 3.08、Sleep current: 95uA 3.09、charging current: 300mA 3.10、standby time: 600days 3.11、theoretical use time Turn on the LED backlight:3-4 days Turn off the backlight 120 days 3.12、continuous uninterrupted use time Turn on the LED backlight: 15hours Turn off the LED backlight: 500hours 3.13、theoretical charging time: 5 - 6 hours 3.14、lithium battery capacity:1500mAh 3.15、lithium battery life span: three years 3.16、the lithium battery type: 3135130 3.17、the key dynamics: 60 + 10g 3.18、buttons life: 5 million times 3.19、operation temperature: 0-55 °C 3.20、storage temperature: - 20-70 °C 4、Keyboard and IPAD or Iphone setting 4.1、Built in lithium battery with bluetooth and connect with IPAD, mobilephone or PC. 4.1.1、Below information will show you how to using, setting and charging. 4.2、Indicator 4.2.1、The LED indicator on the keyboard show battery, state and charge. If you turn on the keyboard first time, the power indicator constant light and the bluetooth indicator light 3 seconds. The battery is good. After 3 seconds, if keyboard didn’t match the IPAD, mobilephone and PC, the indicator will twinkle. The keyboard is seraching and ready to match IPAD, mobilephone and PC etc.(Match means wireless connect with IPAD, mobilephoe and PC, and ready to correspondence.) 4.2.2、If you don’t put the keyboard match the IPAD, mobilphone and PC etc within 10 minutes. The light of power and bluetooth will colsed. The keyboard be turned off. 4.2.3、The keyboard and IPAD, mobilephone and PC matched success, the light of bluetooth off, the power constant light. 4.2.4、When the keyboard and IPAD, mobilephone and PC match success and can use. If you don’t use the keyboard over 15minutes, the light of power will off, the keyboard sleeping. When you want to use the keyboard again, you just press any button softly. The power will light again, you can use the keyboard. 4.2.5、When you use the keyboard in the process, if the power light, advise you the battary is less than 5%, you need charing. 4.2.6、Plug the charger into the charing interface. The charge light. If the battary is full enough, the charge will cut off automatically. 4.2.7、When you use the keyboard in the process, you lock the upper and lowercase letters, the Caps light, when you unlocked, the Caps will off. 4.3、the keyboard with new IPAD and IPHONE connection: 4.3.1、Press the switch about 1.5 seconds, power LED and Bluetooth LED light up about 2 seconds at the same time, the keyboard is turn on. Then the Bluetooth LED flash and enter the status of match code. 4.3.2、Click the setting button of IPAD and IPHONE, Then choose the General and bluetooth. The IPAD is searching bluetooth device. 4.3.3、After the IPAD and IPHNE find out the bluetooth device and connect the bluetooth keyboard(see blow picture), IPAD will advise you input the password. 4.3.4、according to the IPAD advise. Please note there are no advise during the input. Please make sure input correct and press enter button. 4.3.5、If IPAD and keyboard connect success. the power constant light. Power constant light advise you turn off the keyboard while you don’t use it. 4.4、keyboard with other IPAD or IPHONE connection： 4.4.1 After your keyboard connect with 1PCS of IPAD or IPHONE, you can connect with other IPAD or IPHONE .If your keyboard connected with IPAD or IPHONE over 10 meters(33 feet).Please according to item3.3. 4.4.2 If your keyboard connected with IPAD or IPHONE within 10 meters(33 feet). You must cut off the current connect first, then try to connect with other IPAD and Iphone. 4.4.3、Cut off the connection： 4.4.3.1、Please touch the setting button on the connected IPAD and IPHONE. Choose the General and bluetooth. 4.4.3.2、Please find out the keyboard you want to remove in the bluetooth, then click(>)button, you will log into the bluetooth settings . 4.4.3.3、Choose Forget this device in the bluetooth settings, then click OK button. 4.4.4、If you want to the keyboard match with other IPAD or IPHONE. Please according to item3.4 4.5、The keyboard with new PC, MAC or mobilephone Connection. 4.5.1、The new PC, MAC or mobilephone setting procedure same as PC, MAC and mobilephone. 4.5.2、Please according to item3.4 to set the keyboard. 5、Charging When you use the keyboard in the process, the keyboard of POWER ( ) instructions parade into rapid flashes state, right now you keyboard's electricity shortage, you should give your keyboard charging, charging steps as follows: 5.1、Please take charge line attached to the USB male seat end insert computer USB interface or USB interface of the IPAD charger, the other side is inserted into the USB charging interface, MINI5PIN keyboard. 5.2、、When , the indicator will light, when the batteries full, the indicator will cut off automatically. (theory charging time for 3.5 hours) 6、Keyboard and iPad hotkeys specifies Press this …

Text truncated - open the document above for the full version.

ACCO Brands, Inc. Date: 06.07.2013 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name BLUETOOTH KEYBOARD Model Name M01243 Brand Name N/A . Yours sincerely, Signatory Name Maggie Zhang Position QA Compliance Engineer Company Name ACCO Brands, Inc. Address 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, California, United States Tel 650-267-2711 Fax 604-431-5155 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

ACCO Brands, Inc. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: ACCO Brands, Inc. FCC ID : GV3M01243 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Maggie Zhang Position QA Compliance Engineer Company Name ACCO Brands, Inc. Address 333 Twin Dolphin Drive, 6th Floor, Redwood Shores, California, United States Tel 650-267-2711 Fax 604-431-5155 Email [email protected]

50mm 30mm Company: ACCO Brands, Inc. Name: BLUETOOTH KEYBOARD Model Number: M01243 FCC ID: GV3M01243 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

ANTENNA

Conducted Emission Test Setup Radiated Emission Test Setup in Chamber
