GV3M01314-MWireless mouse for life

24-month battery life Two automatic mode change to energy-saving mode which lower the power consumption to 9mW. Under the standard status, 1*AA battery can last for 24 months. Low-carbon environment save time and extend the battery life. Nano receiver The nano receiver can be perfectly stored in the bottom of the mouse. Even when you are using the mouse, it can be perfectly hidden inside the USB port which make you forget about it. Operation distance Resolution Accelaration In order to keep the mouse for best using, M01314-M only require minimum maintenance. To avoid dust, we suggest using soft cloth or cotton yarn with little warm water to clean the nano receive after pulling it from the USB port. Do the cleaning once in one month. Do not use soap or trong detergent for cleaning. For best use the mouse in controlling and oving, strongly suggest you purchase high grade mouse pad. The mouse foot may be wear out by some mouse pad, which make you use the mouse unfavorably and force you change new mouse. 1 × M01314-M Mouse 1 × Nano receiver 1 × AA battery 1 × User guide Package contents:Installation Open the battery cover and insert one AA battery. Switch the ON/OFF button to ON please pay attention to the the positive and negative polarity Plug the Nano receiver into an available USB port on your laptop or desktop. Automatical sleep energy-saving mode When stop using the mouse, it will automatically switch to two grades of sleep mode, which is super energy-saving. Time Sleep status Power consumption After 0.2 seconds First grade After 20 seconds Second grade User Guide User Guide Thanks for buying Kensington products, please read this user guide carefully before use. Feature Super silent keys function The mouse has silent microswitch, its key stroke noise is lower than other mouse over 90%. The super silent keys brings you good comfort grip. No need to worry about the annoying key stroke noise in the still of night. High precision optical sensor The mouse has high precision optical sensor with high positioning accuracy. It can adapt with surface in different material and brings you high precision of the cursor control. optical sensor Technical data Operation current Power supply Frequency band Maintenance Wireless mouse for life™ M01314-M Kensington Computer Products Group, A Division of ACCO Brands, LLC CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause nterference, and (2) this device must accept any interference, ncluding interference that may cause undesired operation of the device Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 8

1500 Fashion Island Blvd., 3rd Floor, San Mateo, CA 94404 Confidentiality Letter Date: June 19 th , 2015 Subject: Confidentiality Request for FCC ID: GV3M01314-M and IC ID: 6128A-M01314M Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual ACCO Brands, LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: Benjamin Hsu (Signature/Manager) (Print name)

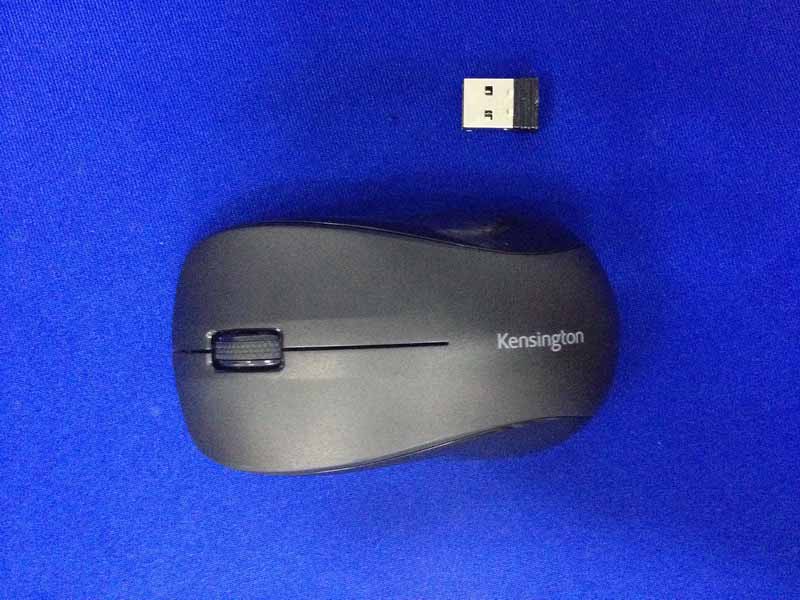

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 12-1 12. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

A1518A000001 A 1 5 1 8 A 0 0 0 0 0 1 Loc a a tion

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 12-2 Figure 3 Inside of the EUT Figure 4 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 12-3 Figure 5 Component Side of the PCB

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 8-1 8. RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : FCC KDB Publication 447498 D01 V05 Since maximum peak output power of the transmitter is<10mW, i.e.0.009346mW<10mW, hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01:General RF Exposure Guidance V05.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of ACCO Brands Inc. Wireless mouse for life TM Model Number: M01314-M FCC ID: GV3M01314-M Prepared for : ACCO Brands Inc. 1500 Fashion Island Blvd., 3rd Floor, San Mateo, CA 94404, USA Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ACS-F15171 Date of Test Jun.28~30, 2014 Date of Report Jun.24, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. EUT Configuration and operation conditions for test.......................................................... 2-1 2.3. Test Facility ......................................................................................................................... 2-2 2.4. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-2 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit Standard: FCC 15.209 and 15.249 .............................................. 4-3 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. 20 DB BANDWIDTH TEST ........................................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Results .......................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. ANTENNA REQUIREMENT ........................................................................................ 7-1 8. RADIO FRREQUENCY EXPOSURE COMPLIANCE.............................................. 8-1 9. TEST SOFTWARE.......................................................................................................... 9-1 10. DEVIATION TO TEST SPECIFICATIONS.............................................................. 10-1 11. PHOTOGRAPH OF TEST ........................................................................................... 11-1 11.1. Photos of Radiated Emission Test...................................................................................... 11-1 12. PHOTOGRAPH OF EUT ............................................................................................. 12-1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Power Line Conducted Emission Test FCC Part 15C: 15.207 ANSI C63.10-2009 N/A Radiated Emission Test FCC Part 15C: 15.209 FCC Part 15C: 15.249 ANSI C63.10-2009 PASS Band Edge Compliance Test FCC Part 15: 15.249 ANSI C63.10-2009 PASS 20dB Bandwidth Test FCC Part 15: 15.215 ANSI C63.10-2009 PASS N/A is an abbreviation for Not Applicable. R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) EUT Description : Wireless mouse for life TM Model Number : M01314-M FCC ID : GV3M01314-M Operation frequency : 2402MHz-2479MHz Modulation : GFSK Antenna : Integrated PCB antenna, 0dBi gain Receiver Categories : Category 3, Standard reliable SRD communication media Applicant : ACCO Brands Inc. 1500 Fashion Island Blvd., 3rd…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 11-1 11. PHOTOGRAPH OF TEST 11.1. Photos of Radiated Emission Test (At Anechoic 3m Chamber Test 30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:GV3M01314-M page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15171 11-2 (At Anechoic 3m Chamber Test 1GHz –18GHz)
