GV3M01477-DWireless Dongle

K75241WW_PowerPointer_IG Folded size: 95 mm X 140 mm Trim size: 570mm X 140 mm ENGLISH FRANÇAIS ИНФОРМАЦИЯ ТОЛЬКО ДЛЯ ГОСУДАРСТВ ЧЛЕНОВ ЕС PORTUGUÊS INFORMAÇÃO APENAS PARA OS ESTADOS-MEMBROS DA UE 901-9646-00 891011 DECLARAÇÃO DE INTERFERÊNCIA DA COMISSÃO FEDERAL DE COMUNICAÇÃO Nota: Este dispositivo foi testado e está em conformidade com os limites estabelecidos para dispositivos digitais de Classe B, de acordo com o disposto na Parte 15 dos regulamentos FCC. Estes limites destinam-se a fornecer uma protecção adequada contra interferências prejudiciais em instalações residenciais. Este equipamento gera, utiliza e pode emitir energia de radiofrequência e, se não for instalado nem utilizado de acordo com as instruções, pode provocar interferências nas comunicações de rádio. No entanto, não existe nenhuma garantia de que essa interferência não ocorra em determinadas instalações. Se este equipamento causar interferências nocivas na recepção de rádio ou televisão, que podem ser determinadas desligando e ligando o equipamento, o utilizador é encorajado a tentar corrigir a interferência através da aplicação de uma ou várias das seguintes medidas: • Reoriente ou mude a localização da antena de recepção • Aumente a distância entre o equipamento e o receptor • Ligue o equipamento a uma tomada de um circuito diferente daquele a que o receptor está ligado • Se precisar de ajuda, consulte o agente da Kensington ou um técnico qualificado de rádio/televisão Modificações: As modificações não expressamente aprovadas pela Kensington podem anular a autorização do utilizador para a operação do dispositivo sob os regulamentos da FCC e não devem ser efectuadas. Cabos blindados: De forma a cumprir os requisitos da FCC, todas as ligações ao equipamento utilizando um dispositivo de entrada da Kensington devem ser efectuadas apenas com cabos blindados. DECLARAÇÃO DE CONFORMIDADE DA COMISSÃO FEDERAL DE COMUNICAÇÃO Este produto está em conformidade com a Parte 15 dos regulamentos da FCC. O funcionamento está sujeito às duas condições: (1) este equipamento não pode causar interferências prejudiciais e (2) tem de suportar as interferências recebidas, incluindo as que possam prejudicar o funcionamento. Como definido na Secção 2.909 dos regulamentos da FCC, a parte responsável por este dispositivo é a Kensington Computer Products Group, 1500 Fashion Island Blvd, 3rd Floor, San Mateo, CA 94404, USA. DECLARAÇÃO DE CONFORMIDADE DA INDUSTRY CANADA Este dispositivo foi testado e está em conformidade com os limites especificados em RSS-210. Operação sujeita às duas condições seguintes: (1) Este dispositivo não pode causar interferências, e (2) Este dispositivo tem de aceitar quaisquer interferências, incluindo interferências que possam levar a uma operação indesejada do mesmo. Este aparelho digital de Classe [B] está em conformidade com a norma canadiana ICES-003, CAN ICES-3(B)/NMB-3(B). DECLARAÇÃO DE CONFORMIDADE DA CE A Kensington declara que este modelo de produto sem-fios está em conformidade com os requisitos essenciais e com outras disposições relevantes da directiva RED (2 014/53/EU) e de outras directivas CE aplicáveis. Para a Europa, pode obter uma cópia da Declaração de Conformidade para este produto, se clicar na ligação Declaração de Conformidade, em www.kensington.com/support. A utilização do símbolo indica que este produto não pode ser tratado como lixo doméstico. Ao certificar-se de que se desfaz deste produto correctamente, ajudará a evitar potenciais consequências negativas para o ambiente e para a saúde, que, de outra forma, poderiam ocorrer pelo mau manuseamento deste produto. Para obter informação mais detalhada sobre a reciclagem deste produto, contacte o município onde reside, os serviços de recolha de resíduos da sua área ou a loja onde adquiriu o produto. должна осуществляться с соблюдением двух следующих условий. (1) Это устройство не может вызывать помехи, и (2) это устройство должно принимать любые помехи, включая помехи, которые могут вызвать нарушение работы устройства. ует канадскому стандарту на вызывающее помехи оборудование ICES-003, CAN ICES-3(B)/NMB-3(B). ДЕКЛАРАЦИЯ О СООТВЕТСТВИИ ДИРЕКТИВЫ СОВЕТА ЕВРОПЫ Kensington заявляет, что эта беспроводная модель продукта соответствует важным требованиям и иным положениям директивы RED (2014/53/EU) и других применимых директив ЕС. Копия Декларации о соответствии для Европы на данный про дукт может быть получена по ссылке ‘Compliance Documentation’ (Документация о соответствии) на сайте www.kensington.com/support. Эти значки указывают на то, что данное изделие не может относиться к бытовым отходам. Обеспечив правильную утилизацию изделия, вы поможете в предотвращении потенциальных негативных последствий для окружающей среды и человеческого здоровья, которые могут быть вызваны неправильной его утилизацией. Для получения более подробной информации об утилизации данного изделия, пожалуйста, свяжитесь с вашим местным городским офисом, службой вывоза бытовых отходов или магазином, в котором вы купили изделие. FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT Note: This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, th ere is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect…

Text truncated - open the document above for the full version.

Date: 2020/1/3 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: GV3M01477-D Product name: Wireless Dongle To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model M01477-P to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : ACCO Brands, Inc. Address : 1500 Fashion Island Blvd., 3rd Floor San Mateo California 94404 Signature : _________________________________ Name and Job Title. : Benjamin Hsu / Compliance Manage E-mail : [email protected]

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: January 3, 2020 Subject: FCC Application for FCC ID: GV3M01477-D To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Supplier's Declaration of Conformity procedures, which the report issued from International Certification Corp..(report number: FD9N2001.) Applicant : ACCO Brands, Inc. Address : 1500 Fashion Island Blvd., 3rd Floor San Mateo California 94404 Signature : _________________________________ Name and Job Title. : Benjamin Hsu / Compliance Manage E-mail : [email protected]

Date: January 3, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: GV3M01477-D To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after issue date. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☐ Block Diagram ☐ Schematics ☐ Operational Description ☐ Bill of Materials ☐ Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : ACCO Brands, Inc. Address : 1500 Fashion Island Blvd., 3rd Floor San Mateo California 94404 Signature : _________________________________ Name and Job Title. : Benjamin Hsu / Compliance Manage E-mail : [email protected]

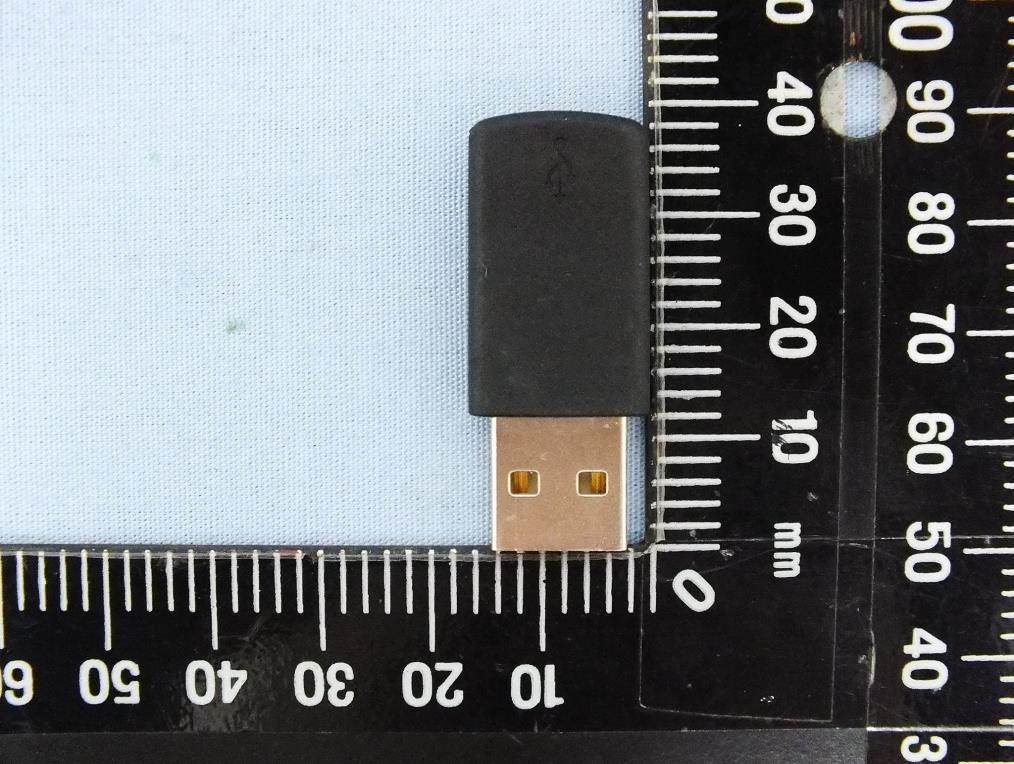

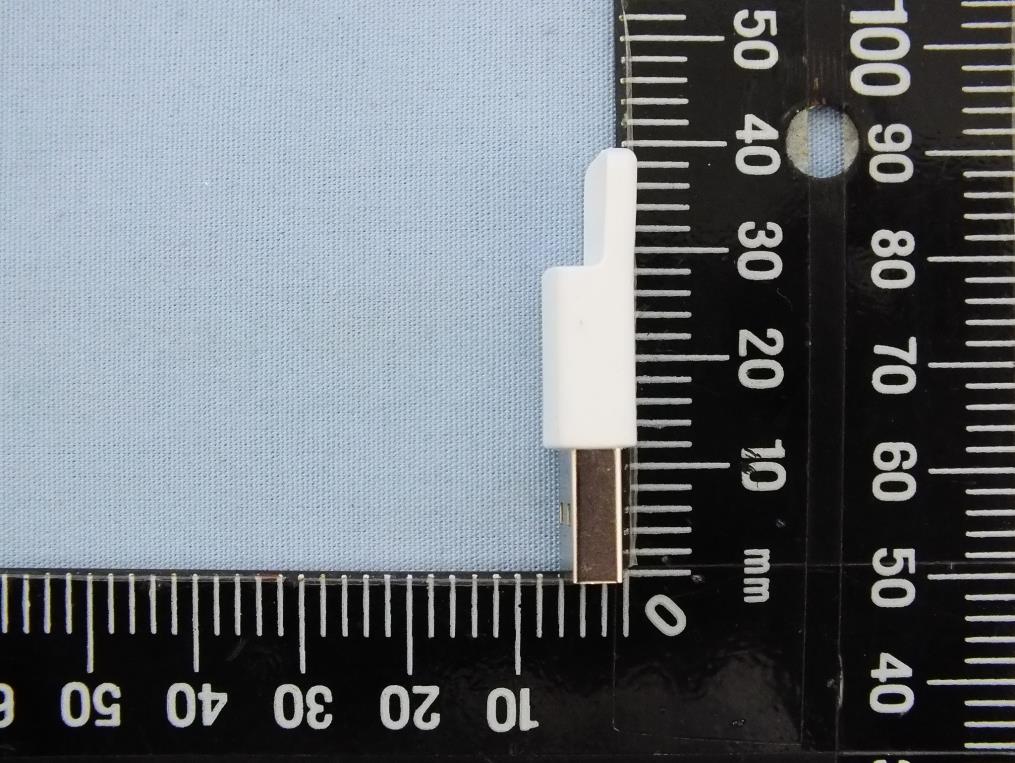

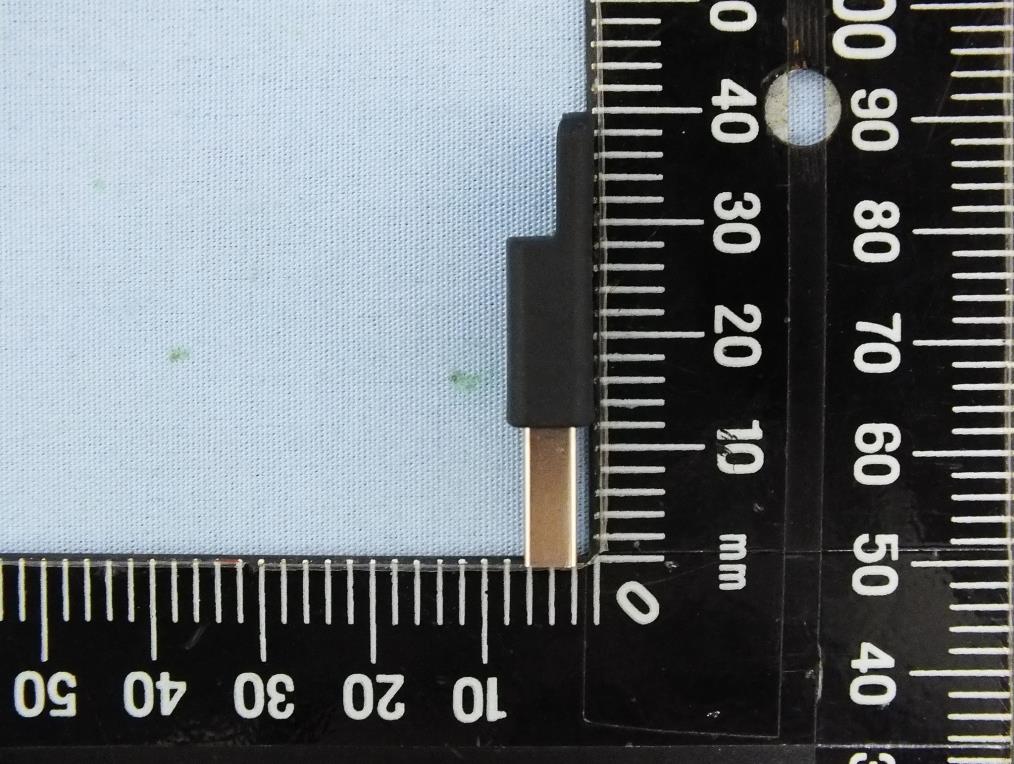

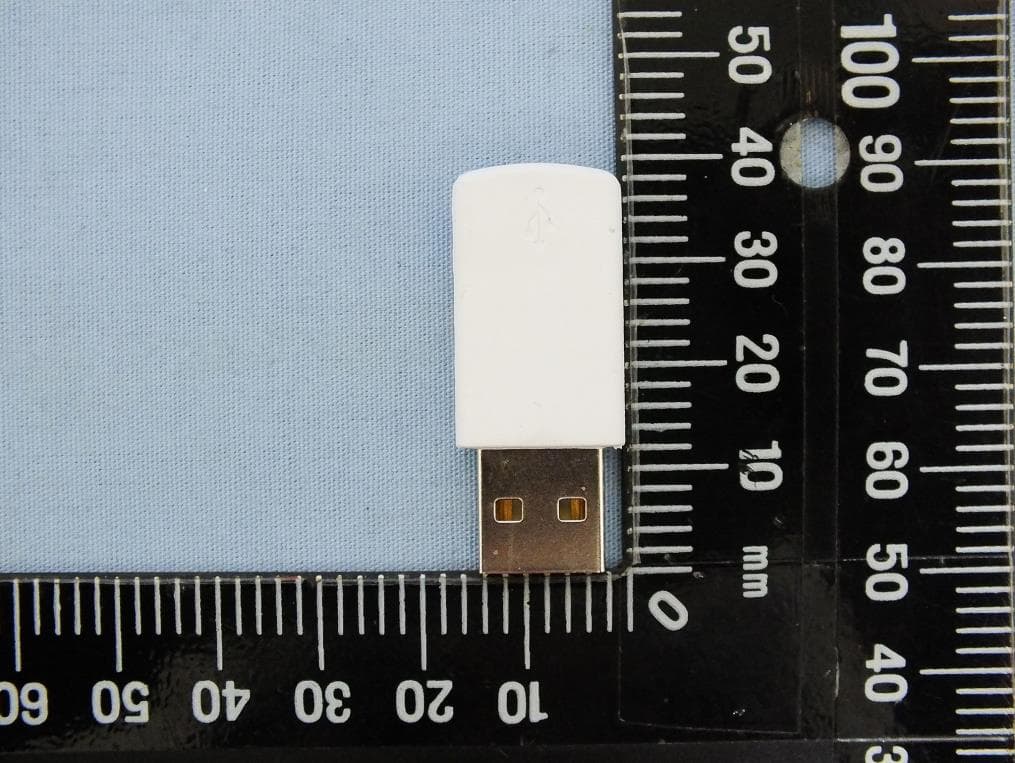

Project No.: 9N2002 Page No. : 1 of 6 Photographs of EUT Brand name: Nobo Project No.: 9N2002 Page No. : 2 of 6 Project No.: 9N2002 Page No. : 3 of 6 Project No.: 9N2002 Page No. : 4 of 6 Brand name: Kensington Project No.: 9N2002 Page No. : 5 of 6 Project No.: 9N2002 Page No. : 6 of 6

FCC ID: GV3M01477-D IC ID: 6128A-M01477D

Project No.: 9N2002 Page No. : 1 of 4 Photographs of EUT Brand name: Nobo Project No.: 9N2002 Page No. : 2 of 4 Antenna Project No.: 9N2002 Page No. : 3 of 4 Brand name: Kensington Project No.: 9N2002 Page No. : 4 of 4 Antenna

Report No.: FR9N2002 Page : 1 of 27 Report Version: Rev. 01 FCC Test Report FCC ID : GV3M01477-D Equipment : Wireless Dongle Model No. : M01477-D Brand Name : Kensington ; Nobo Applicant : ACCO Brands, Inc. Address : 1500 Fashion Island Blvd., 3rd Floor San Mateo California 94404 Standard : 47 CFR FCC Part 15.249 Received Date : Nov. 20, 2019 Tested Date : Dec. 04 ~ Dec. 05, 2019 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR9N2002 Page : 2 of 27 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 8 1.6 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ....................................................................................................... 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 Radiated Emission ............................................................................................................................... 14 3.3 20dB and Occupied Bandwidth ............................................................................................................ 26 4 TEST LABORATORY INFORMATION ............................................................................................... 27 Report No.: FR9N2002 Page : 3 of 27 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR9N2002 Rev. 01 Initial issue Jan. 03, 2020 Report No.: FR9N2002 Page : 4 of 27 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions [dBuV]: 0.153MHz 46.78 (Margin -19.04dB) - QP Pass 15.249(a) Field Strength of Fundamental Meet the requirement of limit Pass 15.249(a)(d) Field Strength of Harmonics and Emissions Radiated outside of the Specified Frequency Bands Meet the requirement of limit Pass 15.215(c) 20dB bandwidth Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR9N2002 Page : 5 of 27 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description Kensington M01477-D Wireless Dongle For black outer appearance Nobo For white outer appearance  All models are electrically identical, different brand names are for marketing purpose. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Modulation Ch. Freq. (MHz) Channel Number Data/Bit Rate 2404-2478 GFSK 2404-2478 1-38 [38] 1 Mbps 1.1.3 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 PIFA -1 N/A --- 1.1.4 Power Supply Type of Equipment under Test (EUT) Power Supply Type DC 5V from host 1.1.5 Accessories N/A Report No.: FR9N2002 Page : 6 of 27 Report Version: Rev. 01 1.1.6 Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2404 11 2424 21 2444 31 2464 2 2406 12 2426 22 2446 32 2466 3 2408 13 2428 23 2448 33 2468 4 2410 14 2430 24 2450 34 2470 5 2412 15 2432 25 2452 35 2472 6 2414 16 2434 26 2454 36 2474 7 2416 17 2436 27 2456 37 2476 8 2418 18 2438 28 2458 38 2478 9 2420 19 2440 29 2460 -- -- 10 2422 20 2442 30 2462 -- -- 1.1.7 Test Tool and Duty Cycle Test Tool HomerTech Tester Duty Cycle and Duty Factor Duty Cycle (%) Duty Factor (dB) 100 0 Report No.: FR9N2002 Page : 7 of 27 Report Version: Rev. 01 1.2 Local Support Equipment List Support Equipment List No. Equipment Brand Model FCC ID Remarks 1 Notebook DELL Latitude E5470 DoC ---…

Text truncated - open the document above for the full version.

Report No.: FR9N2002 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR9N2002 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR9N2002 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR9N2002 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR9N2002 Page: : 5 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
