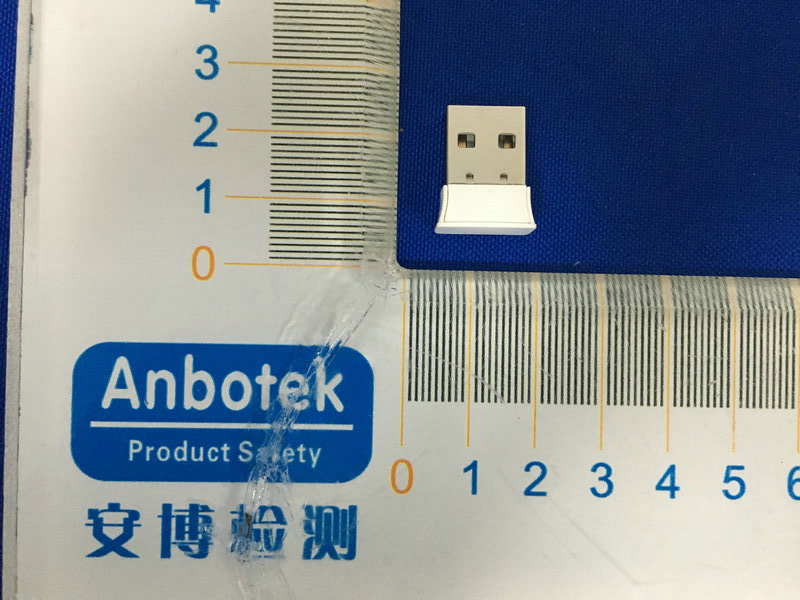

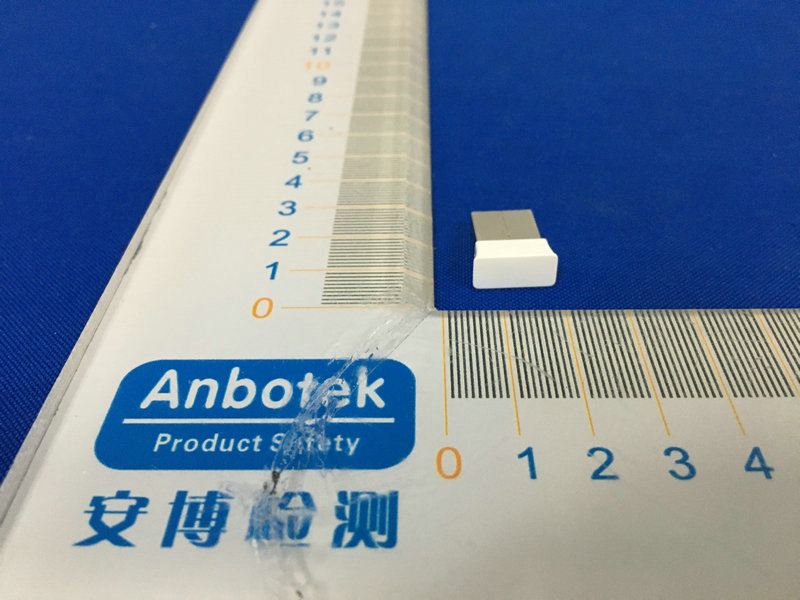

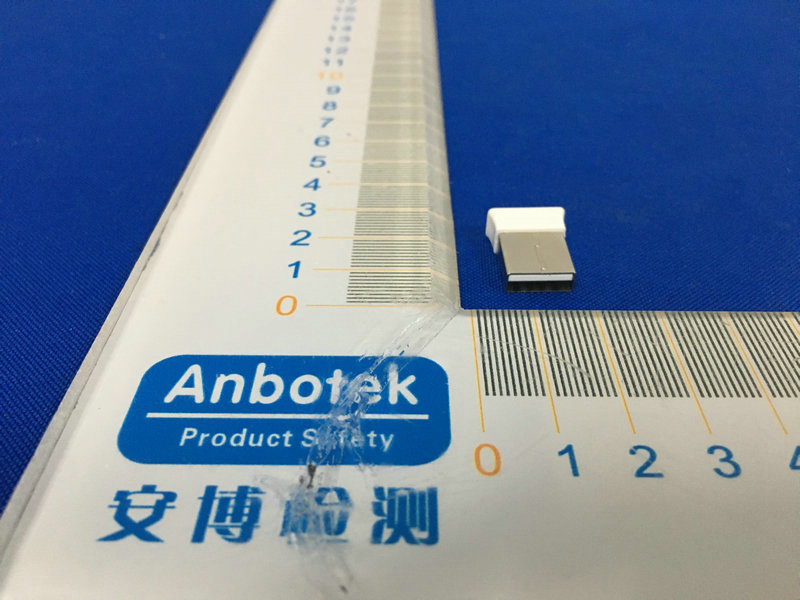

FCC ID: GV3M01502-D

Label Location On EUT Label FCC ID: GV3M01502-D

FCC ID: GV3M01502-D ANT

version01 ACCO Brands, Inc. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: M01502-D FCC ID : GV3M01502-D fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: 2.4GHz Model No. of antenna: N/A Type of antenna:PCB Antenna Gain of the antenna: 2.34 dBi Frequency range:2403~2480MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: ACCO Brands, Inc. Address: 1500 Fashion Island Blvd., 3rd Floor, San Mateo, CA94404, United States City: San Mateo, CA94404 ZIP / Postal code: Country:United States Place:United StatesDate: 2020-07-16 Signature:

FCC ID: GV3M01502-D RF EXPOSURE EVALUATION EUT Specification EUT Wireless dongle Model Name M01502-D Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others: 2403‐2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 93.42 dBuV/m (-1.84dBm)(0.66mW) Antenna gain 2.34 dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance V6, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: GV3M01502-D Measurement Result Channel Frequency (MHz) Max Output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculati on Value (Note 1) Threshold Value 2403 -1.84 ±1 -0.84 5 0.26 3.0 EIRP=E-104.8+20logD= 93.42 -104.8+20log3= -1.84dbm Note 1: Calculation Value =[(max. power of channel, included Tune up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.83/5*√ 2.403=0.26 ≤3.0 According to KDB447498 D01 V6, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required. The SAR measurement is not necessary.

Report No.: 18220WC00040301FCC ID: GV3M01502-DPage 1 of 39 Code:AB-RF-05-a FCC TEST REPORT Client Name: ACCO Brands, Inc Address: 1500 Fashion Island Blvd., 3rd Floor, San Mateo, CA 94404, USA Product Name: Wireless dongle Date: Jul. 15, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00040301FCC ID: GV3M01502-DPage 2 of 39 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 4 1.1. Client Information ....................................................................................................................................... 4 1.2. Description of Device (EUT) ..................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 5 1.5. List of Channels .......................................................................................................................................... 6 1.6. Description of Test Setup .......................................................................................................................... 7 1.7. Test Equipment List .................................................................................................................................... 8 1.8. Measurement Uncertainty ......................................................................................................................... 9 1.9. Description of Test Facility ........................................................................................................................ 9 2. Summary of Test Results ................................................................................................................................... 10 3. Conducted Emission Test ................................................................................................................................... 11 3.1. Test Standard and Limit .......................................................................................................................... 11 3.2. Test Setup .................................................................................................................................................. 11 3.3. Test Procedure .......................................................................................................................................... 11 3.4. Test Data .................................................................................................................................................... 12 4. Radiated Emission and Band Edge .................................................................................................................. 15 4.1. Test Standard and Limit .......................................................................................................................... 15 4.2. Test Setup .................................................................................................................................................. 16 4.3. Test Procedure .......................................................................................................................................... 17 4.4. Test Data .................................................................................................................................................... 18 5. 20dB Bandwidth Test .......................................................................................................................................... 28 5.1. Test Standard and Limit .......................................................................................................................... 28 5.2. Test Setup .................................................................................................................................................. 28 5.3. Test Procedure .......................................................................................................................................... 28 5.4. Test Data .................................................................................................................................................... 28 6. Antenna Requirement ......................................................................................................................................... 31 6.1. Test Standard and Requirement ............................................................................................................ 31 6.2. Antenna Connected Construction .......................................................................................................... 31 APPENDIX I -- TEST SETUP PHOTOGRAPH ................................................................................................... 32 APPENDIX II -- EXTERNAL PHOTOGRAPH ..................................................................................................... 34 APPENDIX III -- INTERNAL PHOTOGRAPH ..................................................................................................... 37 Report No.: 18220WC00040301FCC ID: GV3M01502-DPage 3 of 39 Code:AB-RF-05-a TEST REPORT Applicant: ACCO Brands, Inc Manufacturer: ACCO Brands, Inc Product Name: Wireless dongle Model No.: M01502-D Trade Mark: Kensington Rating(s): Input: DC 5V, 50mA Test Standard(s) : FCC Part15 Subpart C, Paragraph 15.249 Test Method(s): ANSI C63.10: 2013 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measureme…

Text truncated - open the document above for the full version.

FCC ID: GV3M01502-D Photo of Conducted Emission Test Photo of Radiation Emission Test
