GV3M01679-TPro Fit Ergo TB550 Trackball

234567 10111213 1415 89 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. -English: " This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the device." -French:" Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)l'appareil nedoit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." L'appareil a été évalué pour répondre aux exigences générales d'exposition aux RF. L'appareil peut être utilisé sans restriction dans des conditions d'exposition portables.

-ACCOBrands,Inc.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 5/8/23 U.S.AgentDesignation [ACCOBrands,Inc.]acknowledgestheirconsentforthefollowingcontactlocatedintheUnited Statestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought (FCCID:[GV3M01679-T]): NameandcompanyofU.S.agent:ACCOBrands,Inc. PhysicalU.S.addressofagent:4CorporateDrive,LakeZurich,Illinois60047,USA FRNofU.S.agent:0016623787 EmailaddressofU.S.agent:[email protected] [ACCOBrands,Inc.]acknowledgestheirobligationtoacceptserviceofprocessonbehalfof[ACCO Brands,Inc.]. [ACCOBrands,Inc.]withtheFRN[0016623787]acceptsitsobligationtomaintainanagentfor serviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,or theconclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingthe equipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(d)(7). Sincerely, Signature [StellaHuang] [ComplianceEngineer] [ACCOBrands,Inc.] 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 4 -ACCOBrands,Inc.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. Signature [StellaHuang] [ComplianceEngineer] [ACCOBrands,Inc.]

-ACCOBrands,Inc.- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 5/4/23 Towhomitmayconcern: We,[ACCOBrands,Inc.],herebycertifythattheequipmentforwhichauthorizationissought(FCCID: [GV3M01679-T])isnot“covered”equipmentprohibitedfromreceivinganequipmentauthorization pursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [StellaHuang] [ComplianceEngineer] [ACCOBrands,Inc. 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

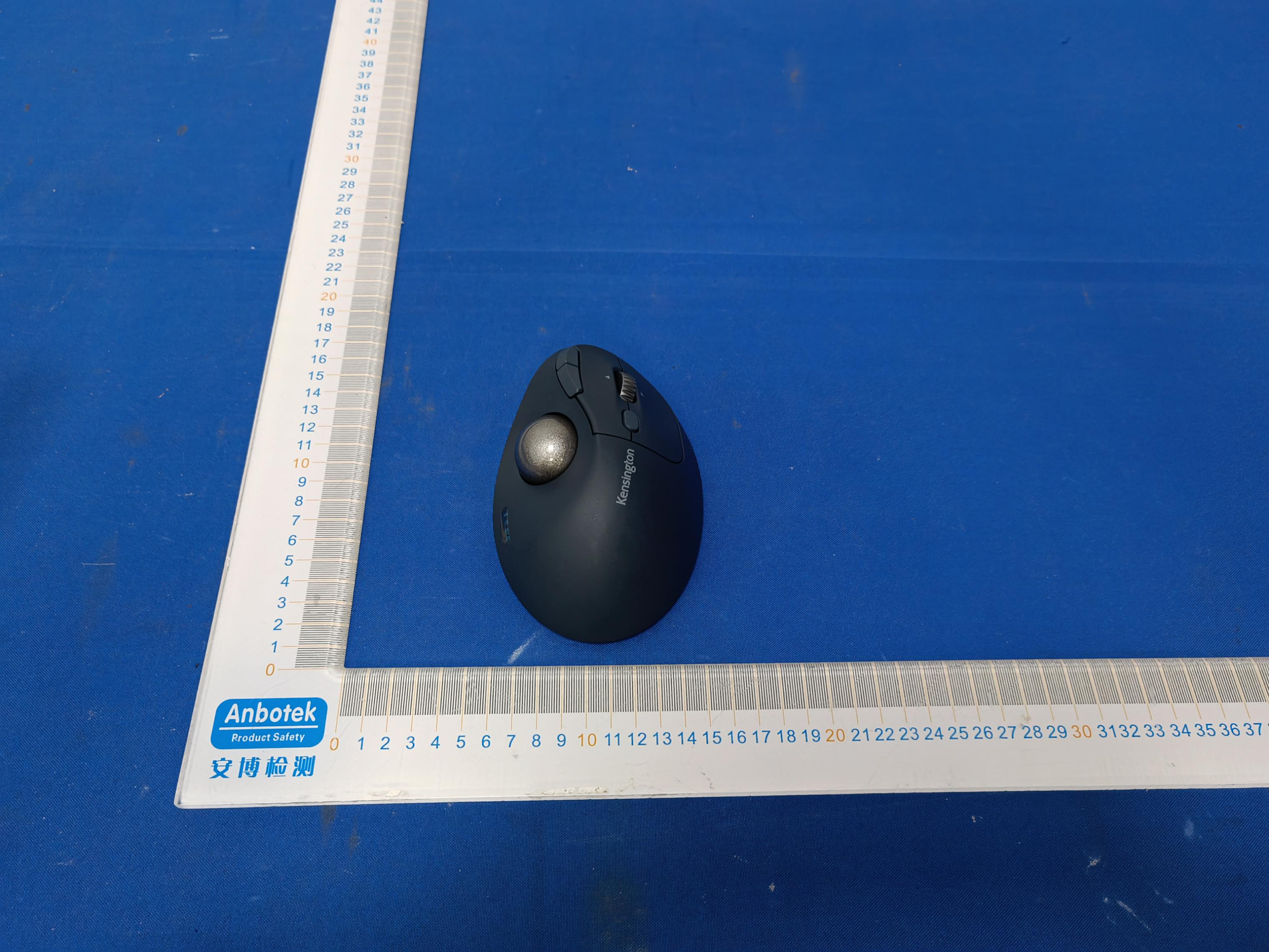

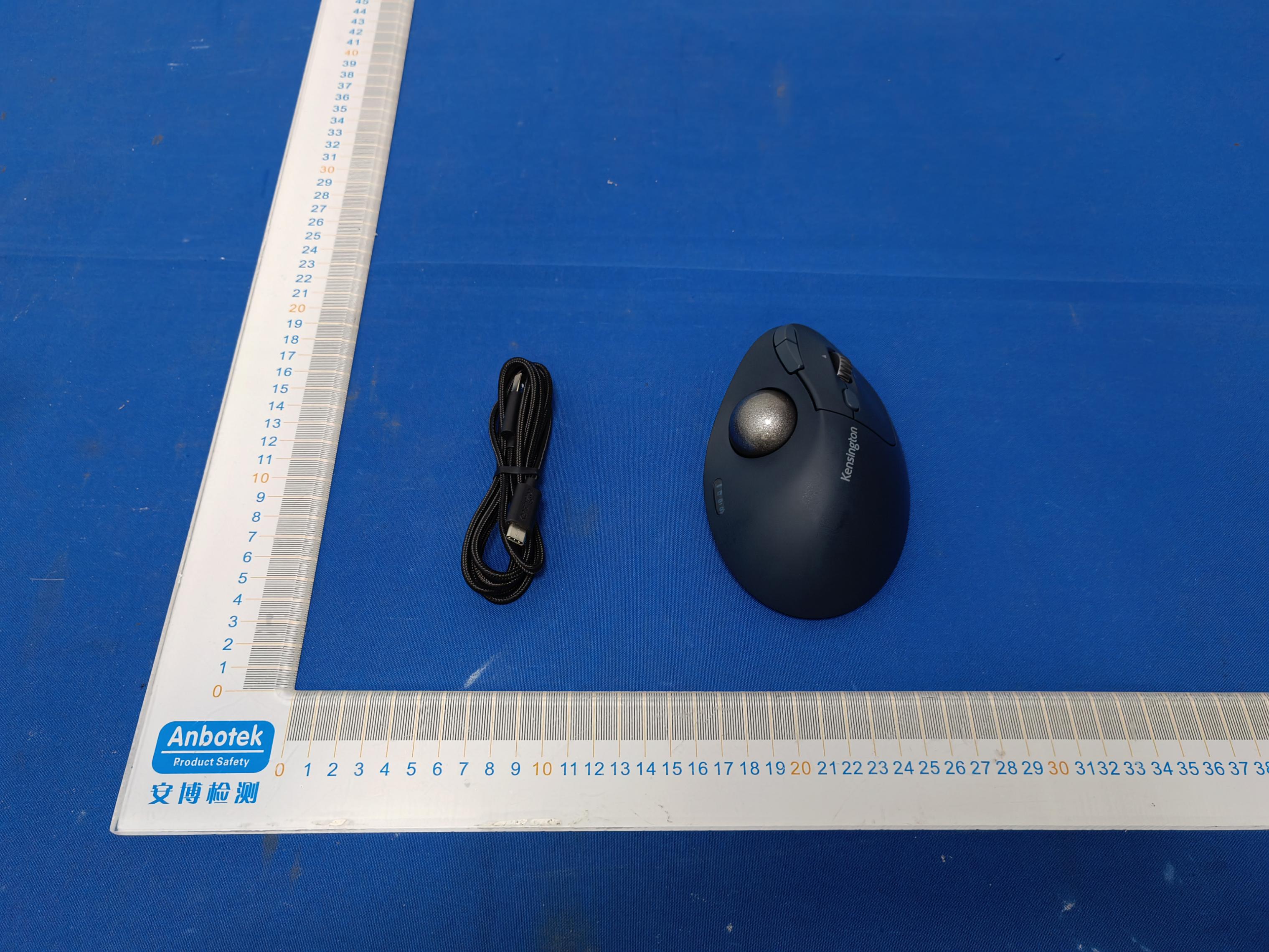

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

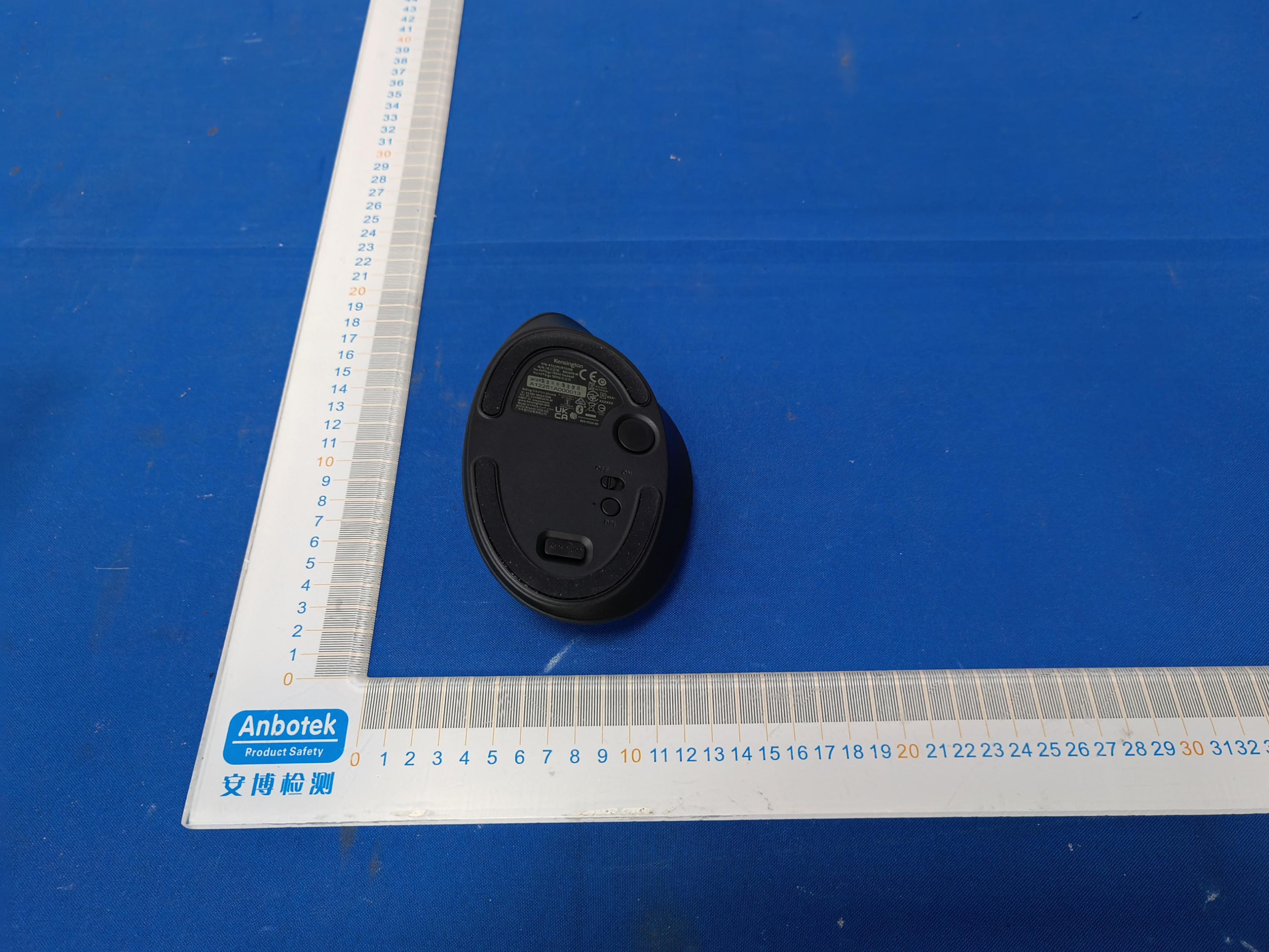

LabelLocationOnEUT

Code:AB-RF-05-b InternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b ANT Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

version01 ACCOBrands,Inc. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:M01679-T FCCID:GV3M01679-T fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:2.4GANT Typeofantenna:PCBantenna Gainoftheantenna:-0.08dBi Frequencyrange:2.4G:2400~2500MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ACCOBrands,Inc. Address:4CorporateDrive,LakeZurich,Illinois60047,USA City:Illinois ZIP/Postalcode:60047 Country:USA Place:Date:5/4/2023 Signature:

ANTENNASPECIFICATION Summary ITEMANTSPEC ModelName2.4GANT Center Frequency HorizontalVertical 2400MHz2450MHz2500MHz2400MHz2450MHz2500MHz -0.08-0.79-0.64-2.23-3.16-3.58 MAX.Gain-0.08 PolarizationHorizontalandVertical AzimuthBeam Pattern Omni-directional Impedance50Ohm AntennaLength27.69mm ManufacturePCBANT DongguanshouchuangElectronicsTechnologyCo.,Ltd.124 JinshanRoad,ChashanTown,DongguanCity,GuangdongProvince AntennaPhoto&Length(mm) Horizontal:2400MHz2450MHz2500MHz Power(dBm) Frequency (MHz) Gain(dB) MaxMinAvg 2400-0.08-15.53-2.63 2450-0.79-16.45-2.27 2500-0.64-16.43-2.33 Vertical:2400MHz2450MHz2500MHz Power(dBm) Frequency (MHz) Gain(dB) MaxMinAvg 2400-2.23-16.9-4.2 2450-3.16-18.4-4.8 2500-3.58-16.6-4.5

RFEXPOSUREEVALUATION FCCID:GV3M01679-T AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 2402-0.33-0.33 ±1 0.6750.3623 BDR2441-0.38-0.38±10.6250.3603 2480-1.01-1.01±1-0.0150.3143 2402-0.34-0.34 ±1 0.6650.3613 BLE2440-0.42-0.42±10.5850.3573 2480-0.99-0.99±10.0150.3163 24035.525.52 ±1 6.5251.3913 2.4G24415.265.26±16.2651.3213 24805.015.01±16.0151.2573 Result:NoStandaloneSARtestisrequired.

Page1of23 AppendixTestData ReportNo.:18220WC30012802TestSampleNo.:1-2-2 StartTestDate:2023.2.3FinishTestDate:2023.2.9 TestEngineer:Auditor: Temperature:24.3 °C RelativeHumidity:47% Pressure:1012hPa AppendixA:DTSBandwidth TestResult TestModeAntennaFrequency[MHz] DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.9562401.5442402.5000.5PASS 24400.9402439.5522440.4920.5PASS 24800.9282479.5402480.4680.5PASS Page2of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page3of23 Page4of23 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz] OCB[MHz] FL[MHz]FH[MHz] BLE_1MAnt1 24021.14312401.42602402.5691 24401.14662439.42452440.5711 24801.12822479.43862480.5668 Page5of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page6of23 Page7of23 AppendixC:Maximumconductedoutputpower TestResultPeak TestModeAntennaFrequency[MHz] ConductedPeak Power[dBm] Conducted Limit[dBm] Verdict BLE_1MAnt1 2402-0.34≤30PASS 2440-0.42≤30PASS 2480-0.99≤30PASS Page8of23 TestGraphsPeak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page9of23 Page10of23 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-14.99≤8.00PASS 2440-15.08≤8.00PASS 2480-15.58≤8.00PASS Page11of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page12of23 Page13of23 AppendixE:Bandedgemeasurements TestResult TestModeAntennaChName Frequency [MHz] RefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 Low2402-1.91-51.35≤-21.91PASS High2480-2.52-54.9≤-22.52PASS Page14of23 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Page15of23 AppendixF:ConductedSpuriousEmission TestResult TestModeAntenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference-2.24-2.24---PASS 30~1000-2.24-68.39≤-22.24PASS 1000~26500-2.24-53.82≤-22.24PASS 2440 Reference-2.94-2.94---PASS 30~1000-2.94-68.47≤-22.94PASS 1000~26500-2.94-53.33≤-22.94PASS 2480 Reference-2.92-2.92---PASS 30~1000-2.92-69.17≤-22.92PASS 1000~26500-2.92-53.06≤-22.92PASS Page16of23 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Page17of23 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Page18of23 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Page19of23 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Page20of23 Page21of23 AppendixG:DutyCycle TestResult TestModeAntennaFrequency[MHz] ONTime [ms] Period [ms] DutyCycle [%] DutyCycle Factor[dB] BLE_1MAnt1 24020.430.6467.191.73 24400.430.6467.191.73 24800.430.6467.191.73 Page22of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page23of23 ---End---

ReportNo.:18220WC30012802FCCID:GV3M01679-TPage1of30 Code:AB-RF-05-b FCCTestReport Applicant:ACCOBrands,Inc. Address: 4CorporateDrive,LakeZurich,Illinois60047, USA ProductName:ProFitErgoTB550Trackball ReportDate:May04,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30012802FCCID:GV3M01679-TPage2of30 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................6 1.1.ClientInformation....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................7 1.4.DescriptionofTestConfiguration..........................................................................................................7 1.5.DescriptionOfTestSetup......................................................................................................................8 1.6.TestEquipmentList.................................................................................................................................9 1.7.MeasurementUncertainty....................................................................................................................10 1.8.DescriptionofTestFacility...................................................................................................................10 2.SummaryofTestResults.................................................................................................................................11 3.ConductedEmissionTest................................................................................................................................12 3.1.TestStandardandLimit........................................................................................................................12 3.2.TestSetup...............................................................................................................................................12 3.3.TestProcedure.......................................................................................................................................12 3.4.TestData.................................................................................................................................................12 4.RadiationSpuriousEmissionandBandEdge.............................................................................................15 4.1.TestStandardandLimit........................................................................................................................15 4.2.TestSetup...............................................................................................................................................15 4.3.TestProcedure.......................................................................................................................................16 4.4.TestData.................................................................................................................................................17 5.MaximumPeakOutputPowerTest...............................................................................................................25 5.1.TestStandardandLimit........................................................................................................................25 5.2.TestSetup...............................................................................................................................................25 5.3.TestProcedure.......................................................................................................................................25 5.4.TestData.................................................................................................................................................25 6.6dBOccupyBandwidthTest...........................................................................................................................26 6.1.TestStandardandLimit........................................................................................................................26 6.2.TestSetup...............................................................................................................................................26 6.3.TestProcedure.......................................................................................................................................26 6.4.TestData.................................................................................................................................................26 7.PowerSpectralDensityTest...........................................................................................................................27 7.1.TestStandardandLimit........................................................................................................................27 7.2.TestSetup...............................................................................................................................................27 7.3.TestProcedure.......................................................................................................................................27 7.4.TestData.................................................................................................................................................27 8.100kHzBandwidthofFrequencyBandEdgeRequirement......................................................................28 8.1.TestStandardandLimit........................................................................................................................28 ReportNo.:18220WC30012802FCCID:GV3M01679-TPage3of30 Code:AB-RF-05-b 8.2.…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b
