H25PD2TX5000S

DTC Communications Inc.

Licensed non boradcast 4.8W COFDM video transmitter

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Feb 08, 2012
Application Purpose: Original Equipment
Date of Application: Feb 07, 2012
Equipment Note: Licensed non boradcast 4.8W COFDM video transmitter
Frequency Range: 2454.00000000 - 2479.50000000
Company: DTC Communications Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Block Diagram

Cover Letter(s)

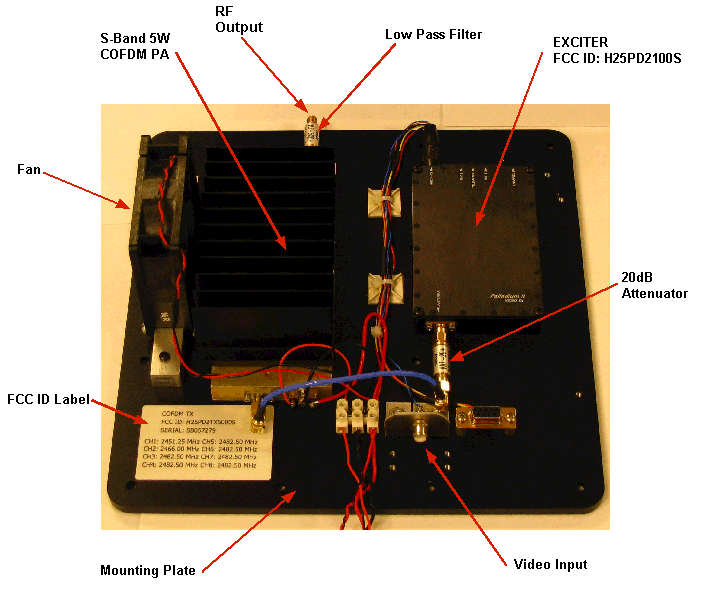

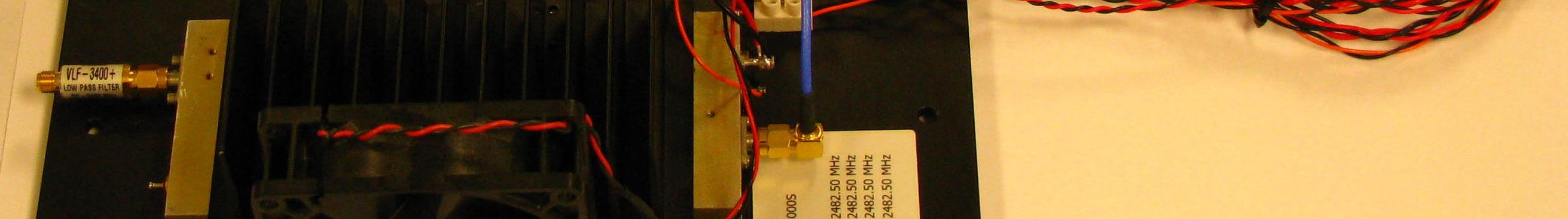

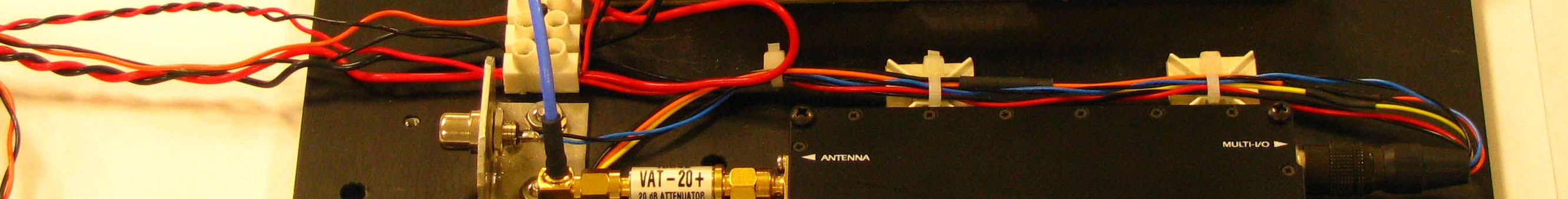

External Photos

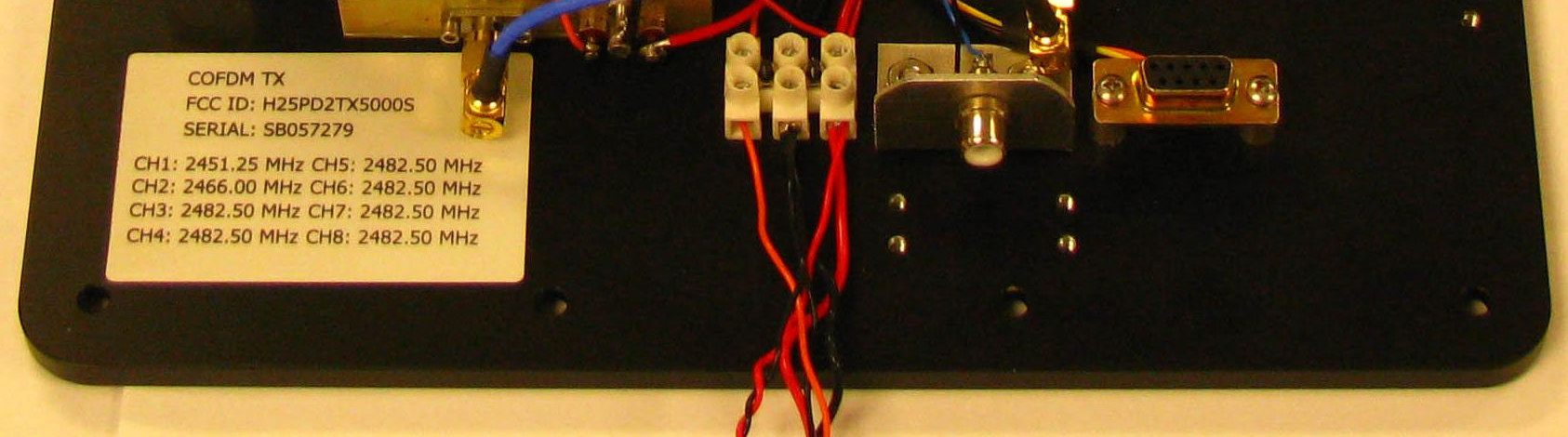

ID Label/Location Info

Internal Photos

Operational Description

Parts List/Tune Up Info

RF Exposure Info

Schematics

Test Report

Test Setup Photos

Contact Information

Applicant

Joe L. Desjardins(Dir., New Product Development)

[email protected]603 880-4411Fax: 603 880-6965

Technical Contact

Telcom Hardware DesignNorval Stapelfeld

[email protected]603 930 4410

680 Hevey St. · Manchester · United States

Test Firm

Retlif Testing LaboratoriesScott Wentworth

[email protected]603-497-4600Fax: 603-497-5281

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
5	9	2.45 GHz - 2.48 GHz	4.8 W	8M0D7W	2 ppm

Grant Notes

Power listed is manufacturers rated antenna terminal power. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of �2.1091. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 30 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
