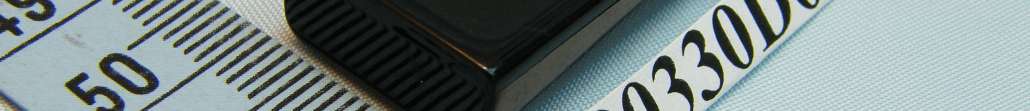

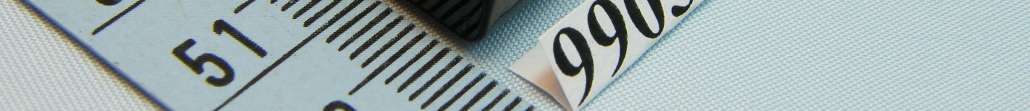

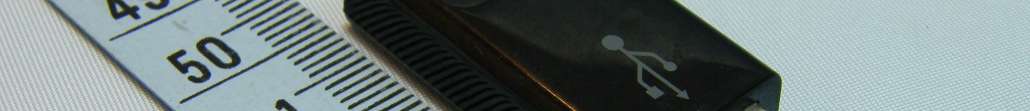

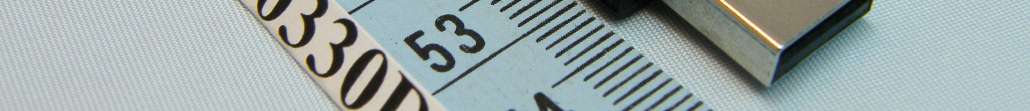

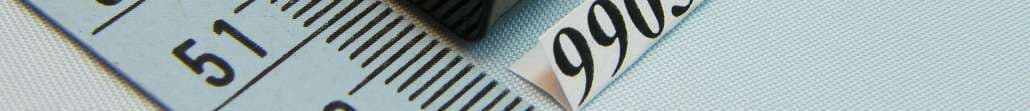

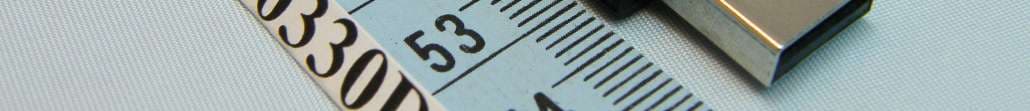

Page 1 CONSTRUCTION PHOTOS OF EUT

Label Location

Page 2 Page 3

FCC ID: H4IDG2060 Report No.: RF990330D06-2 Operational Description The transmitter of the EUT (Dongle) is powered by 5Vdc from host equipment. The type of antenna is Printed Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF990330D06-2 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990330D06-2 MODEL NO.: SD-2060 RECEIVED: March 31, 2010 TESTED: March 31 ~ April 1, 2010 ISSUED: April 8, 2010 APPLICANT: Lite-On Technology Corporation ADDRESS: 90,Chien I Road, Chung Ho, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan This test report consists of 28 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990330D06-2 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION..........................................................................................3 2. SUMMARY OF TEST RESULTS..................................................................4 2.1 MEASUREMENT UNCERTAINTY...............................................................4 3. GENERAL INFORMATION..........................................................................5 3.1 GENERAL DESCRIPTION OF EUT............................................................5 3.2 DESCRIPTION OF TEST MODES..............................................................6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................8 3.4 DESCRIPTION OF SUPPORT UNITS........................................................8 4. TEST TYPES AND RESULTS......................................................................9 4.1 CONDUCTED EMISSION MEASUREMENT..............................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................9 4.1.2 TEST INSTRUMENTS................................................................................9 4.1.3 TEST PROCEDURES...............................................................................10 4.1.4 DEVIATION FROM TEST STANDARD.....................................................10 4.1.5 TEST SETUP............................................................................................10 4.1.6 EUT OPERATING CONDITIONS..............................................................11 4.1.7 TEST RESULTS........................................................................................12 4.2 RADIATED EMISSION MEASUREMENT.................................................14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................14 4.2.2 TEST INSTRUMENTS..............................................................................15 4.2.3 TEST PROCEDURES...............................................................................16 4.2.4 DEVIATION FROM TEST STANDARD.....................................................16 4.2.5 TEST SETUP............................................................................................17 4.2.6 EUT OPERATING CONDITIONS..............................................................17 4.2.7 TEST RESULTS........................................................................................18 4.3 BAND EDGES MEASUREMENT..............................................................23 4.3.1 LIMITS OF BAND EDGES MEASUREMENT............................................23 4.3.2 TEST INSTRUMENTS..............................................................................23 4.3.3 TEST PROCEDURE.................................................................................23 4.3.4 DEVIATION FROM TEST STANDARD.....................................................23 4.3.5 EUT OPERATING CONDITION................................................................23 4.3.6 TEST RESULTS........................................................................................23 5. PHOTOGRAPHS OF THE TEST CONFIGURATION.................................26 6. INFORMATION ON THE TESTING LABORATORIES...............................27 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB......................................................28 Report No.: RF990330D06-2 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: Dongle BRAND NAME: hp MODEL NO.: SD-2060 APPLICANT: Lite-On Technology Corporation TESTED: March 31 ~ April 1, 2010 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: April 8, 2010 ( Celia Chen / Senior Specialist ) TECHNICAL ACCEPTANCE : , DATE: April 8, 2010 Responsible for RF ( Jamison Chan / Supervisor ) APPROVED BY : , DATE: April 8, 2010 ( Ken Liu / Assistant Manager ) Report No.: RF990330D06-2 4 Report Format Version 3.0.1 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD SECTION TEST TYPE AND LIMIT RESULT REMARK 15.207 Conducted Emission Test PASS Minimum passing margin is –12.59dB at 0.173MHz 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 12.209 PASS Minimum passing margin is –6.1dB at 81.30MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the foll…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
