H4IDG9082Dongle

SM-8861 Wireless Mouse /SD-9082 USB Dongle Product Guide Getting Started Thank you for choosing this 2.4G Wireless Mouse Kits. It operates with digital radio technology to ensure no hinder communication between the mouse and your computer without connecting cable. The transmission and receiving of mouse are free from angle restriction. Preparing mouse and Dongle Before working with your new mouse, look at the "Hardware Installation", and take a few one-time preparations. Hardware Installation ● Place the dongle at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. ● The distance between the mouse and dongle should not exceed 10 M. ● Do not place the dongle on metal surfaces. ● Do not move optical mouse on following surface - Glass or any transparent materials; Mirror or reflecting surface; Mouse pad with too many colors; Rough surface. Step 1: Connect the Dongle ● Plug the dongle connector into an USB port. ● SYSTEM will take around 10 sec to find your keyboard and mouse automatically. Step 2: Insert batteries Inserting batteries in mouse The mouse requires one alkaline AA battery. ● Open the battery compartment cover on the bottom of the mouse. ● First push the battery puller in then insert one AA battery into battery compartment. ● Fix the battery compartment cover on the bottom of mouse again. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Use and replace only with correct size and type (alkaline or zinc-carbon)of battery. Working mouse Dongle and mouse electrical specification Iin addition to two buttons, the mouse also has a wheel that can be used as follows: ● As a 3rd button: press on the wheel. ● For scrolling, e.g. in documents or on Internet pages: turn the wheel forward or back. The Dongle will have one main function: translate radio communications from the mouse to the PC via USB Full Speed USB Specification Compliance., meets Universal Serial Bus Specification version 2.0. Support USB Suspend Mode. Designation Value Modulation GFSK Operating Frequency 2403MHz~2480MHz channel 78 channel 2.4GHz ISM Band Storage temperature –20 °C ... +60 °C Operating temperature 0 °C ... +40 °C Mouse Battery type One alkaline battery, type AA Mouse Supply voltage 1.5V(1.2~1.65V) Mouse Current consumption max. 50 mA Dongle Supply voltage DC 5.0 V ±5 % Dongle Current consumption max..100 mA FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This Class B device complies with part 15 of the FCC rules, Canada ICES-003,RSS-210.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment Laser and LED Specifications: Laser Mouse: This device complies with International Standard IEC 60825-1: (1993), +A1+A2(IEC 60825-1:2001-8) for a class1. Class 1 Laser Device Beam description: Collimated (parallel)beam of infrared light(invisible to the user) Laser power output:<716 microwatts(at 832 nanometers) to 834 microwatts(at 865 nanometers) Emitted laser wavelength:nominal:850 nanometers, range:(832-865 nanometers) A Class 1 laser product is safe under reasonably foreseeable conditions of operation as described by IEC 60825-1. However,it is recommended that you not direct the laser beam(which is emitted from the bottom of the device)at anyone’s eyes. Optical(LED) Mouse: This device complies with International Standard IEC 60825-1: (1993), +A1+A2(IEC 60825-1:2001-8) . This product uses LEDs that are consider Class1 (IEC 60825-1:1993+A1+A2) LED power output:<67.8μW (photochemical limit),< 4.2mW (thermal limit). LED nominal wavelength:470nm(blue),635nm(red). A Class 1 product is safe under reasonably foreseeable conditions of operation as described by IEC 60825-1. However, it is recommended that you not direct the light (which is emitted from the bottom of the device)at anyone’s eyes. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery compartment. ● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). ● Always remove old, weak, or worn…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: H4IDG9082 DATE:1-Dec-11 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Thank you! Sincerely yours, Shirly Kuo / Engineer Lite-On Technology Corporation Tel: 886-2-2222-6181#6115 Fax: 886-2- 22231519 [email protected] Lite-On Technology Corporation 90,Chien I Road, Chung Ho, Taipei Hsien, Taiwan, R.O.C. TEL: 02- 22226181 FAX: 02- 22231519

Power of Attorney To whom it may concern: We, the undersigned, Lite-On Technology Corporation, hereby authorize Bureau Veritas Consumer Products Services(H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. Product Name Model FCC ID Wireless Keyboard SK-8861 H4IKB8861 Wireless Mouse SM-8861 H4IMS8861 Dongle SD-9082 H4IDG9082 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Shirly Kuo / Engineer Lite-On Technology Corporation Tel: 886-2-2222-6181#6115 Fax: 886-2- 22231519 [email protected] Lite-On Technology Corporation 90,Chien I Road, Chung Ho, Taipei Hsien, Taiwan, R.O.C. TEL: 02- 22226181 FAX: 02- 22231519

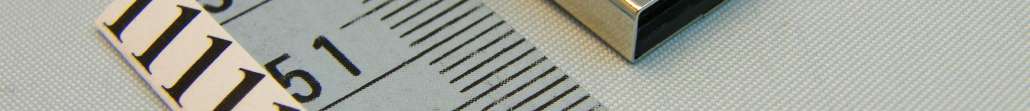

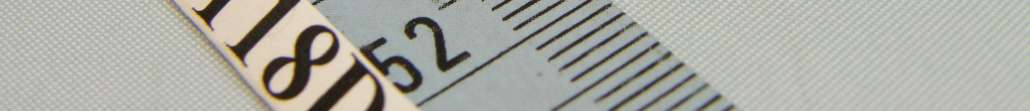

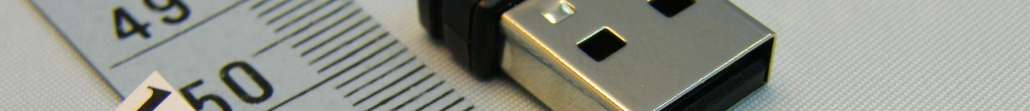

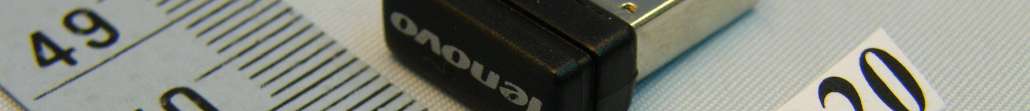

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3

FCC ID: H4IDG9082 Report No.: RF111118D20-2 Operational Description The transmitter of the EUT (Dongle) is powered by 5Vdc from host equipment. The type of antenna is Chip antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF111118D20-2 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF111118D20-2 MODEL NO.: SD-9082 FCC ID: H4IDG9082 RECEIVED: Nov. 18, 2011 TESTED: Nov. 22 ~ 23, 2011 ISSUED: Nov. 30, 2011 APPLICANT: Lite-On Technology Corporation ADDRESS: 90,Chien I Road, Chung Ho, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF111118D20-2 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION.........................................................................................4 2. SUMMARY OF TEST RESULTS.................................................................5 2.1 MEASUREMENT UNCERTAINTY...............................................................5 3. GENERAL INFORMATION..........................................................................6 3.1 GENERAL DESCRIPTION OF EUT............................................................6 3.2 DESCRIPTION OF TEST MODES..............................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................10 3.4 DESCRIPTION OF SUPPORT UNITS......................................................10 4. TEST TYPES AND RESULTS...................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT............................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................11 4.1.2 TEST INSTRUMENTS..............................................................................11 4.1.3 TEST PROCEDURES...............................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.....................................................12 4.1.5 TEST SETUP............................................................................................12 4.1.6 EUT OPERATING CONDITIONS..............................................................13 4.1.7 TEST RESULTS........................................................................................14 4.2 RADIATED EMISSION MEASUREMENT.................................................16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................16 4.2.2 TEST INSTRUMENTS..............................................................................17 4.2.3 TEST PROCEDURES...............................................................................18 4.2.4 DEVIATION FROM TEST STANDARD.....................................................18 4.2.5 TEST SETUP............................................................................................19 4.2.6 EUT OPERATING CONDITIONS..............................................................19 4.2.7 TEST RESULTS........................................................................................20 4.3 BAND EDGES MEASUREMENT..............................................................25 4.3.1 LIMITS OF BAND EDGES MEASUREMENT............................................25 4.3.2 TEST INSTRUMENTS..............................................................................25 4.3.3 TEST PROCEDURE.................................................................................25 4.3.4 DEVIATION FROM TEST STANDARD.....................................................25 4.3.5 EUT OPERATING CONDITION................................................................25 4.3.6 TEST RESULTS........................................................................................25 5. PHOTOGRAPHS OF THE TEST CONFIGURATION................................28 6. INFORMATION ON THE TESTING LABORATORIES..............................29 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.....................................................30 Report No.: RF111118D20-2 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF111118D20-2 Original release Nov. 30, 2011 Report No.: RF111118D20-2 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: Dongle BRAND NAME: lenovo MODEL NO.: SD-9082 APPLICANT: Lite-On Technology Corporation TESTED: Nov. 22 ~ 23, 2011 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: ( Annie Chang / Senior Specialist ) APPROVED BY : , DATE: ( Ken Liu / Manager ) Report No.: RF111118D20-2 5 Report Format Version 4.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD SECTION TEST TYPE AND LIMIT RESULT REMARK 15.207 Conducted Emission Test PASS Minimum passing margin is –12.79dB at 0.478MHz 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequen…

Text truncated - open the document above for the full version.

Report No.: RF111118D20-2 1 Report Format Version 4.0.0 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF111118D20-2 2 Report Format Version 4.0.0 RADIATED EMISSION TEST
