H4IEV700Monitor

i Contents 1 Using Your EV Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installing the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Removing the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Adjusting display settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 OSD options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Picture is scrambled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Picture is fuzzy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Picture bounces, jitters, or has waves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Image is not sized or centered properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Image cannot be adjusted full screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 ECO document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2 Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . 19 ii 1 1 Using Your EV Series Monitor This monitor provides high resolution performance and operates in a variety of video modes. The flat square tube design makes images easier to see. The Microprocessor-based On-Screen Display (OSD) controls let you adjust a variety of image controls, automatically storing different user modes. The OSD controls also includes seven factory preset modes. 2 Using Your EV Series Monitor Safety precautions
Read all instructions before using the monitor, and save them for later use.
Follow all warnings and instructions marked on the product.
To avoid electrical shock, never open the monitor case.
Never use the monitor if the power cable has been damaged. Do not allow anything to rest on the power cable.
The openings in the monitor cabinet are for ventilation. Do not block or cover these openings. Do not insert anything into these openings. If you put the monitor in a bookcase or some other enclosed space, be sure to leave space for ventilation.
Do not expose the monitor to rain or use near water. Turning on a monitor that has been exposed to moisture will cause damage. If the monitor gets wet, unplug it, and contact technical support.
This monitor is equipped with a 3-wire grounding-type plug as a safety feature. This plug will only fit into a grounding-type outlet. If you are unable to insert the plug into an outlet, contact an electrician to install the appropriate outlet. Do not try to remove any of the prongs.
If any problems occur, unplug the monitor and contact technical support. Installing the monitor 3 Installing the monitor Installing the monitor consists of two procedures: attaching the base and connecting the monitor cables. If you are setting up your system for the first time, refer to the setup poster for more information about connecting additional peripherals. To attach the base: 1 Carefully set the monitor on its side with the bottom of the monitor facing you. 2 Hold the base so that the narrow end is pointed toward the back of the monitor. 3 Align the four hooks on the bottom of the base with the corresponding slots on the bottom of the monitor. 4 Slide the base toward the front of the monitor so that all hooks are securely in place. A retaining latch built into the base clicks into place when the base is correctly attached. 5 Carefully set the monitor upright and place the monitor on a sturdy, level surface. 4 Using Your EV Series Monitor To connect the power and video cables: 1 Position the monitor and the computer so that you can easily get at the back panel of each. Make sure all power cables can reach a properly grounded electrical outlet. 2 Connect one end of the video cable that came with the monitor to the matching video connector on the back of the monitor. The connector attaches only one way. If you cannot attach the cable easily, match the “D” shape of the connectors by turning the connector upside down and trying again. A AC power connector B Video connector 3 Connect the other end of the video cable to the matching blue video connector on the back of your computer. 4 Tighten the screws on the video cable connectors to keep them from coming loose. Tightening the screws also prevents radio and TV interference. 5 Connect the power …

Text truncated - open the document above for the full version.

FCC ID : H4IEV700 Model : EV700

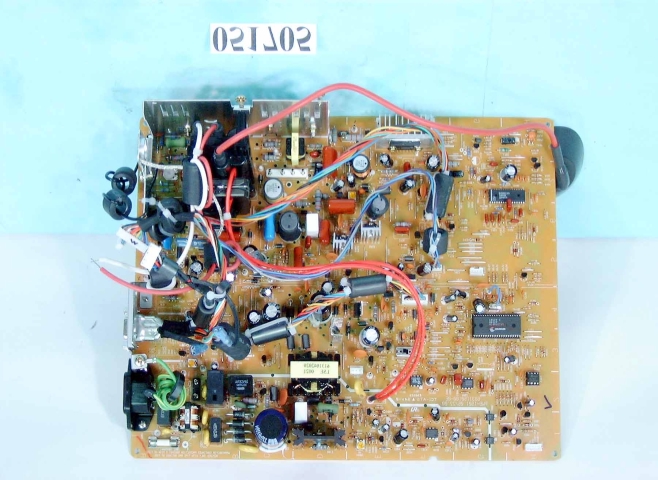

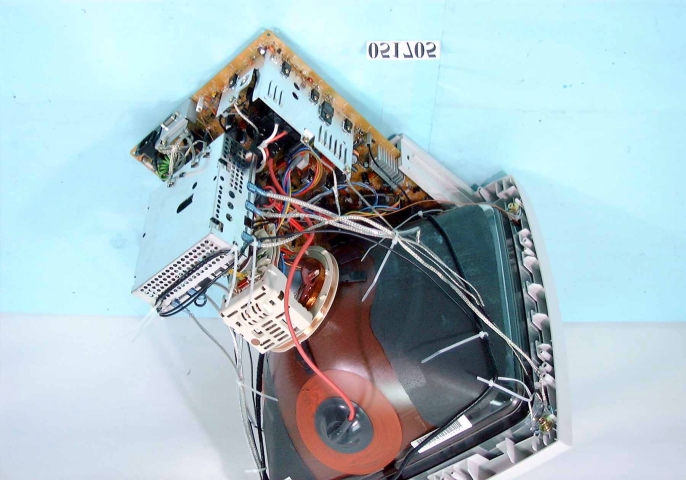

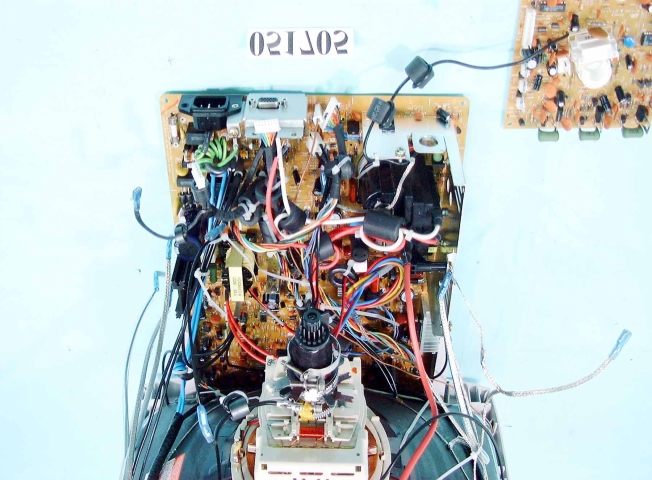

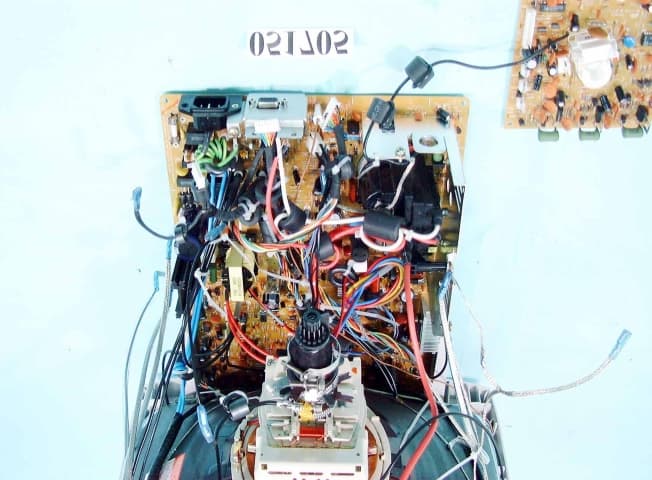

FCC ID : H4IEV700FRONT SIDE OF EUT Number 1 051705-01.jpg FCC ID : H4IEV700Rear side of EUT(Reference Modification No.1) Number 2 051705-02.jpg 1 FCC ID : H4IEV700Mechanical Construction Number 3 051705-05CDFM.jpg FCC ID : H4IEV700Mechanical Construction(Reference Modification No.2) Number 4 051705-06CDFM.jpg 2 FCC ID : H4IEV700Mechanical Construction(Reference Modification No.3) Number 5 051705-07CDFM.jpg 3 FCC ID : H4IEV700Mechanical Construction Number 6 051705-08CDFM.jpg FCC ID : H4IEV700Mechanical Construction Number 7 051705-09CDFM.jpg FCC ID : H4IEV700Mechanical Construction(Reference Modification No.4, No.6, No.7, No.8, No.9, No.10, No.13) Number 8 051705-10CDFM.jpg 4 4 6 10 7 8 9 13 FCC ID : H4IEV700Front side of CRT Board Number 9 051705-11CDFM.jpg FCC ID : H4IEV700Rear side of CRT board Number 10 051705-12CDFM.jpg FCC ID : H4IEV700Front side of main board(Reference Modification No.10, No.11, No.12), Number 11 051705-13CDFM.jpg 12 11 11 10 FCC ID : H4IEV700Rear side of main board(Reference Modification No.5) Number 12 051705-14CDFM.jpg 5 5

FCC ID : H4IEV700

FCC ID LOCATION

FCC TEST REPORT Report No. : F051705 SPORTON International Inc. FCC ID: H4IEV700 TEL : 886-2-2696-2468Page No.: 1 of 24 FAX : 886-2-2696-2255Issued Date : Jun. 14, 2000 FCC TEST REPORT for CISPR PUB. 22 Class B Equipment: Monitor Model No.: EV700 FCC ID: H4IEV700 Filing Type: Original Grant Applicant: Lite-On Technology Corp. 5F, 16, Sec. 4, Nanking E. Rd., Taipei, Taiwan, R.O.C. ! The test result refers exclusively to the test presented test model / sample. ! Without the written authorization of the test lab., the Test Report may not be copied. ! Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F051705 SPORTON International Inc. FCC ID: H4IEV700 TEL : 886-2-2696-2468Page No.: 2 of 24 FAX : 886-2-2696-2255Issued Date : Jun. 14, 2000 Table of Contents CERTIFICATE OF COMPLIANCE .............................................................................................................. 3 1. General Description of Equipment under Test..................................................................................... 4 1.1. Applicant .............................................................................................................................................................................................................. 4 1.2. Manufac turer ....................................................................................................................................................................................................... 4 1.3. Basic Description of Equipme nt under Test................................................................................................................................................... 4 1.4. Feature of Eq uipment under Tes t.................................................................................................................................................................... 4 2. Test Configuration of Equipment under Test....................................................................................... 5 2.1. Test Ma nner ........................................................................................................................................................................................................ 5 2.2. Description of Test S ystem............................................................................................................................................................................... 5 2.3. Connec tion Diagram o f Test Sys tem .............................................................................................................................................................. 7 3. Test Software ....................................................................................................................................... 8 4. General Information of Test ................................................................................................................. 9 4.1. Test Facility ......................................................................................................................................................................................................... 9 4.2. Standard for Methods o f Meas ure ment .......................................................................................................................................................... 9 4.3. Test in Comp liance with .................................................................................................................................................................................... 9 4.4. Freque nc y Range Investigated ........................................................................................................................................................................ 9 4.5. Test Distance ...................................................................................................................................................................................................... 9 5. Test of Conducted Powerline............................................................................................................. 10 5.1. Major Measuring Instrume nts .........................................................................................................................................................................10 5.2. Test Procedures ...............................................................................................................................................................................................11 5.3. Typical Test Setup La yo ut o f Co nduc ted Powerline ...................................................................................................................................12 5.4. Test Res ult o f AC Powerline Cond ucted Emission.....................................................................................................................................13 5.5. Photograp hs o f Cond uc ted Powerline Tes t Configuration.........................................................................................................................15 6. Test of Radiated Emission.................................................................................................................. 17 6.1. Major Measuring Instrume nts .........................................................................................................................................................................17 6.2. Test Procedures ...............................................................................................................................................................................................18 6.3. Typical Test Setup La yo ut o f Radiat…

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSIONFCC ID:H4IEV700 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Re: About the modification of Monitor Gentlemen: I, hereby, declare that all modification on the E.U.T., FCC ID: H4IEV700, will be added or layout on the mass production products. Modifications are shown as below: 1. Add a core on Video cable near monitor. (As the photo No.2) 2. Add a Video metal cover on Video beard. (As the photo No.4) 3. Add ground wire from Video cover to CRT ground wire. (As the photo No.5) 4. Add a core on each G1/G4 wire with one turn. (As the photo No.8) 5. Add a PCB each under main board on power supply and FBT side. (As the photo No.12) 6. Add a core on G1/G4 together. (As the photo No.8) 7. Add a core on ground choke. (As the photo No.8) 8. Add a core on ground wire of Signal cable. (As the photo No.8) 9. Add two cores on G2 wire. (As the photo No.8) 10. Add two cores SDA/SCC wire assembly. (As the photo No.8, No.11) 11. Add two cores SDA/SCC wire assembly. (As the photo No.11) 12. Add a core on internal R.G.B. wire.. (As the photo No.8, No.11) 13. Add a core on wire from CRT neck to video cover. (As the photo No.8, No.8) Sincerely yours Douglas Yang Supervisior
