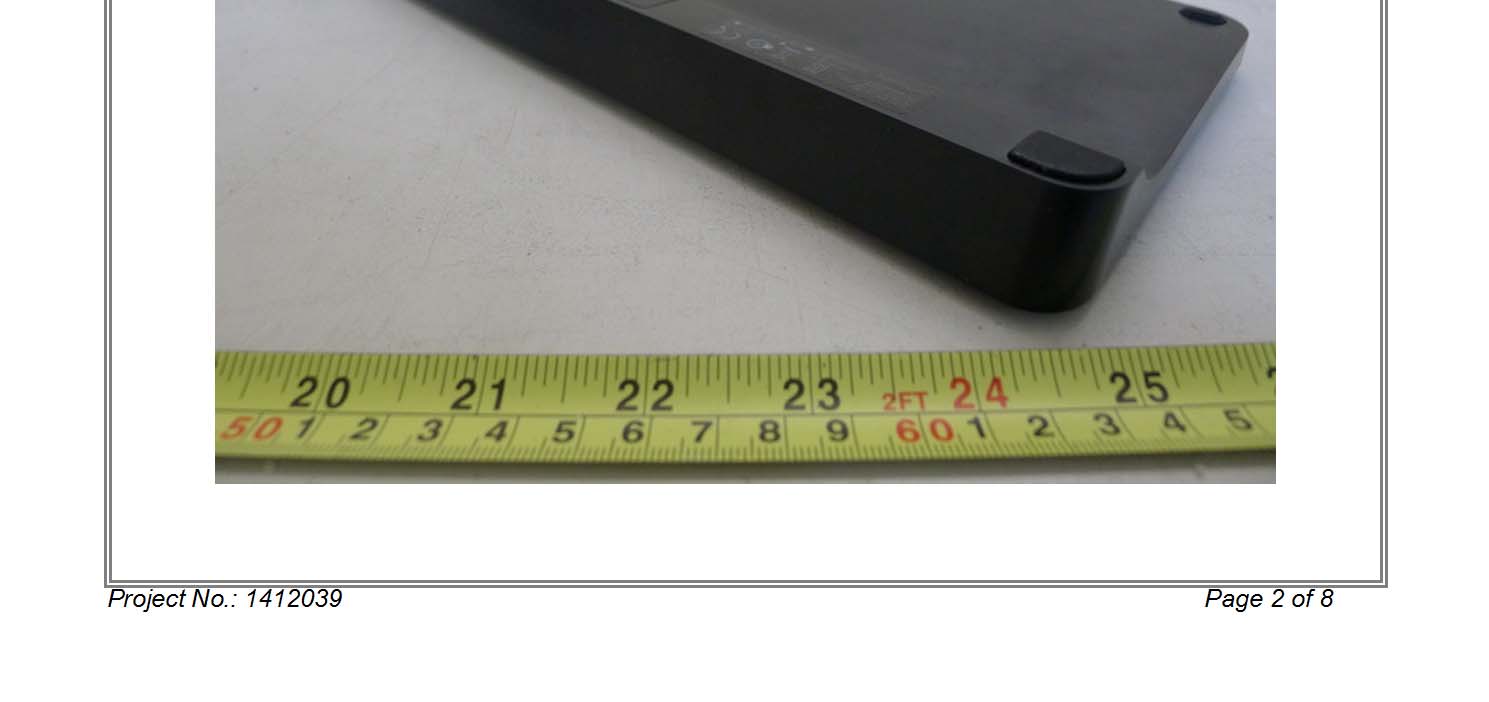

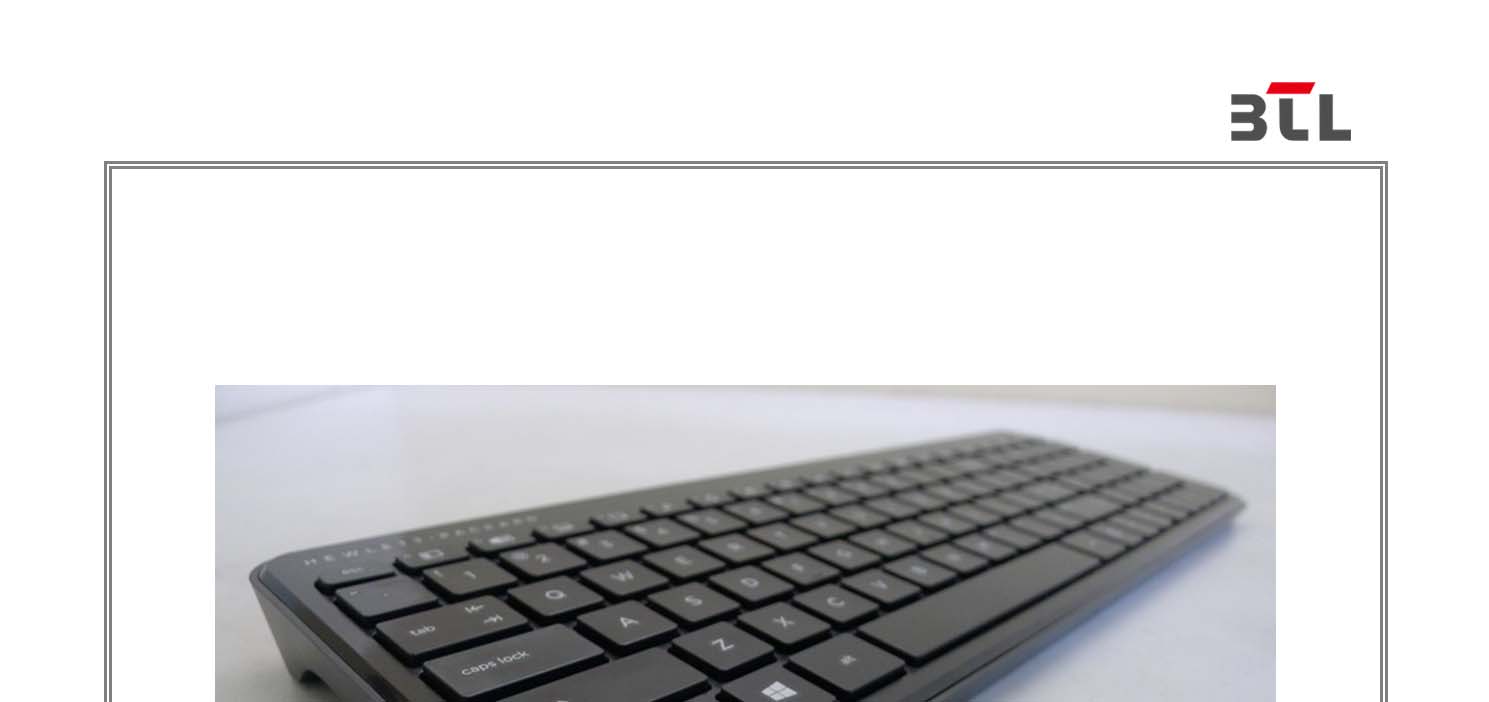

H4IKB2063Wireless Keyboard

SK-2063 Wireless Keyboard /SD-9080 USB Dongle Product Guide Getting Started Thank you for choosing this Wireless Keyboard Kit. It operates with 2.4GHz RF radio technology to ensure unhindered communication among the keyboard, the mouse and your computer without a cable connection. The transmission and reception of the keyboard and mouse are free from angle restrictions. Preparing Keyboard and Dongle Before working with your new keyboard, please look at "Hardware Installation", and take a few steps for a one-time preparation. Hardware Installation ● Place the dongle at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. ● The distance among the keyboard, mouse and receiver should not exceed 6 M long in distance. ● Do not place the receiver on any metal surfaces. Set up the keyboard Insert the battery. ● Remove the battery compartment cover at the bottom of the keyboard by pushing it in the direction of the arrow. ● Insert two AAA batteries. ● Place back the battery compartment cover . ● The system will take around 10 sec to detect your keyboard automatically CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to instructions. Refer to "Important Battery Information" for disposal instructions. Working with Keyboard The following sections contain information on using the keyboard. Keyboard ● Low battery warning Amber-colored LED on upper-right edge of keyboard will keep flashing when it operates in low power. ●The following description of keys applies for the operating systems that support these functions: (e.g. Windows Windows 7 /8 ) Windows Key Press Windows key to open Start Menu. Application Key Pressing the Application key is the same as clicking the right mouse key to open the current function menu. Mute Press this key to mute/unmute the audio. Volume Down Press this key to decrease the volume. Volume Up Press this key to increase the volume. Previous Track (Fn+F9) Multimedia key to skip to the previous track in the active player. Play/Pause (Fn+F10) Multimedia key to play or pause the track or video in the active player. Next Track(Fn+F11) Multimedia key to skip to the next track in the active player. Technical data Designation Value Modulation GFSK Operating Frequency 2403MHz~2480MHz channel 78channel 2.4GHz ISM Band Storage temperature –20 °C ... +60 °C Operating temperature 0 °C ... +40 °C Keyboard Battery type two alkaline batteries, type AAA Keyboard Supply voltage 3V(2.2~3.3V) Keyboard Current consumption max. 30 mA Dongle Supply voltage DC 5.0 V ±5 % Dongle Current consumption max..100 mA FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS. Take regular breaks and keep a good posture. Consult your physician promptly if you notice any loss of motion or pain in your wrist when using the keyboard. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery compartment. ● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). ● Always remove old, weak, or worn-out batteries promptly and recycle or properly dispose of them in accordance with local and national disposal regulations. ● If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacturer's instructions and local and national disposal regulations. Before inserting new batteries, thoroughly clean the compartment with a damp paper towel, or follow the battery manufacturer's recommendations for cleanup. If fluid from the batt…

Text truncated - open the document above for the full version.

光寶科技股份有限公司 LITE-ON TECHNOLOGY CORP. 16F, 392,Ruey Kuang Road, Neihu, Taipei 11492,Taiwan, R.O.C Tel:886-2-87982888 Fax:886-2-8793-6852 http://www.liteon.com Declaration of Authorization We Name: Lite-on Technology Corp. Address: 16F, 392, Ruey Kuang Road, Neihu, Taipei 11492, Taiwan City: Taipei Country: Taiwan Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan City: Taipei Country: Taiwan is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Wireless Keyboard Type designation: SK-2063 Trademark: HP on our behalf. 2014/12/29 Shirly Kuo / Engineer Lite-On Technology Corporation Tel: 886-2-8798-2888#3247 Fax: 886-2-8793-6852 [email protected] Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Lite-on Technology Corp. Address: 16F, 392, Ruey Kuang Road, Neihu, Taipei 11492, Taiwan City: Taipei Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: H4IKB2063 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2014-12-29 Name and signature of applicant: Shirly Kuo Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

SK2063 FCC LABEL 1 SILITEK ELECTRONICS(DONGGUAN)CO.,LTD DONGGUAN LITE-ON COMPUTER CO., LTD. FREE 3 1. Printing Color Spec : Note : 2. Material : Mylar+ label Text color JACK BLACK Label background color PMS COOL GRAY 7C barcode colorBLACK C 5.This part must comply with the latest version "HS-301" of Liteon . 3.This material must comply with UL’s recogized component program for making and labeling systems. . 4. The adhesive force: 3.5kgf min(90 OR 1.2kgf min(180 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received. Including interference that may cause undesired operation.

SK2063 FCC LABEL 2 0.1 SILITEK ELECTRONICS(DONGGUAN)CO.,LTD DONGGUAN LITE-ON COMPUTER CO., LTD. FREE 3 1. Printing Color Spec : Note : 2. Material : Mylar label Text color JACK BLACK Label background color PMS COOL GRAY 7C barcode colorBLACK C 5. This part must comply with the latest version "HS-301" of Liteon . 3.This material must comply with UL’s recogized component program for making and labeling systems. . 4. The adhesive force: 3.5kgf min(90 OR 1.2kgf min(180 E 1 4 56 1 4 C3 ( 0 1 ) 0 7 8 9 8 9 4 0 4 7 4 8 8 2 barcode

SK2063 FCC LABEL 3 0.3 SILITEK ELECTRONICS(DONGGUAN)CO.,LTD DONGGUAN LITE-ON COMPUTER CO., LTD. FREE 3 1. Printing Color Spec : Note : 2. Material : label Text color JACK BLACK Label background color PMS COOL GRAY 7C barcode colorBLACK C 5. This part must comply with the latest version "HS-301" of Liteon . 3.This material must comply with UL’s recogized component program for making and labeling systems. . 4. The adhesive force: 3.5kgf min(90 OR 1.2kgf min(180 CXXXXXXXXXXX 201-XXXXX Complies with IDA Standards XXXXXXXX TA-2015/XXX 001 Made in China (/) CXXXXXXXXXXX 201-XXXXX Complies with IDA Standards XXXXXXXX TA-2015/XXX 001 Made in China (/)

Rep ort No.: BTL-FICP-1-1412039 Page 1 of 50 FCC&IC Radio Test Report FCC ID:H4IKB2063 IC: 4491A-KB2063 This report concerns (check one):Original GrantClass II Change Project No. : 1412039 Equipment : Wireless Keyboard Model Name : SK-2063 Applicant : LITE-ON TECHNOLOGY CORP. Address For FCC : 16F, 392 , Ruey Kuang Road, Neihu, Taipei 11492, Taiwan, R.O.C Address For IC : 4F, 90, Chien 1 Rd. Chung-Ho, New Taipei City,ROC 23585, Taiwan Date of Receipt : Dec. 04, 2014 Date of Test : Dec. 04, 2014 ~ Dec. 23, 2014 Issued Date : Dec. 26, 2014 Tested by : BTL Inc. Testing Engineer : (Rush Kao) T echnical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) BTL INC. B1, No.37, Lane 365, Yang Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX: +886-2- 2657-3331 Report No.: BTL-FICP-1-1412039 Declaration BTL represents to the client that testing isdone in accordance withstandard proceduresasapplicable and that test instruments used has been calibratedwith thestandardstraceabletoNationalMeasurement Laboratory (NML) of R.O.C., or National Institute ofStandardsandTechnology ( BTL's reports apply only to the specific samplestested underconditions. Itis manufacture’s responsibility to ensure that additional production unitsofthismodelaremanufactured with th mechanical components. BTL shall have noliabilityforanydeclarations,inferencesorgeneralizations drawn by the client or others from BTL BTL’s reports must not be used by theclient toclaimproduct endorse agency of the Government. This report is the confidential propertyoftheclient.Asa mutualprotection to theclients, thepublicand BTL-self, extracts from the test report shallnot bereproduced exceptin fullwith approval. BTL’s laboratory quality assurance procedures are incompliancewith the and accredited by the conformity assessment authoritieslisted in this test report. Limitation For the use of the authority's logo is limited unless theTest Standard(s)/Scope(s)/Item(s)mentioned in this test report is (are) included in the conformity assessment authoritiesacceptancerespective. representsto theclientthat testing is done in accordance with standard procedures asapplicable and that testinstrumentsused hasbeen calibrated with the standards traceable to NationalMeasurement National Institute of Standards and Technology (NIST) of 's reportsapplyonlytothespecific samples tested under conditions. It is manufacture’s responsibility to ensurethat additionalproduction units of this model are manufactured with the identicalelectricaland shallhave no liability for any declarations, inferences orgeneralizations BTL issued reports. ’s reportsmust not beusedby the client to claim product endorsement by the authoritiesorany Thisreportis theconfidentialproperty of the client. As a mutual protection to the clients, thepublicand , extracts fromthe testreport shall not be reproduced except in full with BTL’s authorizedwritten ’s laboratoryqualityassurance procedures are in compliance with the ISO Guide17025 and accredited bythe conformity assessment authorities listed in this test report. authority'slogo islimited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test reportis (are)includedin the conformity assessment authorities acceptance respective. Page 2 of 50 representsto theclientthat testing isdone in accordance withstandard procedures as applicable and that testinstrumentsused hasbeencalibratedwith thestandardstraceabletoNational Measurement U.S.A. 's reportsapplyonlytothespecific samplestested underconditions. Itis manufacture’s responsibility e identical electrical and shallhave noliabilityforanydeclarations,inferencesor generalizations ment bythe authorities or any Thisreportis theconfidentialpropertyoftheclient.Asa mutualprotection to theclients, the public and ’s authorized written ISOGuide17025 requirements, authority'slogo islimited unless theTest Standard(s)/Scope(s)/Item(s) mentioned in this test reportis (are)includedin the conformity assessment authoritiesacceptancerespective. Report No.: BTL-FICP-1-1412039 Table of Contents 1 . CERTIFICATION 2 . SUMMARY OF TEST RESULTS 2.1 TEST FACILITY 2.2 MEASUREMENT UNCERTAINTY 3 .GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT 3.2 DESCRIPTION OF TEST MODES 3.3 BLOCKDIAGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED 3.4 DESCRIPTION OF SUPPORT UNITS 4 .EMC EMISSION TEST 4.1 CONDUCTED EMISSION MEASUREMENT 4.1.1 POWER LINE CONDUCTED EMISSION 4.1.2 TESTPROCEDURE 4.1.3 DEVIATIONFROMTESTSTA 4.1.4 TESTSETUP 4.1.5 EUT OPERATING CONDIT 4.1.6 EUT TEST CONDITIONS 4.1.7 TEST RESULTS 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 RADIATED EMISSION LI 4.2.2 TESTPROCEDURE 4.2.3 DEVIATIONFROMTESTSTANDARD 4.2.4 TESTSETUP 4.2.5 EUT OPERATING CONDITIONS 4.2.6 EUT TEST CONDITIO 4.2.7 TEST RESULTS (BETWEEN 30 4.2.8 TEST RESULTS(ABOVE1000 MHz) 5 .BANDWIDTH TEST 5.1 TEST PROCEDURE 5.2 DEVIATION FROM STANDARD 5.3 TEST SETUP 5.4 EUT OPERATION CONDITIONS 5.5 EUT TEST CONDITIONS 5.6 TEST RESULTS 6 .ANTENNA CONDUCTED SPURIOUS EMISSION 6.1 APPLIED PROCEDURES / 6.2 TEST PROCEDURE Table of Contents . SUMMARY OF TEST RESULTS 2.2 MEASUREMENT UNCERTAINTY GENERAL DESCRIPTION OF EUT DESCRIPTION OF TEST MODES GRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED DESCRIPTION OF SUPPORT UNITS CONDUCTED EMISSION MEASUREMENT NDUCTED EMISSION DEVIATIONFROMTESTSTANDARD EUT OPERATING CONDITIONS EUT TEST CONDITIONS RADIATED EMISSION MEASUREMENT RADIATED EMISSION LIMITS DEVIATIONFROMTESTSTANDARD EUT OPERATING CONDITIONS CONDITIONS 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHz) 4.2.8 TEST RESULTS(ABOVE1000 MHz) DEVIATION FROM STANDARD EUT OPERATION CONDITIONS EUT TEST CONDITIONS .ANTENNA CONDUCTED SPURIOUS EMISSION APPLIED PROCEDURES / LIMIT Page 3 of 50 Page 6 7 8 8 9 9 11 GRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED 12 12 13 13 13 13 13 14 14 14 14 15 15 16 16 17 18 18 18 19 20 20 20 20 20 20 20 21 21 21 Report No.: BTL-FICP-1-1412039 Tableof Contents 6.3 DEVIATION FROM STANDARD 6.4 TEST SETUP 6.5EUT OPERATION CONDITIONS 6.6 EUT TEST CONDITIONS …

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1412039 8.EUT TEST PHOTO Radiated Measurement Photos Radiated Measurement Photos 9KHz to 30MHz Page 24 of 50 Report No.: BTL-FICP-1-1412039 Radiated Measurement Photos Radiated Measurement Photos 30MHz to 1000MHz Page 25 of 50 Report No.: BTL-FICP-1-1412039 Radiated Measurement Photos Radiated Measurement Photos Above 1000MHz Page 26 of 50
