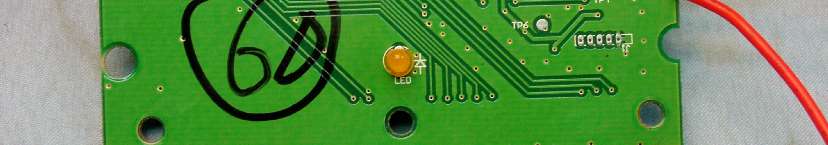

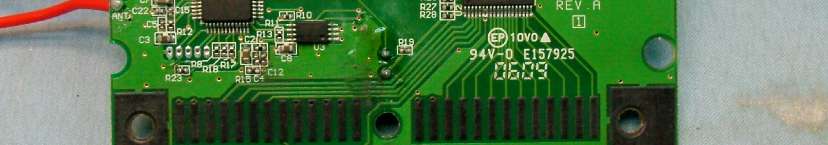

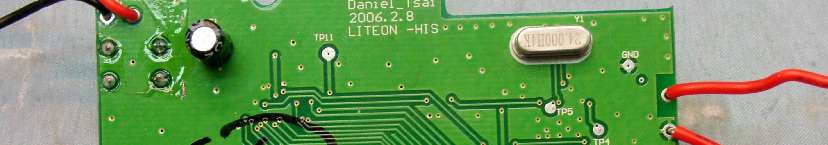

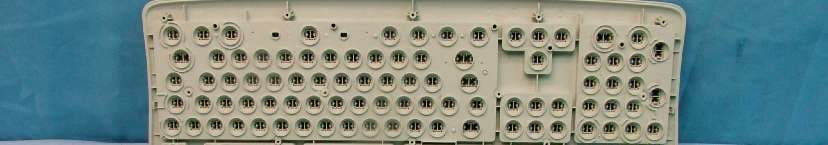

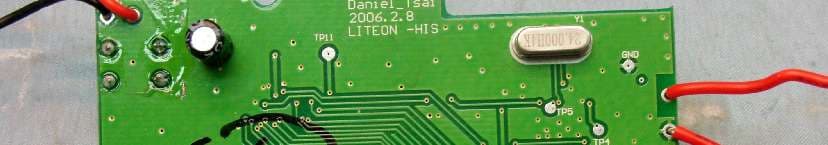

H4IKB27RF004Wireless Keyboard

LiteON Technology 1 4 User’s Manual Product Name: Wireless Keyboard Model NO.: SK-7361 (27 MHZ Multi-Channel ) Issue Date: Apr-20- 2006 LiteON Technology 2 4 Table of Contents 1. Product brief descreption..............................................................................................................2 2 Hot key function of keyboard...............................................................................................3 3. USB connector of receiver...................................................................................................3 1. Product brief descreption This is product user’s manual of SK-7361 wireless keyboard and receiver. It is a multi-channels radio (27 MHZ), supports 11 optional channels. Keyboard function includes standard keyboard function and WIN2000 hot key function. Receiver supports the function of receiving from keyboard. It is a USB receiver to be used as a communication bridge between PC computer and cordless device. Product Outline of SK-7361keyboard / Receiver Keyboard: Receiver: LiteON Technology 3 4 *Keyboard: Operation Voltage: Voltage supplied to device: 3 VDC (AA battery *2) *Receiver: Operation Voltage: USB bus power +5Vdc 2 Hot key function of keyboard This product offer hot key function of WIN2000. 3. USB connector of receiver The USB interface meets the USB version 1.1specification. 4 Operation The product needs to make pairing with USB receiver before normal application. In general we can use the product directly by the user because the pairing process has been done at manufacturer site. However, the pairing process needs to be done if there is no response from mouse. * How to make pairing (step by step as below process) by user: 1. Firstly, press the connect button on receiver for more than 0.5s then release. The LED indictor will be on and flashing with correct procedure. It is a normal status while waiting for pairing. 2. Secondly, press the connect button on another remote device and release button. 3. Thirdly, check the LED status of the receiver. It should flash quickly and then turn off. Its means the pairing process have completely done. 4. In order to ensure the pairing work, we need to hit the left/right button or moving mouse to see the response. The LED on the receiver will on when its receive data from remote device.. * Check the batteries installation, life power and orientation in device if pairing was unsuccessfully. Repeats pairing process step 1~4 after verify the battery set. 5 Radio parameter *Table-1 Parameter of radio part Item/ ParameterPerformance Field operation distance2.5m for keyboard Modulation Scheme GFSK LiteON Technology 4 4 Channel11 channels (Maximum) RF channel: – 11 channels (programmable) 26.995, 27.020, 27.045, 27.070 27.095, 27.120, 27.145, 27.170 27.195, 27.225, 27.255 (MHZ) Antenna Type A single wire loop ,put in keyboard inside, along with side edge of enclosure. Keyboard’s FCC- ID H4IKB27RF004 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

From: [email protected] [mailto:[email protected]] Sent: Thursday, June 08, 2006 2:37 AM To: steve.cheng Subject: Re : TCB Review Comments for (C06-0607a- H4IKB27RF004- Lite On 27MKeyboard) Dear Steve: I had upload the modified documents to server. Please find them. Thank you. About the question 2, I upload two bandege plots to server for keyboard and mouse. And the question 1, do you mean the 2th drawing on page 4 in the user's manual? That is receiver. The client was added a note on page 4 in user's manual as follows: Best Regards, Annie Chang (張嘉宴) LinKou Documentation & Certification Dept. of ADT Corp. web site: www.adt.com.tw E-mail: [email protected] tel: 886-2-26052180 Ext. 1176 fax: 886-2-26051924 "steve.cheng" <[email protected]> 2006/06/08 上午 03:03 收件人 [email protected] 副本抄 送 主旨 TCB Review Comments for (C06-0607a- H4IKB27RF004- Lite On 27M Keyboard) TCB Review Comments for (C06-0607a- H4IKB27RF004- Lite On 27M Keyboard) -EMC- Question #1: User manual show a USB cable connected to the keyboard, please explain what is this cable for? Will this cable be connecting to PC? If yes, than this device will be considered as a PC peripheral too and its Part 15B portion needs to have DoC or Certification too. Question #2: Band edge test did not be conducted in a correct way. Please retest the transmitter with channel set to lowest channel for low band edge and channel set to highest channel for high band edge. Thanks. Best regards, Steve Cheng Curtis-Straus LLC Email: [email protected]

Page 2

FCC ID: H4IKB27RF004 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

MARK ISSUE DATE REVER , SPH-R&D-1002S-02A MADE IN CHINA VOLTS:3V AMPS:35mA Model:SK-7361 Warning: Improper Or Prolonged Keyboard Use May Result In Injury The Windows logo is a registered trademark of Microsoft Corporation. This device complies with Canada ICES-003, Class B S/N: P/N: 75.6+/-0.1mm 4 9 . 6 + / - 0 . 1 m m £ ̈T=0.2mm£© FCC ID:H4IKB27RF004 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interferen- ce received, including interference that may cause undesired operation. Note: a. Size: (75.6+/-0.10mm)*(49.6+/-0.10mm) b. Material: Paper; Thickness: 0.08mm c. Color: Black font with Silitek colorbackground d. All mark shall high than 5mm e. Part number:836-01556-00A R1.80+/-0.1mm

Page 3 Page 4 Page 5

Report No.: RF950418A061Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950418A06 MODEL NO.: SK-7361 RECEIVED: Apr. 18, 2006 TESTED: May 8, 2006 ISSUED: May 11, 2006 APPLICANT: Lite-On Technology Corporation ADDRESS: 90,Chien I Road, Chung Ho, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 17 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950418A062Report Format Version 2.0.5 Table of Contents 1CERTIFICATION.............................................................................................3 2SUMMARY OF TEST RESULTS.....................................................................4 2.1MEASUREMENT UNCERTAINTY..................................................................4 3GENERAL INFORMATION.............................................................................5 3.1GENERAL DESCRIPTION OF EUT................................................................5 3.1DESCRIPTION OF TEST MODES..................................................................6 3.2CONFIGURATION OF SYSTEM UNDER TEST.............................................6 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................8 3.4DESCRIPTION OF SUPPORT UNITS............................................................8 4TEST PROCEDURE AND RESULT................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..................................................9 4.2RADIATED EMISSION MEASUREMENT.......................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................9 4.2.2TEST INSTRUMENT.....................................................................................10 4.2.3TEST PROCEDURE......................................................................................11 4.2.4TEST SETUP................................................................................................12 4.2.5EUT OPERATING CONDITION....................................................................12 4.2.6TEST RESULT..............................................................................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION....................................15 6INFORMATION ON THE TESTING LABORATORIES..................................16 APPENDIX-A....................................................................................................A-1 Report No.: RF950418A063Report Format Version 2.0.5 1 CERTIFICATION PRODUCT: Wireless Keyboard BRAND NAME: LITEON MODEL NO.: SK-7361 APPLICANT: Lite-On Technology Corporation TEST SAMPLE: ENGINEERING SAMPLE TESTED: May 8, 2006 STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4 -2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:May 11, 2006 ( Jessica Cheng ) TECHNICAL ACCEPTANCE:, DATE:May 11, 2006 Responsible for RF ( Ken Liu ) APPROVED BY:, DATE:May 11, 2006 ( Gary Chang / Supervisor ) Report No.: RF950418A064Report Format Version 2.0.5 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3Vdc from battery 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –8.16dB at 301.60MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MeasurementFrequencyUncertainty 30MHz ~ 200MHz3.59 dB 200MHz ~1000MHz3.61 dB 1GHz ~ 18GHz2.26 dB Radiated emissions 18GHz ~ 40GHz1.94 dB Report No.: RF950418A065Report Format Version 2.0.5 3 GENERAL INFORMATION 3.1GENERAL DESCRIPTION OF EUT PRODUCT Wireless Keyboard MODEL NO. SK-7361 FCC ID H4IKB27RF004 POWER SUPPLY 3Vdc from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 26.995, 27.020, 27.045, 27.070, 27.095, 27.120, 27.145, 27.170, 27.195, 27.225, 27.255MHz NUMBER OF CHANNEL 11 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is a Wireless Keyboard, which is a transmitter. 2. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. Report No.: RF950418A066Report Format Version 2.0.5 3.1 DESCRIPTION OF TEST MODES Eleven channels were provided to this EUT. Channel Frequency (MHz) 126.995 MHz 227.020 MHz 327.045 MHz 427.070 MHz 527.095 MHz 627.120 MHz 727.145 MHz 827.170 MHz 927.195 MHz 1027.225 MHz 1127.255 MHz Note: The channel 6 (27.120MHz) was chosen for final test. 3.2 CONFIGURATION OF SYSTEM UNDER TEST Test Table (Powered from batteries) (EUT) Wireless Keyboard Report No.: RF950418A067Report Format Version 2.0.5 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL Applicable to EUT configure mode PLCRE<1G Description -Note√N/A Where PLC: Power Line Conducted EmissionRE<1G RE: Radiated Emission below 1GHz N…

Text truncated - open the document above for the full version.

Report No.: RF950418A0615Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
