H4IKB8861Wireless Keyboard

User’s Manual SK-8861 Wireless Keyboard /SD-9082 USB Dongle Product Guide Getting Started Thank you for choosing this Wireless Keyboard Kit. It operates with 2.4GHz RF radio technology to ensure unhindered communication among the keyboard, the mouse and your computer without a cable connection. The transmission and reception of the keyboard and mouse are free from angle restrictions. Preparing Keyboard and Dongle Before working with your new keyboard, please look at "Hardware Installation", and take a few steps for a one-time preparation. Hardware Installation ● Place the dongle at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. ● The distance among the keyboard, mouse and receiver should not exceed 6 M long in distance. ● Do not place the receiver on any metal surfaces. Set up the keyboard Insert the battery. ● Remove the battery compartment cover at the bottom of the keyboard by pushing it in the direction of the arrow. ● Insert two AAA batteries. ● Place back the battery compartment cover . ● The system will take around 10 sec to detect your keyboard automatically CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to instructions. Refer to "Important Battery Information" for disposal instructions. Working with Keyboard The following sections contain information on using the keyboard. Keyboard ● Re-install battery indicator One amber-colored LED on upper-right edge of keyboard will keep lit up for 5 seconds when you re-install a new battery to the keyboard. ● Low battery warning Amber-colored LED on upper-right edge of keyboard will keep flashing when it operates in low power. ●The following description of keys applies for the operating systems that support these functions: (e.g. Windows 2000/XP/Vista/Windows 7) Windows Key Press Windows key to open Start Menu. Application Key Pressing the Application key is the same as clicking the right mouse key to open the current function menu. Internet (Fn+F1) You can start the standard browser for your system with this key. Mute Press this key to mute/unmute the audio. Volume Down Press this key to decrease the volume. Volume Up Press this key to increase the volume. Previous Track (Fn+F7) Multimedia key to skip to the previous track in the active player. Stop (Fn+F6) Multimedia key to stop the track or video in the active player. Play/Pause (Fn+F5) Multimedia key to play or pause the track or video in the active player. Next Track(Fn+F8) Multimedia key to skip to the next track in the active player. User’s Manual -2- Technical data Designation Value Modulation GFSK Operating Frequency 2403MHz~2480MHz channel 78channel 2.4GHz ISM Band Storage temperature –20 °C ... +60 °C Operating temperature 0 °C ... +40 °C Keyboard Battery type two alkaline batteries, type AAA Keyboard Supply voltage 3V(2.2~3.3V) Keyboard Current consumption max. 50 mA Dongle Supply voltage DC 5.0 V ±5 % Dongle Current consumption max..100 mA FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. WARNING: Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS. Take regular breaks and keep a good posture. Consult your physician promptly if you notice any loss of motion or pain in your wrist when using the keyboard. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery compartment. ● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). ● Always remove old, weak, or worn-out batteries promptly and recycle or properly dispose of them in accordance with local and national disposal regulations. ● If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacturer's instructions and local and national disposal regulations. Before inserting new batteries, thoroughly clean the compartment with a damp paper towel, or follow the battery…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: H4IKB8861 DATE:1-Dec-11 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Thank you! Sincerely yours, Shirly Kuo / Engineer Lite-On Technology Corporation Tel: 886-2-2222-6181#6115 Fax: 886-2- 2223-1519 [email protected] Lite-On Technology Corporation 90,Chien I Road, Chung Ho, Taipei Hsien, Taiwan, R.O.C. TEL: 02- 22226181 FAX: 02- 22231519

Power of Attorney To whom it may concern: We, the undersigned, Lite-On Technology Corporation, hereby authorize Bureau Veritas Consumer Products Services(H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. Product Name Model FCC ID Wireless Keyboard SK-8861 H4IKB8861 Wireless Mouse SM-8861 H4IMS8861 Dongle SD-9082 H4IDG9082 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Shirly Kuo / Engineer Lite-On Technology Corporation Tel: 886-2-2222-6181#6115 Fax: 886-2- 22231519 [email protected] Lite-On Technology Corporation 90,Chien I Road, Chung Ho, Taipei Hsien, Taiwan, R.O.C. TEL: 02- 22226181 FAX: 02- 22231519

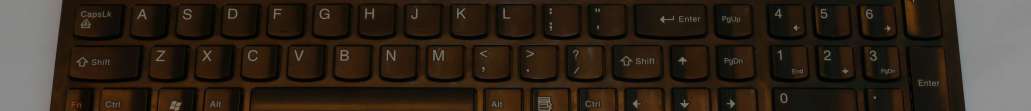

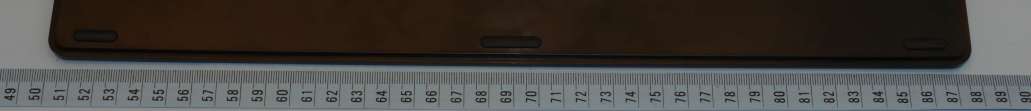

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

SK8861 Label 1. Printing Color Spec : Note : 2. Material : P.P Synthetic paper This part must comply with the latest version "HS-301" of Liteon . 3. Label background colorBlack C Label text color and logo color PID and barcode colorBlack C XXXX-XX-XXXX 해당 무선설비는 운용 중 전파혼신 가능성이 있음 This device complies with part 15 of the FCC rules.Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received. Including interference that may cause undersired operation. SK-8861 型号 额定 中国制造 8861 8861 CNC: XX-XXXX SCT: XXXXXXXXX-XXXX CMIIT ID: XXXXXXXXXX XXXXX XXXXXXXX TA-XXXX/XXX xxxxxxxxxxxxxx N14939 DBXXXXXX XXXXX/POSTEL/XXXX 2141 KCC-REM-PPQ-SK-8861 联想（北京）有限公司 C3

Page 2 Page 3 Page 4 Page 5

FCC ID: H4IKB8861 Report No.: RF111118D20 Operational Description The transmitter of the EUT (Wireless Keyboard) is powered by 3Vdc from batteries. The type of antenna is Printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF111118D20 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF111118D20 MODEL NO.: SK-8861 FCC ID: H4IKB8861 RECEIVED: Nov. 18, 2011 TESTED: Nov. 22 ~ 23, 2011 ISSUED: Nov. 30, 2011 APPLICANT: Lite-On Technology Corporation ADDRESS: 90,Chien I Road, Chung Ho, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF111118D20 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY...............................................................5 3. GENERAL INFORMATION...........................................................................6 3.1 GENERAL DESCRIPTION OF EUT............................................................6 3.2 DESCRIPTION OF TEST MODES..............................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................9 3.4 DESCRIPTION OF SUPPORT UNITS........................................................9 4. TEST TYPES AND RESULTS.....................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT............................................10 4.2 RADIATED EMISSION MEASUREMENT.................................................10 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................10 4.2.2 TEST INSTRUMENTS..............................................................................11 4.2.3 TEST PROCEDURES...............................................................................12 4.2.4 DEVIATION FROM TEST STANDARD.....................................................12 4.2.5 TEST SETUP............................................................................................13 4.2.6 EUT OPERATING CONDITIONS..............................................................13 4.2.7 TEST RESULTS........................................................................................14 4.3 BAND EDGES MEASUREMENT..............................................................19 4.3.1 LIMITS OF BAND EDGES MEASUREMENT............................................19 4.3.2 TEST INSTRUMENTS..............................................................................19 4.3.3 TEST PROCEDURE.................................................................................19 4.3.4 DEVIATION FROM TEST STANDARD.....................................................19 4.3.5 EUT OPERATING CONDITION................................................................19 4.3.6 TEST RESULTS........................................................................................19 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................22 6. INFORMATION ON THE TESTING LABORATORIES................................23 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.......................................................24 Report No.: RF111118D20 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF111118D20 Original release Nov. 30, 2011 Report No.: RF111118D20 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: Wireless Keyboard BRAND NAME: lenovo MODEL NO.: SK-8861 APPLICANT: Lite-On Technology Corporation TESTED: Nov. 22 ~ 23, 2011 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: ( Annie Chang / Senior Specialist ) APPROVED BY : , DATE: ( Ken Liu / Manager ) Report No.: RF111118D20 5 Report Format Version 4.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD SECTION TEST TYPE AND LIMIT RESULT REMARK 15.207 Conducted Emission Test N/A Power supply is 3Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 12.209 PASS Minimum passing margin is –9.9dB at 2390.00MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement Frequency Uncertainty 30MHz ~ 1GHz 3.87 dB Radiated emissions Above 1GHz 3.36 dB Report No.: RF111118D20 6 Report Format Version 4.0.0 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT EUT Wireless Keyboard MODEL NO. SK-8861 FCC ID H4IKB8861 POWER SUPPLY 3Vdc…

Text truncated - open the document above for the full version.

Report No.: RF111118D20 1 Report Format Version 4.0.0 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
