H4IMS2064Wireless Mouse

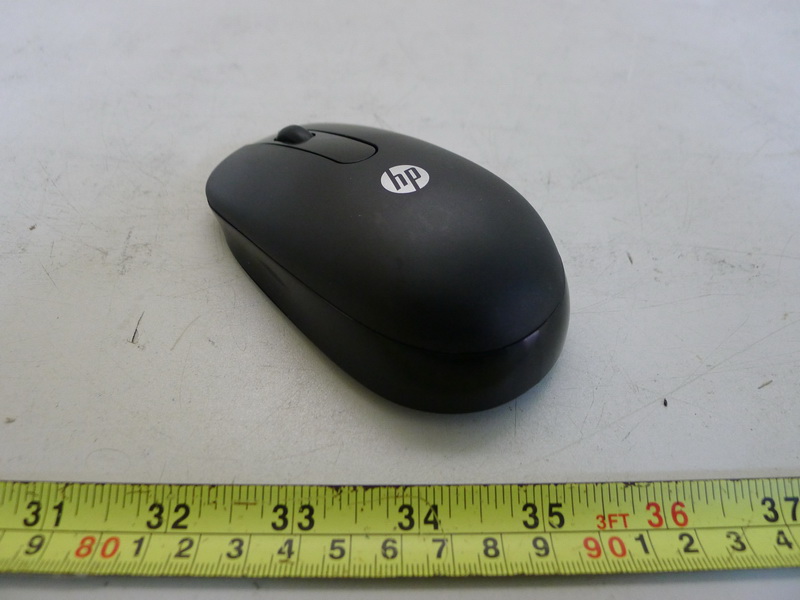

SM-2064 Wireless Mouse /SD-2060 USB Dongle Product Guide Getting Started Thank you for choosing this 2.4G Wireless Mouse Kits. It operates with digital radio technology to ensure no hinder communication between the mouse and your computer without connecting cable. The transmission and receiving of mouse are free from angle restriction. Preparing mouse and Dongle Before working with your new mouse, look at the "Hardware Installation", and take a few one-time preparations. Hardware Installation ● Place the receiver at least 20 cm from other electrical devices (e.g. monitor) to achieve optimum performance. ● The distance between the mouse and receiver should not exceed 10 M. ● Do not place the receiver on metal surfaces. ● Do not move optical mouse on following surface - Glass or any transparent materials; Mirror or reflecting surface; Mouse pad with too many colors; Rough surface. Step 1: Connect the Receiver ● Plug the receiver connector into an USB port. ● SYSTEM will take around 10 sec to find your keyboard and mouse automatically. Step 2: Insert batteries Inserting batteries in mouse The mouse requires two alkaline AA battery. ● Open the battery compartment cover on the bottom of the mouse. ● First push the battery puller in then insert two AA battery into battery compartment. ● Fix the battery compartment cover on the bottom of mouse again. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Use and replace only with correct size and type (alkaline or zinc-carbon)of battery. Working mouse Receiver and mouse electrical specification Iin addition to two buttons, the mouse also has a wheel that can be used as follows: ● As a 3rd button: press on the wheel. ● For scrolling, e.g. in documents or on Internet pages: turn the wheel forward or back. The Receiver will have one main function: translate radio communications from the mouse to the PC via USB Full Speed USB Specification Compliance., meets Universal Serial Bus Specification version 2.0. Support USB Suspend Mode. Designation Value Modulation GFSK Operating Frequency 2403MHz~2480MHz channel 78 channel 2.4GHz ISM Band Storage temperature –20 °C ... +60 °C Operating temperature 0 °C ... +40 °C Mouse Battery type Two alkaline battery, type AA Mouse Supply voltage 1.5V(1.1~1.65V) Mouse Current consumption max. 30 mA Receiver Supply voltage DC 5.0 V ±5 % Receiver Current consumption max..100 mA FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CANADA COMPLIANCE STATEMENT This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IMPORTANT BATTERY INFORMATION ● Keep batteries out of reach of children. ● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery compartment. ● Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries). ● Always remove old, weak, or worn-out batteries promptly and recycle or proper disposal of them in accordance with Local and National Disposal Regulations. ● If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacture's instructions and Local and National Disposal Regulations. Before inserting new batteries, thoroughly clean the compartment with a damp paper towel, or follow the battery manufacture's recommendations for clean…

Text truncated - open the document above for the full version.

光寶科技股份有限公司 LITE-ON TECHNOLOGY CORP. 16F, 392,Ruey Kuang Road, Neihu, Taipei 11492,Taiwan, R.O.C Tel:886-2-87982888 Fax:886-2-8793-6852 http://www.liteon.com Declaration of Authorization We Name: Lite-on Technology Corp. Address: 16F,392,Ruey Kuang Road,Neihu,Taipei 11492,Taiwan, R.O.C City: Taipei State : N/A Country: Taiwan Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan City: Taipei Country: Taiwan is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Wireless Mouse Type designation: SM-2064 Trademark: hp on our behalf. 2015/06/18 Shirly Kuo / Engineer Lite-On Technology Corporation Tel: 886-2-8798-2888#3247 Fax: 886-2-8793-6852 [email protected] Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Lite-on Technology Corp. Address: 16F,392,Ruey Kuang Road,Neihu,Taipei 11492,Taiwan, R.O.C City: Taipei Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: H4IMS2064 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015-06-18 Name and signature of applicant: Shirly Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Project No.: 1505269 Page 2 of 5

1 2 3 4 1 2 3 A B C D E F A B C D E SCALE: UNIT: DRAWN: DESIGNER: CHECKED: APPROVED: PAGE: DRAWING NO.: TITLE: R SILITEK ELECTRONICS(DONGGUAN)CO.,LTD DONGGUAN LITE-ON COMPUTER CO., LTD. mm SPH-R&D-3001S-04B SHEETA4VER.:0.1 MARKISSUEDATEVER.DCN NO. 1:1 TOLERANCE UNSPECIFIED: .XXX 0.05 .XX 0.10 .X 0.15 . 0.25 ANGLE 0.5 1 of 1 PART NODESCRIPTIONQ'TYMAT'LCOLORREMARK FCC Label SM 2064 XXXXXXXXXXXXXX 201-XXXXXX 해당무선설비는운용중전파혼선가능성이있음 Complies with IDA Standards DB100427 XXXXX/SDPPI/2015 XXXX 001 “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de es tações do mesmo po, e não pode causar interferência a This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received. Including interference that may cause undesired operation. COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE NO. 50, DATED JUNE 24, 2007. Note: 1.Material is:PP( 2.Background color:black 3.Lettering color:Panton 429C 4.The part is according to the latest version HS-301 of LITEON. 5.Unit:mm 6.Tolerance:+/-0.2mm 7.The adhesive force:3.5kgf min(90)or 1.2kgf min(180 8. Rolling style: the letter is positive when pick up the label. 49.0 07 mm 23.16 mm 23 . 30 mm 23 30 mm 50.44 mm

Project No.: 1505269 Page 3 of 5 Project No.: 1505269 Page 4 of 5 Project No.: 1505269 Page 5 of 5

FCC RF EXPOSURE REPORT FCC ID: H4IMS2064 Project No. : 1505269 Equipment : Wireless Mouse Model : SM-2064 Applicant : Lite-on Technology Corp. Address : 16F, 392, Ruey Kuang Road, Neihu, Taipei 11492, Taiwan, R.O.C According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 N/A N/A printed N/A 0.94 GENERAL CONCULUSION: Maximum measured transmitter power: Field Strength (dBm) Output Power (mW) Limit (mW) 4.22 2.64 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 2.64mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FCCP-1-1505269 Page 1 of 52 FCC Radio Test Report FCC ID:H4IMS2064 This report concerns (check one): Original Grant Class II Change Project No. : 1505269 Equipment : Wireless Mouse Model Name : SM-2064 Applicant : LITE-ON TECHNOLOGY CORP. Address : 16F, 392 , Ruey Kuang Road, Neihu, Taipei 11492, Taiwan, R.O.C Date of Receipt : May 29, 2015 Date of Test : May 29, 2015 ~ Jun. 11, 2015 Issued Date : Jun. 12, 2015 Tested by : BTL Inc. Testing Engineer : (Rush Kao) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) BTL INC. B1, No.37, Lane 365, Yang Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX: +886-2- 2657-3331 Report No.: BTL-FCCP-1-1505269 Page 2 of 52 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement b y NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1505269 Page 3 of 52 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 .GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.4 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION 13 4.1.2 TEST PROCEDURE 13 4.1.3 DEVIATION FROM TEST STANDARD 13 4.1.4 TEST SETUP 14 4.1.5 EUT OPERATING CONDITIONS 14 4.1.6 EUT TEST CONDITIONS 14 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 RADIATED EMISSION LIMITS 15 4.2.2 TESTPROCEDURE 16 4.2.3 DEVIATION FROM TEST STANDARD 16 4.2.4 TESTSETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ 30MHZ) 18 4.2.8 TEST RESULTS (30MHZ to 1000 MHZ) 18 4.2.9 TEST RESULTS (ABOVE1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 TEST PROCEDURE 20 5.2 DEVIATION FROM STANDARD 20 5.3 TEST SETUP 20 5.4 EUT OPERATION CONDITIONS 20 5.5 EUT TEST CONDITIONS 20 5.6 TEST RESULTS 20 6 . ANTENNA CONDUCTED SPURIOUS EMISSION 21 6.1 APPLIED PROCEDURES / LIMIT 21 Report No.: BTL-FCCP-1-1505269 Page 4 of 52 Table of Contents Page 6.2 TEST PROCEDURE 21 6.3 DEVIATION FROM STANDARD 21 6.4 TEST SETUP 21 6.5 EUT OPERATION CONDITIONS 22 6.6 EUT TEST CONDITIONS 22 6.7 TEST RESULTS 22 7 . MEASUREMENT INSTRUMENTS LIST AND SETTING 23 8 .EUT TEST PHOTO 24 ATTACHMENT A - CONDUCTED EMISSION 27 ATTACHMENT B -RADIATED EMISSION (9KHZ to 30MHZ) 28 ATTACHMENT C -RADIATED EMISSION (30MHZ TO 1000MHZ) 30 ATTACHMENT D -RADIATED EMISSION (ABOVE 1000MHZ) 33 ATTACHMENT E - BANDWIDTH 46 ATTACHMENT F - ANTENNA CONDUCTED SPURIOUS EMISSION 49 Report No.: BTL-FCCP-1-1505269 Page 5 of 52 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1505269 Original Issue. Jun. 12, 2015 Report No.: BTL-FCCP-1-1505269 Page 6 of 52 1. CERTIFICATION Equipment : Wireless Mouse Brand Name : hp Model Name : SM-2064 Applicant : LITE-ON TECHNOLOGY CORP. Date of Test : May 29, 2015 ~ Jun. 11, 2015 Test Sample : Engineering Sample Standard(s) : FCC Part15, Subpart C :2014 (15.249)/ ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1505269) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1505269 Page 7 of 52 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark FCC 15.207(a) Conducted Emission N/A 15.205 Restricted Band of Operation PASS 15.209 15.249(a) Radiated Emissions PASS 15.215(c) 20dB Bandwidth Test PASS NOTE: (1)”N/A” denotes test is not applicable to this device. Report No.: BTL-FCCP-1-1505269 Page 8 of 52 2.1 TEST FACILITY Radiated emission Test (Below 1 GHz): CB08: (FCC RN: 614388; FCC DN: TW1054; IC Assigned Code: 4428C-1) 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Radiated emission Test (Above 1 GHz): CB08: (FCC RN: 614388; FCC DN: TW1054; IC Assigned Code: 4428C-1) 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) BTL's test firm number for FCC: 319330 2.2 MEASUREMENT UNCERTAINTY The measurement uncertainty is not specified by FCC rules and for reference only. The reported uncertainty of measurement y ± U, where expanded uncertainty U is based on a standard uncertainty multiplied by a coverage fac…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1505269 Page 24 of 52 8.EUT TEST PHOTO Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1505269 Page 25 of 52 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1505269 Page 26 of 52 Radiated Measurement Photos Above 1000MHz
